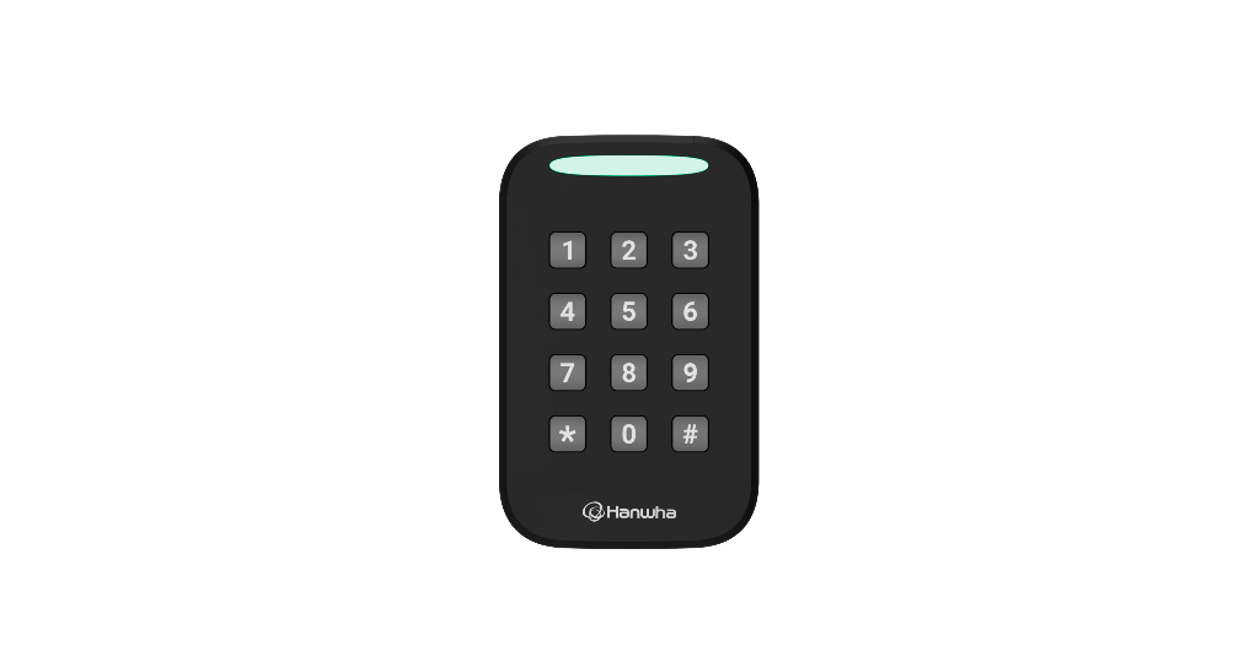

Hanwha - NOD-AX25S - Multi-technology single gang keypad reader, 13.56 MHz (NFC), 125 kHz (PROX), Bluetooth BLE 5.3, Auto-Detect for Wiegand or OSDP infrastructures, Remote firmware upgrade support for radio enable/disable and control sequencing, Sup

Name: Hanwha - NOD-AX25S - Multi-technology single gang keypad reader, 13.56 MHz (NFC), 125 kHz (PROX), Bluetooth BLE 5.3, Auto-Detect for Wiegand or OSDP infrastructures, Remote firmware upgrade support for radio enable/disable and control sequencing, Sup
Brand: Hanwha Vision
SKU: NOD-AX25S
Price: 798.66 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: NOD-AX25S

$798.66

~~$1,056.00~~

Description
Specifications
Downloads
Reviews

• 13.56 MHz (NFC), 125 kHz (PROX), Bluetooth BLE 5.3
• Auto-detect for Wiegand or OSDP infrastructures
• Remote firmware upgrade support for radio enable/disable and control sequencing
• Supports all Ethos-supported credentials (NFC, PROX, Bluetooth)
• 10-key mechanical keypad
• Accelerometer-based tamper detection
• Typical read range: 2 inches
• EAL6+ Secure Element
• IP65 or better
• Power: 5–24 VDC
• Current draw: 500 mA @ 12 VDC
• Dimensions: 5.25"L x 3.29"W x 0.93"T (133.4 mm x 83.6 mm x 23.5 mm)
• Regulatory compliance: FCC, IC, CE, UL294, OSDP Verified V2.2
• Plastics: UL94-V0, UL746C-F1 for UV/water resistance
• Lifetime warranty
• Made in USA

Colors	Black
Current	500ma @ 12VDC
Voltage	5 - 24 VDC
Temp Range	-35 to 66°C and EN-40 to 70°C and 95% humidity
Typical Read Range	2"
Dimensions	5.25"L x 3.29"W x 0.93"T (133.4L x 83.6mmW x 23.5mmT)
Country of Origin	USA
Warranty	Lifetime
Security Rating	EAL6+ Secure Element
Regulatory Compliance	FCC and IC Certified CE DoC with EN 62368-1:2014 and related EMC/Spectrum tests UL294 OSDP Verified to V2.2IP65 or better Plastics: UL94-V0, UL746C-F1 for UV/water resistance

NOD-AX25S_Datasheet_EN_2f729ba4-fd41-470d-a453-e856ec6e944e.pdf:

NOD-AX25S_Submittal-Sheet_v2_c4f84009-9222-432c-ae03-74e72cb31b29.pdf:

WaveLynx_Manual-1_2_ccaae0d6-42f1-4616-8730-24ed6e771d9c.pdf:
