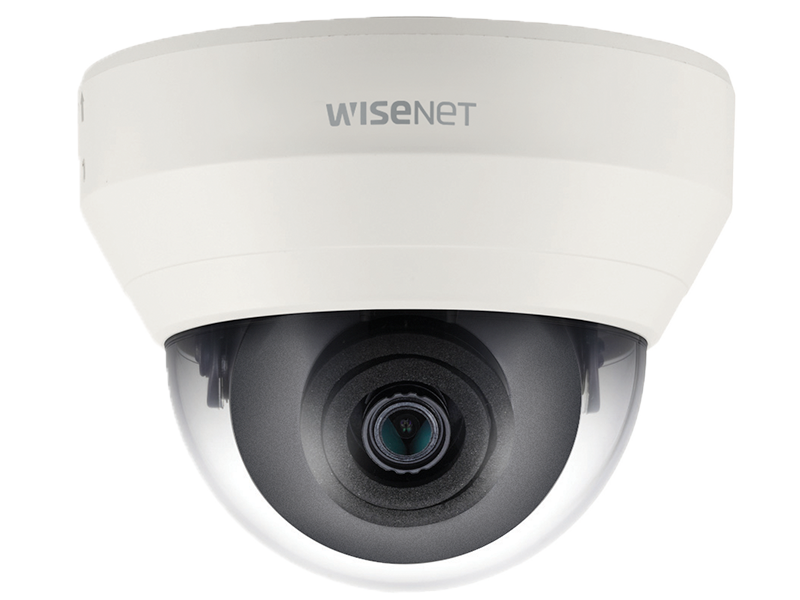

SCD-6013

Model

SCD-6013

Video

Imaging Device

1/3" 2M CMOS

Total Pixels

1,956(H) x 1,266(V) 2.47M pixels

Effective Pixels

1,944(H) x 1,092(V) 2.12M pixels

Scanning System

Progressive scan

Min. Illumination

Color : 0.1Lux (F1.2)

B/W : 0.01Lux (F1.2)

S / N Ratio

52dB (AGC off, Weight on)

Video Output

BNC (AHD, CVBS selectable)

Resolution

1920 x 1080

Max. Framerate

30fps@1080p, 30fps@720p

Lens

Focal Length (Zoom Ratio)

2.8mm fixed

Max. Aperture Ratio

F1.8

Angular Field of View

H : 108.7˚ / V : 60.6˚ / D : 125.4˚

Min. Object Distance

0.2m (0.66ft)

Focus Control

Manual

Lens Type

Fixed

Mount Type

Board-in type

Pan / Tilt / RotATe

Pan / Tilt / Rotate Range

0° ~ 350° / 0° ~ 67° / 0° ~ 355°

Operational

On Screen Display

Multi-language Support (16)

English, Japanese, Spanish, French, Portuguese, Korean, German, Italian,

Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish

Camera Title

Off / On (Displayed 15 characters)

Day & Night

Auto (ICR) / Color / B/W

Backlight Compensation

Off / User BLC / HLC

Wide Dynamic Range

DWDR

Digital Noise Reduction

SSNRIV (Off / On)

Defog

Off / Auto / Manual

Motion Detection

Off / On (4 zones)

Privacy Masking

Off / On (4 zones rectangle)

Gain Control

Off / Low / Middle / High / Very High

White Balance

ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°)

Electronic Shutter Speed

1sec ~ 1/12,000sec

Reverse

Off / H-Rev / V-Rev / HV-Rev

Profile

Basic, Day & Night, Backlight, Indoor, User

Remote Control Interface

Coaxial control

Protocol

AHD : ACP (AHD Coax Protocol)

CVBS : Pelco-C (Coaxitron)

Video Transmission Distance

500m (1,640.42ft) (5C2V coaxial cable)

Environmental

Operating Temperature / Humidity

-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH

Electrical

Input Voltage / Current

12V DC ±10%

Power Consumption

Max. 2.5W

Mechanical

Color / Material

Ivory / Plastic

Dimensions (WxH)

Ø110.0 x 86.0mm (Ø4.33" x 3.39")

Weight

231g (0.51 lb)
