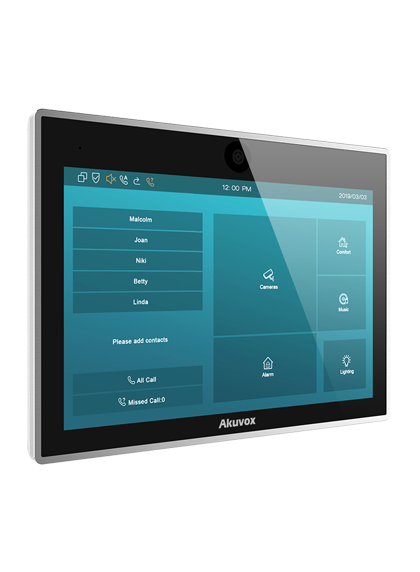

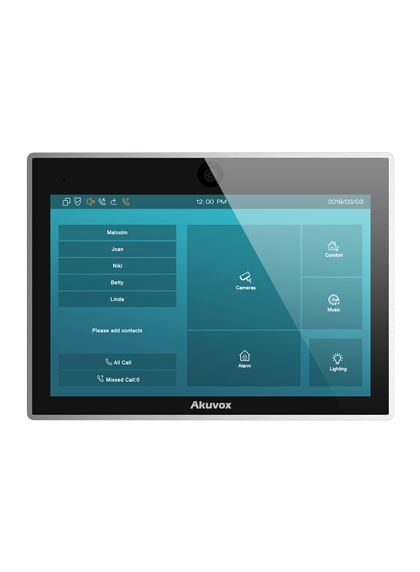

Akuvox - IT83R - An Indoor Monitor as well as an IPPBX Standard Version

Ultra-clear, stylish appearance;

10-inch capacitive touch screen with energy saving mode;

Reception of a HD picture from the door communicator;

Two-way audio communication with other units in the network;

Complies with SIP standard for easy integration in every SIP capable PBXes;

Powered by PoE or external source

Support US or European electrical wall box mounting

Tamper resistant design

Front panel: Aluminum

RAM / ROM: 2GB / 8GB

Display: 10 Inch IPS LCD

Screen: 10 Inch capacitive touch screen

Memory slot：1 Micro SD slot

RS485 port: Support

Relays out: 2

Bell in: 1

I/O: 8

Microphone: -58dB

Speaker: Dual speakers, 4Ω / 2W

Ethernet ports: 2xRJ45, 10/100Mbps adaptive

802.3af Power-over-Ethernet

12V DC connector (if not using PoE)

Tamper resistant: Support

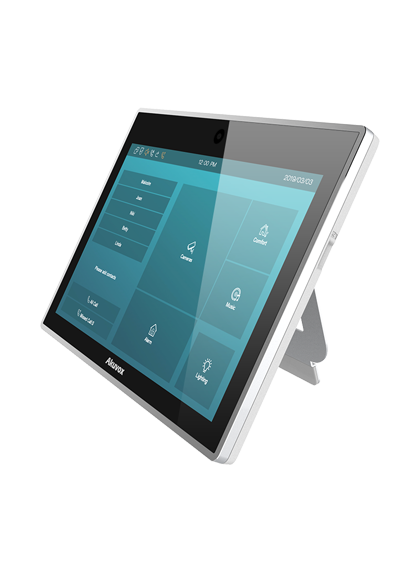

Installation: Wall-mounted & Desktop

Dimension: 251x182.5x29.75mm

Working Humidity: 10~90%

Working Temperature: -10°C ~ +45°C

Storage Temperature: -20°C ~ +70°C

Display Mode: Normally black, Transmissive

LCD Size: 10inch (Diagonal)

Aspect Ratio: 16:10

Resolution: 1280x800

Contrast ratio: 900:1

Luminance: 280 cd/m2

Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower

Touch Screen: Projected capacitive

SIP v1 (RFC2543), SIP v2 (RFC3261)

Narrowband audio codec: G.711a, G.711μ, G.729

Broadband audio codec: G.722

DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

Echo Cancellation

Voice Activation Detection

Comfort Noise Generator

Automatic Gain Control

Auto-Provisioning

Web management portal

Web-based packet dump

Configuration backup / restore

Firmware upgrade

System logs (include door access logs)

Villas

Apartment complexes

Home automation systems

Modern interiors
