- CYBERPOWER - OR700LCDRM1U - 700VA/400W, Simulated Sine Wave, 1U, NEMA 5-15P, 10 ft cord, 6 NEMA 5-15R, USB, Serial, SNMP, PowerPanel Business Edition software, Yes, 3 year warranty CYBERPOWER - OR700LCDRM1U - 700VA/400W, Simulated Sine Wave, 1U, NEMA 5-15P, 10 ft cord, 6 NEMA 5-15R, USB, Serial, SNMP, PowerPanel Business Edition software, Yes, 3 year warranty
CYBERPOWER - OR700LCDRM1U - 700VA/400W, Simulated Sine Wave, 1U, NEMA 5-15P, 10 ft cord, 6 NEMA 5-15R, USB, Serial, SNMP, PowerPanel Business Edition software, Yes, 3 year warranty
- Description
- Specifications
- Downloads
- Reviews
700VA/400W, Simulated Sine Wave, 1U, NEMA 5-15P, 10 ft cord, 6 NEMA 5-15R, USB, Serial, SNMP, PowerPanel Business Edition software, Yes, 3 year Warranty.

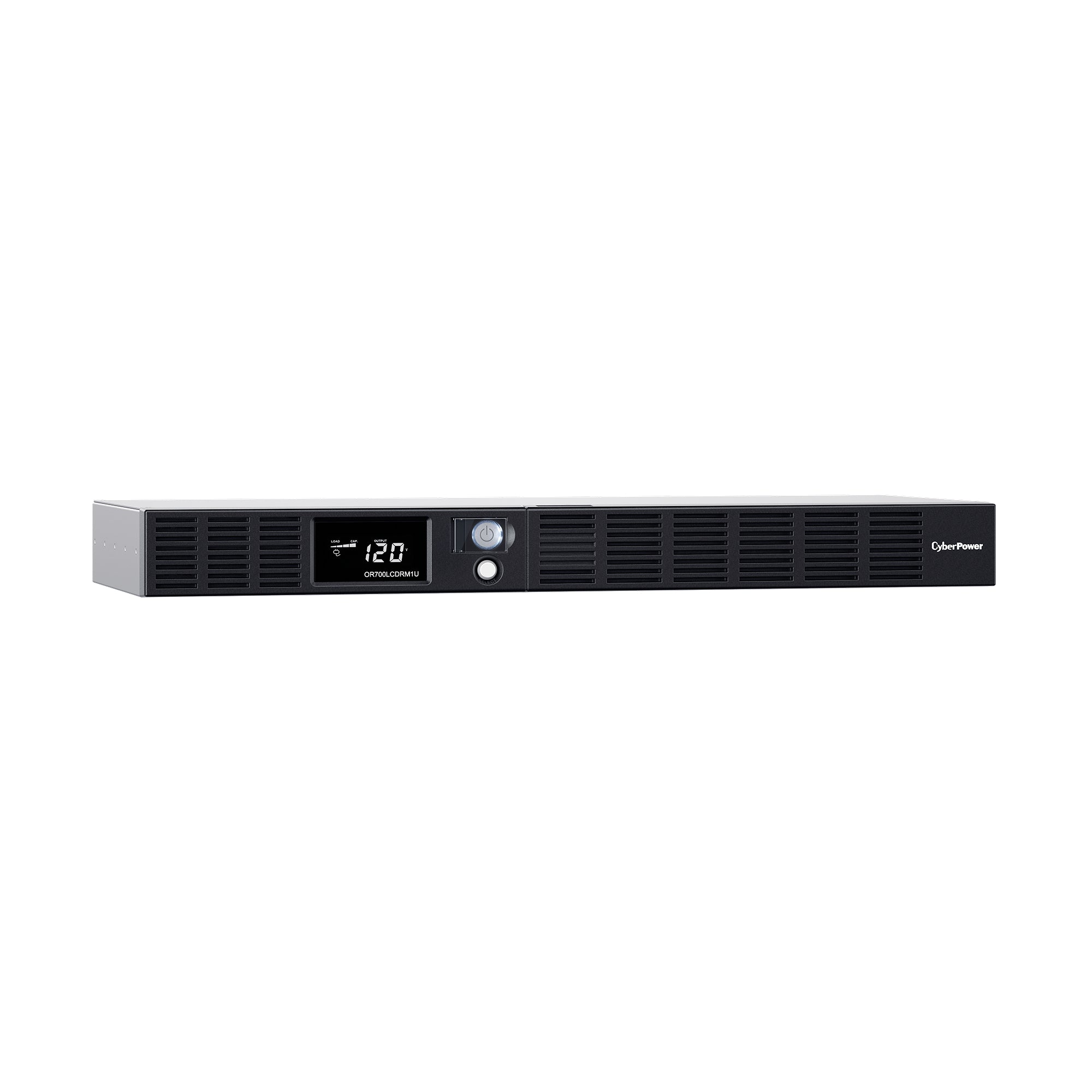

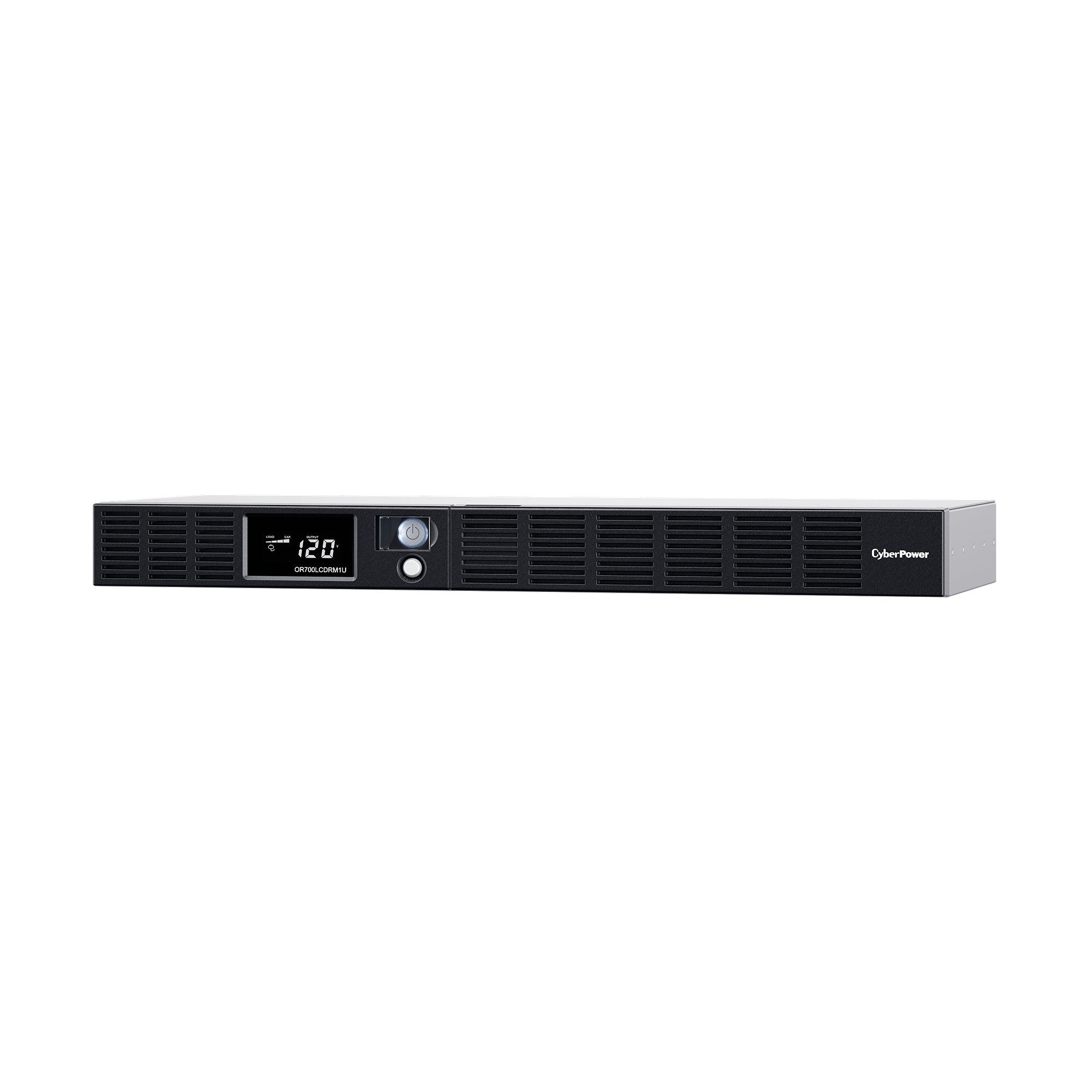

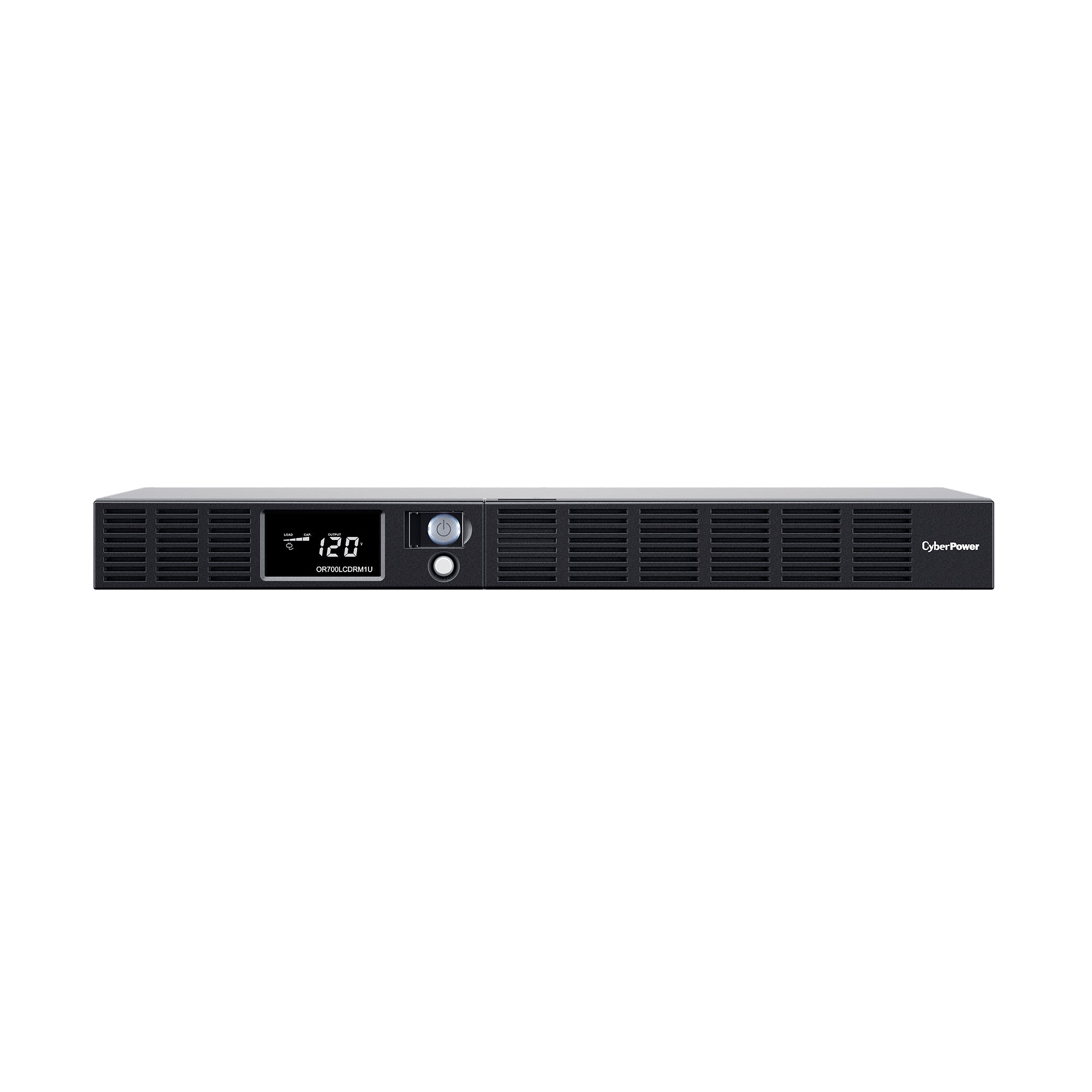

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR700LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR700LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR700LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
Features:
- Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Automatic Voltage Regulation (AVR): AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
- Multifunction LCD Screen: Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- Data Line Protection: Prevents power surges that travel through Ethernet lines from causing damage to electronics.
- Line Interactive Topology: Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Simulated Sine Wave Output: Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
- ENERGY STAR: This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
- GreenPower UPS Bypass Design: A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
- PowerPanel Business Software: Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality.
- Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
- Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
| GENERAL | |
| UPS Topology | Line Interactive |
| Energy Star Certified | Yes |
| Energy Saving | GreenPower UPS™ Bypass |
| INPUT | |
| Nominal Input Voltage | 120Vac |
| Input Voltage Range | 90-140Vac |
| Adjustable Voltage Range | 88-144Vac |
| Frequency Range | 57-63Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Straight |
| Cord Length (ft) | 10 ft |
| OUTPUT | |
| VA | 700 |
| Watts | 400 |
| On Battery Voltage | 120Vac ± 10% |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Waveform | Simulated Sine Wave |

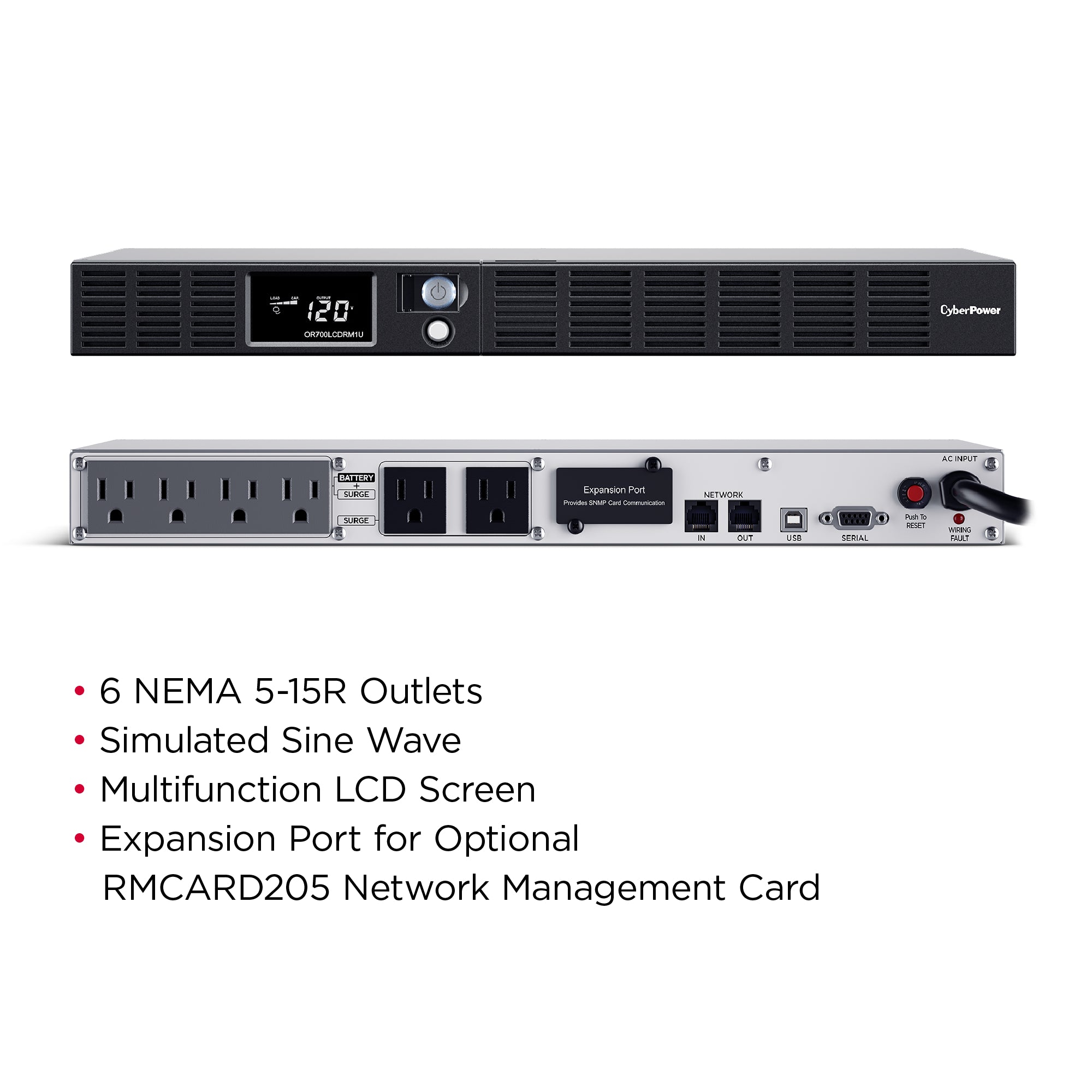

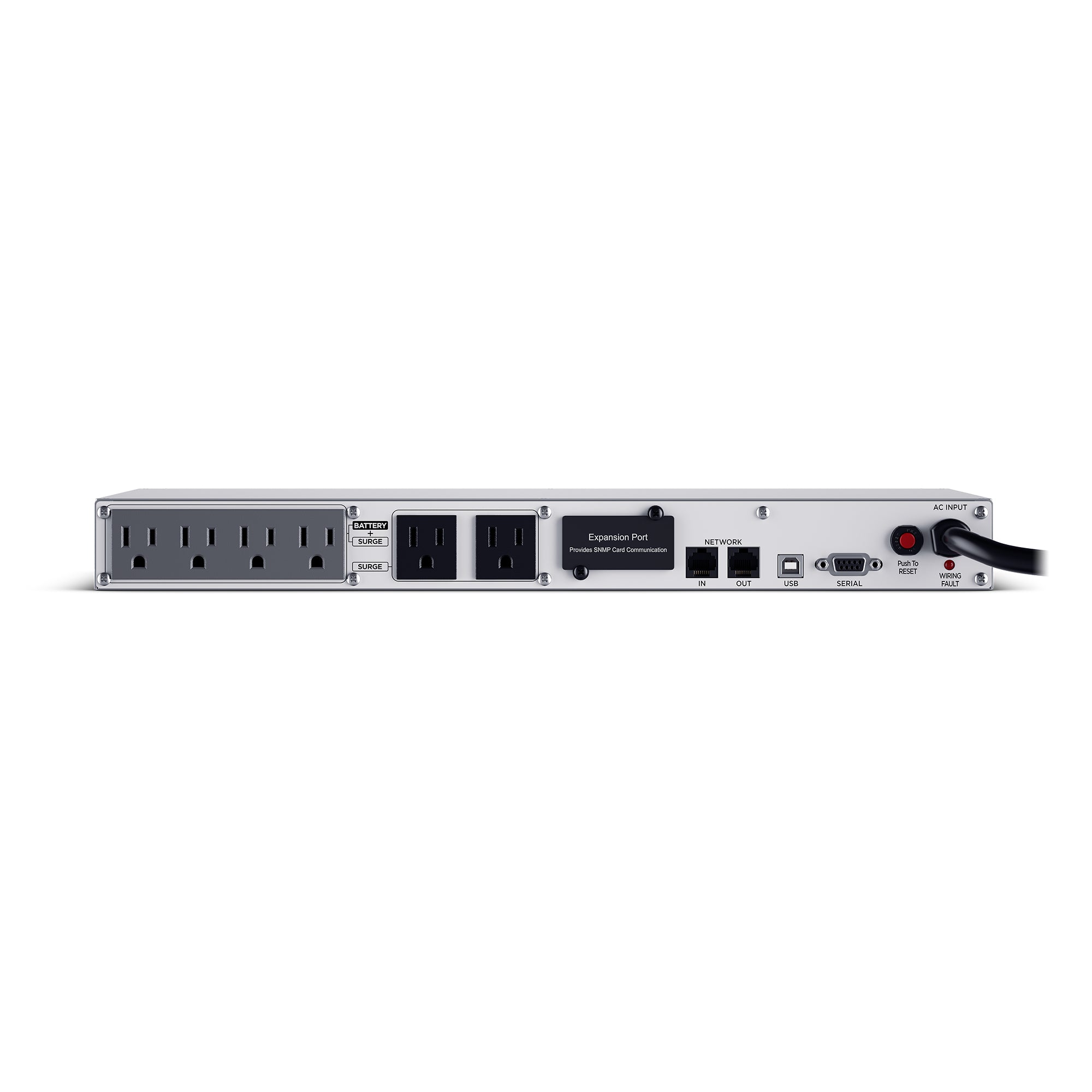

| Outlet Type | NEMA 5-15R |
| Outlets - Total | 6 |
| Outlets - Battery & Surge Protected | 4 |
| Outlets - Surge-Only Protected | 2 |
| Automatic Voltage Regulation | Yes |
| Transfer Time | Typical 8ms |
| Overload Protection | Internal Circuitry Limiting, Circuit Breaker |
| BATTERY | |
| Battery Type | Sealed Lead-Acid |
| Battery Quantity | 2 |
| Battery Size | 6V/8Ah |
| Runtime at Half Load (min) | 11 |
| Runtime at Full Load (min) | 3 |
| User Replaceable | Yes |
| Replacement Battery Cartridge | RB0690X2 |
| Replacement Battery Cartridge Quantity | 1 |
| Hot Swappable | Yes |
| Typical Recharge Time | 8 Hours |
| SURGE PROTECTION & FILTERING | |
| Network Protection RJ45 | 1-in, 1-Out (10/100/1000) |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 1150 |
| MANAGEMENT & COMMUNICATIONS | |
| Multifunction LCD Panel | Yes |
| Audible Alarms | On Battery, Low Battery, Overload, Fault |
| Dry Contact Port | Yes |
| HID Compliant USB Port | Yes |
| Management Cable | USB Cable |
| SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD205 |
| Software | PowerPanel® Business |
| PHYSICAL | |
| Rack Height | 1U |
| Form Factor | Rackmount |
| DIMENSIONS | |

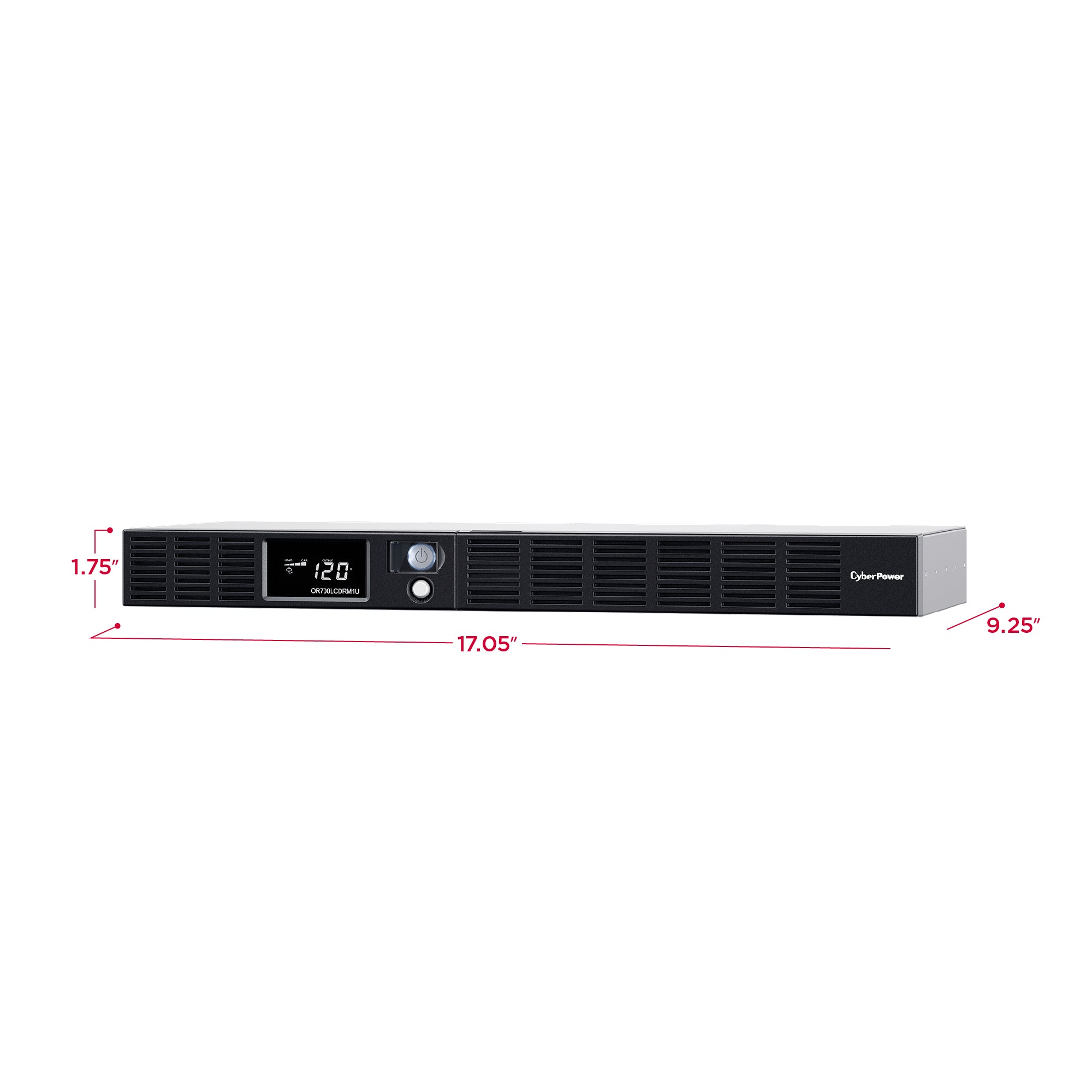

| Physical Dimensions - (WxHxD) (in) | 17.05 x 1.75 x 9.25 |
| Weight (lb) | 18.5 |
| Physical Dimensions - (WxHxD) (mm) | 433 x 44 x 235 |
| Weight (kg) | 8.39 |
| ENVIRONMENTAL | |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Operating Elevation | 0-10,000 ft (0-3,000 m) |
| Operating Relative Humidity | 0-95% (non-condensing) |
| Storage Temperature | 5 °F to 113 °F (-15 °C to 45 °C) |
| Storage Elevation | 0-50,000 ft (0-15,000 m) |
| Storage Relative Humidity | 0-95% (non-condensing) |
| CERTIFICATIONS | |
| Environmental | RoHS Compliant |
| Safety | UL1778, cUL107.1, FCC Class B |
| WARRANTY | |
| CEG Amount | $300,000 |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
