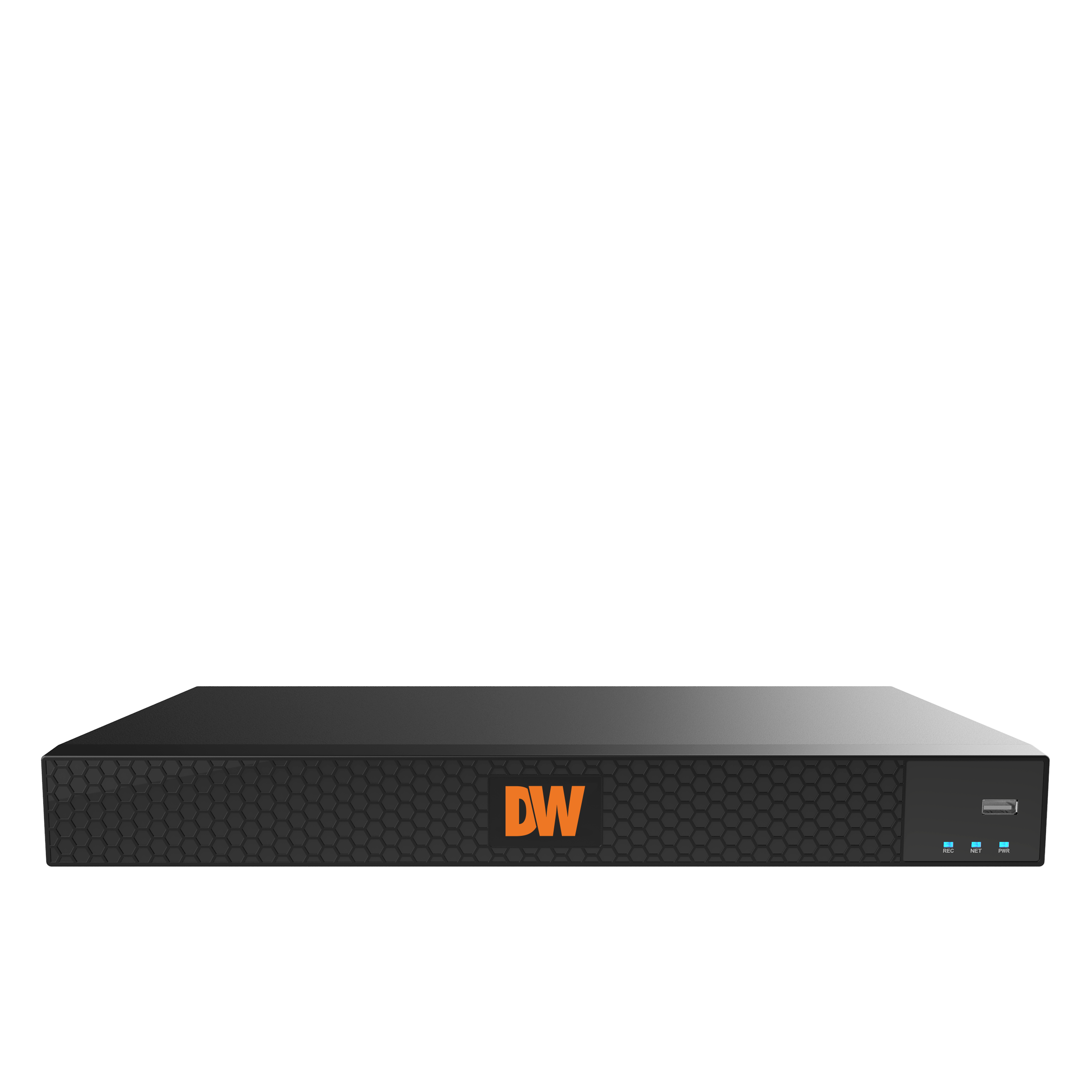

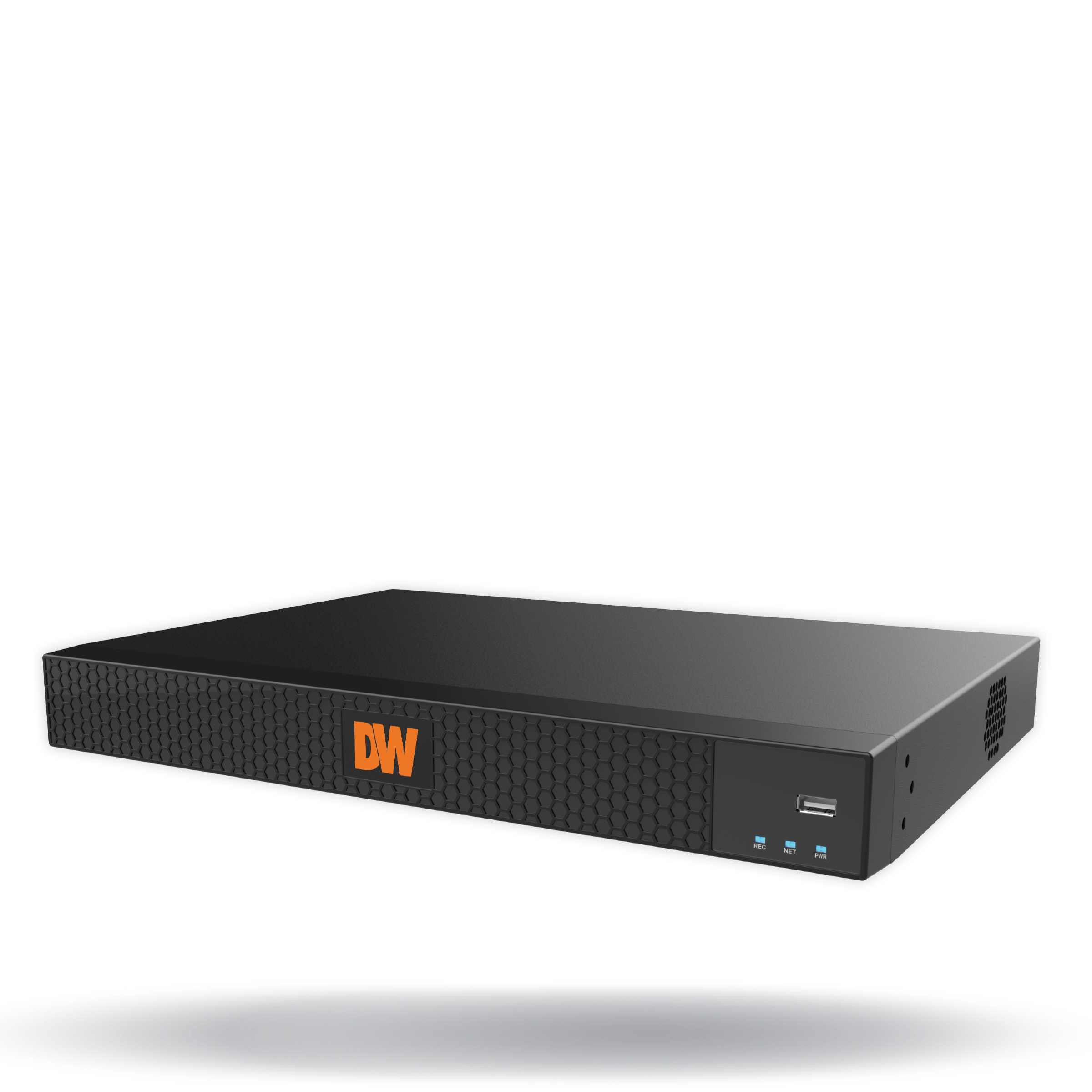

Digital Watchdog - DW-ENC4K16 - 16-Channel 4K Universal HD over Coax analog to IP signal encoder
4K Encoder, Supports UHDoC HD-Analog, HD-CVI,DH-TVI and CVBS, 16ch, Streaming 4K at 8fps, 5MP at 12fps, 4MP at 15fps and up to 2.1MP/1080P at 30fps, Simultaneous H.265-H.264 Streaming, 8 Audio In,1Audio Out, Two Way Audio Through DW Spectrum IPVMS, 16 Alarm In, 4 Alarm Out, OSD and PTZ Via UTC, Video Outputs(True HD,VGA,BNC), ONVIF Conformant, Profile S, NDAA Compliant, 2 Year Warranty. NOTE: Works with DW Spectrum IPVMS Recording License( Requires DW-SPCP16LSC016 or DW-SPCP04LSC004), Includes Rack Ears.
Easiest transition from analog to IP
DW’s Compressor line of encoders is the simplest way to bring existing analog cameras into an upgraded IP installation, utilizing existing cameras to maximize ROI.
Compressor HD encoders
DW’s encoders series supports the transmission of up to 16 HD analog signals into IP signals up to 4K.
DW Spectrum IPVMS
DW Spectrum IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.
Features:
- The most cost-effective path to IP
- Universal HD over Coax HD-Analog, HD-TVI, HD-CVI and CVBS signal support
- Connect your analog cameras to DW Spectrum
- Convert up to 16 analog signals to 4K IP video streams
- Local video output for local display
- Streaming 4K at 8fps, 5MP at 12fps, 4MP at 15fps and up to 2.1MP/1080P at 30fps
- Simultaneous H.265, H.264 streaming
- Works with DW Spectrum IPVMS recording license (requires DW-SPCP16LSC016 or DW-SPCP04LSC004)
- Motion detection support
- 8 audio inputs, 1 audio output
- Two-way audio through DW Spectrum IPVMS
- OSD and PTZ control via coax (UTC)
- 1x RS-485 Interface for PTZ control
- Search and playback from DW Spectrum IPVMS
- Frame rate and bandwidth control
- 16 alarm inputs, 4 alarm outputs
- Event notifications via email with image
- NDAA compliant
| Specification | |
|---|---|
| Hardware | |
| Display screen split | 1 16 4 8 |
| Display Speed | 4K at 15fps 4MP, 2.1MP/1080p, 720p, 960H, D1 at 30fps 5MP at 20fps |
| Stream resolution output | BNC: CVBS, 960H True HD: 3840 × 2160, 1920 × 1080, 1280 × 1024 VGA: 1920 × 1080, 1280 × 1024 |
| Supported Signals | Analog up to 960H HD-Analog HD-CVI HD-TVI |
| Video input | HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and CVBS analog signal up to 4K 16CH BNC input BNC interface (1.0Vp-p; 75Ω) |

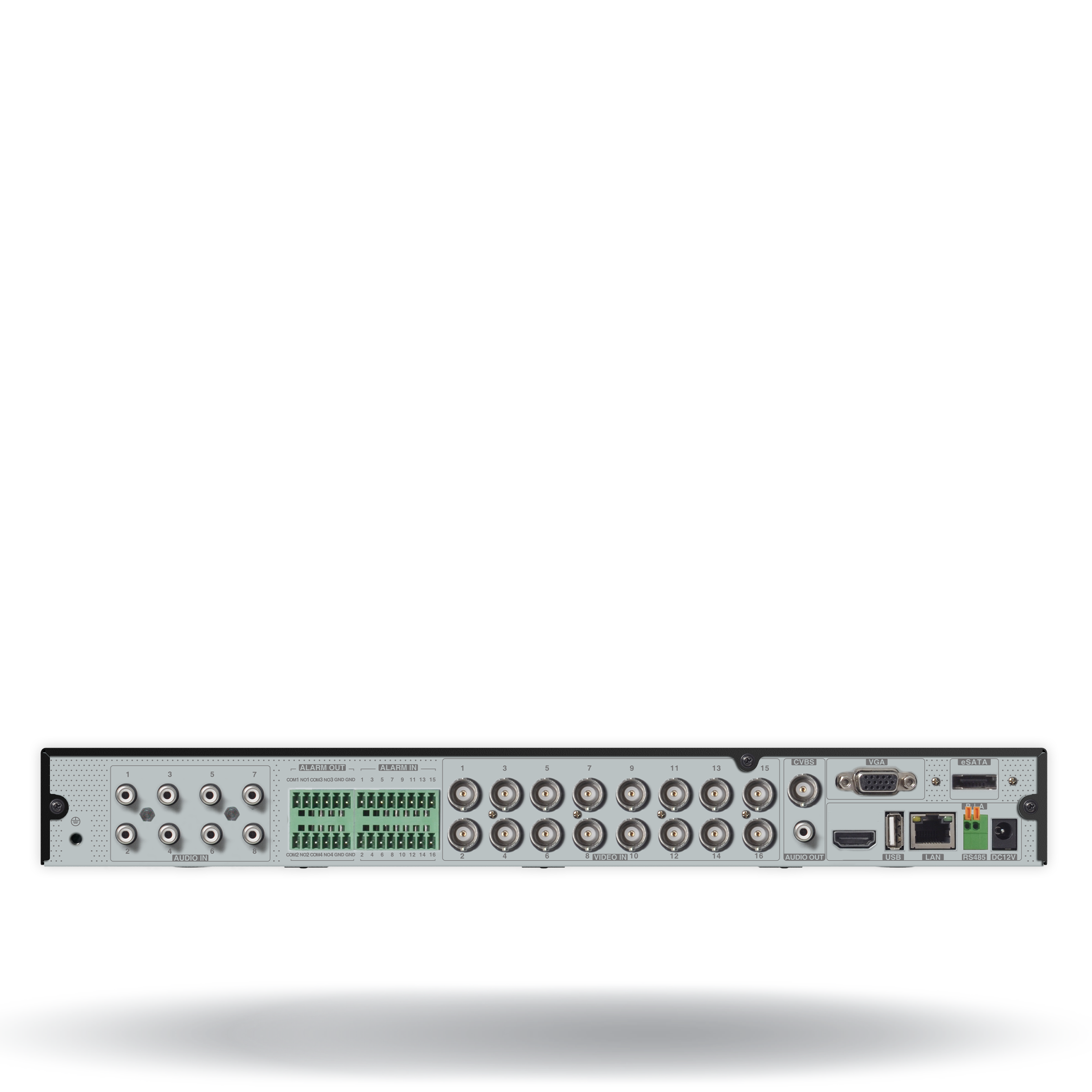

| Video output ports | BNC True HD VGA |
| VMS features | |
| Advanced functions | Firmware upgrade by UBS Log file system System settings via web browser Digital zoom Import and export settings Motion detection Privacy masks |
| Alarm in/out | 16 alarm inputs 4 alarm outputs Terminal block |
| Alarm management | Alarm input Locally and via DW Spectrum® Motion detection Sensor activation System reboot User login Video loss |
| Audio in/out | 1 RCA output 8 RCA inputs linear, 600Ω |
| Performance Audio codec | G.711(U/A) |
| Performance Notifications | PTZ preset activation Snapshot Alarm output activation Buzzer alarm FTP Local popup display Notifications via email Push text notifications |
| Performance Remote software | DW Spectrum® |
| Performance Web viewer | Google Chrome® browser Internet Explorer® browser Mozilla Firefox® browser Safari® browser Windows OS |
| Serial | 1x RS485 port for PTZ support 1x USB 2.0 1x USB 3.0 PTZ control via Coax (UTC) |
| Network | |
| Bitrate mode | CBR VBR |
| LAN | 10/100/1000 Base-Tx Ethernet (RJ045) |
| Max bitrate | 32Kbps - 5Mbps |
| Network Compression | H.264 H.265 |
| Protocol | DDNS DHCP DNS FTP HTTP HTTPs NTP PPPoE SMTP SNMP Static TCP/IP uPNP |
| Security | Digest authentication (ID/PW) HTTPS Multi-user authority |
| Streaming | Dual-streaming |
| Transmission speed live | 4MP: 15fps 4K at 8fps 5MP at 12fps Up to 2.1MP/1080p: 30fps |
| Max throughput | 96Mbps |
| Electrical | |
| Power Consumption | Max 30W, 2.5A |
| Power Requirements | 12V DC 4A |
| General | |
| Accessories (Optional) | DW-G419RE (included with DW-ENC4K16) |
| Licenses (Optional) | DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder Licenses DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder Licenses |
| Operating humidity | 10-90% (non-condensing) |
| Operating temperature | 4°F - 122°F (-10°C ~ 50°C) |
| Recorder Dimensions (H X W X D) | 1.77" x 4.96” x 10.55” (45 x 380 × 268mm) |
| Warranty | 2 Year Warranty |
| Certification |    |
