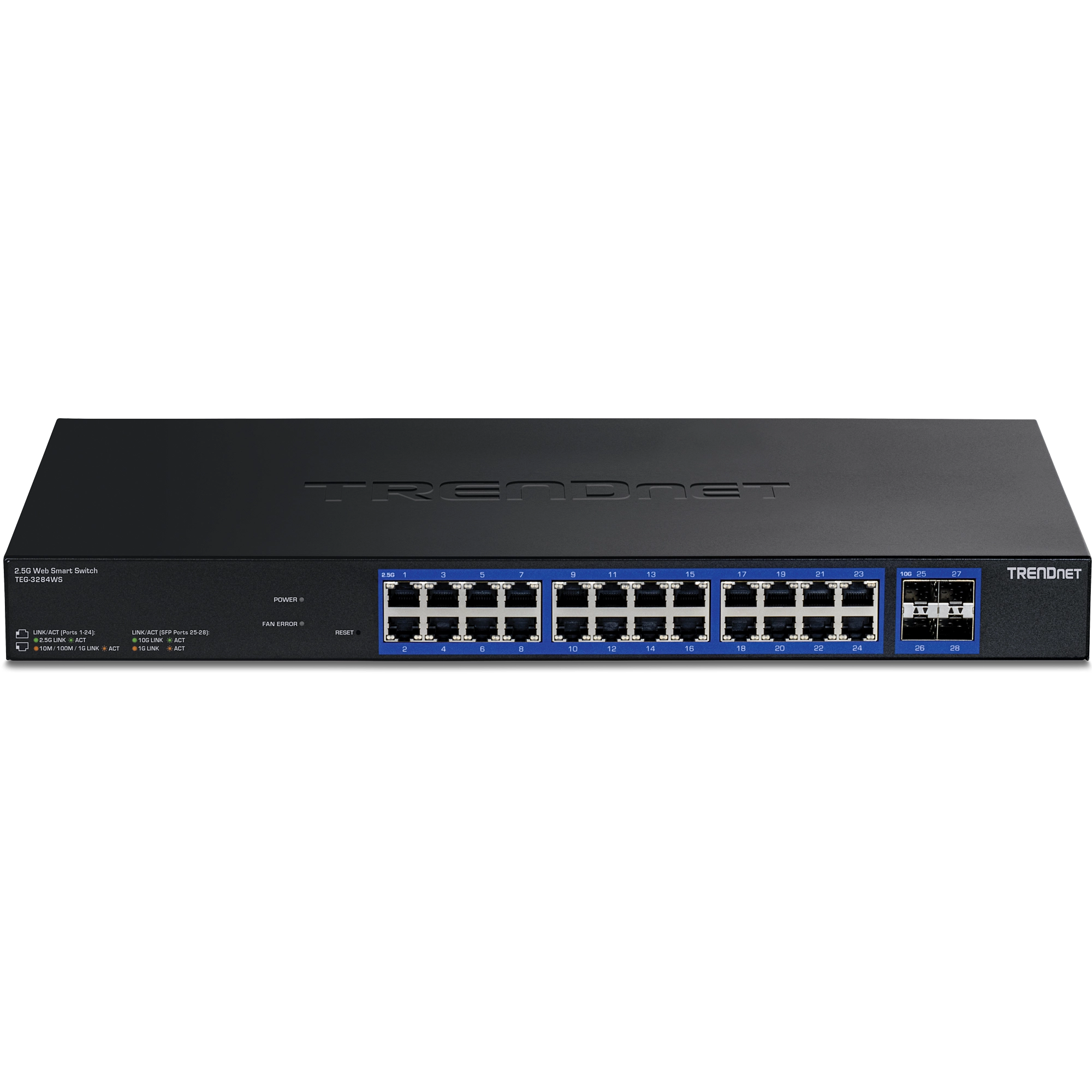

Trendnet - TEG-3284WS - 28-Port Multi-Gig Web Smart Switch

Trendnet

Trendnet - TEG-3284WS - 28-Port Multi-Gig Web Smart Switch

Name: Trendnet - TEG-3284WS - 28-Port Multi-Gig Web Smart Switch
Brand: Trendnet
SKU: TEG-3284WS
Price: 561.6 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: TEG-3284WS

$561.60

Description
Specifications
Downloads
Reviews

• 24 x 2.5G ports
• 4 x 10G SFP+ ports
• Backwards compatible with 10/100/1000BASE-T devices
• Easy-to-use web-based management interface
• Remote cloud management with TRENDnet Hive (Additional fee may apply)
• Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
• Bandwidth control per port
• Private, Multicast, and Voice VLAN support
• Smart Fan
• 200Gbps switching capacity
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty

Standards	• IEEE 802.1d • IEEE 802.1p • IEEE 802.1Q • IEEE 802.1s • IEEE 802.1w • IEEE 802.1X • IEEE 802.1ab • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x • IEEE 802.3z • IEEE 802.3ab • IEEE 802.3ad • IEEE 802.3ae • IEEE 802.3az • IEEE 802.3bz
Device Interface	• 24 x 2.5G RJ-45 ports (10Mbps/100Mbps/1Gbps/2.5Gbps) • 4 x 10G SFP+ ports (1Gbps/10Gbps) • LED indicators
Data Transfer Rate	• Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) • Gigabit Ethernet: 2Gbps (full duplex) • 2.5G Ethernet: 5Gbps (full duplex) • Gigabit SFP: 2Gbps (full duplex) • SFP+: 20Gbps (full duplex)
Performance	• Switching fabric: 200Gbps • RAM Buffer: 2MB • MAC Address Table: 32K entries • Jumbo Frames: 12KB • HOL Blocking Prevention • Forwarding rate: 130.95Mpps (64-byte packet size)
Management	• CLI (Telnet / SSHv2) limited administration only • HTTP/HTTPS (SSL v2/3 TLS) Web based GUI • SNMP v1, v2c, v3 • RMON v1 • Static Unicast MAC Address • Enable/disable 802.3az Power Saving • LLDP • Virtual Cable Diagnostics Test • IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration • Dual image • Dual configuration • TC Root/Protect • Ping Watch Dog • DHCP relay/option 82
Hive Cloud Management	• Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser • Multi-device management • Provisioning through scheduled batch firmware or configuration updates for multiple switches • Event/hardware network monitoring (CPU/memory utilization) • Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management
MIB	• IP FORWARD TABLE MIB RFC 1354 • IPV6 MIB RFC 2465 • GVRP MIB IEEE 802.1Q-VLAN • LA MIB IEEE 802.3ad • LLDP MIB IEEE 802.1AB • SNMP MIB RFC 3415 • STP MIB RFC 4318 • PNAC MIB IEEE 802.1x • VLAN MIB IEEE 802.1q • ACL MIB • BANDWIDTH CTRL MIB • LBD MIB • MIRROR MIB • IPV6 NEIGHBOR MIB • SNTP MIB • STORM CTRL MIB • STATISTICS MIB • Tool MIB • VOICE VLAN MIB • DOS MIB
Spanning Tree	• IEEE 802.1d STP • IEEE 802.1w RSTP • IEEE 802.1s MSTP
Link Aggregation	• Static Link Aggregation • 802.3ad Dynamic LACP
Quality of Service (QoS)	• 802.1p Class of Service (CoS) • DSCP (Differentiated Services Code Point) • Bandwidth control per port • Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN	• Multiple management VLAN assignment • Asymmetric VLAN • 802.1Q Tagged VLAN • Dynamic GVRP • MAC-based VLAN • Protocol-based VLAN • Up to 256 VLAN groups, ID Range 1-4094 • Private VLAN (Protected Ports) • Voice VLAN (10 user defined OUIs)
Multicast	• IGMP Snooping v1, v2 • MLD Snooping v1 • IGMP fast leave • MVR (Multicast VLAN Registration) • Static Multicast Address • Up to 256 multicast entries
Port Mirror	• RX, TX, or Both • Many to one
Access Control	• 802.1X Port-Based Network Access Control, RADIUS, TACACS+ • Local Dial In User Authentication • DHCP Snooping (per VLAN) • Loopback Detection • Duplicated Address Detection • Trusted Host • Denial of Service (DoS) • IP MAC port binding • Dynamic ARP inspection • Block unknown multicast
ACL IPv4 L2-L4 & IPv6	• MAC Address • VLAN ID • Ether Type (IPv4 only) • IP Protocol 0-255 • TCP/UDP Port 1-65535 • 802.1p • DSCP (IPv4 only) • IPv6 Address (IPv6 only)
Layer 3 Features	• IPv4 / IPv6 static routing • IP interfaces: Up to 8 • Routing table entries: Up to 32 (IPv4 / IPv6) • ARP table (up to 128 entries) • Inter-VLAN routing
Compatibility	Optional Software Utility: Windows® 11 & 10
Power	• Input: 100 – 240V AC, 50/60Hz, internal power supply • Max. consumption: 40W
Fan/Acoustics	• Quantity: 1 • Smart fan • Max. noise level 38.6 dBA
MTBF	175,750 hours @ 25°C
Operating Temperature	-5° – 50° C (23° – 122° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	• 440 x 250 x 44mm (17.32 x 10.04 x 1.73 in.) • Rack mountable 1U height
Weight	3.408kg (7.51 lbs.)
Certifications	• CE • FCC • UL
Warranty	Lifetime Warranty
Package Contents	• TEG-3284WS • Power cord (1.8m/6 ft.) • Rackmount kit

EN_datasheet_TEG-3284WS__v1.xR.pdf:
