- Arecont Vision - AV05CLB-100 - 5 Megapixel (MP) H.265/H.264 P-Iris Lens Indoor/Outdoor Dome IP Cameras Arecont Vision - AV05CLB-100 - 5 Megapixel (MP) H.265/H.264 P-Iris Lens Indoor/Outdoor Dome IP Cameras
Arecont Vision - AV05CLB-100 - 5 Megapixel (MP) H.265/H.264 P-Iris Lens Indoor/Outdoor Dome IP Cameras
REPLACEMENT
Contact Us for Replacement
- Description
- Specifications
- Downloads
- Reviews

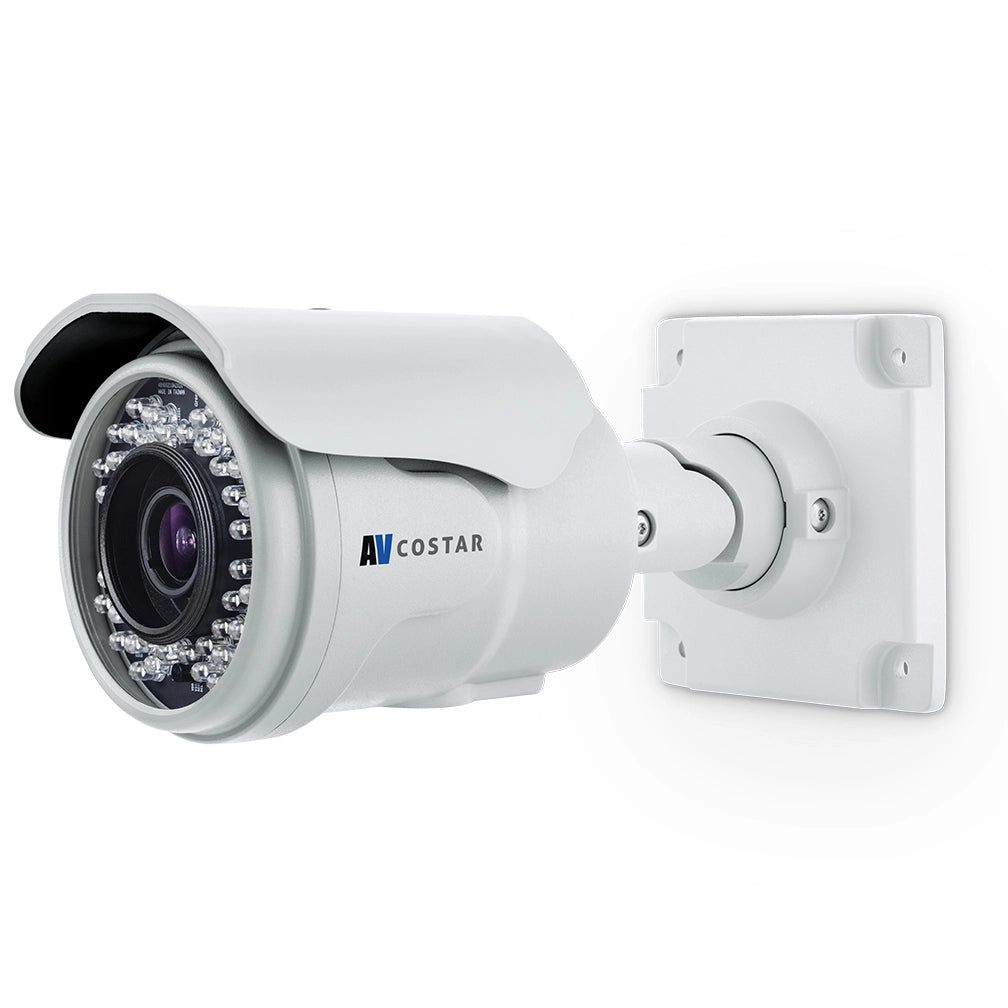

5MP Contera Outdoor Bullet 2592x1944 H.265/H.264/M-JPEG, WDR 120dB, NightView, SNAPstream+, 2.7-12mm P-Iris Lens, 30fps, Remote Zoom, Remote Focus, Smart IR, SD Card Slot, Defog, Audio, IP66, IK-10, Onvif, PoE/12V DC/24V AC
The Contera Bullet outdoor-ready megapixel camera features 1080p and 5-megapixel (MP) resolution for optimum performance. The Contera Bullet combines a day/night mechanical IR cut filter with an integrated motorized 2.7–12mm varifocal remote focus and zoom precision iris (P-iris) lens. Regardless of the time of day, the Contera Bullet is prepared for any lighting condition. For applications with poor lighting conditions, Enhanced WDR (wide dynamic range) at 120dB provides the best visual balance to shaded and bright light conditions. For clear color images in low-light, NightView offers strong low-light sensitivity for capturing details in extremely poor-lit scenes, and is further enhanced by built-in Smart IR LED illumination that automatically adjusts output in response to the distance of an object in view to prevent over-exposure when the object is very close to the camera.
Arecont Vision was the first to bring H.264 to the mainstream market and recently developed SNAPstream (Smart Noise Adaptation and Processing) technology for reducing bandwidth without impacting image quality. Today we are proud to offer our next generation H.265 with SNAPstream+ smart codec capable of delivering high quality video while saving over 50% of the data rate to reduce or prevent strain on the network.
The SD card slot supports up to 256GB of storage capacity for convenient onboard storage. The camera’s power can be supplied via a Power-over-Ethernet (PoE - IEEE 802.3af) compliant network cable connection. The Contera Bullet is IP66 rated for both indoor and outdoor applications. All models feature an impact resistant cast-aluminum housing capable of withstanding the equivalent of 55 kg (120 lbs) of force.
Features:
- 5MP Resolution
- Remote Focus/Zoom Motorized P-Iris Lens
- SNAPstream+ Capability to Reduce Bandwidth without Impacting Image Quality
- NightView for Strong Low Light Performance
- True Day/Night Functionality with Mechanical IR Cut Filter
- Enhanced WDR up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Scaling
- On-Screen Display (OSD)
- Defog Technology
- Triple Encoder: H.265/H.264/MJPEG
- Network Protocols Include SNMP, IPv6, HTTPS, DHCP, 802.1x, and More
- Smart IR Illumination with Variable Illumination Ensures that IR Light is Evenly Disbursed up to 66ft (20m) for Scenes with Low or No Ambient Light
- Audio Out
- SDXC Card Slot for Onboard Storage
- Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- Easily Adjustable 3-Axis Gimbal
| Camera Imaging Specifications | |||
| Model | AV02CLB-100 | AV05CLB-100 | |
| Image Sensor | 1080p (2.1MP) CMOS Progressive Sensor | 5MP CMOS Progressive Sensor | |
| Optical Format | 1/2.8" | 1/2.9" | |
| Minimum | Color (Day Mode) | 0.05 Lux | 0.1 Lux |
| Illumination | B/W (Night Mode) | 0.005 Lux | 0.01 Lux |
| Full FOV Resolution | 1920 H x 1080 V | 2592 H x 1944 V | |
| Scaling (See Scaling Resolutions Below) | Yes | Yes | |
| IR Illumination | Yes | Yes | |
| Dynamic Range | 120dB | 120dB | |
| Frame Rates* | Single Stream | Up to 30fps (1080p) | Up to 30fps (5MP)** |
| Multi-Stream | Up to 30fps (1080p) + 20fps (1080p) | Up to 15fps (5MP)** + 10fps (5MP)** | |
| Up to 30fps (1080p) + 30fps (720p) + 30fps (VGA) | Up to 30fps (1080p)** + 30fps (720p)** + 30fps (VGA)** | ||
| Lens | Fixed Iris | 2.7–12mm, F1.3, H-FOV = 32°–108°, V-FOV = 18°–57°, P-Iris | 2.7–12mm, F1.3, H-FOV = 24°–81°, V-FOV = 18°–57°, P-Iris |
Programmability
| Optics | Remote focus/zoom, P-iris lens |
| Low-Light Performance | NightView™ technology |
| Smart IR | |
| Programmable | Auto/manual 0.1ms ~ 500ms |
| Shutter Speed | |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control* | 5Hz–255Hz adjustable |
| Image Rotation | CorridorView™ (90°, 180°, and 270° image rotation) + mirror |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+™ (Smart Noise Adaptation and Processing) |
| Bit rate and bandwidth limitation control | |
| Defog | Supported |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue |
| Electronic pan, tilt, zoom (PTZ) | |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
Data Transmission
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP/Smart ROI |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, |
| RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure | |
| 10/100Base-T Ethernet network interface, RJ45 | |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 10 clients |
Event Management
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send/record message via e-mail/FTP/NAS/SD card, record |
| JPG/mp4 |
Compliance
| Industry Standard | ONVIF Profile S, G, Q, T conformant |
| Listings | UL (CB) UL60950-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | CE: EN55032 Class A, EN55024, EN61000-3-2, EN61000-3-3, |
| EN60950 | |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
General Electrical
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) | |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 | |
| Total PoE solution (no external power requirement) | ||
| Auxiliary Power | 12–48V DC, 24V AC | |
| Power Consumption | 1080p | 8.7W PoE max |
| 5MP | 8.9W PoE max | |
IR Illuminator
| LEDs | 48pcs, Smart IR |
| Projection Distance | 100ft (30m) max |
Audio Electrical
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz |
| Input/Output | Line in / Line output |
| Mechanical | ||
| Casing | Die-cast aluminum cylindrical (bullet-style) housing | |
| IP66 weather proof standard | ||
| Impact resistant, IK-10 rated | ||
| Mount | ||
| Easily adjustable 3-axis with 360° pan, 90° tilt and 360° z-axis | ||
| Dimensions | ||
| Unit | 4.7" H (119mm) x 4.7" W (119mm) x 9.3" D (236mm) | |
| (See Dimensions) | ||
| Packaged | 5.6" H (142mm) x 5.6" W (142mm) x 11" L (280mm) | |
| Weight | ||
| Unit | 2.72lbs (1.23kg) | |
| Packaged | 3.31lbs (1.5kg) | |
| On Board Storage | SDXC slot up to 256GB (card not included) | |
| Body Color | Arecont Vision® White (Pantone P179-1C) | |
