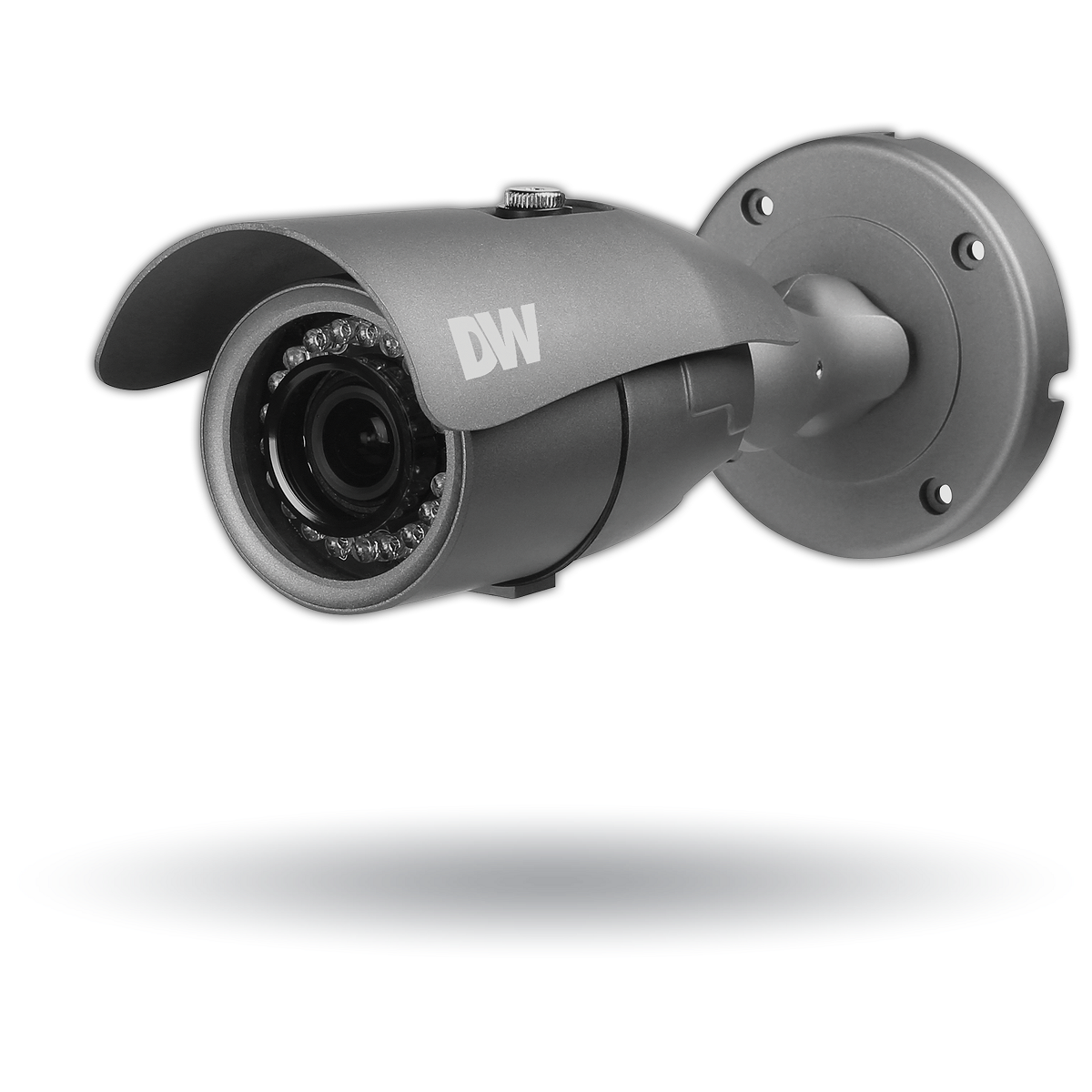

Digital Watchdog - DWC-B6263WTIR - Star-Light UHDoC 2.1MP/1080p Bullet Camera with 2.8~12mm Vari-focal p-iris Lens and IR
Digital Watchdog - DWC-B6263WTIR - Star-Light UHDoC 2.1MP/1080p Bullet Camera with 2.8~12mm Vari-focal p-iris Lens and IR
Digital Watchdog

Digital Watchdog - DWC-B6263WTIR - Star-Light UHDoC 2.1MP/1080p Bullet Camera with 2.8~12mm Vari-focal p-iris Lens and IR

DISCONTINUED
Product SKU: DWC-B6263WTIR
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
$330.48
$488.40

REPLACEMENT

  • Description
  • Specifications
  • Downloads

Star-Light Universal HD Series, Weatherproof Bullet ,2.1MP CMOS Sensor, P-Iris, 1920x1080 resolution, AHD,CVI,TVI,960H, 2.8-12mm Varifocal Auto Iris Lens, True Wide Dynamic Range (100dB), True Day/Night with IR Cut Filter, 100ft Smart IR, Smart 3D-DNR, OSD Control via UTC, Dual Voltage, IP66. 5 Year Warranty



Features:

  • Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
  • STAR-LIGHT Super Low Light Technology
  • 2.1MP 1/3" Image Sensor at Real-time 30fps
  • 2.8~12mm Varifocal P-Iris Lens
  • True Wide Dynamic Range (WDR)
  • OSD Control Via Coaxial (UTC)
  • 100' Smart IR with Intelligent Camera Sync.
  • Smart DNR 3D Digital Noise Reduction
  • True Day/Night Mechanical IR Cut Filter
  • De-Fog Extreme Weather Image Compensation
  • Highlight Masking Exposure (HME)
  • Auto Sensing 24VAC/12VDC with Line Lock
  • Easy Icon Driven OSD Menu with Built-in Joystick
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Backlight Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • RS-485 Built-in
  • NDAA/TAA compliant
  • IP66 Certified Weather and Tamper Resistant
  • 5 Year Warranty


Image sensor
2.1MP/1080p 1/3" CMOS
Active pixels
1944 (H) x 1092 (V)
Scanning system
Progressive scan
Frequency
60Hz / 50Hz
Signal technology
Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
Synchronization
Internal
Resolution
1920 x 1080 (1080p)
Minimum scene illumination
0.03 lux (color)
0 lux (B&W)
S/N ratio
55dB
Video output
HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H

I/O

Alarm output
1 alarm output

LENS

Focal length
2.8 ~ 12mm
Lens type
Varifocal p-iris lens
Field of view (FoV)
91 - 28°
IR distance
100ft range

OPERATIONAL

Shutter mode
Auto, manual, FLC
Shutter speed
1/30-1/30,000
Backlight
On, off
Star-Light (sense-up)
Off, x2 – x32
Wide dynamic range (WDR)
True WDR, off, on
Wide dynamic range (WDR) dB
100dB
Dynamic range compressor (DRC)
Off, low, middle, high
Smart DNR™ 3D digital noise reduction
Off, low, middle, high
White balance
Auto / auto-ex / preset / manual
Day / night
Auto, day (color), night (B/W)
Mirror / flip
Yes
Auto gain control
0~10
Motion detection
Yes
Privacy zones
16 programmable privacy zones
Sharpness
0 ~ 10
Gamma
0.45 ~ 0.75
De-fog
On, off
RS485 / UTP built-in
Pelco D / Pelco C

ENVIRONMENTAL

Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity
10–90% RH (non–condensing)
IP rating
IP66 certified weather and tamper resistant
Other certifications
FCC, CE, ROHS

ELECTRICAL

Power requirement
DC12V/AC24V dual voltage
Power consumption
DC12V (LED OFF): 3.0W DC12V (LED ON): 4.44W
AC24V (LED OFF): 2.7W AC24V (LED ON): 4.3W

MECHANICAL

Material
Aluminum bullet housing
Dimensions
8.84" x 3.81" (224.5 x 96.7 mm)
Weight
1.65 lbs (0.75kg)
DWC-B6263WTIR_20-_20Datasheet.pdf:
DWC-B6263WTIR_20-_20quick_20Guide.pdf:
DW_AE_Star-Light_UHDoC_DWC-B6263WTIR_Rev1018_0.doc:
