36% $176.88

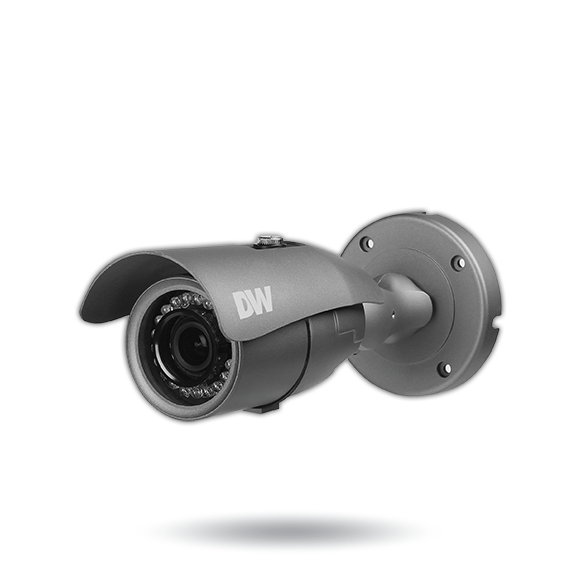

Digital Watchdog - DWC-B6853WTIR - 4K bullet camera with 2.8mm fixed lens, color in near-total darkness and IR
Digital Watchdog - DWC-B6853WTIR - 4K bullet camera with 2.8mm fixed lens, color in near-total darkness and IR
Digital Watchdog

Digital Watchdog - DWC-B6853WTIR - 4K bullet camera with 2.8mm fixed lens, color in near-total darkness and IR

Product SKU: DWC-B6853WTIR
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$317.52
$494.40
  • Description
  • Specifications
  • Downloads

Featuring Star-Light Plus™ color in near-total darkness, 4K Universal HD over Coax® cameras deliver crystal-clear images and support HD-Analog, HD-TVI HD-CVI and all legacy analog signal support. The weather-resistant bullet cameras are IP66 rated and can be controlled via the same coax cable using UTC. All Star-Light Plus™ 4K cameras are engineered to work with our VMAX® A1 4K™ DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.

Star-Light Plus Universal HD Series, Weatherproof Bullet, 4K@15fps/4MP or 2.1MP@30fps, HD-Analog, HD-TVI, HD-CVI and all Legacy Resolutions, 2.8mm Lens, T-WDR, 100ft IR, TDN with IR Cut Filter, Smart 3D-DNR, OSD Control Via Coax, De-Fog, 12VDC, IP66, 5 Year Warranty



Features:

  • Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
  • Star-Light Plus™ color in near-total darkness technology
  • 1/1.8" image sensor
  • 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
  • 2.8mm fixed lens
  • True wide dynamic range (WDR)
  • OSD control via coaxial (UTC)
  • 100' Smart IR™ with intelligent camera sync.
  • Smart DNR™ 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • De-Fog™ extreme weather image compensation
  • Easy icon-driven OSD menu with a built-in joystick
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • NDAA compliant
  • IP66 environmental-rated dust-tight and water-resistant
  • 5 year warranty


Image sensor

8MP 1/1.8" CMOS

Active pixels

3864(H) x 2176(V)

Scanning system

Progressive scan

Frequency

60Hz / 50Hz

Signal technology

Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI to 4K and CVBS at 960H

Synchronization

Internal

Resolution

Max 3840 x 2160

Minimum scene illumination

0.1 lux (color)

0 lux (B/W)

S/N ratio

55dB

Video output

4K @ 15fps
4MP/1440p @ 30fps
2.1MP/1080p @ 30fps
2nd Video output CVBS output for video testing

LENS

Focal length

2.8mm

Lens type

Fixed lens

Field of view (FoV)

106.5°

IR distance

100ft range

OPERATIONAL

Shutter mode

Auto

Shutter speed

1/30-1/30,000

Backlight

Yes

Star-Light (sense-up)

Off-x32 (disabled at 4K)

Wide dynamic range (WDR)

Double shutter true WDR, off, on

Wide dynamic range (WDR) dB

120dB

Smart DNR™ 3D digital noise reduction

3D/2D DNR

White balance

Yes

Highlight masking exposure (HME)

Yes

Dynamic range compression (DRC)

Yes

Day / night

Auto, day (color), night (B/W)

Mirror / flip

Yes

Auto gain control

Max 60dB

Motion detection

Yes

Privacy zones

Yes

Sharpness

Yes

Gamma

0.45

De-fog

Yes

RS485 / UTP built-in

UTC

ENVIRONMENTAL

Operating temperature

-4°F ~ 122°F (-20°C ~ 50°C)

Operating humidity

10–90% RH (non–condensing)

IP rating

IP66 environmental-rated water and dust-resistant

Other certifications

FCC, CE, ROHS

ELECTRICAL

Power requirement

DC12V only

Power consumption

DC12V (LED off): 3W, 250mA

DC12V (LED on): 4.2W, 352mA

MECHANICAL

Material

Aluminum bullet housing

Dimensions

8.83" x 3.81" (224.5 x 96.7 mm)

Weight

1.65lbs (0.75kg)

Warranty

5 year warranty
DWC-B6853WTIR_20-_20Datasheet.pdf:
DWC-B6853WTIR_20-_20Quick_20Guide.pdf:
DW_AE_DWC-B6853WTIR_Rev0521.doc:
