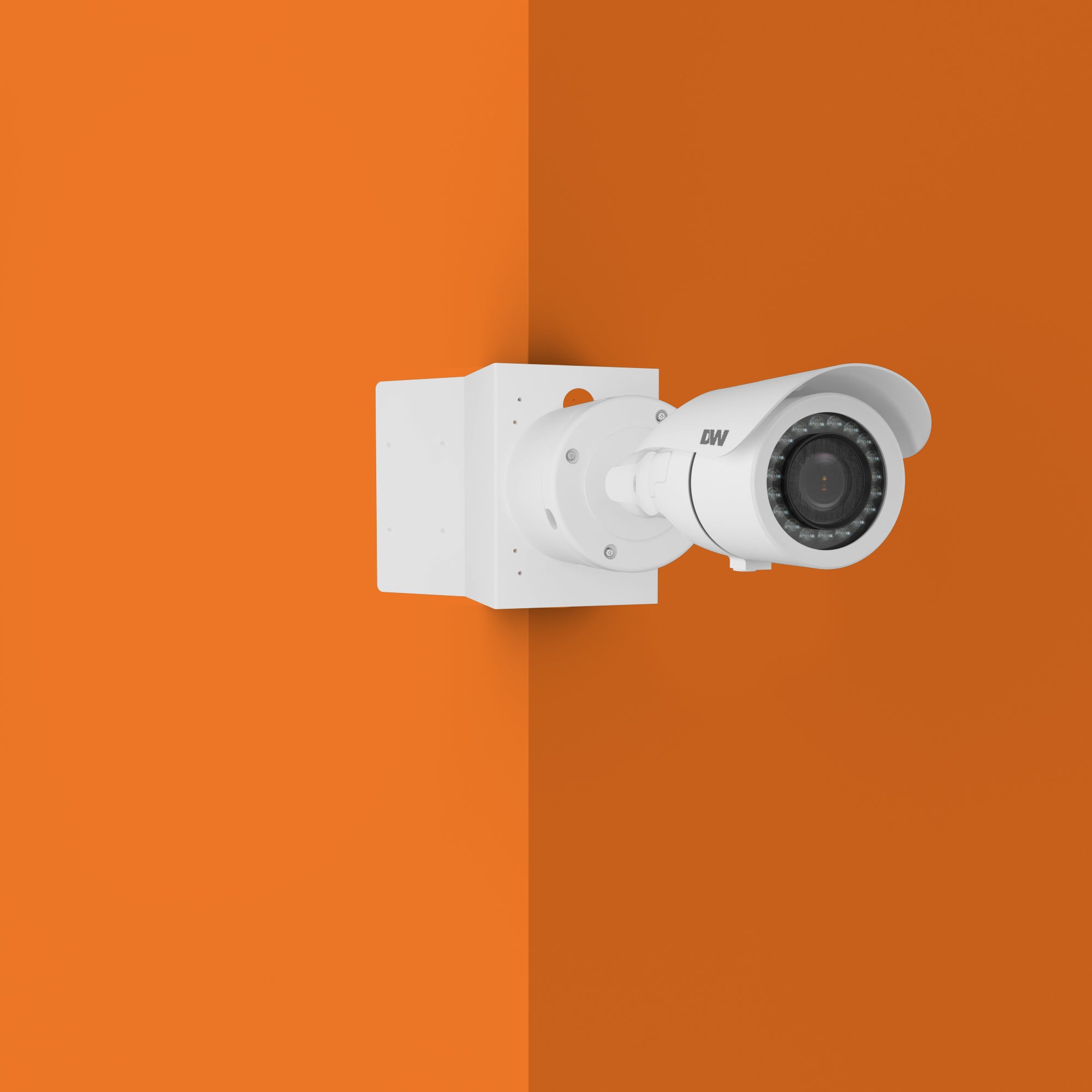

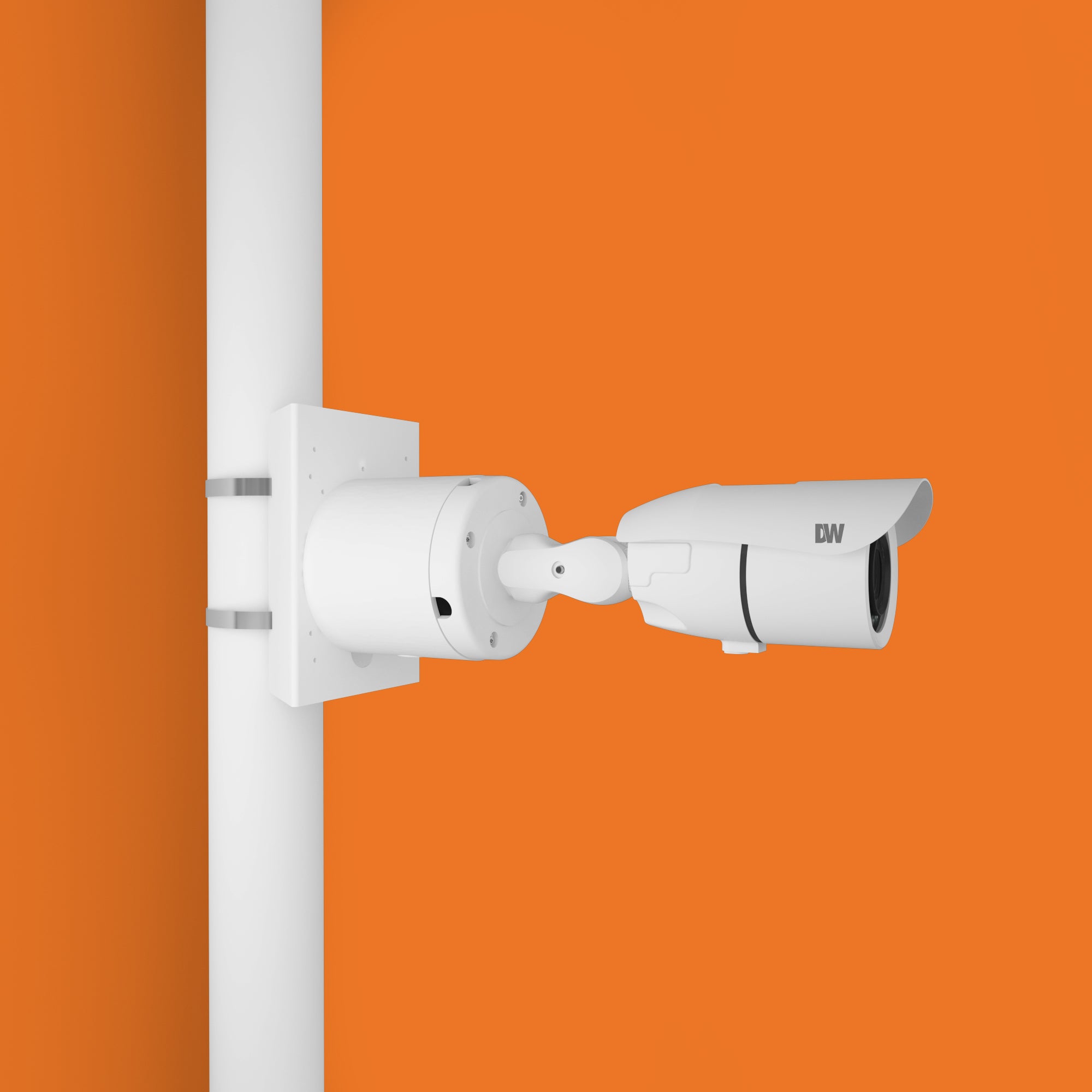

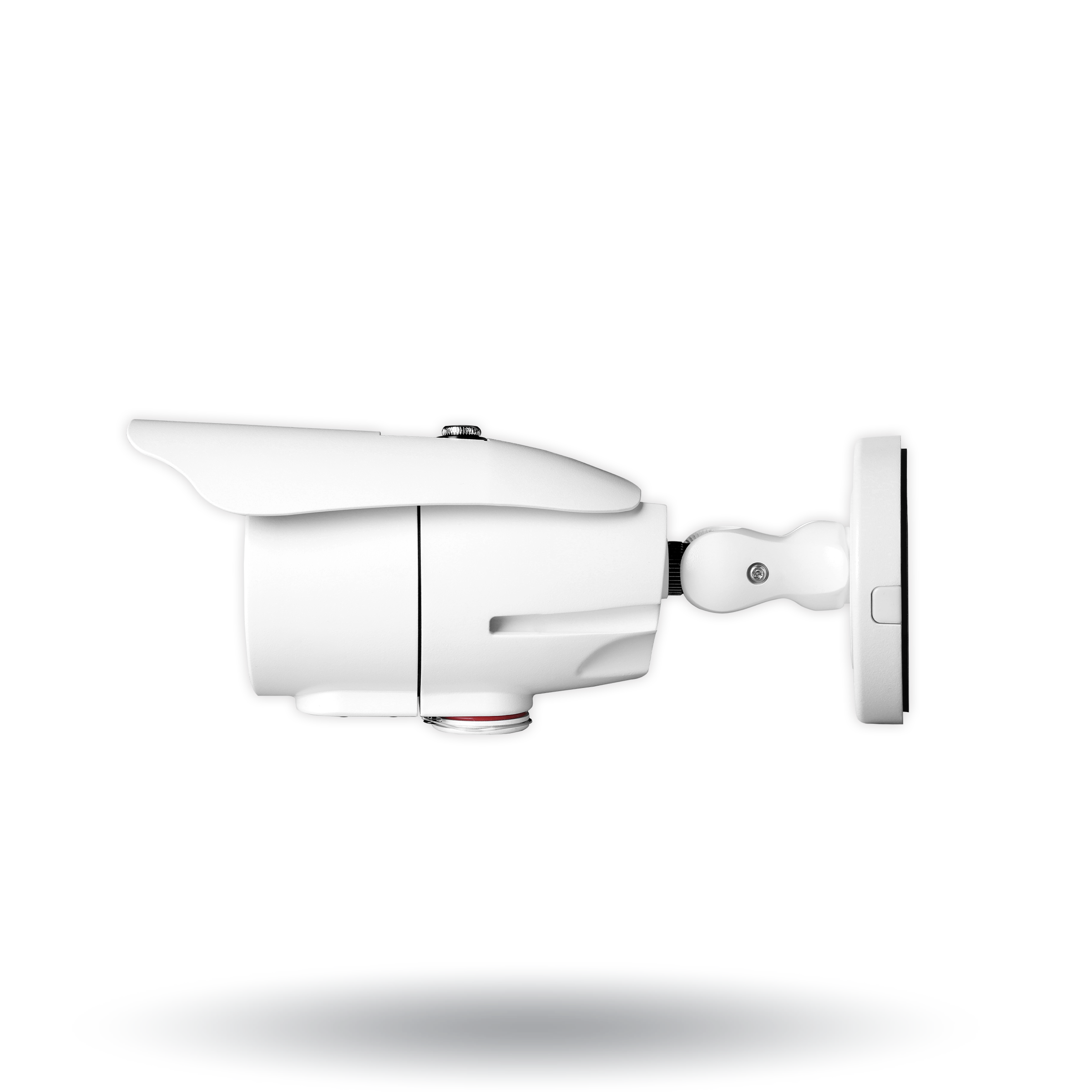

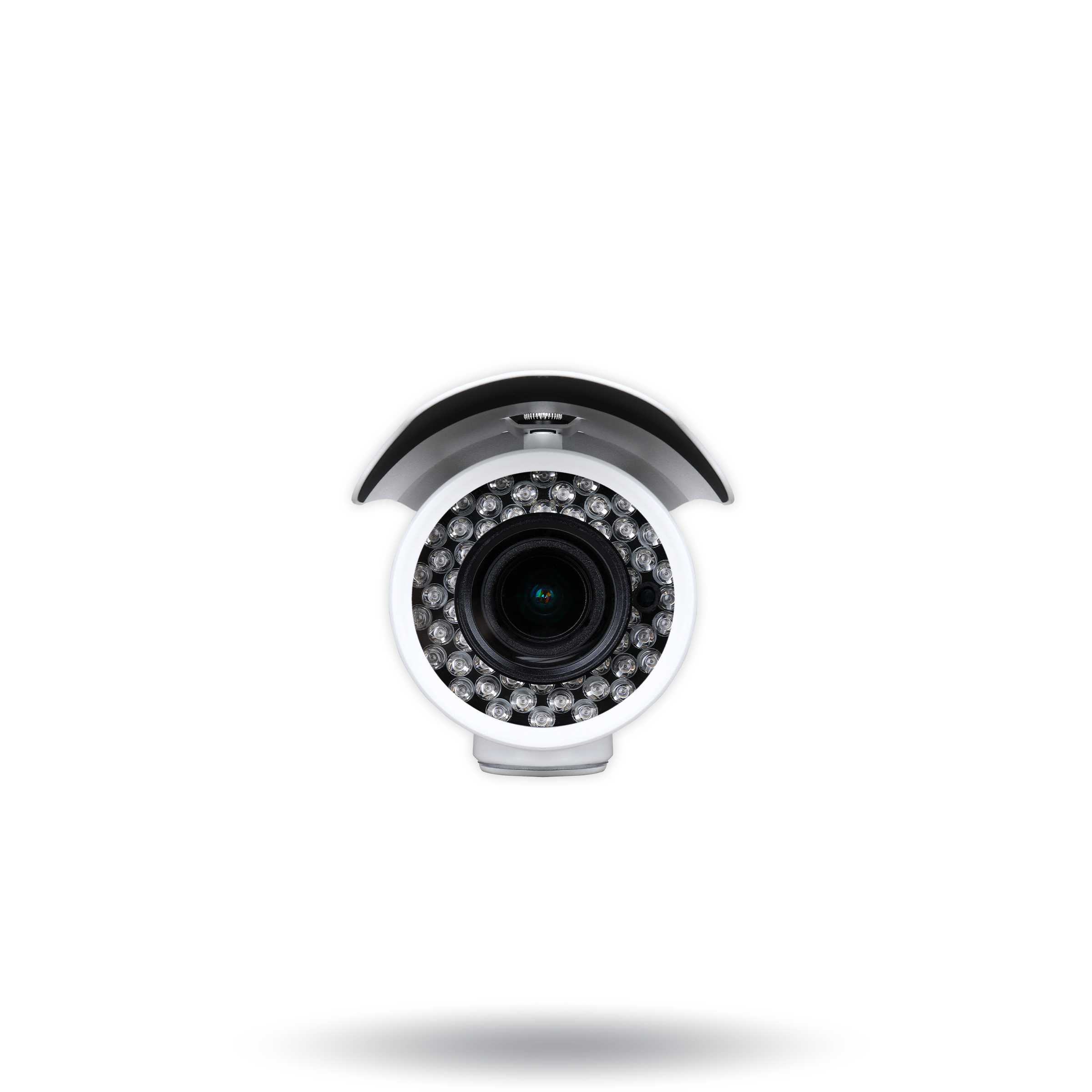

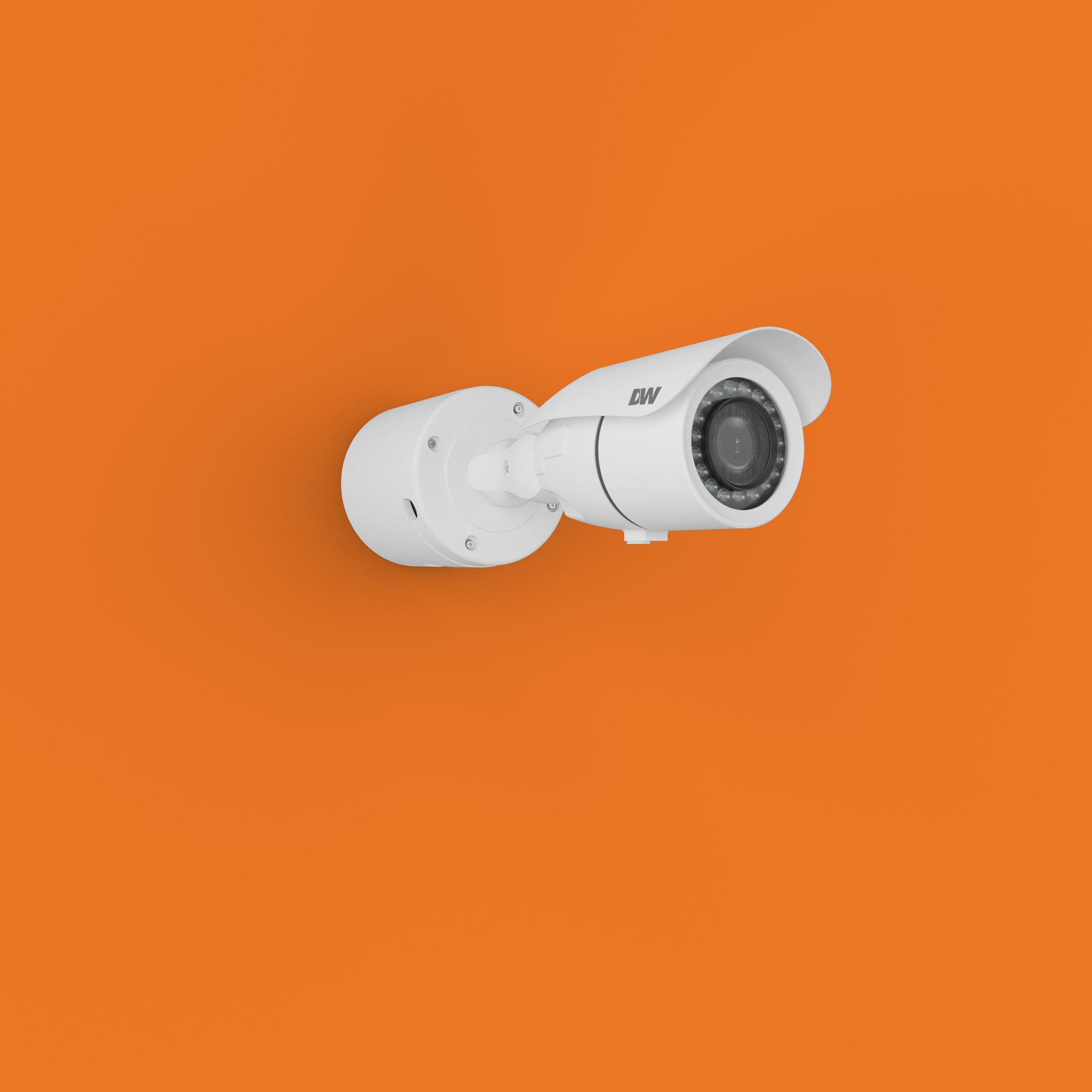

- Digital Watchdog - DWC-B6883WTIRW - Star-Light Plus 4K UHDoC Bullet Camera with a Vari-focal Lens and IR Digital Watchdog - DWC-B6883WTIRW - Star-Light Plus 4K UHDoC Bullet Camera with a Vari-focal Lens and IR
Digital Watchdog - DWC-B6883WTIRW - Star-Light Plus 4K UHDoC Bullet Camera with a Vari-focal Lens and IR
- Description
- Specifications
- Downloads
- Reviews
Featuring Star-Light Plus color in near-total darkness, the 4K Universal HD over Coax cameras are NDAA compliant, delivering crystal-clear images and support HD-Analog, HD-TVI HD-CVI and all legacy analog signal. The weather-resistant bullet cameras are IP66 rated and can be controlled via the same coax cable using UTC. All Star-Light Plus 4K cameras are engineered to work with our VMAX A1 Plus and VMAX A1 G4 DVRs using your existing coax infrastructure for a cost-effective, high resolution surveillance solution
Megapixel resolution
DW’s technology delivers crystal-clear images in resolutions up to 4K over coaxial infrastructure. Higher resolution delivers forensic details when zooming into the camera’s field of view.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
Universal HD over Coax Technology
Universal HD over Coax Complete Solutions are the best way to upgrade an existing analog system to high-definition. Universal HD over Coax cameras and recorders can transmit HD-Analog, HD-TVI, HD-CVI signals up to 4K, and analog signals to 960H.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light Plus color in near-total darkness technology
- 1/1.8" image sensor
- 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
- 3.6 ~ 10mm vari-focal motorized zoom p-iris lens with auto-focus
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 150' Smart IR with intelligent camera sync.
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with a built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
| Image | |
| Active Pixels | 3864 (H) x 2176 (V) |
| Frequency | 50Hz, 60Hz |
| Image sensor | 4K 1/1.8" CMOS sensor |
| Maximum resolution | 2.1MP/1080p, 4K, 4K at 15fps, 4MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.09 lux (color) |
| Scanning System | Progressive scan |
| Signal technology | CVBS up to 960H, HD-Analog, HD-CVI, HD-TVI, Universal HD over Coax technology |
| Test Video Output | CVBS video output for testing |
| Lens | |
| Advanced Lens Features | Auto focus, Motorized zoom, P-iris |
| Focal Length | 3.6mm ~ 10mm |
| Horizontal Field of View (HFOV) | 98.4° ~ 45.7° |
| IR Distance | 120' range Smart IR |
| Lens Type | Vari-focal Lens |
| Vertical Field of View (VFOV) | 54.6° ~ 25.9° |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Camera Control | UTC |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| DRC | Yes |
| Gamma | 0.45 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Privacy Zones | 24 programmable provacy zones |
| Sharpness | Yes |
| Shutter Mode | Auto, Manual |
| Shutter Speed | 1/30 ~ 1/30000 |
| Star-Light (sense up) | Disabled at 4K, Off, x2-x32 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Environmental | |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | *Dimensions based on the position of the sun shield cover, 9.92" x 3.8" (252 x 96.7 mm) |
| Camera Weight | 1.76 lbs (0.8kg) |
| Housing | Bullet |
| Housing Color | White |
| IP rating | Weather Resistant (IP66) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | AC24V(LED on): 7.81W , 325.4mA, AC24V(no LED): 4.95W, 206.2mA, DC12V (LED on): 8.34W, 692mA, DC12V (no LED): 5.49W, 457mA |
| Power Requirements | 24 V AC |
| General | |
| Warranty | 5 Year Warranty |
