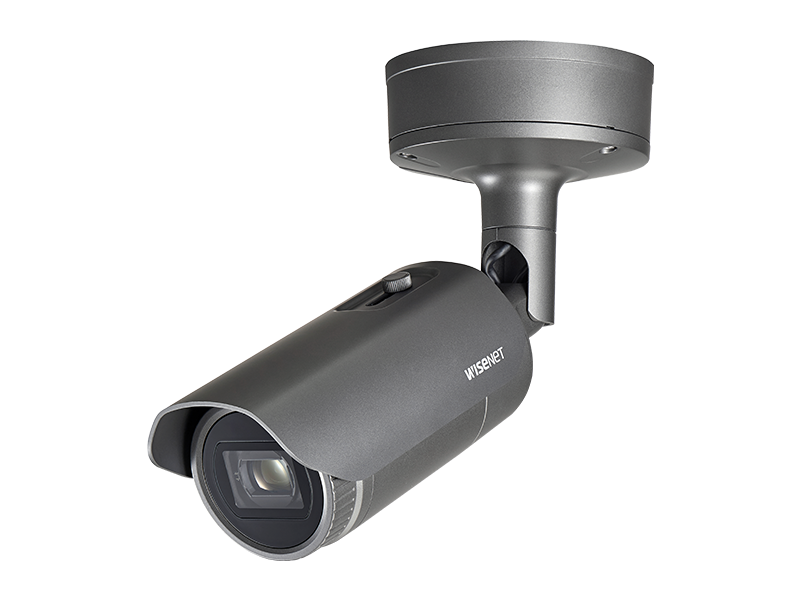

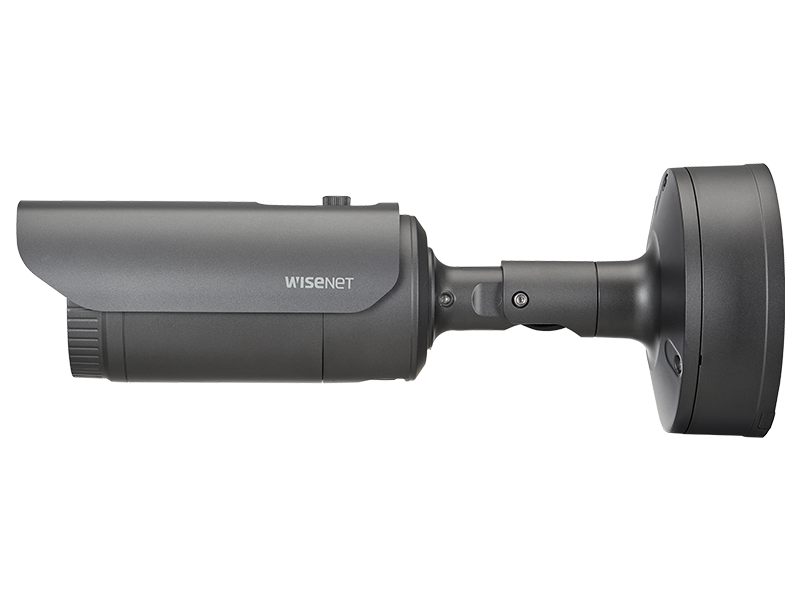

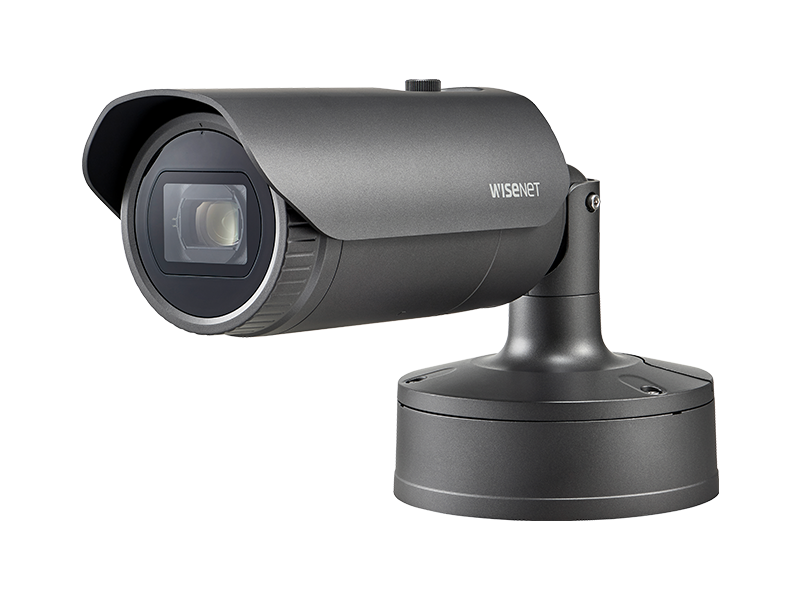

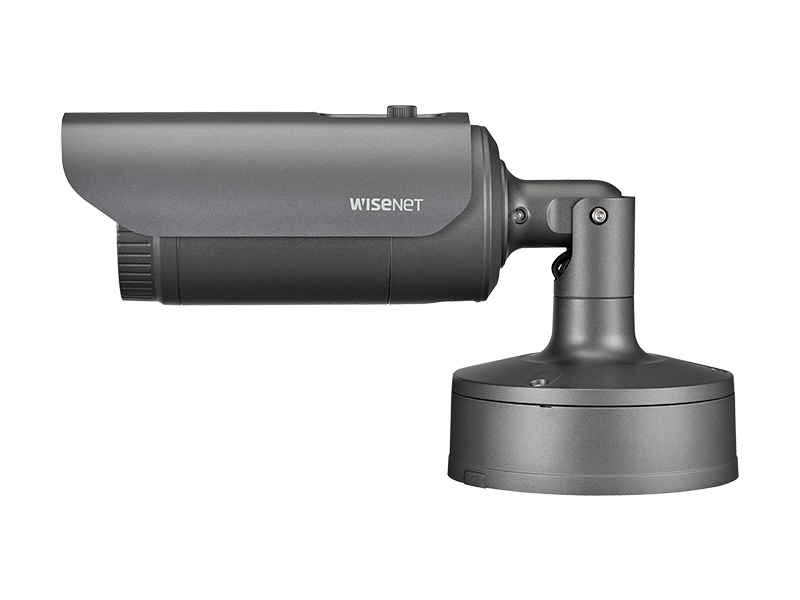

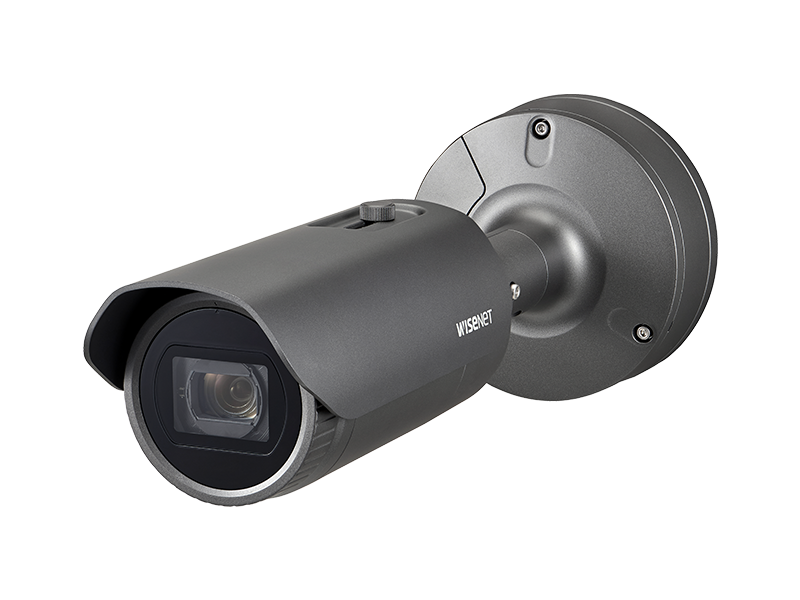

- Hanwha - XNO-6120R/LPR - Wisenet X powered by Wisenet 5 network IR outdoor Low Speed LPR bullet camera for Parking Lots; Drive-thrus; and Entry Gates up to 35MPH, 2MP, Full HD(1080p) @60fps, 12X optical zoom lens (5.2mm ~62.4mm) (54.58º ~ 5.30º), tri Hanwha - XNO-6120R/LPR - Wisenet X powered by Wisenet 5 network IR outdoor Low Speed LPR bullet camera for Parking Lots; Drive-thrus; and Entry Gates up to 35MPH, 2MP, Full HD(1080p) @60fps, 12X optical zoom lens (5.2mm ~62.4mm) (54.58º ~ 5.30º), tri
24% $585.60
Hanwha Vision
Hanwha - XNO-6120R/LPR - Wisenet X powered by Wisenet 5 network IR outdoor Low Speed LPR bullet camera for Parking Lots; Drive-thrus; and Entry Gates up to 35MPH, 2MP, Full HD(1080p) @60fps, 12X optical zoom lens (5.2mm ~62.4mm) (54.58º ~ 5.30º), tri
Product SKU: XNO-6120R/LPR
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$1,814.40
- Description
- Specifications
- Downloads
- Reviews
Wisenet X powered by Wisenet 5 network IR outdoor Low Speed LPR bullet camera for Parking Lots; Drive-thrus; and Entry Gates up to 35MPH, 2MP, Full HD(1080p) @60fps, 12X optical zoom lens (5.2mm ~62.4mm) (54.58º ~ 5.30º), triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, backbox included, 12VDC/24VAC/PoE, IP67, IK10, NEMA4X, -40°C ~ +55°C (-40°F ~ +131°F) CARE IS RECOMMENDED IN SELECTING MOUNTING LOCATION – See Quick Start Guide Step 1. DEALER TRAINING OR HANWHA ENGINEER CONSULT RECOMMENDED BEFORE INSTALLING.
Features:
- Designed for low speed and stop and go applications up to 35 MPG
- No server needed. The application runs directly on the camera and is licensed and read- to-go.
- 2 megapixel (1920 x 1080) resolution
- 12X optical zoom (5.2 ~ 62.4mm) (54.58º ~ 5.30º)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, handover
- Dual SD/SDHC/SDXC memory slots (Total maximum of 512GB)
- Hallway view, WiseStream II support
- High powered IR LEDs with readable length for LPR 65 ft, IP67/IP66, NEMA 4X, IK10
| Video | |
| Imaging Device | 1/2.8" 2MP CMOS |
| Effective Pixels | 1,945(H) x 1,109(V) 2.16MP |
| Minimum Illumination | Color : 0.03Lux (F1.6), B/W : 0Lux (IR LED on) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω Composite, 720 x 480 for Installation USB : Micro USB Type B, 1280 x 720, for Installation |
| Lens |
| Focal Length (Zoom Ratio) | 5.2 ~ 62.4mm (Optical 12X) |
| Maximum Aperture Ratio | F1.6(Wide) ~ F3.0(Tele) |
| Angular Field of View | H : 54.58˚(Wide) ~ 5.30˚(Tele) / V : 32.19˚(Wide) ~ 3.00˚(Tele) / D : 61.40˚(Wide) ~ 6.06˚(Tele) |
| Minimum Object Distance | 1.5m (4.92ft) |
| Focus Control | Auto / Manual / One shot AF |
| Lens / Mount Type | DC Auto Iris / Board-in Type |
| Operational |
| IRViewable Length | 70m (229.66ft), maximum plate distance for IR 65ft |
| Camera Title | Off / On (Displayed up to 85 Characters) - English / Numeric / International / Special Characters - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by Resolution |
| Day & Night | Auto (ICR)/ Color/ B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (Input from fog detection)/ Manual |
| Motion Detection | Off / On (8ea, 8Point polygonal zones), Handoverr |
| Privacy Masking | Off / On (32ea, Rectanglular zones) - Color : Gray / Green / Red / Blue / Black / White - Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual/Indoor / Outdoor (Included mercury & Sodium) |
| LDC | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti Flicker(2 ~ 1/12,000sec) |
| Digital Zoom | 24x |
| Flip / Mirror | Off / On, Hallway view : 90˚/270˚ |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm events | File upload via FTP, E-mail, Notification via E-mail, Localstorage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| Audio In | Selectable(Mic in/Line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Maximum output level: 1Vrms |
