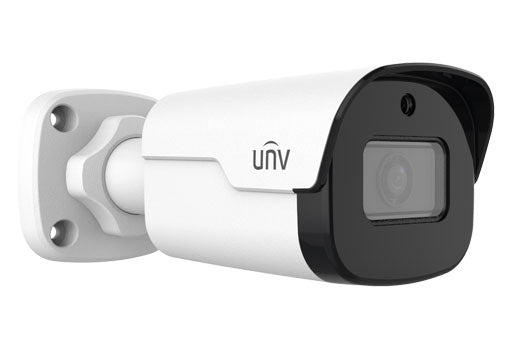

Uniview - IPC2124SS-ADF40KM - Uniview 4MP Mini Bullet Network Camera(LightHunter,30m IR,WDR,POE,4mm,Build-in MicroPhone,SD)

Name: Uniview - IPC2124SS-ADF40KM - Uniview 4MP Mini Bullet Network Camera(LightHunter,30m IR,WDR,POE,4mm,Build-in MicroPhone,SD)
Brand: Uniview
SKU: IPC2124SS-ADF40KM
Price: 129.6 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: IPC2124SS-ADF40KM

$129.60

~~$322.80~~

Description
Specifications
Downloads
Reviews

UNV 4MP Mini Bullet Network Camera(LightHunter,30m IR,WDR,POE,4mm,Build-in MicroPhone,SD)

Features:

High quality image with 4MP, 1/3"CMOS sensor
4MP (2688*1520)@30/ 25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
Ultra 265, H.265, H.264, MJPEG
LightHunter technology ensures ultra-high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 40m (131ft) IR distance
Support 256 G Micro SD card
IP67 protection
Support PoE power supply

IPC2124SS-ADF28KM				IPC2124SS-ADF40KM
Camera
Sensor	1/3", 4.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F1.6				4.0mm@F1.6
DORI Distance	Lens (mm)	Detect (m)		Observe (m)		Recognize (m)		Identify (m)
	2.8	63		25.2		12.6		6.3
	4.0	90		36		18		9
Angle of View (H)	107.8°				82°
Angle of View (V)	57.0°				41.6°
Angle of View (O)	140.1°				100.9°
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 90°				Rotate:0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
IR Range	Up to 40m (131ft) IR range
wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream: 4MP (26881520), Max 30fps; 4MP (25601440), Max 30fps; 3MP (23041296), Max 30fps; 2MP (19201080), Max 30fps; Sub Stream: 2MP (19201080), Max 30fps; Third Stream: D1 (720576), Max 30fps
Video Bit Rate	128 Kbps~16 Mbps
9:16 Corridor Mode	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, NAS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Built-in Mic	Support
Network	1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	DC 12V±25%,PoE (IEEE 802.3af)
	Power consumption: Max 5.0W
Dimensions (L × W × H)	155.9 × 63.1 × 62.7mm (6.1” ×2.5” × 2.5”)
Net Weight	0.43kg (0.94lb)
Material	Metal
Working Environment	-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection	2KV
Ingress Protection	IP67
Reset Button	Support

IPC2124SS-ADF40KM_Data_Sheet_5b915558-e57d-41f8-b8fe-4f358d3f28b1.pdf:

IPC2124SS-ADF40KM_User_Manual_ac7ca6f6-65a9-4a2f-8a4b-c8f0d06f7196.pdf:

IPC2124SS-ADF40KM_Installation_Guide_8251e5d4-ecf7-4939-8223-d77c4aefeeb5.pdf:
