Uniview - IPC3535SR3-DVPZ-F - UNV 5MP Fixed Dome Network Camera(WDR,Full Cable,PoE,RJ45,Motorized VF 2.7-13.5mm,30m IR,SD)
Uniview - IPC3535SR3-DVPZ-F - UNV 5MP Fixed Dome Network Camera(WDR,Full Cable,PoE,RJ45,Motorized VF 2.7-13.5mm,30m IR,SD)
Uniview - IPC3535SR3-DVPZ-F - UNV 5MP Fixed Dome Network Camera(WDR,Full Cable,PoE,RJ45,Motorized VF 2.7-13.5mm,30m IR,SD)
Uniview - IPC3535SR3-DVPZ-F - UNV 5MP Fixed Dome Network Camera(WDR,Full Cable,PoE,RJ45,Motorized VF 2.7-13.5mm,30m IR,SD)
Uniview - IPC3535SR3-DVPZ-F - UNV 5MP Fixed Dome Network Camera(WDR,Full Cable,PoE,RJ45,Motorized VF 2.7-13.5mm,30m IR,SD)
Uniview - IPC3535SR3-DVPZ-F - UNV 5MP Fixed Dome Network Camera(WDR,Full Cable,PoE,RJ45,Motorized VF 2.7-13.5mm,30m IR,SD)
Uniview

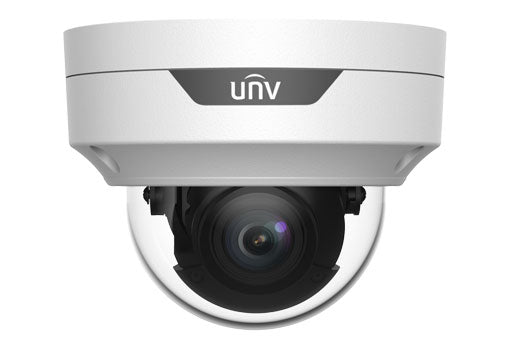

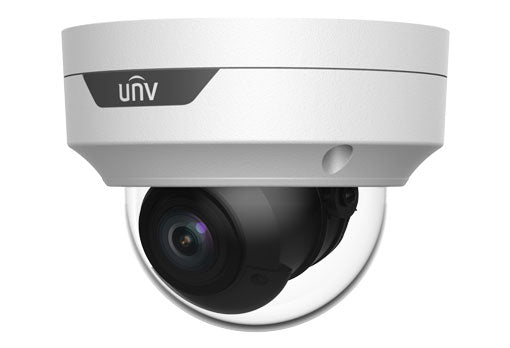

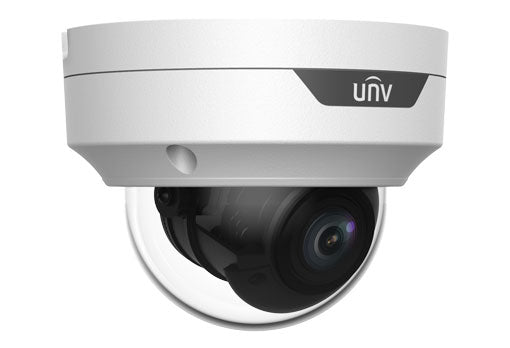

Uniview - IPC3535SR3-DVPZ-F - Uniview 5MP Fixed Dome Network Camera(WDR,Full Cable,PoE,RJ45,Motorized VF 2.7-13.5mm,30m IR,SD)

Product SKU: IPC3535SR3-DVPZ-F
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$315.90
$790.80
  • Description
  • Specifications
  • Downloads

UNV 5MP Fixed Dome Network Camera(WDR,Full Cable,PoE,RJ45,Motorized VF 2.7-13.5mm,30m IR,SD)



Features:



Optics:

  • Day/night functionality
  • Smart IR, up to 30m (98ft) IR distance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)



Compression:

  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams



Network:

  • ONVIF Conformance



Structure:

  • Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
  • Wide voltage range of ±25%
  • IK10 vandal resistant
  • 3-Axis
Camera
Sensor1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.863.125.212.66.3
12270.3108.154.127.0
Angle of view (H)96.23°~ 31.69°
Angle of View (V)69.98°~ 24.28°
Angle of View (O)125.10°~37.39°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 70°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.003Lux (F1.6, AGC ON)
0Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>56dB
IR RangeUp to 30m (98ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile
Frame RateMain Stream: 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 4CIF (704*576), Max 30fps;
Third Stream: CIF (352*288), Max 30fps
Video Bit Rate128 Kbps~16 Mbps
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 2 areas
Motion DetectionUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°
DewarpingNA
HLCSupported
BLCSupported
Audio
Audio CompressionG.711
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/OInput: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O1/1
Network10M/100M Base-TX Ethernet
Certifications
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.7W
Dimensions (Ø x H)Φ128.1mmx99.9mm (Ø5.04” x 3.93”)
Net Weight0.57kg (1.26lb)
MaterialMetal + Plastic
Working Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection6KV
Ingress ProtectionIP67
Vandal ResistantIK10
Reset ButtonSupported
IPC3535SR3-DVPZ-F_Data_Sheet_0_cc7a1669-19bf-4f42-ae2b-e10b42df1ecd.pdf:
