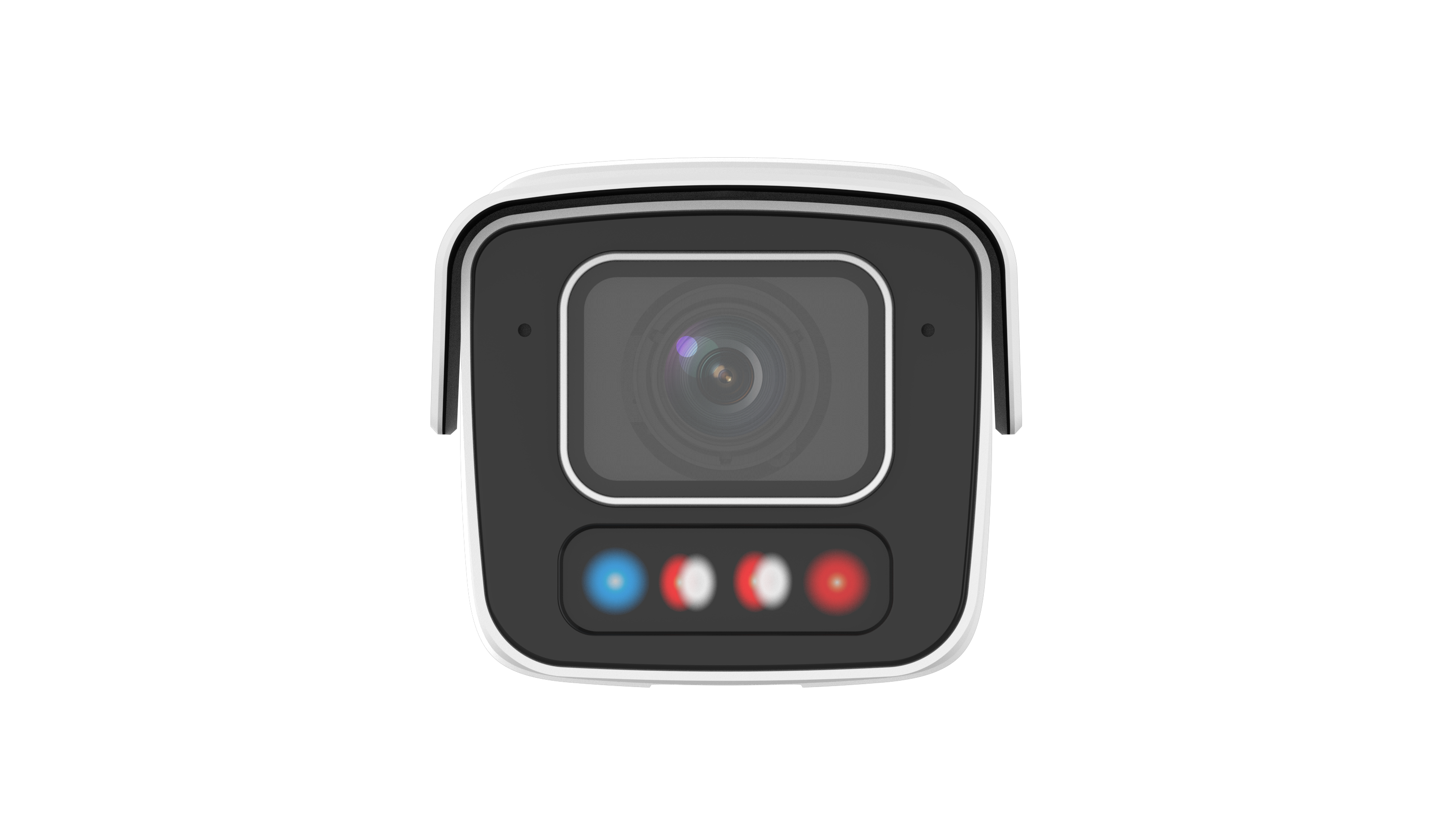

Uniview - IPC2B14SE-ADZKMC-WP-I1 - 4MP OwlView Plus Tri-Guard VF Dual-light Bullet Network Camera

Name: Uniview - IPC2B14SE-ADZKMC-WP-I1 - 4MP OwlView Plus Tri-Guard VF Dual-light Bullet Network Camera
Brand: Uniview
SKU: IPC2B14SE-ADZKMC-WP-I1
Price: 588.06 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: IPC2B14SE-ADZKMC-WP-I1

$588.06

~~$1,462.80~~

Description
Specifications
Downloads
Reviews

• High quality image with 4 MP, 1/1.8" CMOS sensor
• Features an F1.2 large-aperture lens
• 4 MP (2688 × 1520)@30/25 (default) fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights, accurately focusing on human, motor vehicle and non-motor vehicle
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1, built-in mic and speaker
• Smart IR, up to 40 m (131.2 ft) IR distance
• White light, up to 40 m (131.2 ft) warm light distance
• MicroSD, up to 512 GB
• IK10 vandal resistant and IP67 protection

Camera
Max Resolution / Sensor	4 MP / 1/1.8" CMOS
Min. Illumination (Color)	0.0005 Lux (F1.2, AGC ON)
Day/Night / Shutter	IR-cut filter with auto switch (ICR) / Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N / WDR	> 56 dB / 130 dB
Lens
Focal Length / Lens Type	2.8 to 12 mm / Motorized
Iris Type / Iris	Fixed / F1.2
Field of View (H/V/D)	H: 113.5° to 54.6°, V: 61.6° to 30.8°, D: 131.1° to 62.8°
DORI Distance
DORI Distance (Detect)	43.4 m to 186.2 m (142.4 ft. to 610.9 ft)
DORI Distance (Observe)	17.4 m to 74.5 m (57.1 ft. to 244.4 ft)
DORI Distance (Recognize)	8.7 m to 37.2 m (28.5 ft. to 122.1 ft)
DORI Distance (Identify)	4.3 m to 18.6 m (14.1 ft. to 61.0 ft)
Illuminator
Supplemental Light	Dual light (IR and Warm Light)
Illumination Distance (IR/Warm)	40 m (131.2 ft)
Control / Wavelength	IR On/Off and Light On/Off Auto/Manual / 850 nm
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG (Baseline/Main/High profile)
Frame Rate (Main Stream)	4 MP (2688 × 1520), max. 30 fps
Video Bit Rate / Stream	128 Kbps to 16 Mbps / Triple streams
OSD / Privacy Mask / ROI / U-code	Up to 8 OSDs / Up to 4 areas / Support / Support
Digital Noise Reduction	2D/3D DNR
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Features	ASM (Support), HLC (Support), BLC (Support), Defog (Digital defog)
Intelligent
Smart Intrusion Prevention	Cross line, intrusion, enter/leave area detection (human/vehicle filtering)
Counting / Collection	People Counting (Support flow/crowd density) / Attribute Collection (SIP with color retrieval)
Basic Events	Motion, Ultra motion, Tampering, Audio detection, Object removed, Object Left Behind
Audio
Compression / Bitrate	G.711U, G.711A / 64 Kbps (Sampling Rate 8 kHz)
Two-way Audio / Suppression	Support / Support
Storage & Network
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, G, T, M), API, SDK
Security	TLS 1.2, DTLS 1.2, Strong Password, Secure Boot, Firmware Encryption, etc.
Interface
Audio I/O	1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	1/1
Built-in Mic / Speaker	Built-in dual-mic / Support
Network / Video Output	1 × RJ45 10 M/100 M Base-TX Ethernet / N/A
General & Environment
Power / Power Consumption	DC 12 V±25%, PoE (IEEE 802.3af) / Max. 5.0 W

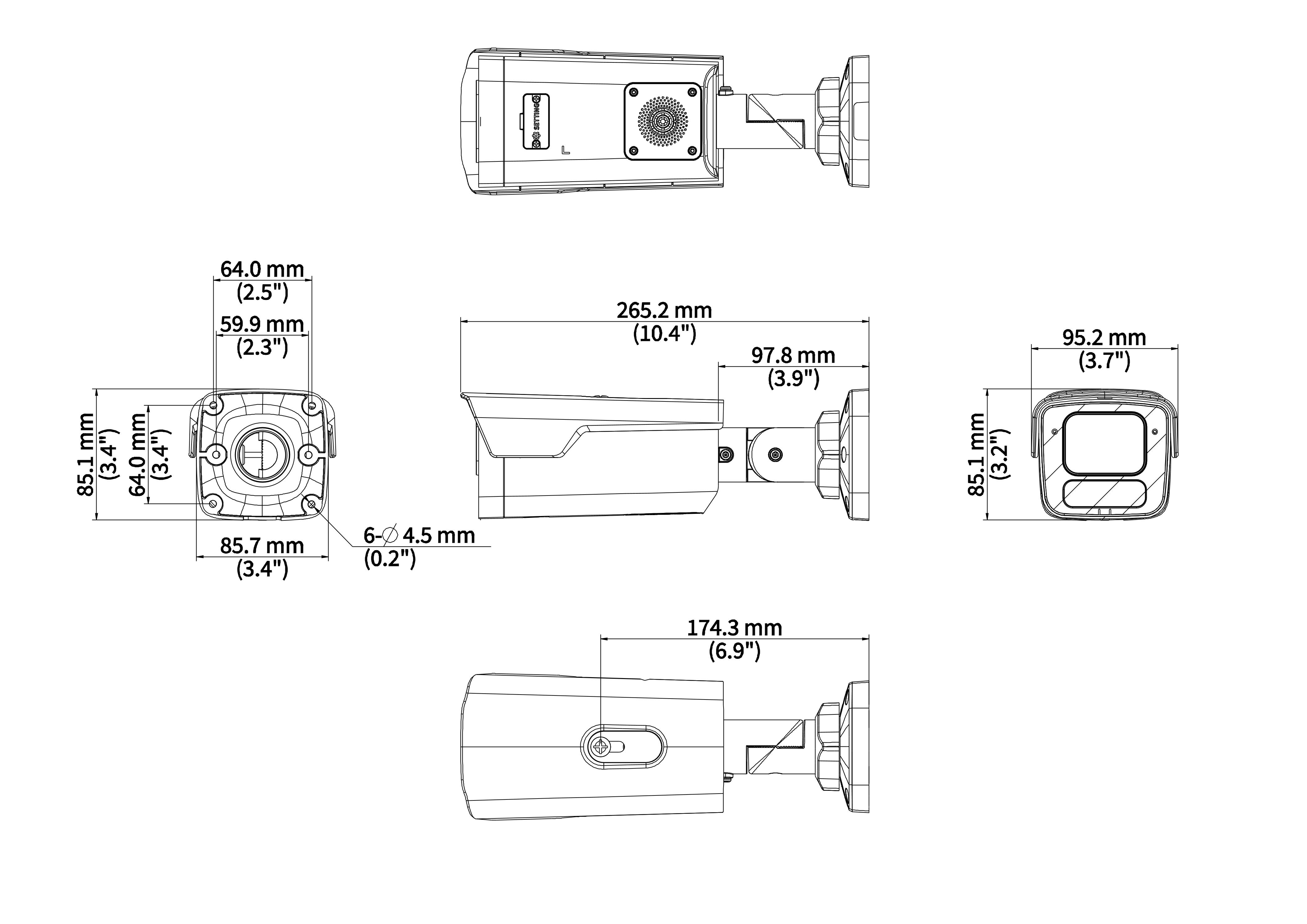

Dimensions (L × W × H)	265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" )
Weight / Material	0.98 kg (2.16 lb) / Metal + Plastic
Protection Rating	IP67, IK10, NEMA 4X
Working Environment	-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection / Reset Button	4 KV / Support
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4), FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU ; (EU) 2015/863), WEEE (2012/19/EU)
Web Client Language	20 Languages
