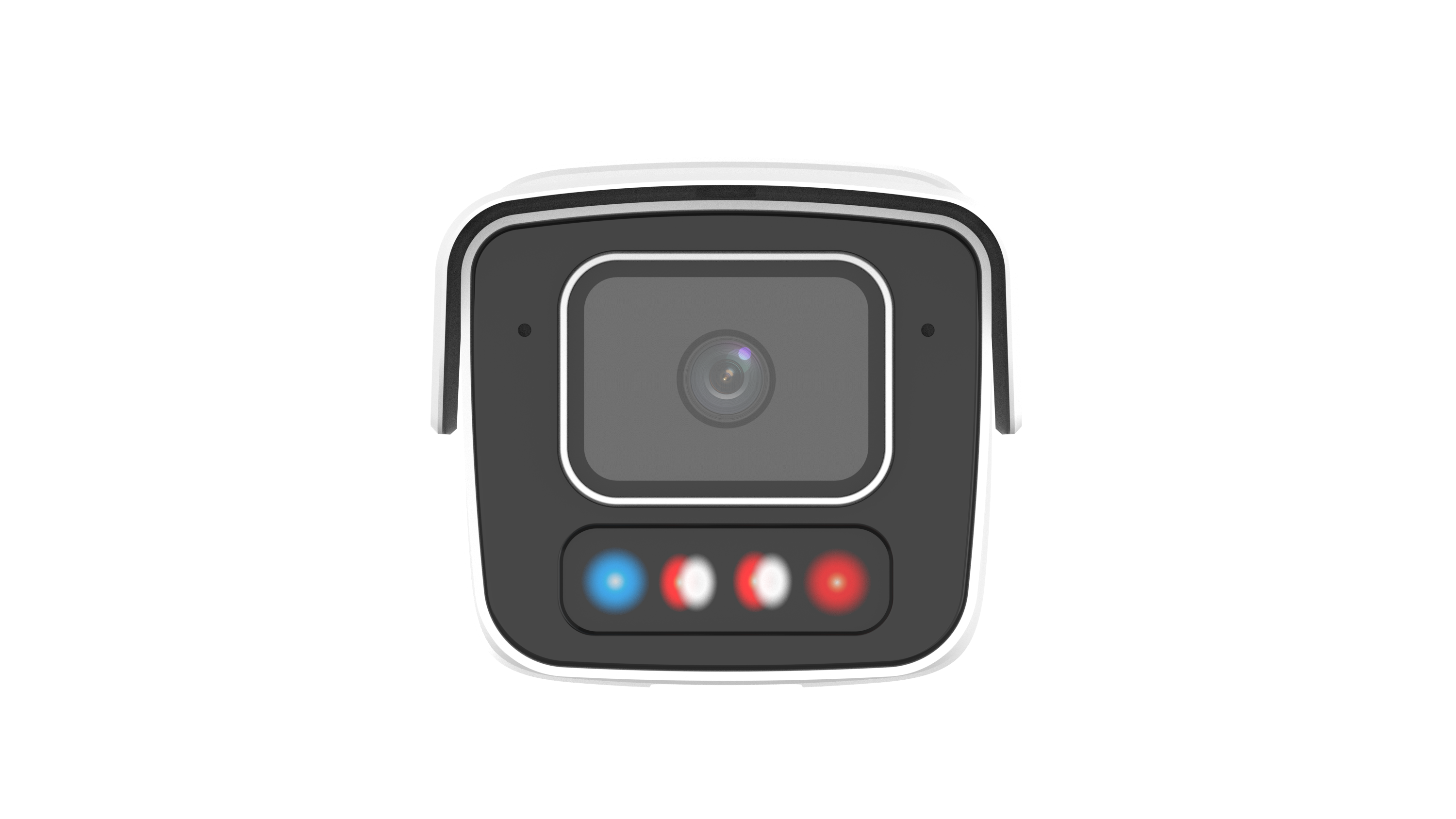

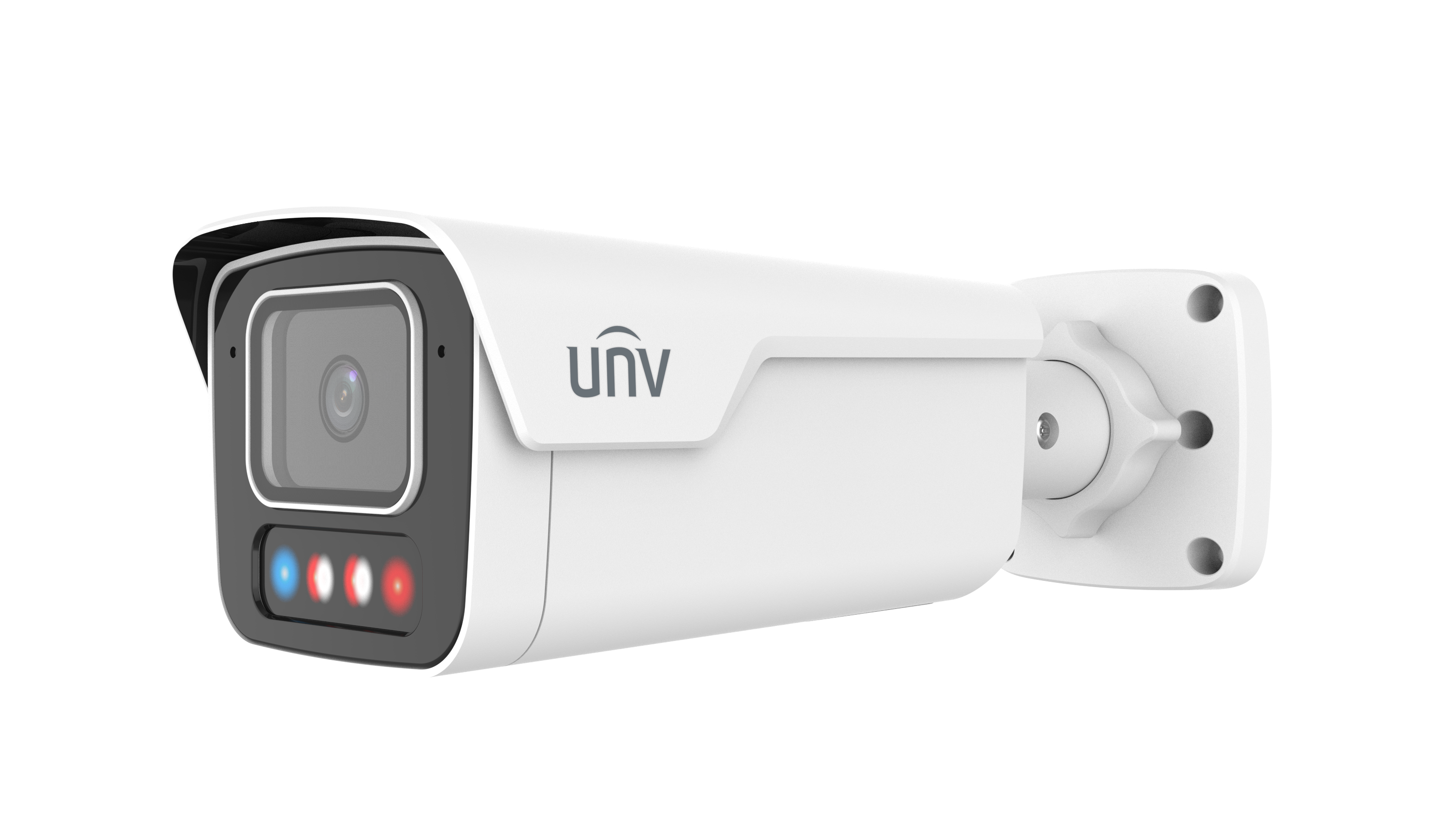

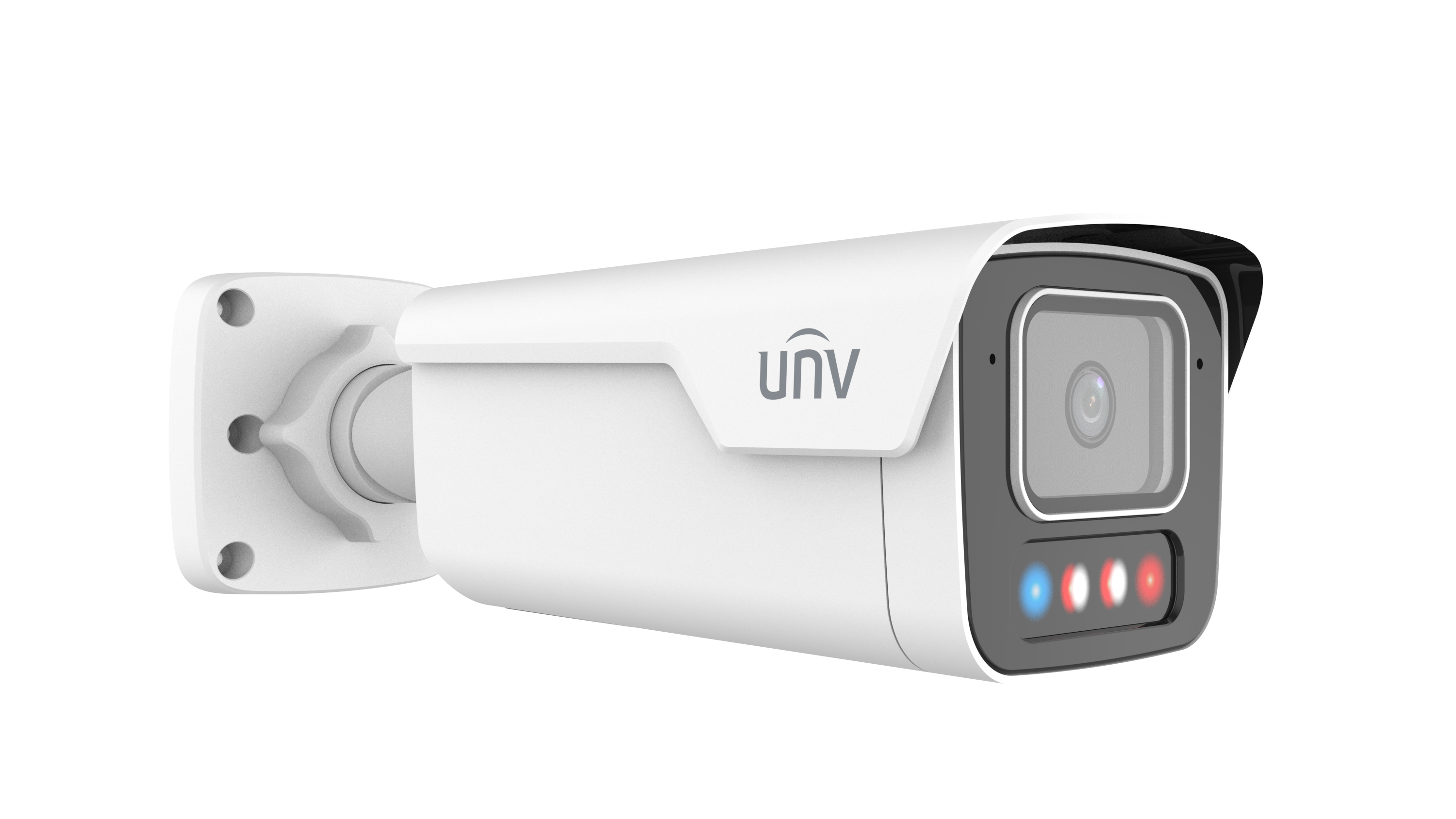

Uniview - IPC2B18SE-ADF28KMC-WP-I1 - 8MP Dual-light Bullet Warning Network Camera

Name: Uniview - IPC2B18SE-ADF28KMC-WP-I1 - 8MP Dual-light Bullet Warning Network Camera
Brand: Uniview
SKU: IPC2B18SE-ADF28KMC-WP-I1
Price: 427.68 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: IPC2B18SE-ADF28KMC-WP-I1

$427.68

~~$1,066.80~~

Description
Specifications
Downloads
Reviews

• High quality image with 8 MP, 1/1.8" CMOS sensor
• Features an F1.0 large-aperture lens
• 8 MP (3840 × 2160)@30/25 (default) fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non motor vehicles
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1
• Built-in dual-mic and speaker
• Smart IR, up to 40 m (131.2 ft) IR distance
• White light, up to 40 m (131.2 ft) warm light distance
• MicroSD, up to 512 GB
• IK10 vandal resistant
• Supports NEMA 4X and IP67 protection

Camera
Max Resolution / Sensor	8 MP / 1/1.8" CMOS
Min. Illumination (Color)	0.0005 Lux (F1.0, AGC ON)
Day/Night / Shutter	IR-cut filter with auto switch (ICR) / Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N / WDR	> 56 dB / 130 dB
Lens
Focal Length / Lens Type	2.8 mm / Fixed
Iris Type / Iris	Fixed / F1.0
Field of View (H/V/D)	H: 108.1°, V: 59.5°, D: 130.2°
DORI Distance
DORI Distance (Detect)	63.0 m (206.7 ft.)
DORI Distance (Observe)	25.2 m (82.7 ft.)
DORI Distance (Recognize)	12.6 m (41.3 ft.)
DORI Distance (Identify)	6.3 m (20.7 ft.)
Illuminator
Supplemental Light	Dual light (IR and Warm Light)
Illumination Distance (IR/Warm)	40 m (131.2 ft)
Control / Wavelength	IR On/Off and Light On/Off Auto/Manual / 850 nm
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG (Baseline/Main/High profile)
Frame Rate (Main Stream)	8 MP (3840 × 2160), max. 30 fps
Video Bit Rate / Stream	128 Kbps to 16 Mbps / Triple streams
OSD / Privacy Mask / ROI / U-code	Up to 8 OSDs / Up to 4 areas / Support / Support
Digital Noise Reduction	2D/3D DNR
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Features	Smart Illumination (Support), ASM (Support), HLC (Support), BLC (Support), Defog (Digital defog)
Intelligent
Smart Intrusion Prevention	Cross line, intrusion, enter/leave area detection (human/vehicle filtering)
Counting / Collection	People Counting (Support flow/crowd density) / Attribute Collection (SIP with color retrieval)
Basic Events	Motion, Ultra motion, Tampering, Audio detection, Object removed, Object Left Behind, Alarm input, Alarm output
Audio
Compression / Bitrate	G.711U, G.711A / 64 Kbps (Sampling Rate 8 kHz)
Two-way Audio / Suppression	Support / Support
Storage & Network
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, G, T, M), API, SDK
Interface
Audio I/O	1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	1/1
Built-in Mic / Speaker	Built-in dual-mic / Support
Network / Video Output	1 × RJ45 10 M/100 M Base-TX Ethernet / N/A
General & Environment
Power / Power Consumption	DC 12 V±25%, PoE (IEEE 802.3af) / Max. 6.5 W
Dimensions (L × W × H)	265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" )
Weight / Material	1.17 kg (2.58 lb) / Metal + Plastic
Protection Rating	IP67, IK10, NEMA 4X
Working Environment	-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection / Reset Button	4 KV / Support
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4), FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU ; (EU) 2015/863), WEEE (2012/19/EU)
Web Client Language	20 Languages

UNV_20IPC2B18SE-ADF28_40_KMC-WP-I1_208MP_20OwlView_20Plus_20Tri-Guard_20Fixed_20Dual-light_20Bullet_20Network_20Camera.pdf:

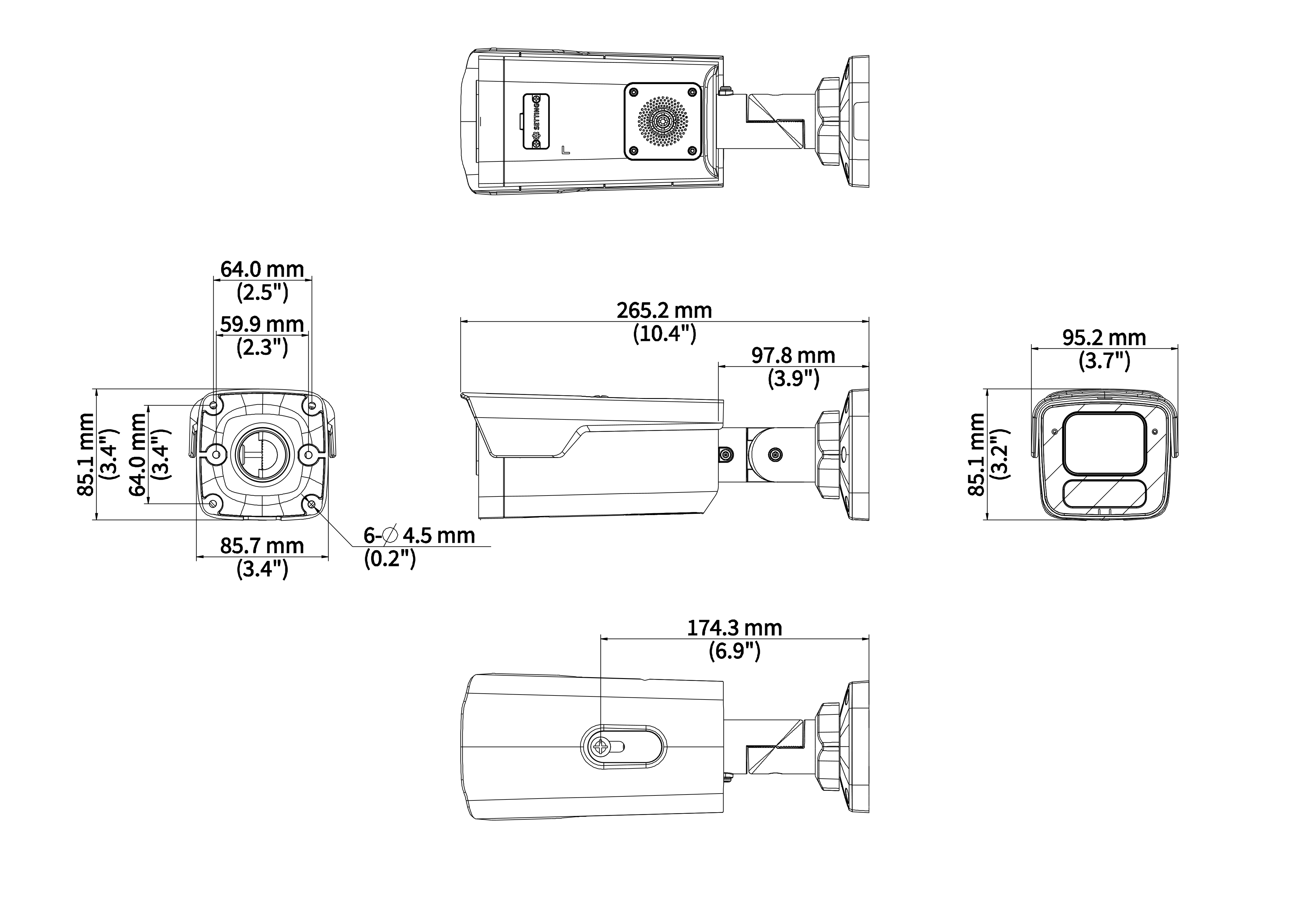

IPC2B18SE-ADF28KMC-WP-I1_Dimensions_1_8af6250d-127c-41c4-8ba0-2b92949a2ef1.pdf:
