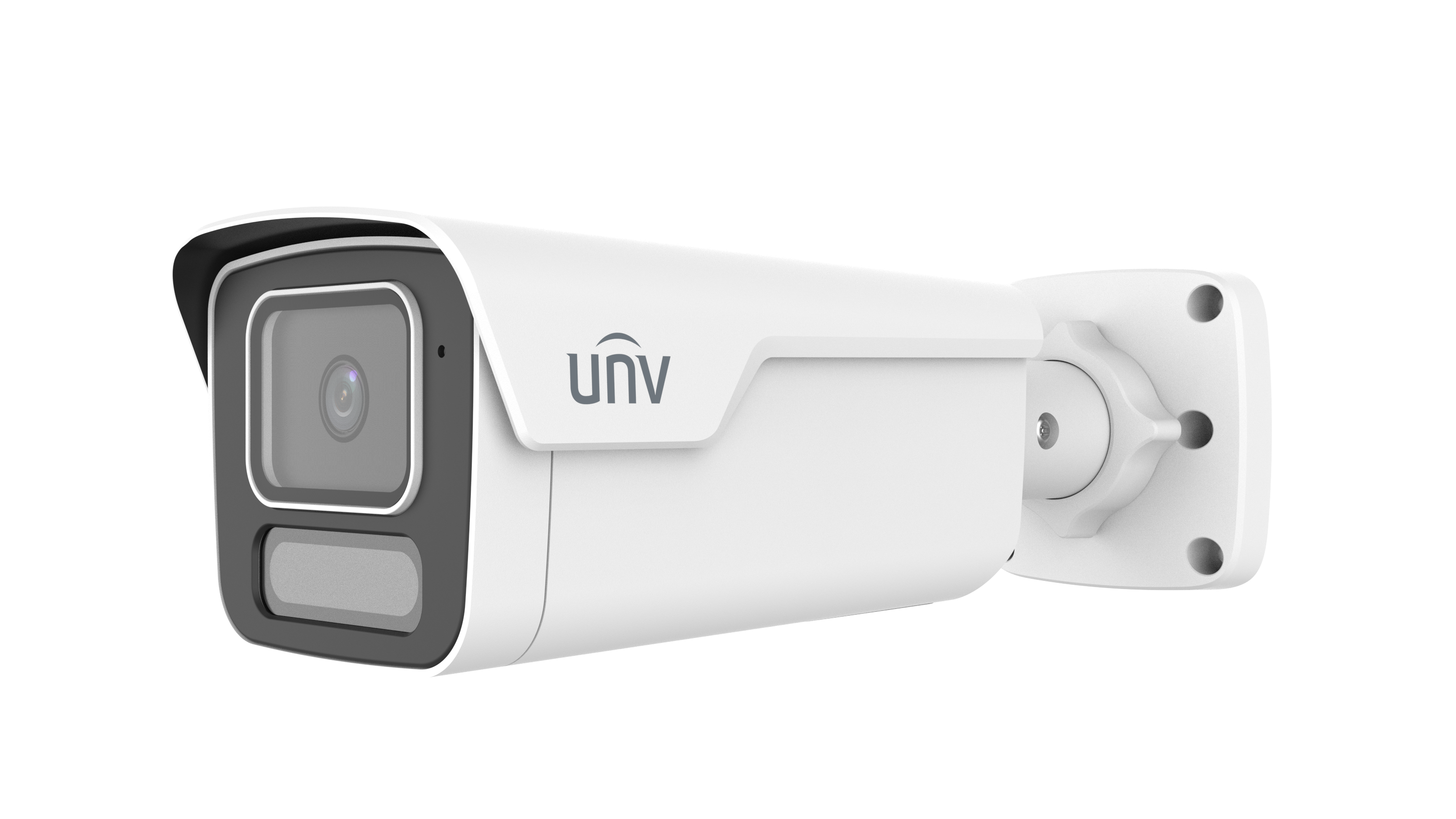

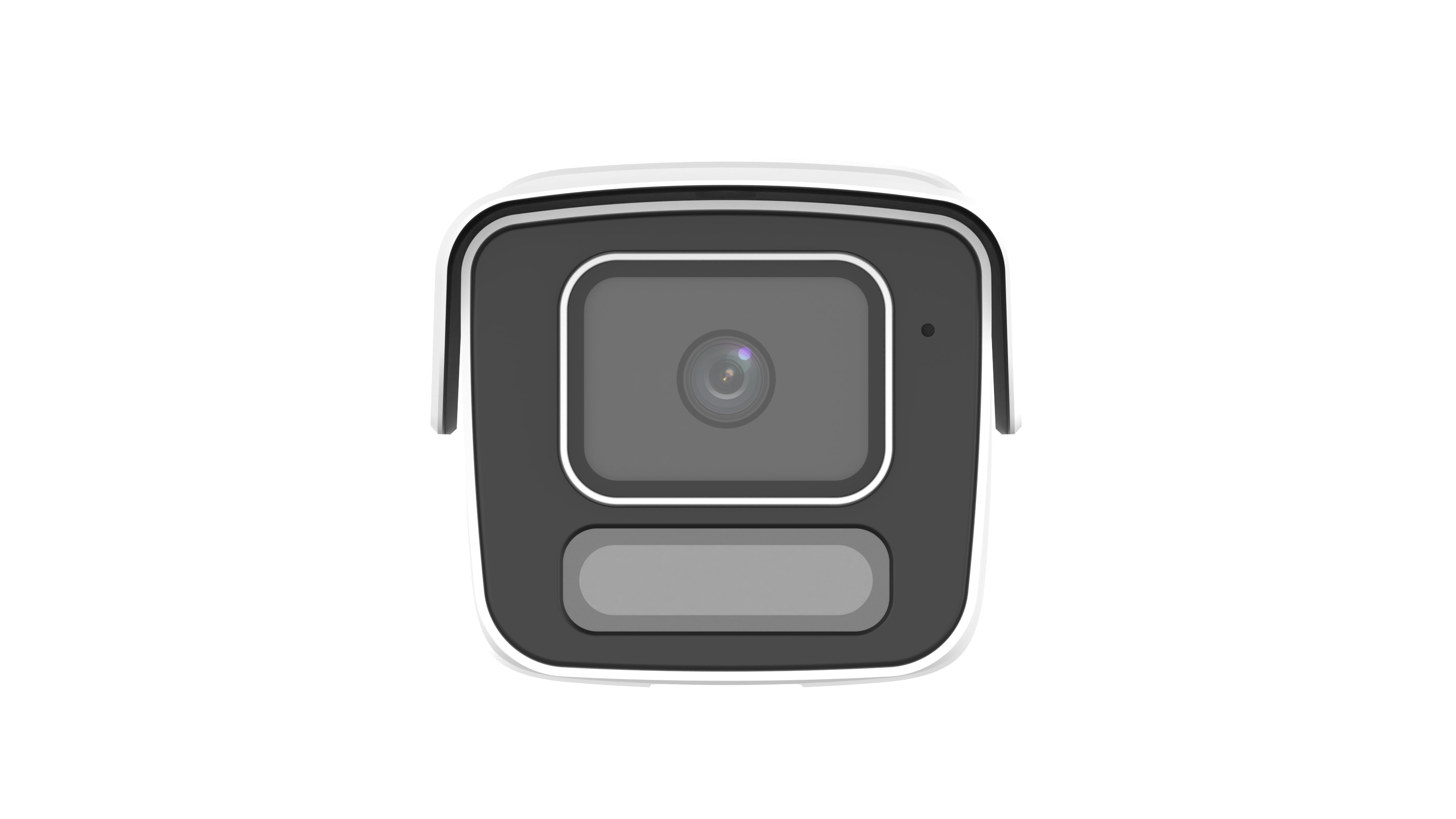

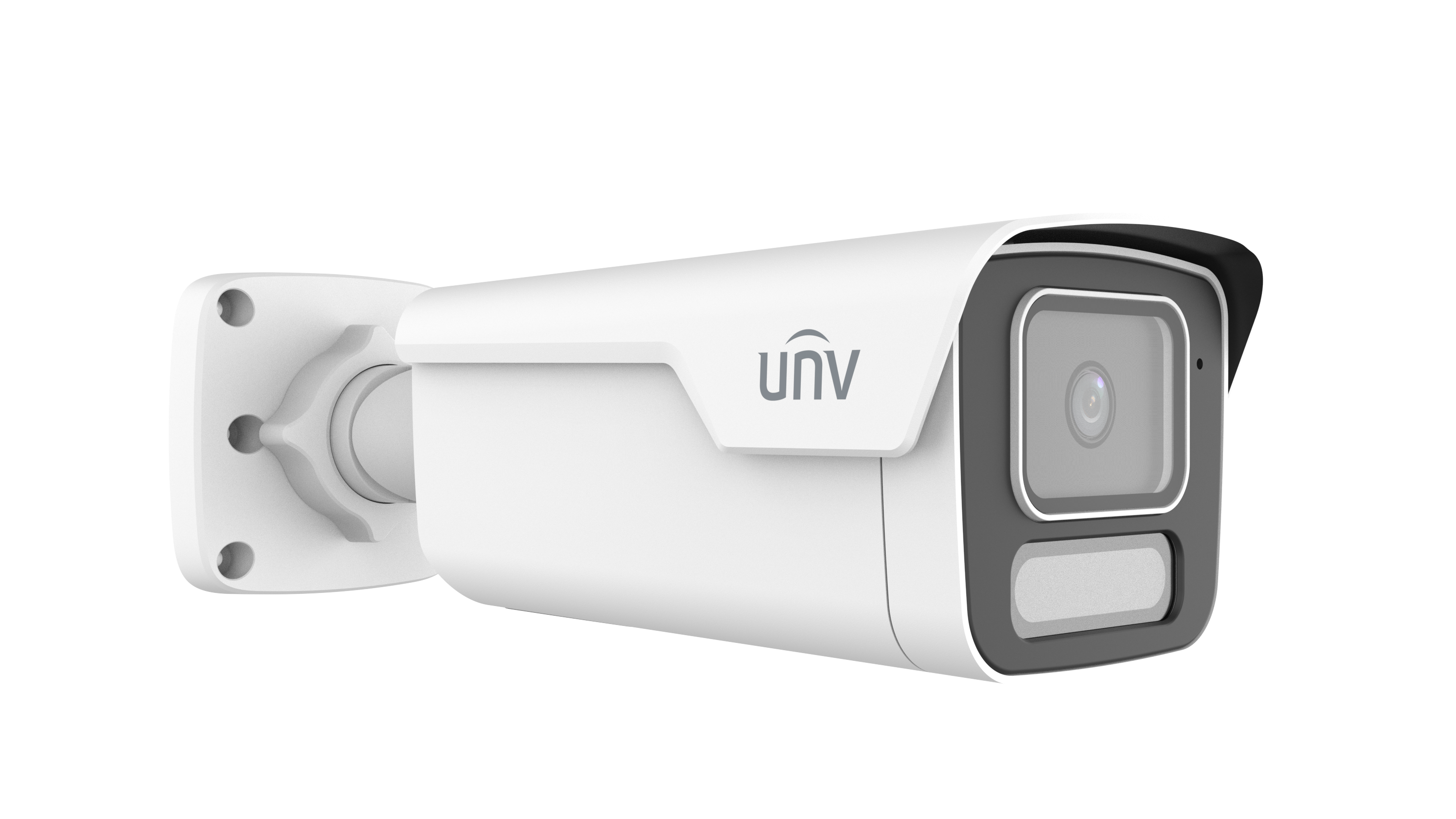

Uniview - IPC2B18SE-ADF40KMC-WP-I1 - 8MP OwlView Plus Tri-Guard Fixed Dual-light Bullet Network Camera

Name: Uniview - IPC2B18SE-ADF40KMC-WP-I1 - 8MP OwlView Plus Tri-Guard Fixed Dual-light Bullet Network Camera
Brand: Uniview
SKU: IPC2B18SE-ADF40KMC-WP-I1
Price: 427.68 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: IPC2B18SE-ADF40KMC-WP-I1

$427.68

~~$1,066.80~~

Description
Specifications
Downloads
Reviews

• High quality image with 8 MP, 1/1.2" CMOS sensor
• 8 MP (3840 × 2160)@30/25 fps; 5.3 MP (3072 × 1728)@30/25 fps; 3.6 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720), max. 30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights, accurately focusing on human, motor vehicle and non-motor vehicle
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1, built-in mic
• White light, up to 40 m (131.2 ft) warm light distance
• MicroSD, up to 512 GB
• Supports NEMA 4X, IK10 vandal resistant and IP67 protection

Camera
Max Resolution / Sensor	8 MP / 1/1.2" CMOS
Min. Illumination (Color)	0.0003 Lux (F1.0, AGC ON)
Shutter / Day/Night	Auto/Manual, 1 to 1/100000 s / IR-cut filter with auto switch (ICR)
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N / WDR	> 56 dB / 130 dB
Lens
Focal Length / Lens Type	4.0 mm / Fixed
Iris Type / Iris	Fixed / F1.0
Field of View (H/V/D)	H: 88.3°, V: 48.3°, D: 102.5°
DORI Distance
DORI Distance (Detect)	62.1 m (203.7 ft.)
DORI Distance (Observe)	24.8 m (81.4 ft.)
DORI Distance (Recognize)	12.4 m (40.7 ft.)
DORI Distance (Identify)	6.2 m (20.3 ft.)
Illuminator
Supplemental Light	Warm light
Illumination Distance (Warm Light)	40 m (131.2 ft)
Light On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG (Baseline/Main/High profile)
Frame Rate (Main Stream)	8 MP (3840 × 2160), max. 30 fps
Video Bit Rate / Stream	128 Kbps to 16 Mbps / Triple streams
OSD / Privacy Mask / ROI / U-code	Up to 8 OSDs / Up to 4 areas / Support / Support
Digital Noise Reduction	2D/3D DNR
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Features	ASM (Support), HLC (Support), BLC (Support), Defog (Digital defog)
Intelligent
Smart Intrusion Prevention	Cross line, intrusion, enter/leave area detection (human/vehicle filtering)
Counting / Collection	People Counting (Support flow/crowd density) / Attribute Collection (SIP with color retrieval)
Basic Events	Motion, Ultra motion, Tampering, Audio detection, Object removed, Object Left Behind, Alarm input, Alarm output
Audio
Compression / Bitrate	G.711U, G.711A / 64 Kbps (Sampling Rate 8 kHz)
Two-way Audio / Suppression	Support / Support
Built-in Mic / Speaker	Support / N/A (Speaker not specified)
Storage & Network
Edge Storage / Network Storage	MicroSD, up to 512 GB / ANR, NAS (NFS)
Network Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, G, T, M), API, SDK
Security	Password Protection, Strong Password, HTTPS Encryption, TLS 1.2, WSSE and Digest Authentication for ONVIF, etc.
Interface
Audio I/O	1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	1/1
Network / Video Output	1 × RJ45 10 M/100 M Base-TX Ethernet / N/A
General & Environment
Power / Power Consumption	DC 12 V±25%, PoE (IEEE 802.3af) / Max. 6.0 W

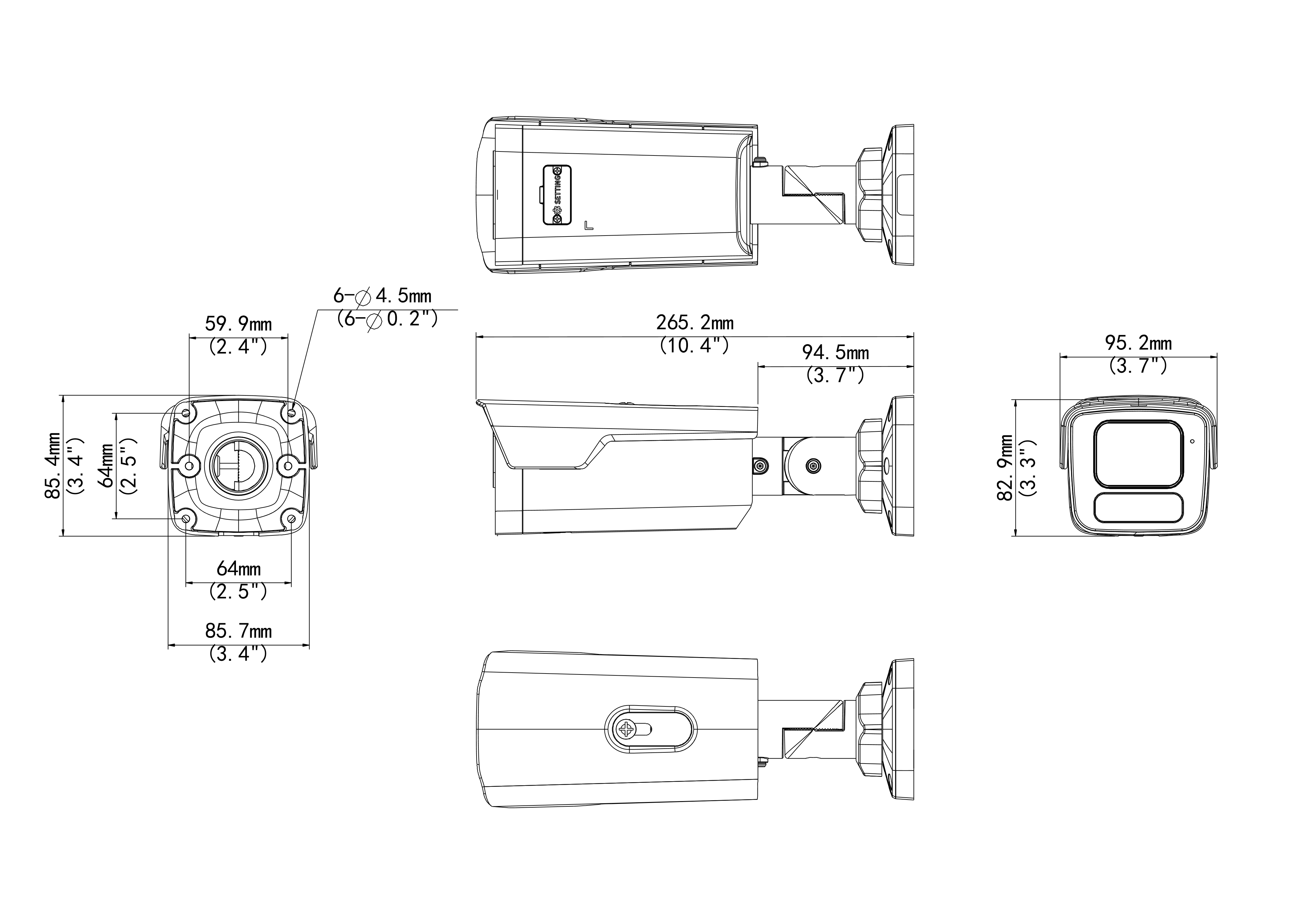

Dimensions (L × W × H)	265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" )
Weight / Material	0.93 kg (2.05 lb) / Metal + Plastic
Protection Rating	IP67, IK10, NEMA 4X
Working Environment	-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection / Reset Button	4 KV / Support
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130), FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863), WEEE (2012/19/EU)
Web Client Language	20 Languages

IPC2B18SE-ADF40KMC-WP-I1_Datasheet_c2c91a77-6368-4b5a-b6fa-4814aa1b6f39.pdf:

IPC2B18SE-ADF28K-WP-I1_Dimensions_1_0_35c4eedf-687f-46f6-a087-6839790ff891.pdf:
