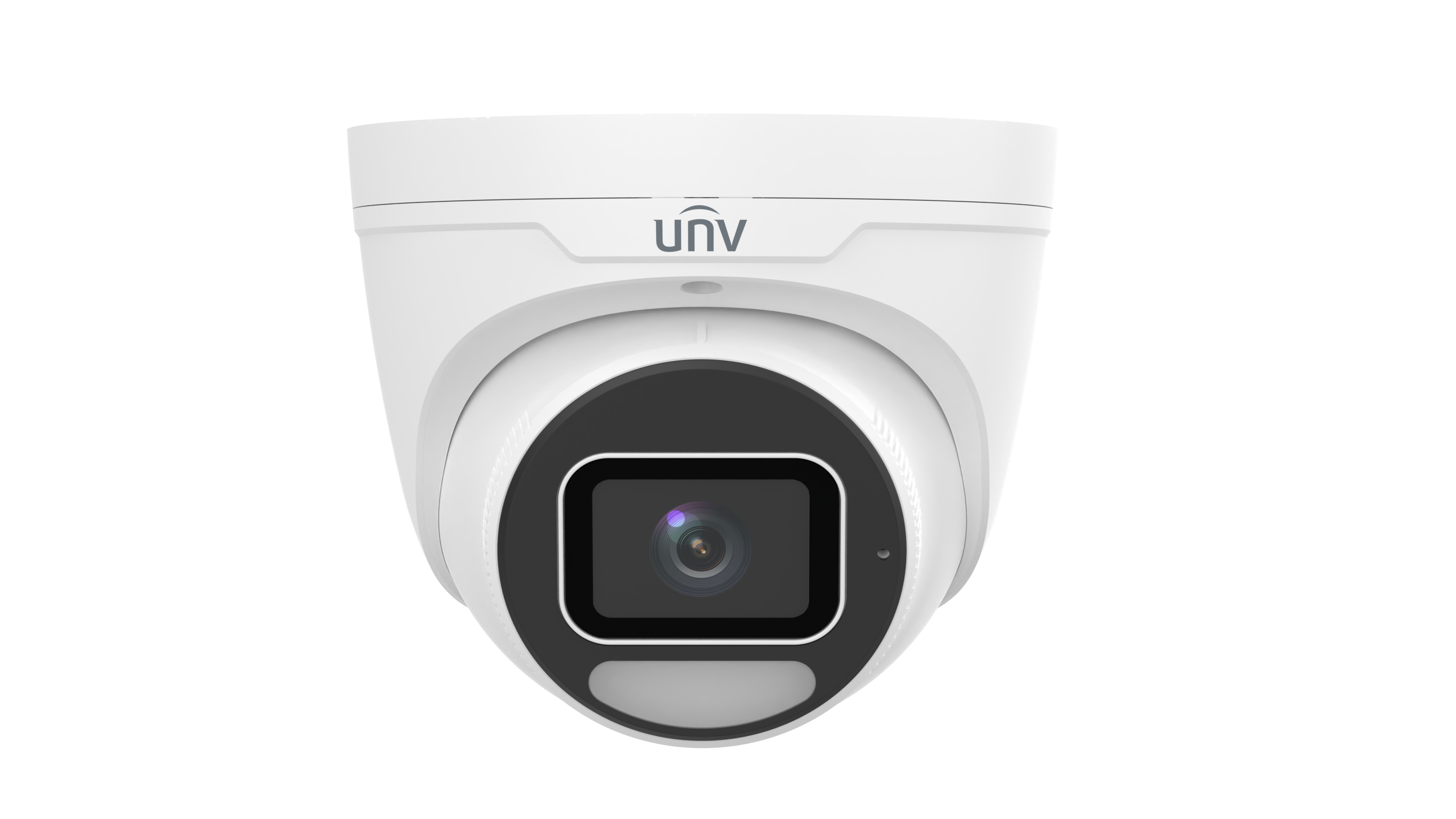

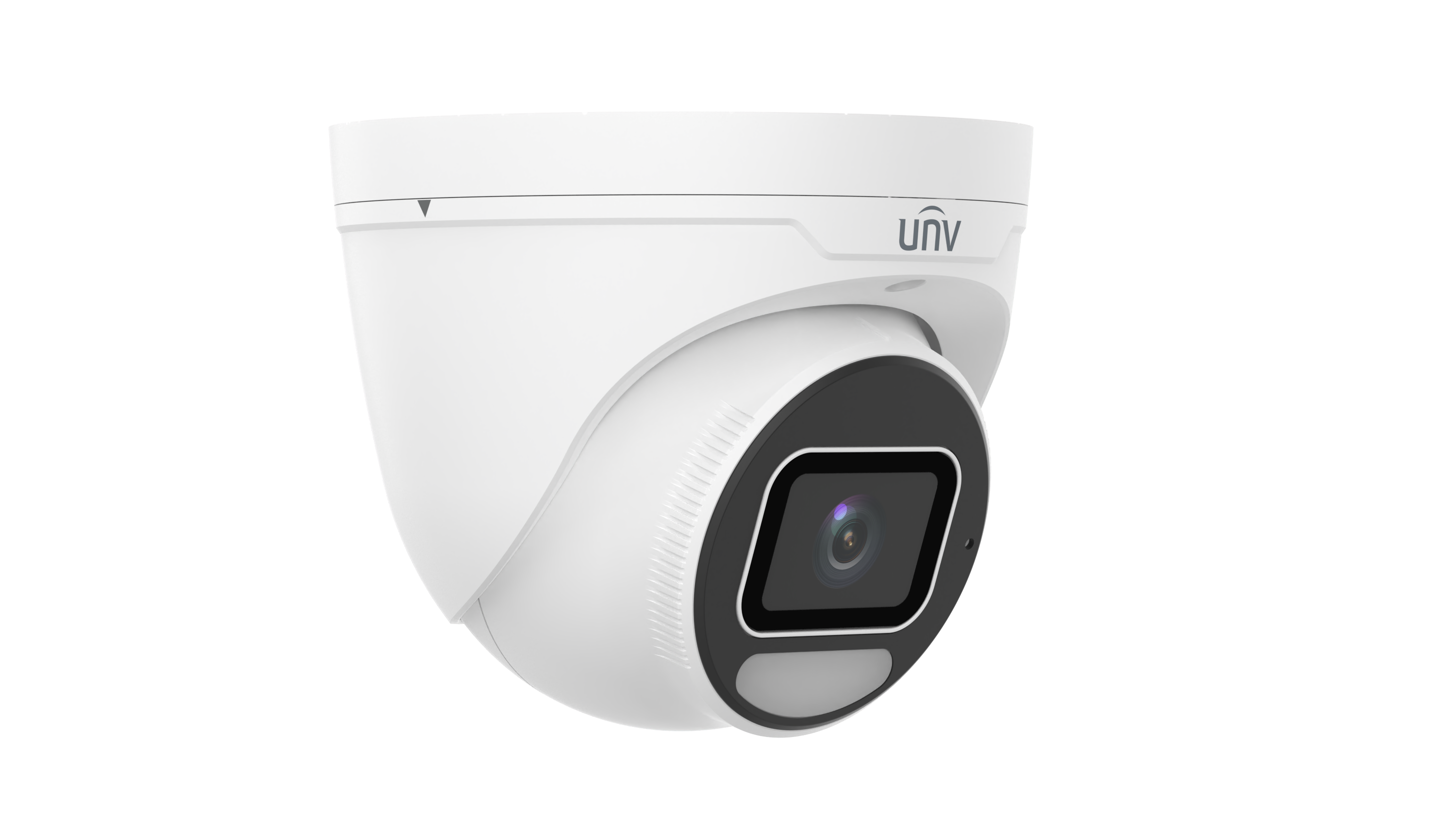

- Uniview - IPC3638SE-ADF28K-WP-I1N - 8MP WDR OwlView Plus Eyeball Network Camera Uniview - IPC3638SE-ADF28K-WP-I1N - 8MP WDR OwlView Plus Eyeball Network Camera
- Description
- Specifications
- Downloads
- Reviews
• High quality image with 8 MP, 1/1.2" CMOS sensor
• 8 MP (3840 × 2160)@30/25 fps; 5.3 MP (3072 × 1728)@30/25 fps; 3.6 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720), max. 30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights, accurately focusing on human, motor vehicle and non-motor vehicle
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1, built-in mic
• White light, up to 30 m (98.4 ft) warm light distance
• MicroSD, up to 512 GB
• Supports NEMA 4X, IK10 vandal resistant and IP67 protection
| Camera | |
| Max Resolution | 8 MP (3840 × 2160) |
| Sensor | 1/1.2" CMOS - Large format sensor for superior image quality |
| Min. Illumination | Color: 0.0003 Lux (F1.0, AGC ON) - Exceptional low-light performance |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N Ratio | > 56 dB |
| WDR | 130 dB Wide Dynamic Range |
| Lens | |
| Focal Length | 2.8 mm |
| Iris | Fixed F1.0 |
| Field of View | Horizontal: 105.0° Vertical: 56.1° Diagonal: 121.0° |
| Lens Type | Fixed |
| Illuminator | |
| Supplemental Light | Warm light |
| Illumination Distance | 30 m (98.4 ft) |
| Light Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265 H.265 H.264 MJPEG |
| Frame Rate - Main Stream | 8 MP (3840 × 2160), max. 30 fps 5.3 MP (3072 × 1728), max. 30 fps 3.6 MP (2560 × 1440), max. 30 fps 1080P (1920 × 1080), max. 30 fps 720P (1280 × 720), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Advanced Features | U-code Support Up to 8 OSDs Privacy Mask (4 areas) ROI Support Triple Streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Advanced Features | Auto Scene Match (ASM) HLC Support BLC Support Digital Defog Flip Options |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (With false alarm filtering and classification of human, non-motor vehicle and vehicle) |
| People Analytics | People Flow Counting and Crowd Density Monitoring |
| Attribute Collection | SIP with color retrieval |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Features | Two-way Audio Support Suppression Support 64 Kbps Bitrate 8 kHz Sampling Rate Built-in Mic Support |
| Storage & Network | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Protection & Certification | |
| Protection Ratings | IP67 Waterproof IK10 Vandal Proof NEMA 4X Certified |
| Certifications | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 6.0 W |

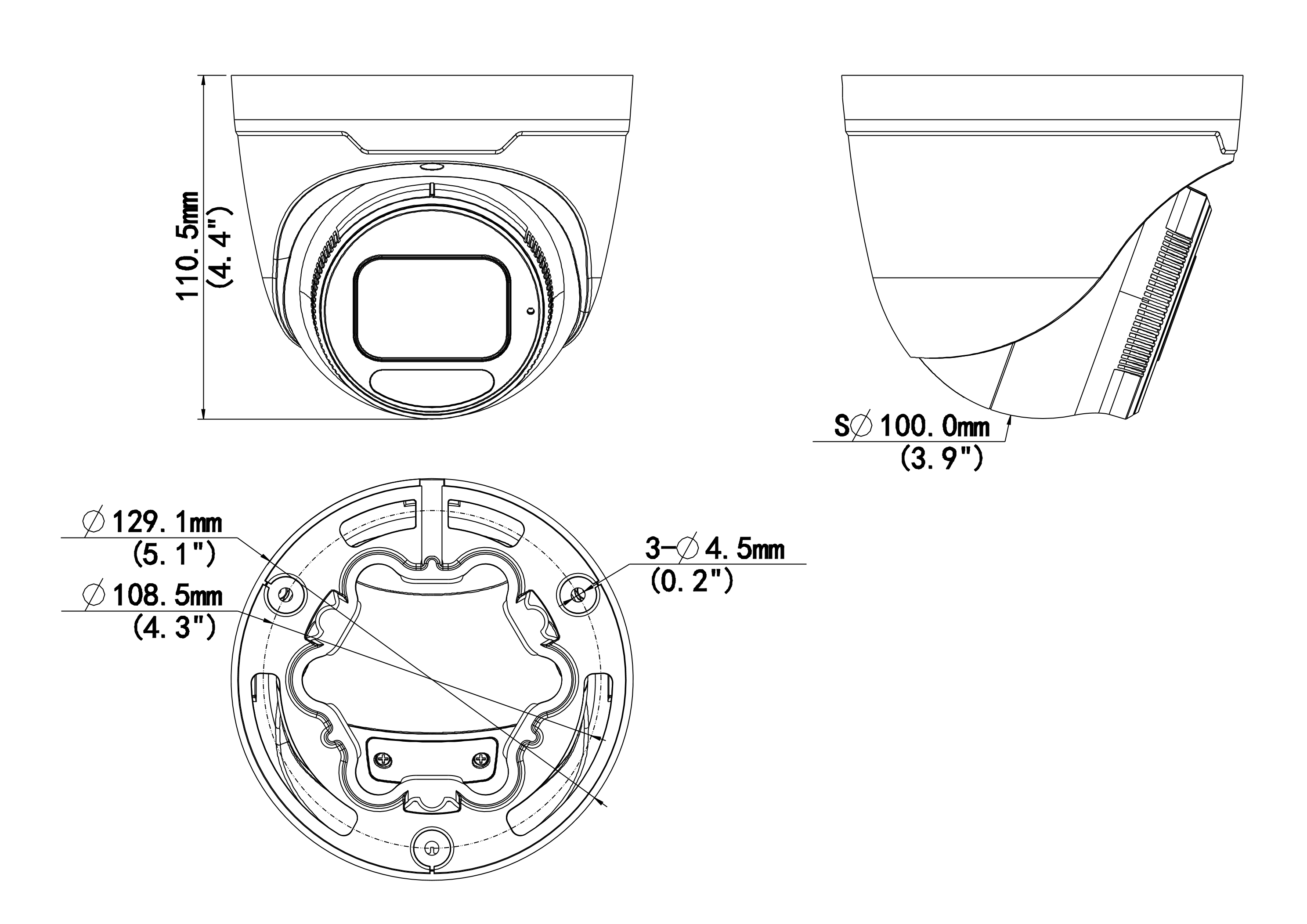

| Dimensions | Ø129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H) |
| Weight | 0.69 kg (1.52 lb) |
| Material | Metal construction |
| Operating Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Web Client Languages | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
