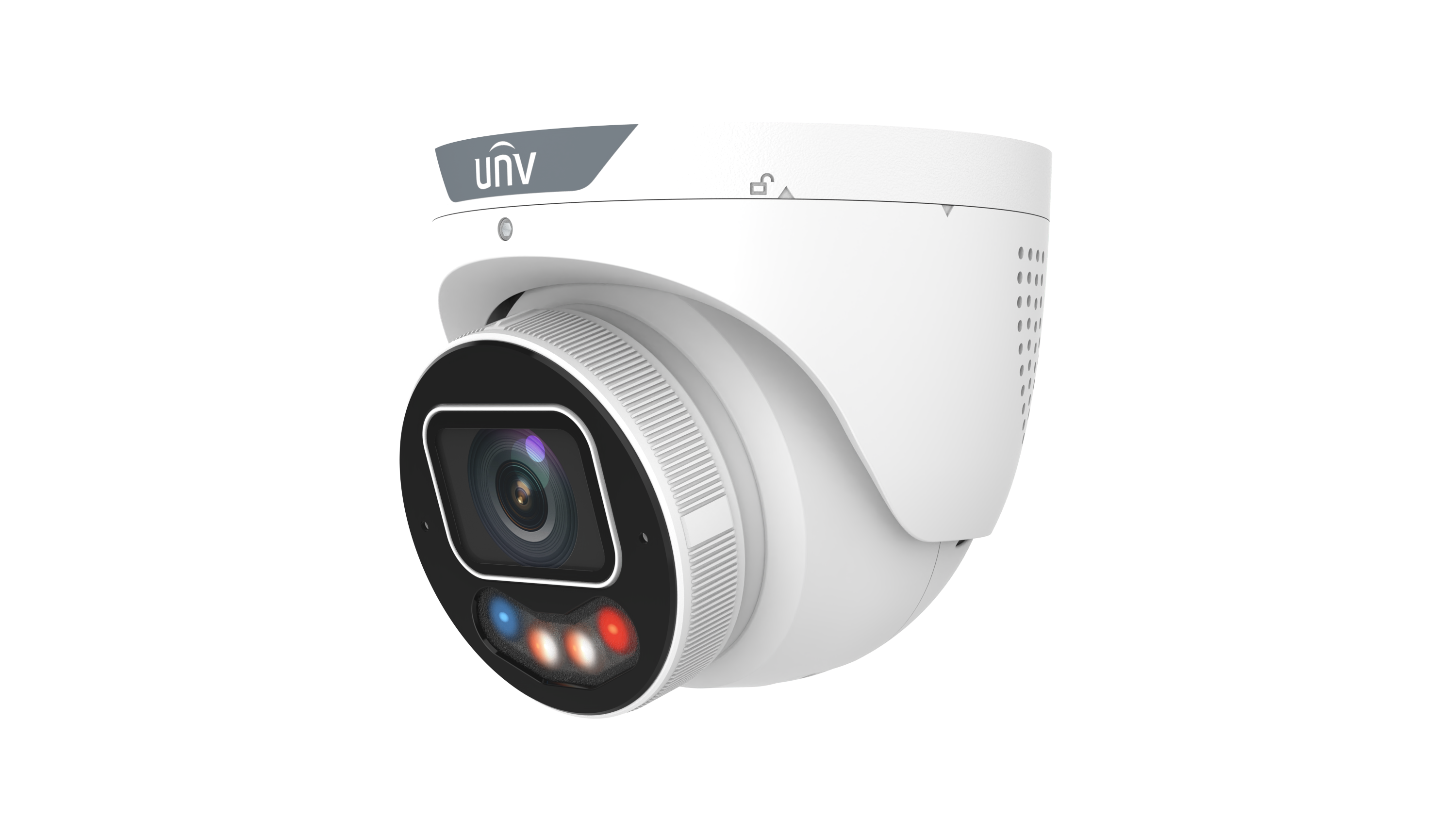

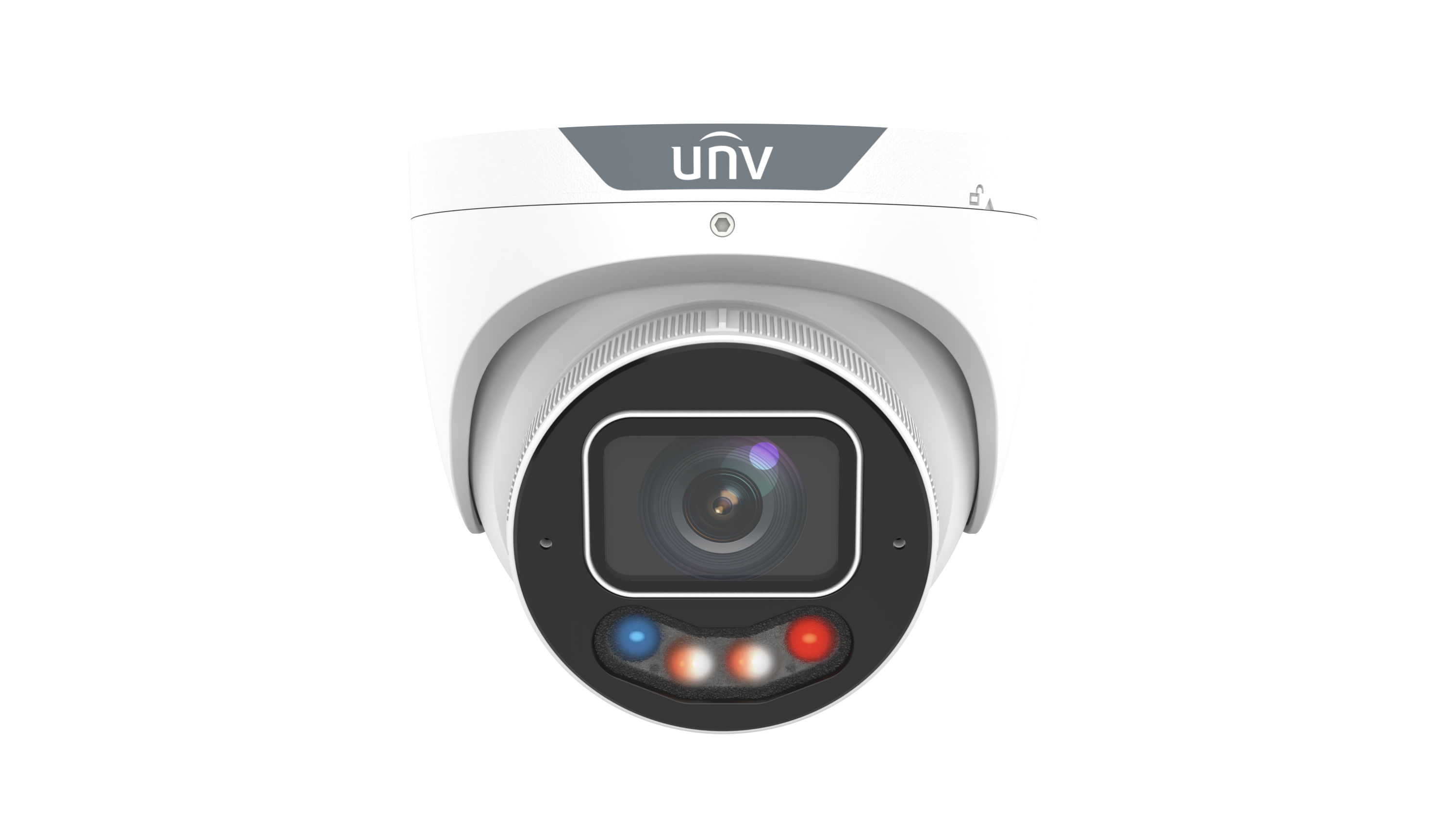

- Uniview - IPC3638SE-ADF28KMC-WP-I1N - 8MP Dual-light Eyeball Warning Network Camera Uniview - IPC3638SE-ADF28KMC-WP-I1N - 8MP Dual-light Eyeball Warning Network Camera
- Description
- Specifications
- Downloads
- Reviews
• High quality image with 8 MP, 1/1.8" CMOS sensor
• Features an F1.0 large-aperture lens
• 8 MP (3840 × 2160)@30/25 (default) fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non motor vehicles
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1
• Built-in dual-mic and speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• White light, up to 30 m (98.4 ft) warm light distance
• MicroSD, up to 512 GB
• IK10 vandal resistant
• Supports NEMA 4X and IP67 protection
| Camera | |
| Max Resolution | 8 MP (3840 × 2160) |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0005 Lux (F1.0, AGC ON) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N Ratio | > 56 dB |
| WDR | 130 dB Wide Dynamic Range |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 108.1° |
| Field of View (V) | 59.5° |
| Field of View (D) | 130.2° |
| Lens Type | Fixed |
| DORI Distances | |
| DORI Distance (Lens) | 2.8 mm |
| DORI Distance (Detect) | 63.0 m (206.7 ft.) |
| DORI Distance (Observe) | 25.2 m (82.7 ft.) |
| DORI Distance (Recognize) | 12.6 m (41.3 ft.) |
| DORI Distance (Identify) | 6.3 m (20.7 ft.) |
| Illuminator | |
| Supplemental Light | Dual light (IR + Warm Light) |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265 H.265 H.264 MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate - Main Stream | 8 MP (3840 × 2160), max. 30 fps 5 MP (3072 × 1728), max. 30 fps 4 MP (2560 × 1440), max. 30 fps 1080P (1920 × 1080), max. 30 fps 720P (1280 × 720), max. 30 fps |
| Frame Rate - Sub Stream | 1080P (1920 × 1080), max. 30 fps 720P (1280 × 720), max. 30 fps D1 (720 × 576), max. 30 fps 640 × 360, max. 30 fps 2CIF (704 × 288), max. 30 fps CIF (352 × 288), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Special Features | U-code Support • Up to 8 OSDs • Privacy Mask (4 areas) • ROI Support • Triple Streams |
| Image Processing | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart Features | Smart Illumination • Auto Scene Match (ASM) • HLC Support • BLC Support • Digital Defog |
| Flip Options | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Intelligent Features | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and classification of human, non-motor vehicle and vehicle) |
| People Analytics | People Flow Counting and Crowd Density Monitoring |
| Attribute Collection | SIP with color retrieval |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Features | Two-way Audio Support • Suppression Support • 64 Kbps Bitrate • 8 kHz Sampling Rate |
| Built-in Audio | Built-in dual-mic and Built-in Speaker Support |
| Storage & Network | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 6.5 W |

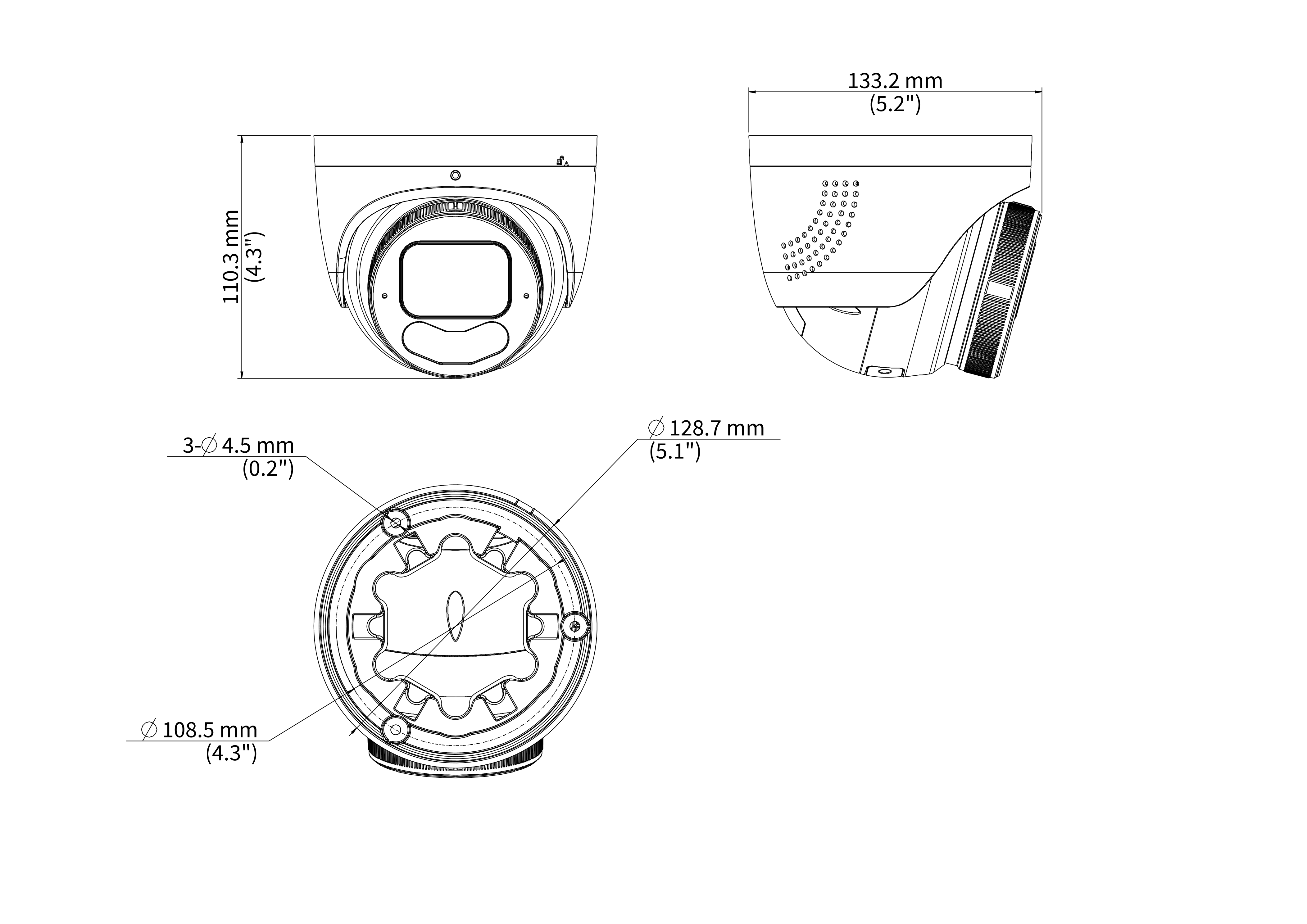

| Dimensions | Ø128.7 mm × 110.3 mm (Ø5.1" × 4.3") |
| Weight | 1.05 kg (2.31 lb) |
| Material | Metal |
| Protection Ratings | IP67 • IK10 • NEMA 4X |
| Operating Temperature | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉) |
| Web Client Languages | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
