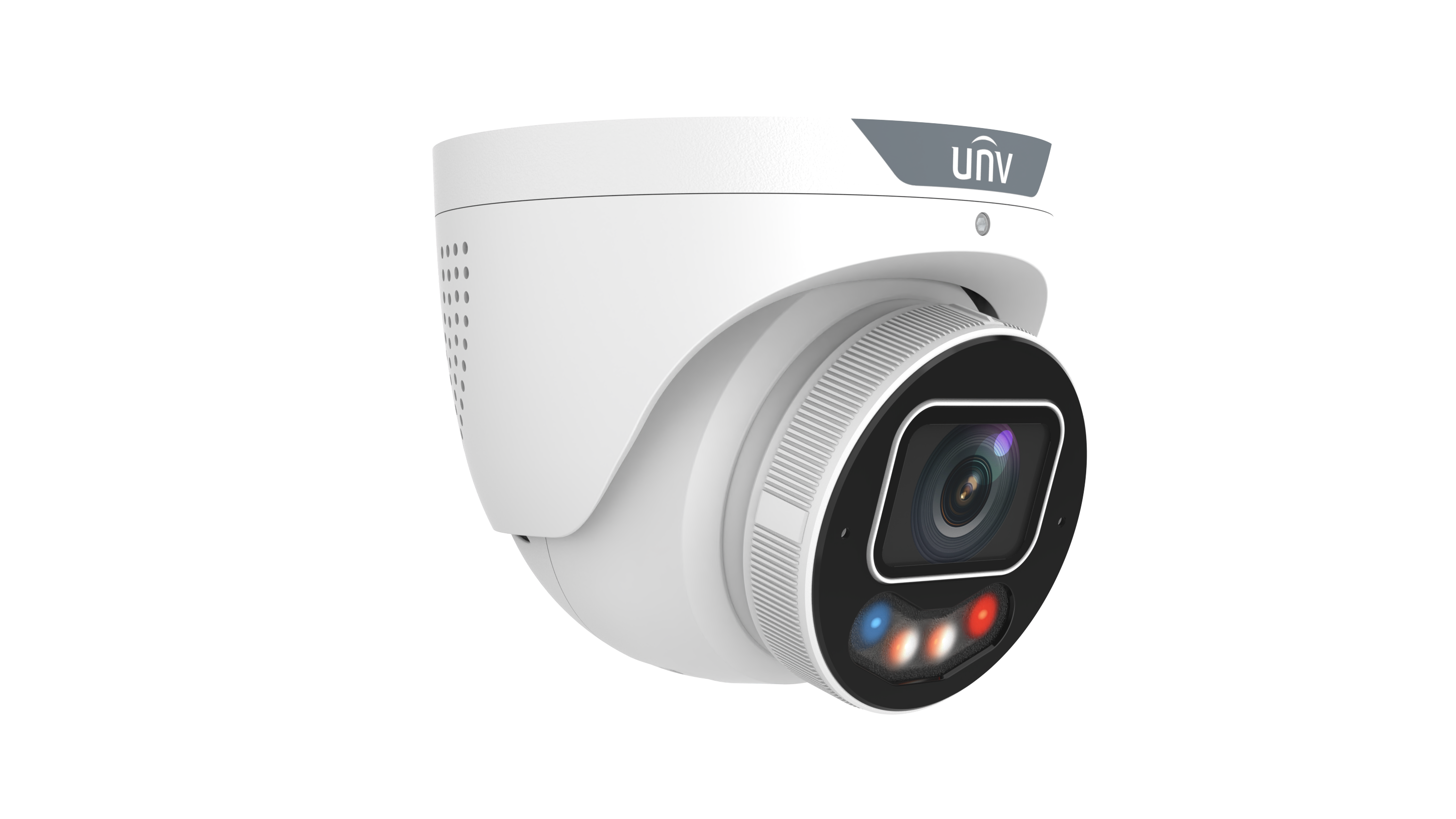

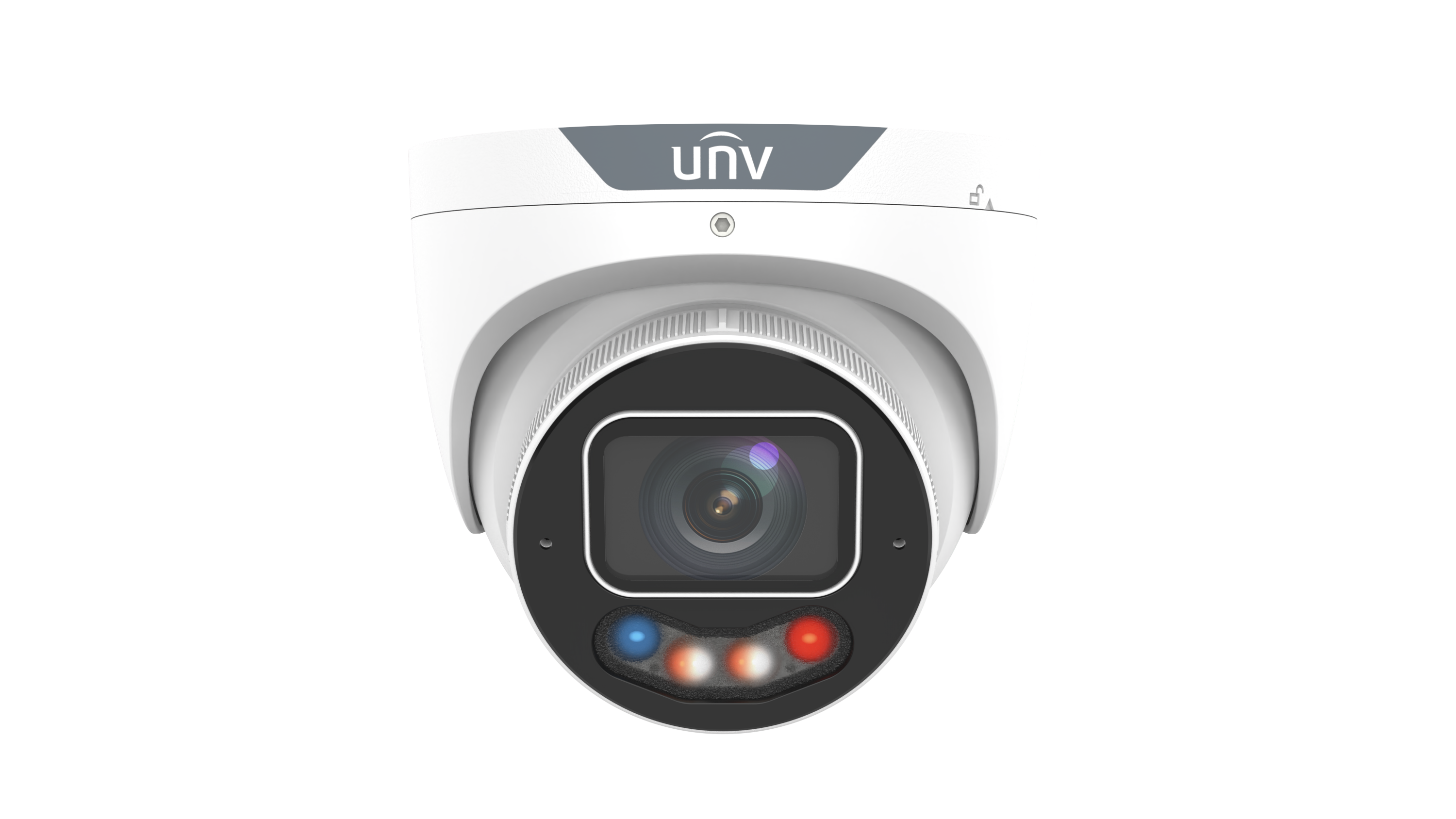

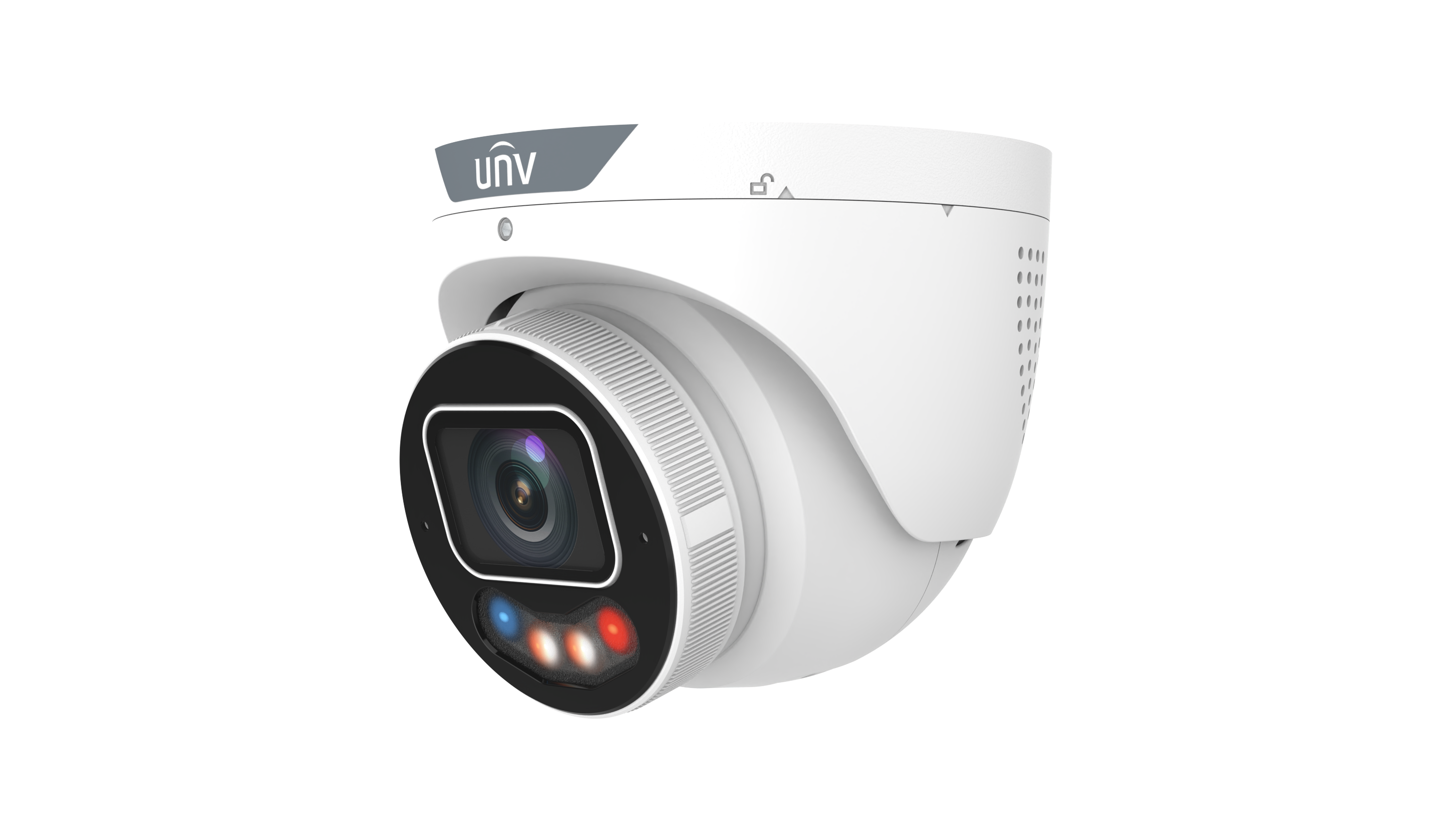

Uniview - IPC3638SE-ADF40KMC-WP-I1 - 8MP Dual-light Eyeball Warning Network Camera
Uniview - IPC3638SE-ADF40KMC-WP-I1 - 8MP Dual-light Eyeball Warning Network Camera
Uniview - IPC3638SE-ADF40KMC-WP-I1 - 8MP Dual-light Eyeball Warning Network Camera
Uniview - IPC3638SE-ADF40KMC-WP-I1 - 8MP Dual-light Eyeball Warning Network Camera
Uniview - IPC3638SE-ADF40KMC-WP-I1 - 8MP Dual-light Eyeball Warning Network Camera
Uniview - IPC3638SE-ADF40KMC-WP-I1 - 8MP Dual-light Eyeball Warning Network Camera
Uniview

Uniview - IPC3638SE-ADF40KMC-WP-I1 - 8MP Dual-light Eyeball Warning Network Camera

Product SKU: IPC3638SE-ADF40KMC-WP-I1
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
$356.40
$889.00
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

• High quality image with 8 MP, 1/1.8" CMOS sensor
• Features an F1.0 large-aperture lens
• 8 MP (3840 × 2160)@30/25 (default) fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non motor vehicles
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1
• Built-in dual-mic and speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• White light, up to 30 m (98.4 ft) warm light distance
• MicroSD, up to 512 GB
• IK10 vandal resistant
• Supports NEMA 4X and IP67 protection

  Camera
Max Resolution / Sensor8 MP (3840 × 2160) / 1/1.8" CMOS
Min. Illumination (Color)0.0005 Lux (F1.0, AGC ON)
Shutter / Day/NightAuto/Manual, 1 to 1/100000 s / IR-cut filter (ICR)
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
S/N / WDR> 56 dB / 130 dB
Lens
Focal Length / Lens Type4.0 mm / Fixed
Iris Type / IrisFixed / F1.0
Field of View (H/V/D)H: 94.8°, V: 52.1°, D: 112.2°
DORI Distance
DORI Distance (Detect)90.0 m (295.3 ft.)
DORI Distance (Observe)36.0 m (118.1 ft.)
DORI Distance (Recognize)18.0 m (59.1 ft.)
DORI Distance (Identify)9.0 m (29.5 ft.)
Illuminator
Supplemental LightDual light (IR and Warm Light)
Illumination Distance (IR / Warm Light)30 m (98.4 ft)
Control / WavelengthIR On/Off and Light On/Off Auto/Manual / 850 nm
Video
Video CompressionUltra 265, H.265, H.264, MJPEG (Baseline, Main, High profile)
Frame Rate - Main Stream8 MP (3840 × 2160), max. 30 fps (and various lower resolutions at 30 fps)
Video Bit Rate / Stream128 Kbps to 16 Mbps / Triple streams
OSD / Privacy Mask / ROI / U-codeUp to 8 OSDs / Up to 4 areas / Support / Support
Features2D/3D DNR, Smart Illumination, Auto Scene Match (ASM)
ProcessingHLC, BLC, Digital Defog
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Flip / DewarpingNormal, Flip vertical/horizontal, 180°, 90° Clockwise/Anti-clockwise / N/A
Intelligent
Intrusion DetectionCross line, intrusion, enter area, leave area detection
False Alarm FilteringClassification of **human, non-motor vehicle and vehicle**
AnalyticsPeople Counting (flow and crowd density monitoring), Attribute Collection (SIP with color retrieval)
Basic Detection EventsMotion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
Audio
Compression / BitrateG.711U, G.711A / 64 Kbps (Sampling Rate 8 kHz)
Two-way Audio / SuppressionSupport / Support
Storage & Network
Edge Storage / Network StorageMicroSD, up to 512 GB / ANR, NAS (NFS)
ProtocolsIPv4, IPv6, TCP, UDP, HTTPS, ONVIF (Profile S, G, T, M), API, SDK (and others)
User/HostUp to 32 users. 3 user levels.
Client / Web BrowserEZStation, APP / Plug-in required: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O1 Input: impedance $35 \text{ k}\Omega$, amplitude $2 \text{ V} [p-p]$, 1 Output: impedance $600 \text{ \Omega}$, amplitude $2 \text{ V} [p-p]$
Alarm I/O / Serial Port1/1 / N/A
Built-in Mic / SpeakerBuilt-in dual-mic / Support
Network / WIFI / Video Out1 $\times$ RJ45 10 M/100 M Base-TX Ethernet / N/A / N/A
General & Environment
Power / ConsumptionDC 12 V$\pm$25%, **PoE** (IEEE 802.3af) / Max. 6.5 W
Dimensions / Weight$\text{\O}128.7 \text{ mm} \times 110.3 \text{ mm}$ ($\text{\O}5.1^{\prime\prime} \times 4.3^{\prime\prime}$) / $1.05 \text{ kg} (2.31 \text{ lb})$
Material / Reset ButtonMetal / Support
Protection Rating**IP67**, **IK10**, **NEMA 4X**
Working Environment$-40 \text{ \degree C}$ to $60 \text{ \degree C}$ ($-40 \text{ \degree F}$ to $140 \text{ \degree F}$)
Surge Protection4 KV
Certification
EMC / Safety / EnvironmentCE-EMC, FCC / CE-LVD, UL/CUL / CE-RoHS, WEEE
Web Client Language20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese

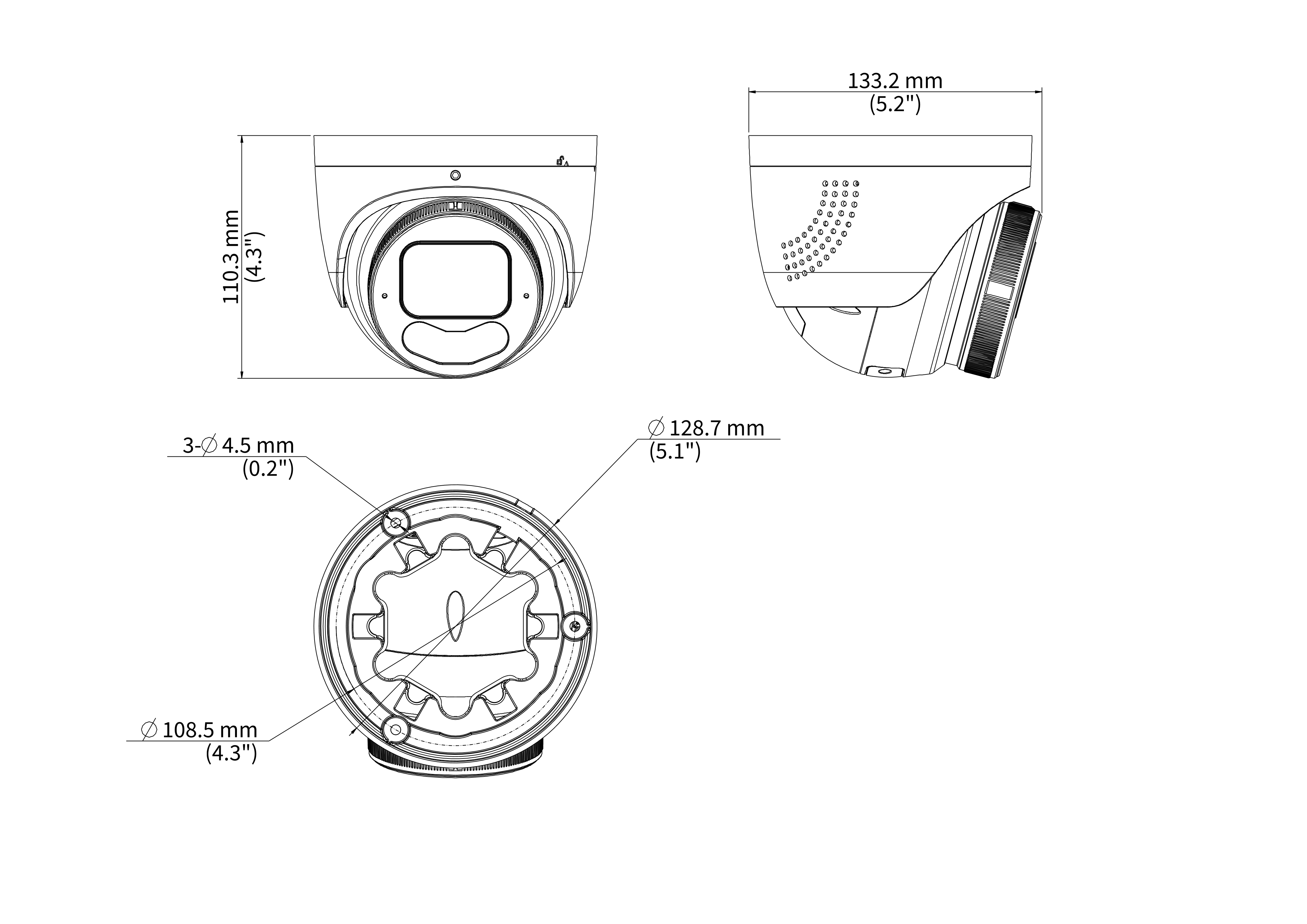

IPC3638SE-ADF28KMC-WP-I1_Dimensions_1_1_8c7edda1-183c-444b-8b6c-9dce9f342ae2.pdf:
UNV_20IPC3638SE-ADF28_40_KMC-WP-I1_208MP_20OwlView_20Plus_20Tri-Guard_20Fixed_20Dual-light_20Turret_20Network_20Camera_1.pdf:
