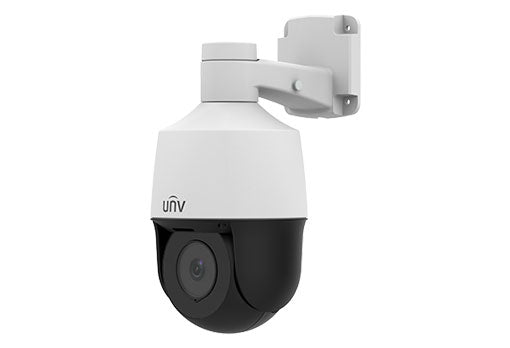

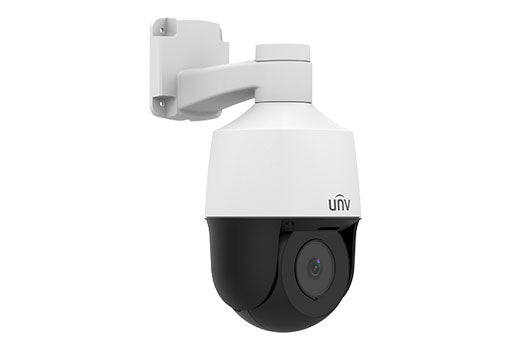

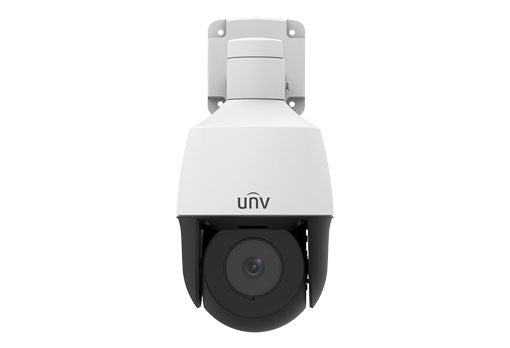

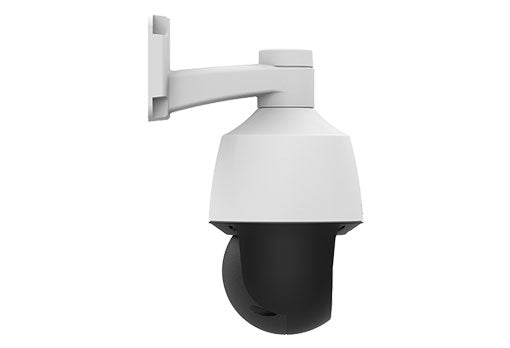

Uniview - IPC672LR-ADUPKF40 - Uniview 2MP Fixed PT Camera (4.0mm, Two-Way Audio, Starlight, Auto Tracking) - DISCONTINUED

Name: Uniview - IPC672LR-ADUPKF40 - Uniview 2MP Fixed PT Camera (4.0mm, Two-Way Audio, Starlight, Auto Tracking) - DISCONTINUED
Brand: Uniview
SKU: IPC672LR-ADUPKF40
Price: 170.1 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

DISCONTINUED

Product SKU: IPC672LR-ADUPKF40

$170.10

~~$430.80~~

REPLACEMENT

Replacement Model

Description
Specifications
Downloads
Reviews

UNV 2MP Fixed PT Camera (4.0mm, Two-Way Audio, Starlight, Auto Tracking)

Features:

Optics

LightHunter illumination
Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Up to 120 dB Optical WDR(Wide Dynamic Range)
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)

Compression

Ultra 265,H.265, H.264, MJPEG
Built-in microphone & speaker
Triple streams
ROI (Region of Interest)

Network

ONVIF Conformance

Structure

Support PoE power supply
Wide temperature range: -20°C ~ 60°C (-4°F to 140°F)
Wide voltage range of ±25%
IP66

IPC672LR-ADUPKF40
Camera
Sensor	1/2.8" progressive scan, 2.0 megapixel, CMOS
Lens	4.0mm@F1.6
DORI Distance	Lens	Detect(m)	Observe(m)	Recognize(m)	Identify(m)
	4mm	62.1	24.8	12.4	6.2
Angle of View (H)	84.3°
Angle of View (V)	42.8°
Angle of View (O)	103.7°
Shutter	Auto/Manual, shutter time: 1 s ~ 1/100000 s
Minimum Illumination	Colour:0.001 lux (F1.6,AGC ON) 0 lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52 dB
IR Range	UP to 30m (98ft)
Wavelength	850nm
IR On/Off Control	Auto/Manual
WDR	120dB
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream:1080P (19201080):Max. 30 fps; 720P (1280×720):Max. 30 fps; Sub Stream: 720P (1280×720):Max. 30 fps; Third Stream: CIF (352288): Max. 30 fps
Video Bit Rate	128 Kbps~16 Mbps
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/ Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°
Dewarping	Support
HLC	Supported
BLC	Supported
Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 128 GB
Network Storage	ANR, NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL
Compatible Integration	ONVIF(Profile S, Profile G, Profile T), API
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Pan & Tilt
Pan Range	345°
Pan Speed	0.1°/s ~ 50°/s
	Preset speed: 50°/s
Tilt Range	90°
Tilt Speed	0.1° ~ 40°/s
	Preset speed: 40°/s
Number of Presets	256
Patrol	Preset patrol, Route patrol
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic	Supported
Built-in Speaker	Supported
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	DC 12V±25%, PoE (IEEE802.3 at)
	Power consumption: Max 14 W
Dimensions (Ø x H)	Φ133mm*248.4mm (Φ5.2”x 9.8”)
Net Weight	0.80 kg (1.76lb)
Gross Weight	1.06 kg (2.34lb)
Material	Metal + Plastic
Working Environment	-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
Strorage Environment	-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
Surge Protection	4KV
Ingress Protection	IP66
Reset Button	Supported

IPC672LR-ADUPKF40_20-_20Datasheet.pdf:

IPC672LR-ADUPKF40_20-_20Installation_20Guide.pdf:

IPC672LR-ADUPKF40_20-_20User_20Manual.pdf:
