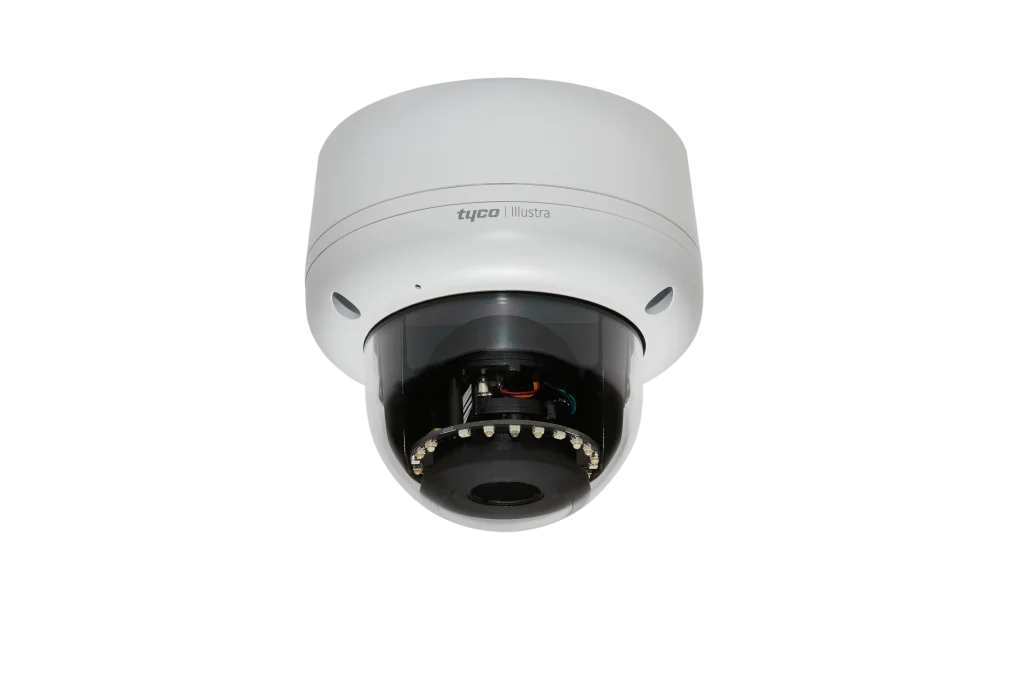

ExacqVision - IPS02-D12-OI04 - Illustra Pro Gen4 2MP MiniDome, 2.7-13.5mm, Indoor/Outdoor, IP67, IK10, TDN w/IR, TWDR

Name: ExacqVision - IPS02-D12-OI04 - Illustra Pro Gen4 2MP MiniDome, 2.7-13.5mm, Indoor/Outdoor, IP67, IK10, TDN w/IR, TWDR
Brand: ExacqVision
SKU: IPS02-D12-OI04
Price: 972.0 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: IPS02-D12-OI04

$972.00

~~$1,368.00~~

Description
Specifications
Downloads
Reviews

Illustra Pro Gen 4 cameras are ready for the rise of intelligence at the edge. With built-in AI based object classifications, events can accurately be narrowed to classes such as person, car, bus, and suspicious objects such as bags.

Forensic searches become more accurate and situational awareness becomes more automated with fewer missed incidences and false alarms. Choose from a variety of analytic rules to customize the solution that will be most beneficial to your business and begin gathering transformative data instantly.

Features:

Built in AI delivers accurate object classification, powerful situational awareness and security automation
Integrated recess mount, universal back-box, a range of IO options including Micro HDMI plus WIFI configuration via the Illustra Tools App
Exposure profile settings allow the mini-dome to adapt to scenarios such as license plate recognition, gaming and more
Ultra low light capabilities to maintain color image quality without IR
ONVIF profile S, G, M & T conformant
5 year warranty

Operational	2MP 4MP 8MP
Video Compression	H.264 / H.265 / MJPEG / IntelliZip
Max Frame Rate	2MP @ 60fps		4MP @ 60fps		8MP @ 30fps
Resolution & Aspect Ratio	1920x1080 (1080p) 16:9 1664x936 (HD+) 16:9 1280x720 (720p) 16:9 1024x576 (PAL+) 16:9 960x544 (qHD) 16:9 816x464 16:9 640x360 (nHD) 16:9 480x272 16:9		2560x1920 2560x1444 1920x1080 (1080p) 16:9 1664x936 (HD+) 16:9 1280x960 4:3 1280x720 (720p) 16:9 800x600 (SVGA) 4:3 640x480 (VGA) 4:3 480x360 4:3 384x288 4:3		3840x2160 (4K) 16:9 3264x1840 16:9 2688x1520 16:9 2560 x 1440 16:9 1920x1080 (1080p) 16:9 1664x936 (HD+) 16:9 1280x720 (720p) 16:9 1024x576 (PAL+) 16:9 960x544 (qHD) 16:9 816x464 16:9 640x360 (nHD) 16:9 480x272 16:9
Imager	Sony IMX327		Sony IMX335		Sony IMX334
Image Orientation Settings	None, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left)
Video Streams	Quad Streaming
Lens Type	Motorized Varifocal and Focus, P-Iris
Focus Control	One-Touch Auto Focus or Remote Adjustment
Focal Length	2.7-13.5mm	7-22mm	2.7-13.5mm	6-22mm	3.6-10mm	6-22mm
Field of View Wide (H/V)	112°/58°	40°/21°	103°/74°	40°/30°	95°/53°	50°/28°
Field of View Telephoto (H/V)	35°/20°	18°/10°	33°/25°	18°/13°	49°/28°	24°/14°
Aperture	f/1.4 (W)	f/1.7 (W)	f/1.4 (W)	f/1.6 (W)	f/1.5 (W)	f/1.6 (W
Aperture	f/2.8 (T)	f/2.8 (T)	f/2.8 (T)	f/2.4 (T)	f/2.8 (T)	f/2.4 (T)
Minimum Illumination
Color, 1/4s, 30 IRE, AGC	0.01 Lux	0.02 Lux	0.03 Lux	0.02 Lux	0.03 Lux	0.02 Lux
B/W, 1/4s, 30 IRE, AGC	0.0001 Lux	0.0002 Lux	0.0002 Lux	0.0002 Lux	0.0004 Lux	0.0005 Lux
W/IR	0.0 Lux	0.0 Lux	0.0 Lux	0.0 Lux	0.0 Lux	0.0 Lux

IR Distance	50m
Dynamic Range	True WDR 120 dB True WDR 110 dB True WDR 120 dB TechnologiesTechnologiesTechnologies
Day/Night	True Day/Night CF Removal
Shutter Speed	≥ 1/10,000 to 1/4 s
ONVIF-Compliant	Profiles S
Video Intelligence Analytics	Linger, Exit, Direction, Abandoned/Removed objects, Queue, Dwell, Enter, Object detection, Crowd, Perimeter
Object Classification	Classes: Person, Bicycle, Bus, Car, Motorbike Rules: Object Detected, Perimeter, Linger, Dwell

Motion Detection Zones	3
Face Detection	Yes
Blur Detection	Yes
Privacy Zones	8
Alarm Input/Output	2 input, 2 output
Video Output	HDMI
Audio	Bi-directional; 1 input, 1 output. Built in Microphone
Simultaneous Users	10

IPS02-D12-OI04_0_6f043545-04a5-43a3-a712-787ca0277050.pdf:

RN_PG4-2-4-8MP-D-C-B-C_8200-2007-09_H_6_3305428d-7ede-4f77-9107-2b55ea3c66ec.pdf:

QSG-PG4-I-O-Domes-8200-2007-07_G.en__3_9b05a0e1-9cdb-4ba4-b96b-b6de6e5f437b.pdf:

AE-S_PG4-2MP-F-D_3610-0780-01_F_1.doc:

Pro4_Corner_Dome_Bullet_8200-2007-08-K.en__compressed_0_e6cdadc8-1007-4590-bdba-ddd53676f65e.pdf:

DoC-DN159-0-Illustra-PG4-Fixed-02-AUG-2021_1_29d905e7-b49f-47ed-aa6e-b4a6cfc719ae.pdf:

EX-RN_PG4-2-4-8MP-D-C-B-C_8200-2007-09_H_6_32b95717-fb9e-491c-ad51-c2bd4bda4c75.pdf:

A16381D7E3_A-Illustra-Pro4-Fixed-Dome-Camera_c55307ae-5f60-4958-8dfa-b3dfc824db23.pdf:
