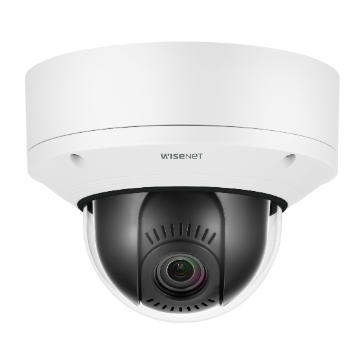

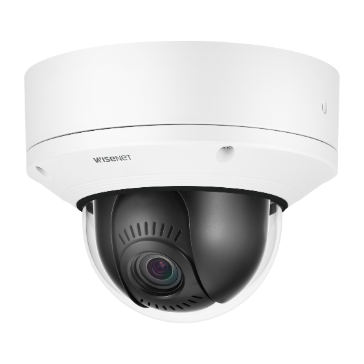

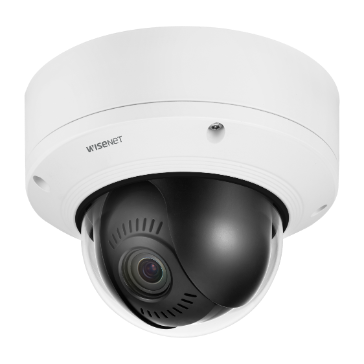

Hanwha - XND-8081VZ - 5MP Indoor PTRZ Dome

Hanwha Vision

Hanwha - XND-8081VZ - 5MP Indoor PTRZ Dome

Name: Hanwha - XND-8081VZ - 5MP Indoor PTRZ Dome
Brand: Hanwha Vision
SKU: XND-8081VZ
Price: 1385.1 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: XND-8081VZ

$1,385.10

~~$1,920.00~~

Description
Specifications
Downloads
Reviews

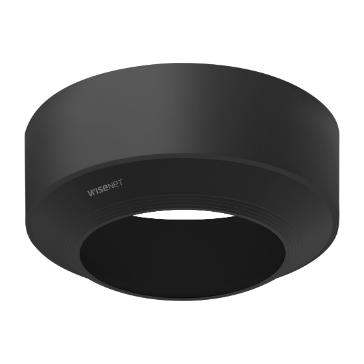

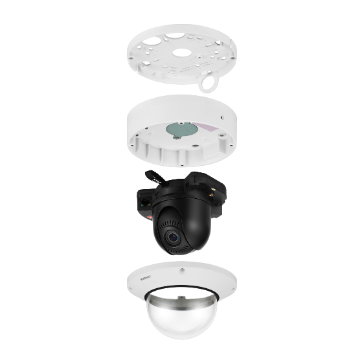

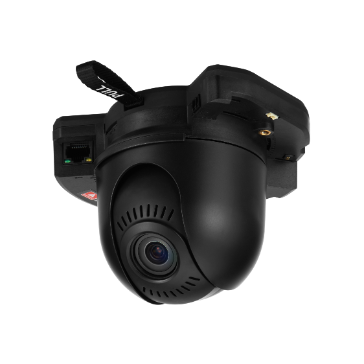

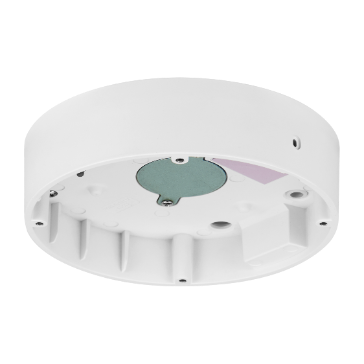

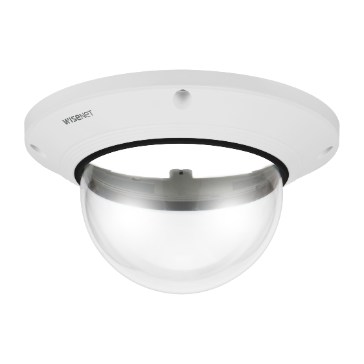

The Wisenet X series PLUS powered by Wisenet 5 network indoor vandal dome camera features a modular structure, 5MP, Full HD(1080p) @ 60fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°), and PTRZ capability for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, fog detection, DIS (Gyro), 12VDC/PoE, IP52, IK10, white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.

Features:

2 megapixel (1920 x 1080) resolution
3.6~9.4mm 2.6x motorized varifocal lens with PTRZ
30fps@all resolutions (H.265/H.264)
H.265, H.264, MJPEG codec supported, multiple streaming
Day & Night (ICR), WDR (120dB), Defog
Shock detection, Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
Motion detection, Handover, Audio event playback
Dual SD/SDHC/SDXC memory slots (Max. 512GB)
Hallway view, WiseStream II support, IP52, IK10,
LDC support (Lens Distortion Correction)
PoE / 12V DC, Bi-directional audio support
White camera with ivory skin included

Video
Imaging Device	1/1.8" 6MP CMOS
Effective Pixels	2616(H) x 1976(V)
Minimum Illumination	Color : 0.07Lux (F1.2, 1/30sec) BW : 0.007Lux (F1.2, 1/30sec
Video Out	CVBS : 1.0 Vpp / 75Ω Composite, 714 x 480(N), 702 x 576(P) for Installation, DIP Connector Type, USB
Lens

Focal Length (Zoom Ratio)	3.6~9.4mm(2.6x) motorized varifocal
Angular Field of View	H : 102.5°(Wide)~38.7°(Tele) V : 74.2°(Wide)~29.0°(Tele) D : 135.5°(Wide)~48.6°(Tele)
Minimum Object Distance	0.5m(1.64ft)
Focus Control	Simple focus
Lens / Mount Type	DC auto iris, P-iris
Operational

Camera Title	Displayed up to 85 characters
Day & Night	Auto(ICR)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range	150dB
Digital Noise Reduction	SSNR V
Digital Image Stabilization	Support
Defog	Support
Motion Detection	8ea, 8point polygonal zones
Privacy Masking	32ea, polygonal zones - Color : Grey/Green/Red/Blue/Black/White - Mosaic
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC	Support
Electronic Shutter Speed	Minimum / Maximum / Anti Flicker(2 ~ 1/12,000sec)
Digital PTZ	Support (Preset, Group)
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm events	File upload via FTP, E-mail, Notification via E-mail, Localstorage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output, DPTZ preset
Audio In	Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out	Line out (3.5mm mono jack), Max output level : 1 Vrms

Network
Ethernet	RJ-45(10/100BASE-T)
Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression	G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec	Manual(5ea area), WiseStreamⅡ
Bitrate Control	H.264/H.265: CBR or VBR MJPEG: VBR
Streaming	Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security	HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface	ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge Storage	Micro SD/SDHC/SDXC 2slot 512GB
Memory	1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity	-25°C ~ +60°C (-13°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity	-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification	IP52, IK10
Input Voltage	PoE(IEEE802.3af, Class3), 12VDC
Power Consumption	PoE: Max 11W, typical 5.40W 12VDC: Max 9W, typical 3.75W
Mechanical
Color / Material	White / Aluminum
RAL Code	RAL9003
Product Dimensions / Weight	Ø160x125mm(Ø6.3x4.9") / 1.45kg(3.2lb)

datasheet_xnd-6081vz_xnd-8081vz_190218_1__0_d26a1d0c-0d74-4c1f-9ebd-168218825e90.pdf:

a_e_document_xnd-8081vz_190108_en_0.docx:
