60% $180.54

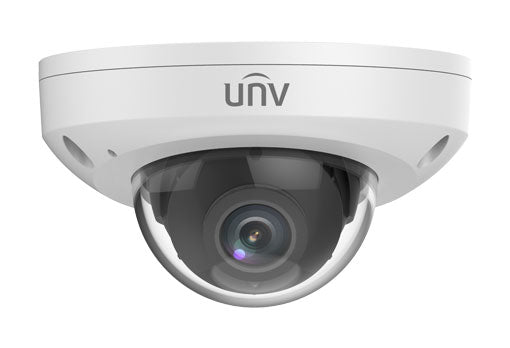

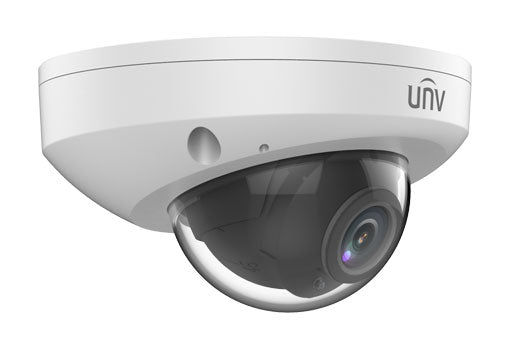

Uniview - IPC312SR-VPF28-C - UNV 2MP Network Fixed Mini Dome(2.8mm,30m IR,SD Slot,3 Axis,PoE,Build-in MicroPhone,Audio,H.265)
Uniview - IPC312SR-VPF28-C - UNV 2MP Network Fixed Mini Dome(2.8mm,30m IR,SD Slot,3 Axis,PoE,Build-in MicroPhone,Audio,H.265)
Uniview - IPC312SR-VPF28-C - UNV 2MP Network Fixed Mini Dome(2.8mm,30m IR,SD Slot,3 Axis,PoE,Build-in MicroPhone,Audio,H.265)
Uniview - IPC312SR-VPF28-C - UNV 2MP Network Fixed Mini Dome(2.8mm,30m IR,SD Slot,3 Axis,PoE,Build-in MicroPhone,Audio,H.265)
Uniview

Uniview - IPC312SR-VPF28-C - Uniview 2MP Network Fixed Mini Dome(2.8mm,30m IR,SD Slot,3 Axis,PoE,Build-in MicroPhone,Audio,H.265)

Product SKU: IPC312SR-VPF28-C
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$118.26
$298.80
  • Description
  • Specifications
  • Downloads

UNV 2MP Network Fixed Mini Dome(2.8mm,30m IR,SD Slot,3 Axis,PoE,Build-in MicroPhone,Audio,H.265)



Optics:

  • Day/night functionality
  • Smart IR, up to 15m (49ft) IR distance
  • 2D/3D DNR (Digital Noise Reduction)
  • Car-grade LEDs, brighter and uniform light compensation



Compression:

  • Ultra 265, H.264, MJPEG
  • Triple streams
  • ROI (Region of Interest)
  • Customized OSD



Network:

  • ONVIF Conformance



Structure:

  • Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
  • Wide voltage range of ±25%
  • Built-in microphone
  • IK10 vandal resistant
  • IP66
 IPC312SR-VPF28-CIPC312SR-VPF40-C
Camera
Sensor1/2.9", 2.0 megapixel, progressive scan, CMOS
Lens2.8mm@F2.04.0mm@F2.0
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.8451894.5
4.064.325.712.96.4
Angle of View (H)107.8°82.0°
Angle of View (V)56.7°41.4°
Angle of View (O)140.2°100.9°
Adjustment angle Pan: 0° ~ 90°Tilt: 0° ~ 65°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum Illumination

Colour: 0.005Lux (F2.0, AGC ON)

0Lux with IR

Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N≥52dB
IR RangeUp to 15m (49ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame Rate

Main Stream: 2MP (1920*1080), Max 30fps;

Sub Stream: 2MP (1920*1080), Max 30fps;

Third Stream: D1 (720*576), Max 30fps

HLCSupported
BLCSupported
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, Up to 256GB
Network StorageANR

Network
Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,

SNMP, QoS

Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/Oaudio cable
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Built-in MicSupported
Network1 RJ45 10M/100M Base-TX Ethernet
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.5W
Dimensions (Ø x H)Φ110 x 61mm (Ø4.3” x 2.4”)
Weight0.25kg (0.55lb)
Working Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP66
Vandal ResistantIK10
IPC312SR-VPF28-C_20-_20Datasheet.pdf:
