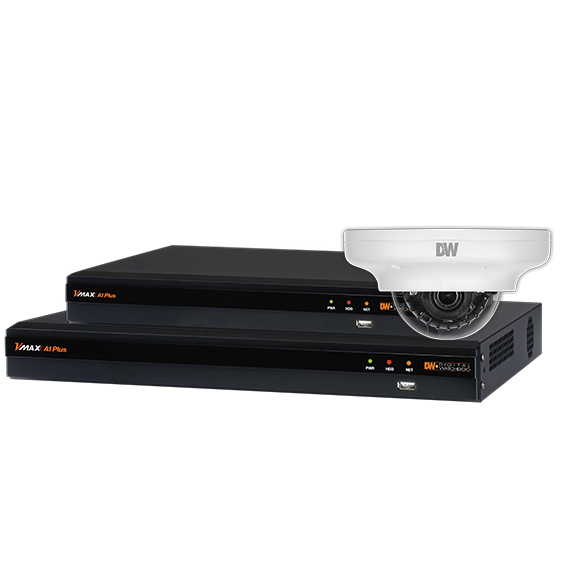

- Digital Watchdog - DW-VA16BUN1 - 2.1MP Fixed Vandal Dome cameras with 2TB HDD DVR Digital Watchdog - DW-VA16BUN1 - 2.1MP Fixed Vandal Dome cameras with 2TB HDD DVR
Digital Watchdog - DW-VA16BUN1 - 2.1MP Fixed Vandal Dome cameras with 2TB HDD DVR
- Description
- Specifications
- Downloads
- Reviews
VMAX A1 Plus Universal High Definition via Coax, Records all HD Formats and All Analog to 960H, H.264, 4ch,1TB, Real Time Recording @30fps up to 1080P, Up to 5MP recording @40fps, 4ch Audio in, 1ch audio output, 4K/True HD/VGA monitor outs, 4 sensor input, 1 relay output, UTC, Spot Monitor Output, Free C3 CMS Software up to 144 channels, Free Mobile for IPhone, IPad, Apple TV, Android Smart Phones and Tablets, MAC Compatible, USB Backup, Free DDNS, Watermark Images, Help Menu, Email and Text Event Notification with Snapshot, PTZ Control, Quick Setup Wizard, Pathfinder auto port forwarding, 5 Year Limited Warranty.
Features:
- BUNDLE AND SAVE 47% - (12) 2.1MP Fixed Vandal Dome cameras with 2TB HDD DVR
- Consist of 1 - DW-VA1P162T & 12 - DWC-V7253WTIR
- While Supplies Last - no substitutionsBUNDLE AND SAVE 47% - (12) 2.1MP Fixed Vandal Dome cameras with 2TB HDD DVR
- Universal HD over Coax DVR records HD-Analog and HD-TVI and all analog up to 960H signals
- Advanced H.264 Linux embedded DVR
- 4-channels, real time 30fps recording up to 5MP
- Up to 5MP recording resolution at 40fps
- PathFinder Peer-to-Peer (P2P) remote connection
- C3™ CMS and event server software up to 288Channels
- Event camera group recording
- Complete system analysis with real-time system and network status monitoring
- Mobile Application for iPhone, iPad, iPod, Android Smart Phones and Tablets and Apple TV
- Mac® compatible remote ACS software
- OSD and PTZ control via coax (UTC)
- Signal hybrid detects any camera at HD-Analog, HD-TVI and 960H automatically.
- Instant channel swap, no need to disconnect or reboot the DVR.
- Snapshot Notify™: programmable interval snapshot notifications
- 4K (3840 x 2160) True HD, VGA and Spot video outputs
- 0TB - 10TB storage options
- HDD calculation and auto recording configuration
- Thumbnail search with hour and 5-minute previews
- 10 second jump buttons for playback and fast forward
- Event notifications via e-mail and C3™ CMS and push notifications to mobile devices
- Multiplex - live, playback, recording, backup, network, configuration
- 4 audio input, 1 audio output
- 4 sensor input, 1 relay output
- Digital spot monitoring output at D1 resolution
- Simple and free DDNS service
- Push notifications via DW VMAX Plus app
- Easy web-based client with multi-user access
- Help menu on major functions
- Auto and manual firmware upgrades
- 5 year limited warranty
Camera Description
Star-Light Universal HD Series, Mini Flat Dome, 1/3" 2.1MP CMOS Sensor, P-Iris, 1920x1080 resolution, 3.6mm Fixed Lens, Double Shutter Wide Dynamic Range (100dB), True Day/Night with IR Cut Filter, 50ft Smart IR, Smart 3D-DNR, 12VDC, IP66. 5 Year Warranty.
Star-Light Universal HD over COAX cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP and CVBS at 960H. The vandal dome cameras are IP66 rated and include CleanView dome treatment, that repels water, dust, and grime. Star-Light Universal HD over Coax cameras are engineered to work with our VMAX A1 Universal HD over Coax DVRs using your existing Coax infrastructure for a cost-effective, high-resolution surveillance solution.
DWC-V7DECO Accessory: Set of five (5) white decorative rings for our MEGApix and Star-Light Plus cameras in ultra-low-profile V7 housings (DWC-xV7xxxx) make it easy to customize the look of the cameras for specific applications. Simply paint the rings to match your décor.
Features:
- Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT Super Low Light Technology
- 2.1MP 1/3" Image Sensor at Real-time 30fps
- 3.6mm Fixed Lens
- True Wide Dynamic Range (WDR)
- OSD Control Via Coaxial (UTC)
- 50' Smart IR™ with Intelligent Camera Sync.
- Smart DNR™ 3D Digital Noise Reduction
- True Day/Night Mechanical IR Cut Filter
- De-Fog™ Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Easy Icon Driven OSD Menu with Built-in Joystick
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Dynamic Range Compressor (DRC) Reveals Low Light Detail
- Auto White Balance (AWB)
- NDAA/TAA compliant
- IP66 Certified Weather and Tamper Resistant
- IK-10 Impact Rated
- 5 Year Warranty
VIDEO |
||
|
Signals supported |
Analog signal up to 960H, HD-Analog and HD-TVI up to 5MP |
|
|
Input video |
4 channels |
|
|
Video live |
Frame rate |
1-30fps, max 120fps total |
|
Resolution |
HD-analog and HD-TVI to 5MP and all CVBS analog resolutions up to 960H |
|
|
Video output |
4K True HD, VGA and Spot outputs |
|
|
Audio |
Input |
4 input |
|
Output |
1 output |
|
|
Codec |
ADPCM |
|
|
Alarm |
Alarm input |
4 input |
|
Alarm output |
1 output |
|
|
Operating system |
Embedded Linux® |
|
|
Serial |
1x RS485 for keyboard and PTZ control |
|
|
User interface |
Menu display |
Graphical user interface (GUI) |
|
Control method |
IR remote control (optional), USB mouse |
|
|
Screen display mode |
1, 4 and sequence |
|
|
Screen resolution |
HDMI: 2560x1440, 3840×2160 (4K), 800x600, 1024x768, 1280x1024, 1920x1080 |
|
PERFORMANCE |
||
|
Recording |
Compression |
H.264 |
|
Recording mode |
||
|
Pre-recording |
0~5 seconds |
|
|
Post-recording |
0~5 minutes |
|
|
Recording rate |
960x480/576 (960H): 120fps |
|
|
Recording resolutions |
HD-analog and HD-TVI to 5MP and all analog resolutions up to 960H |
|
|
Playback |
Playback rate |
960x480/576 (960H): 120fps |
|
Playback resolution |
HD-analog and HD-TVI to 5MP and all analog resolutions up to 960H |
|
|
Fast forward functions |
x1, x2, x4, x8, x16, x32 |
|
|
Playback functions |
Intelli-search by time bar, calendar (date and time), event search and thumbnail search |
|
|
Storage |
HDD interface |
1x SATA HDD |
|
Max. internal storage |
Up to 10TB |
|
|
HDD interface type |
SATA |
|
|
HDD healthcheck |
Temperature, S.M.A.R.T. with e-mail notifications |
|
|
Features |
Camera color control |
Via UTC |
|
Digital zoom |
Live and playback |
|
|
Software upgrade |
USB flash drive, network upgrade, FTP remote upgrade |
|
|
Mobile client |
Mobile app for Apple® and Android® smartphones and tablets and Apple TV® |
|
|
Covert channel |
Yes (live and playback) |
|
NETWORK |
||
|
Network connection |
Ethernet (1 x Gigabit) |
|
|
Streaming |
Transmission speed live |
960x480/576 (960H): 120fps |
|
Protocol |
Fixed IP, DHCP, UPnP, DDNS |
|
|
Access |
Web viewer |
Live, playback and configuration, up to 10 multiple connections |
|
Client monitoring software |
Mac® (Apple® S/W), C3™ (CMS S/W) |
|
GENERAL |
||
|
Operating temperature / humidity |
41°F ~ 104°F (5°C ~ 40°C), less than 80% (non-condensing) |
|
|
Electrical |
Power requirement |
12V DC |
|
Power consumption |
18W, 1.5A |
|
|
Dimensions |
12.4" x 9.52" x 1.77" (315 × 242 × 45 mm) (1U) |
|
|
Weight |
2.64 lbs (1.2kg) |
|
|
Certification |
CE and FCC and KCC and WEEE, RoHS |
|
|
Warranty |
5 years limited |
|
