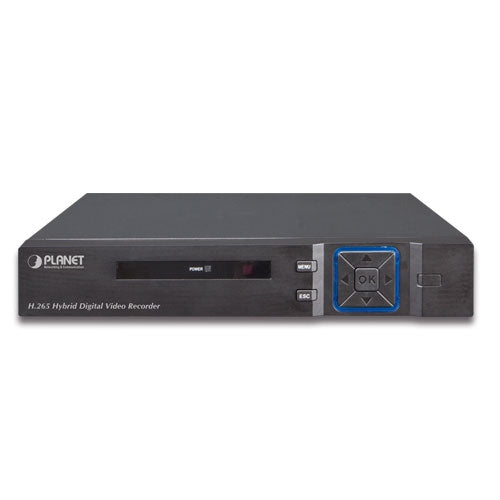

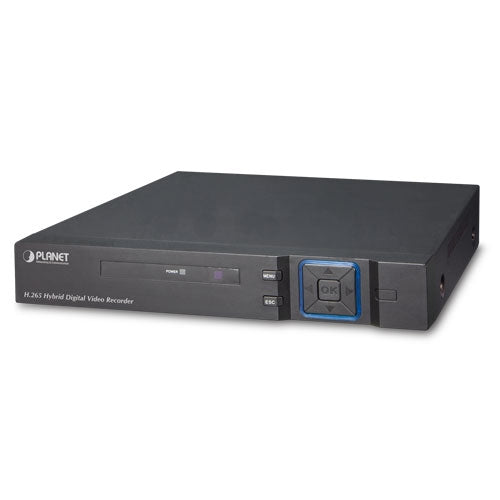

Planet - HDVR-1635 - H.265 16-ch 5-in-1 Hybrid Digital Video Recorder

Product SKU: HDVR-1635
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
$157.95
$196.00
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

Hardware

  • Embedded, highly-reliable standalone HDVR
  • Supports 16-ch BNC connectors
  • Supports VGA/HDMI dual local display
  • Supports 3.5" SATA x 1 HDD
  • Supports RS485 for PTZ control



Video and Audio

  • Supports H.265 and H.264 compressions
  • Video resolution up to 1080p (analog mode) and 1080p (IP mode)
  • Supports hybrid mode for combination of IP, traditional analog, TVI, CVI and AHD cameras
  • 2-way audio support with enhanced audio quality



Video Recording / Backup

  • Simultaneous recording and live video streams
  • Manual or scheduled recording of 16 cameras simultaneously
  • Video recycling function 24/7 for easy inquiry of suspicious events
  • Exports recorded video file in H.26X or AVI format to USB device
  • Instant Event Notification



Network Service

  • Easy access with PLANET Dynamic DNS and built-in NTP Server
  • Supports PPPoE, DHCP and manual settings
  • Supports P2P cloud function for remote viewing
  • Supports dropbox for recording channels



Easy Installation and Management

  • ONVIF compliant for interoperability
  • Supports multiple languages
  • Automatically discovered by management software
  • Web-based and management utility for easy configuration
  • Up to 64 channels with the central management software
  • Supports two USB2.0 ports for mouse control and backup
  • Supports mobile phone remote viewer, Web UI and CMS

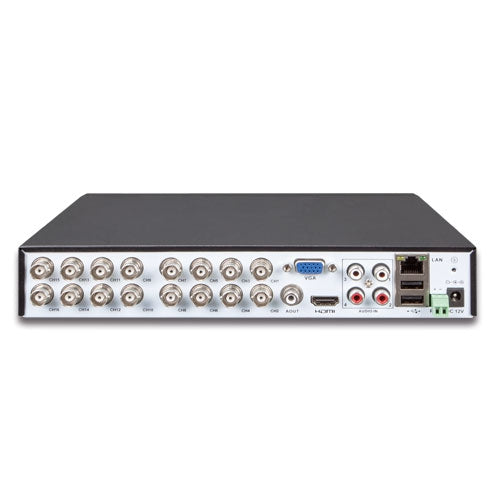

Hardware
Ethernet 1 x RJ45, 10/100BASE-TX
BNC Interface 16
USB Interface 2 x USB 2.0 for backup device and mouse
Video Interface VGA/HDMI video out interface
Audio Interface 4 x audio-in, 1 x audio-out
Storage Device 1 x 3.5” SATA hard disk connector (max. 6TB)
LED Power
Button Menu, ESC, Direction and Enter
Camera
Max. Channels 16-channel cameras
Additional Camera Manual/Smart Camera Search
Video
Video Signal AHD/TVI/CVI/CVBS/IP
Video System PAL (625line, 50f/s); NTSC (525line, 60f/s)
Compression H.265/H.264
Resolution IP camera: 1080P/960P/720P/D1
Analog camera: AHD-H (1080P)/AHD-N (1080P)/AHD-M (720P)/D1
Encode Capacity 16 x 1080P@15fps
Decode Capacity 16 x 1080P@15fps
Hybrid mode Analog cameras: 16-ch 1080P
Analog cameras & IP cameras: 12-ch 1080P & 4-ch 1080P, 8-ch 1080P & 8-ch 1080P, 4-ch 1080P & 12-ch 1080P
IP cameras: 16-ch 1080P
Motion Detection Zones: 192 (16 x 12) detection zones
Sensitivity: multi-level sensitivity (only local channels)
Cloud P2P
Audio
Audio Type 2-way
Audio Format G.711A
Live view
Display Division 1, 4, 8, 9, 16
Snapshot Video snapshot in JPEG format
Playback
Record Manual, Alarm, Motion Detection, Schedule
Local Playback 8ch simultaneous playback;
Supports up to 16-channel playback (local input mode)
Play Method Play, Pause, Stop, Slow, Fast, Prev. Frame, Next Frame
Search by time, calendar, event, channel
Download Backup file to specific local HDD partition
Monitor
Display Quality 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768
Network and Configuration
Network Service TCP, UDP, HTTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, FTP, SMTP
Security Password protection
Triggers and Event
Event Type System Events –
  • No Disk
  • Disk Error
  • Disk Full
  • Net Loss
  • IP Conflict

Camera Events –
  • Motion Detection, Video Blind, Video Loss, Alarm Input, Alarm Output
Event Action
  • Show Message
  • Buzzer
  • Send e-mail
  • FTP Upload
Management
Remote Session 2 users are recommended
Privileges Live View, Playback, System Configurations, Camera Configurations, Recording Configuration, Event Configuration, Maintenance
User Interface
  • Graphic local user interface (Operated by mouse)
  • Web browser (IE)
  • CMS utility
Log Type All, System, Config, Storage, Alarm Event, Week Day, Account, Playback
Software Utility Search utility, CMS, App
Environment
Power Requirements 12V DC, 2A
Consumption 15W (without HDD)
Operating Temperature -10~60 degrees C
Storage Temperature -10~60 degrees C
Humidity 10~90% (non-condensing)
Weight 960 g
Dimensions (W x D x H) 253 x 242 x 40 mm
HDVR-1635_Datasheet_899b1381-b2d3-42b9-9275-19d61958d39a.pdf:
HDVR-1635_User_Manual-1_12ccc357-7f59-4105-a4f9-a5868137a9d6.pdf:
HDVR-1635_User_Manual-2_02d09164-571d-43ae-8b3f-ea3453befdf0.pdf:
HDVR-1635_Quick_Installation_Guide_678c21db-0bf3-4788-9442-39388463fa6d.pdf:
