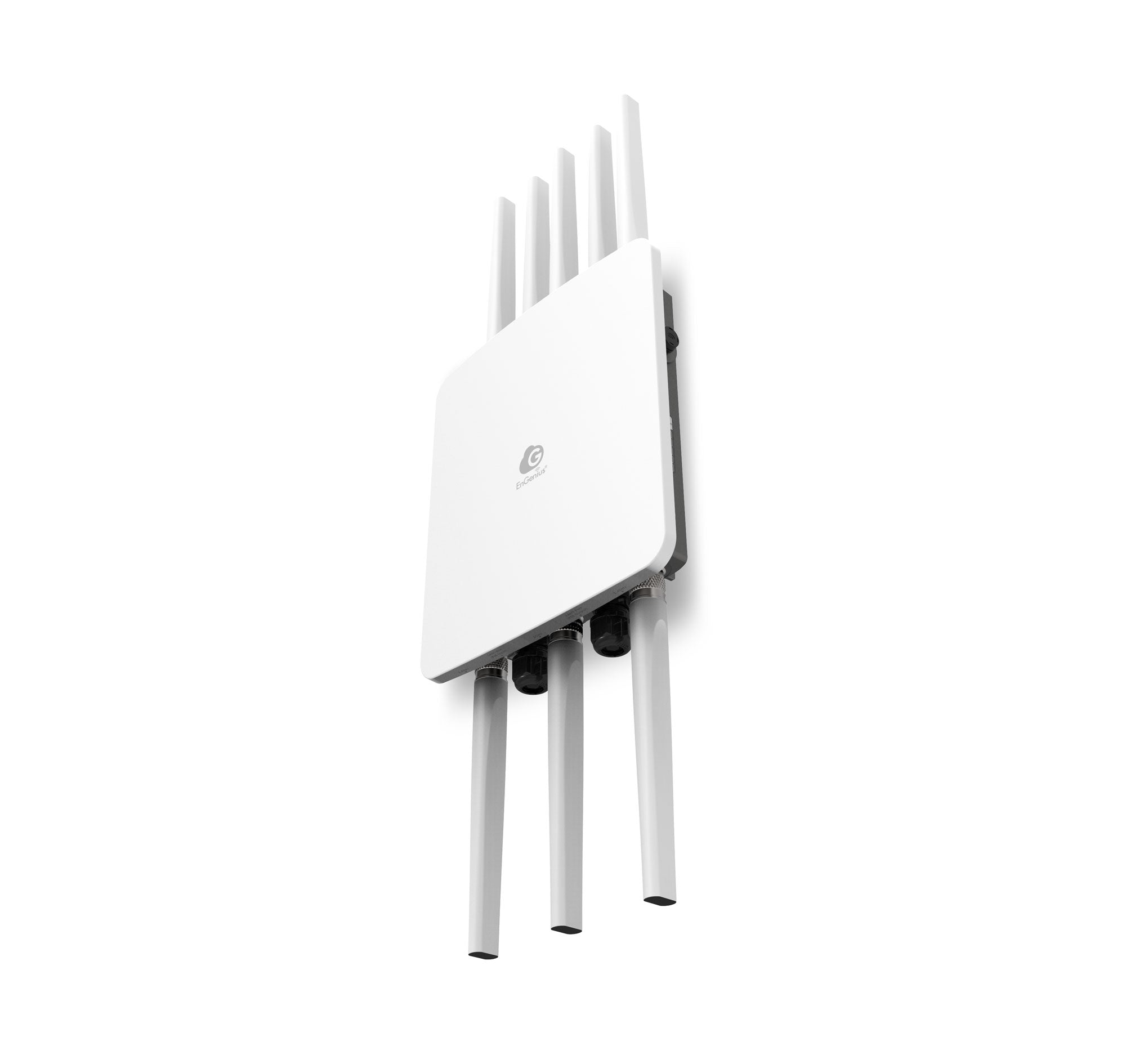

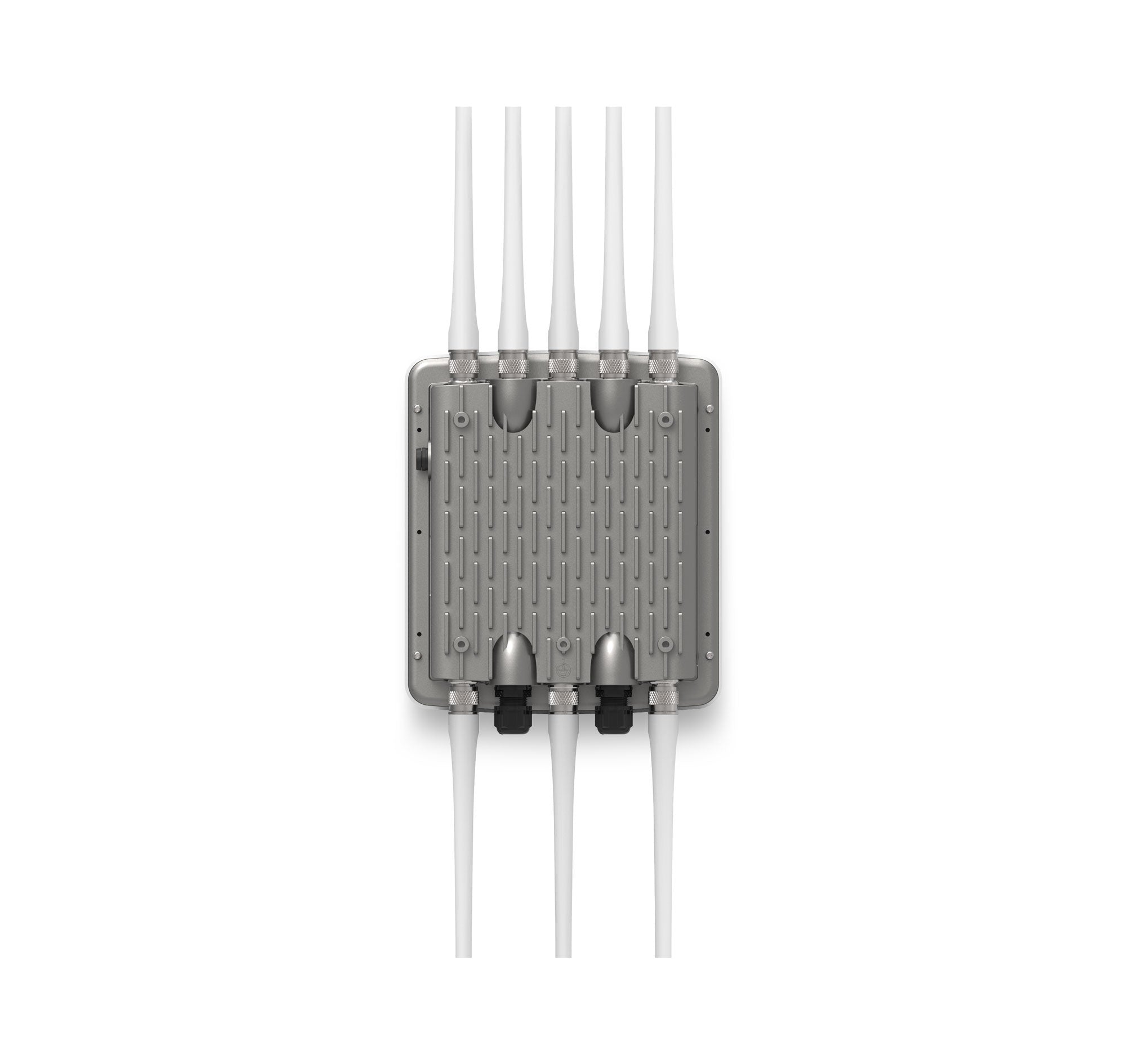

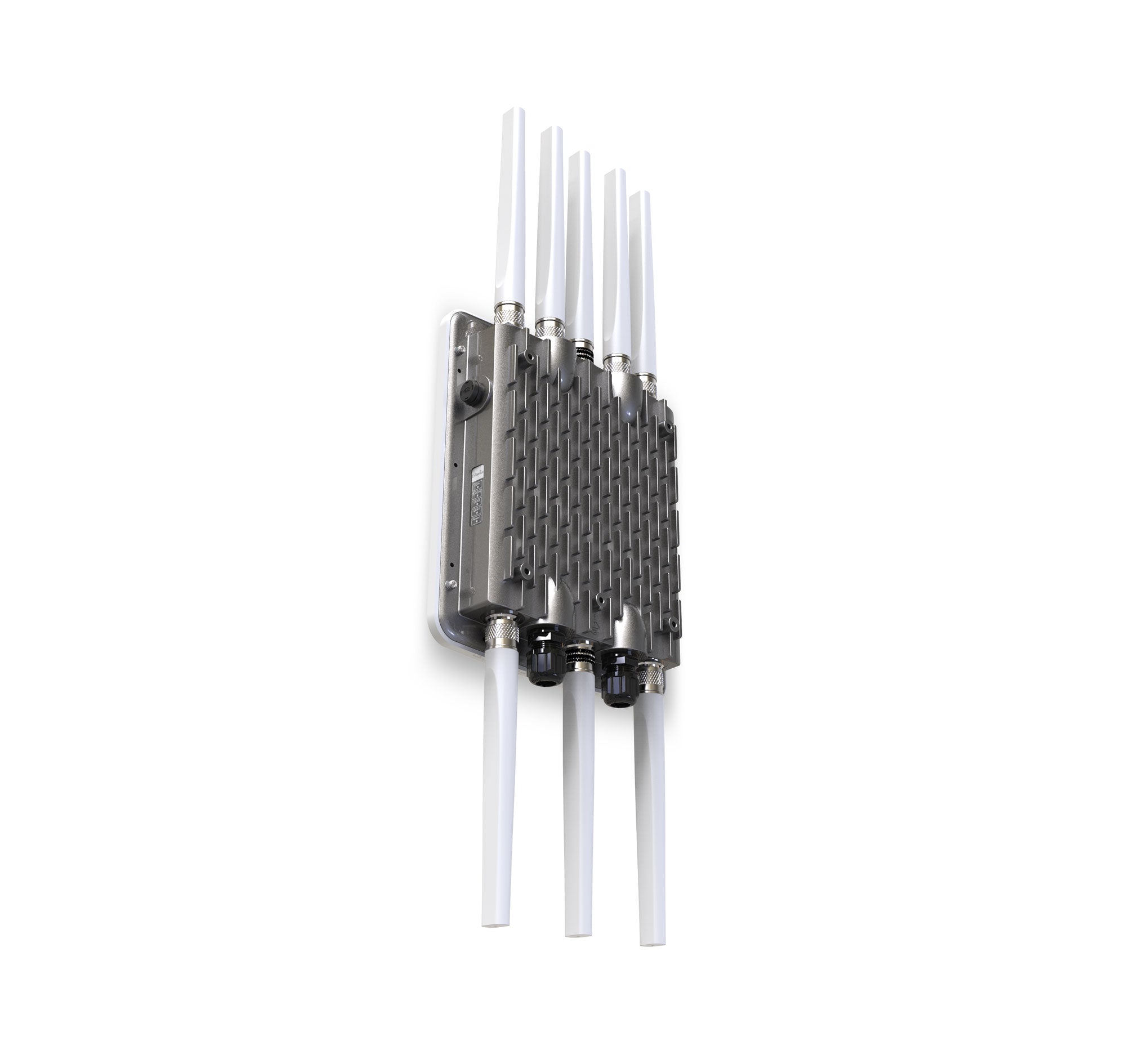

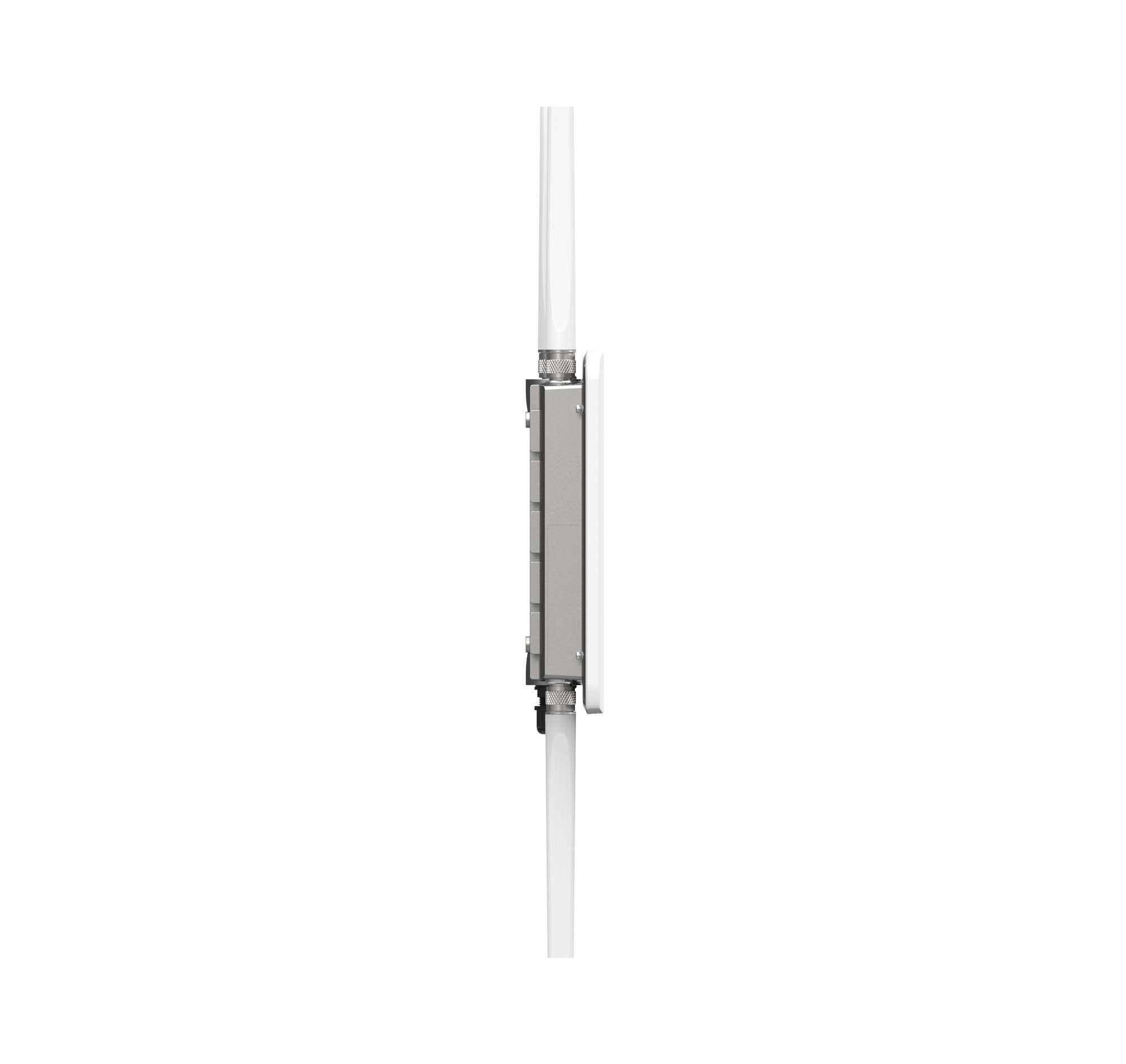

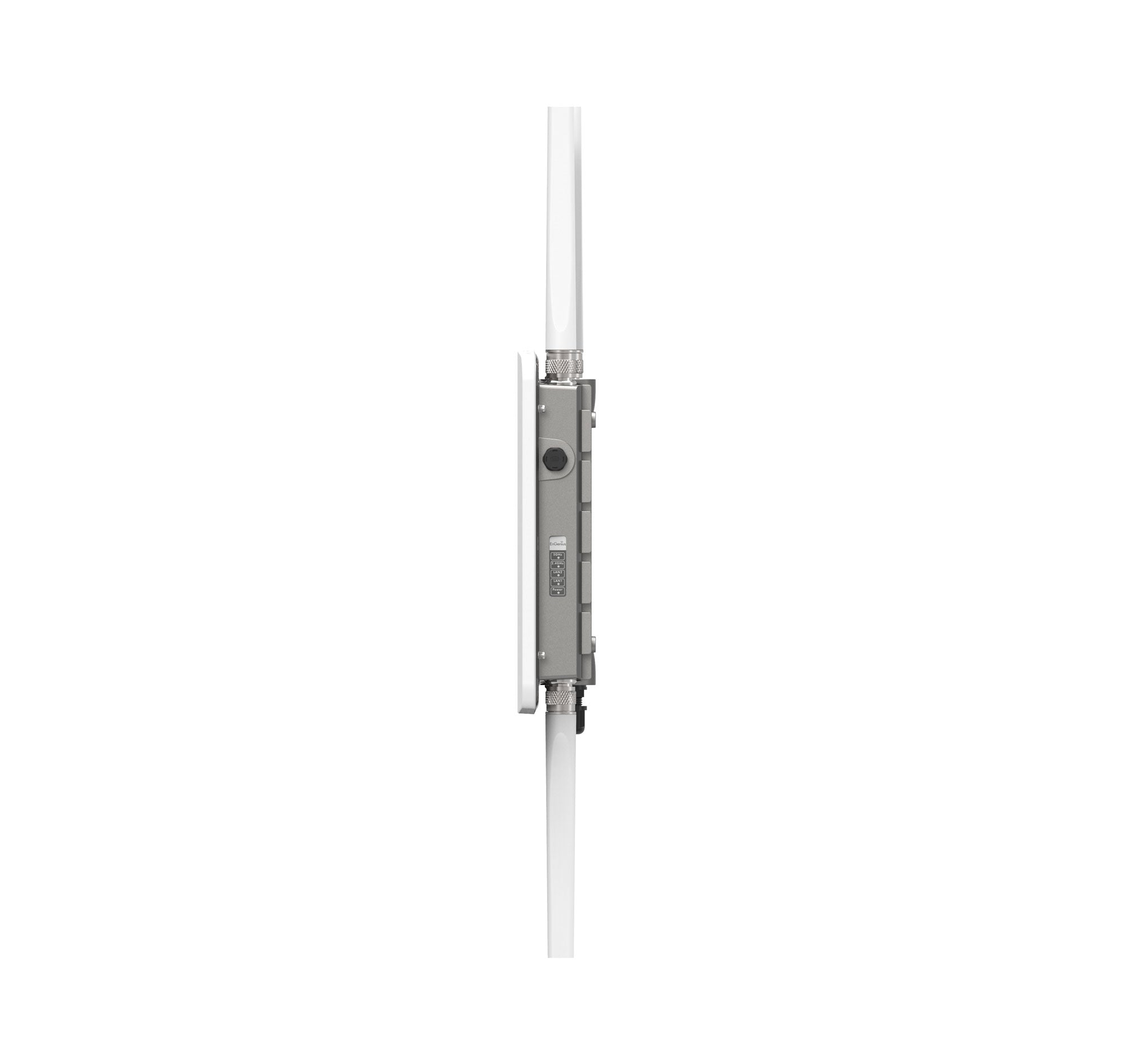

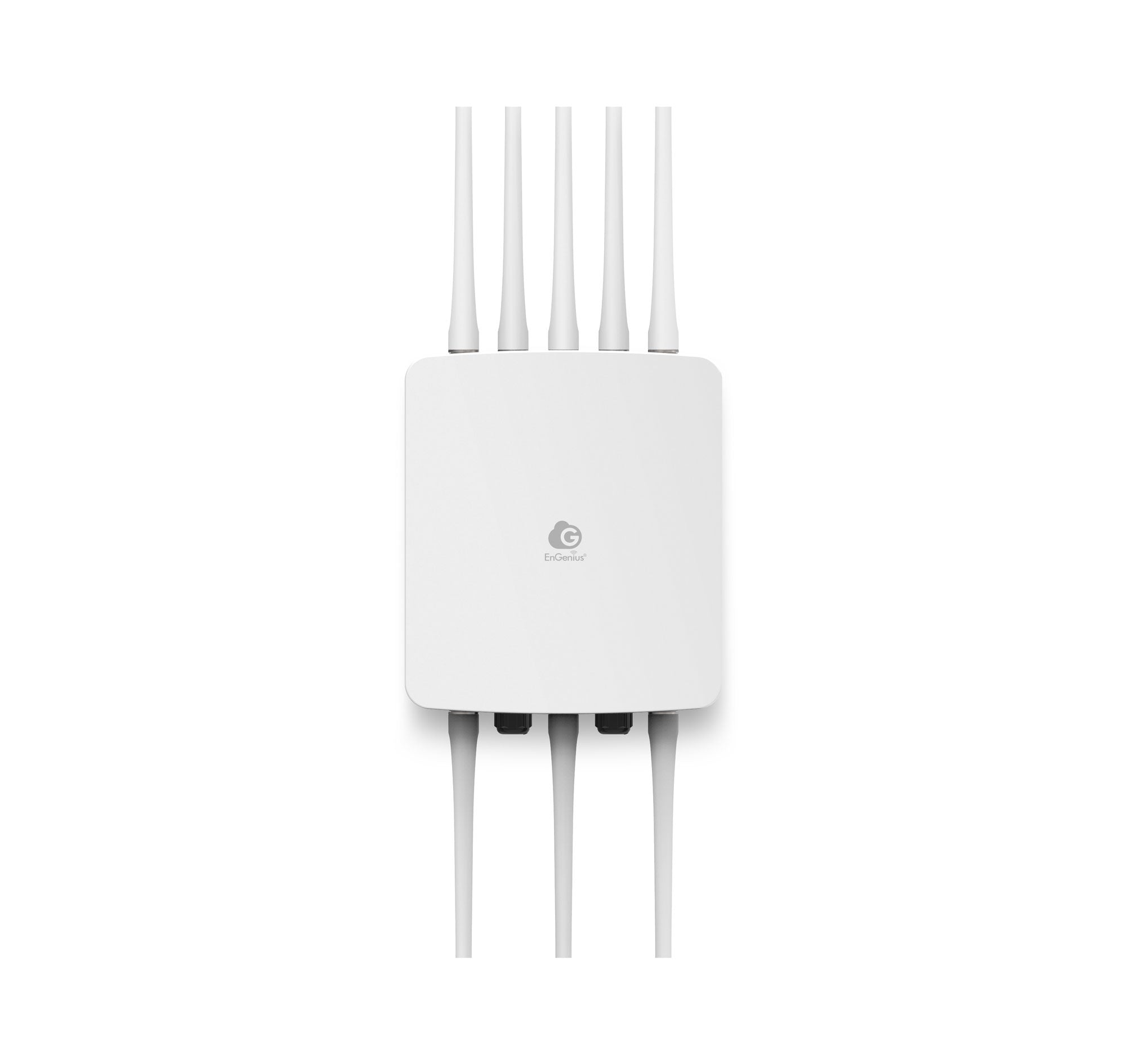

EnGenius - ECW270 - Wi-Fi 6 (802.11ax, 4x4:4) Cloud Managed Outdoor AP

EnGenius

EnGenius - ECW270 - Wi-Fi 6 (802.11ax, 4x4:4) Cloud Managed Outdoor AP

Name: EnGenius - ECW270 - Wi-Fi 6 (802.11ax, 4x4:4) Cloud Managed Outdoor AP
Brand: EnGenius
SKU: ECW270
Price: 1618.38 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Product SKU: ECW270

$1,618.38

Description
Specifications
Downloads
Reviews

EnGenius Cloud Managed ECW270 outdoor Wi-Fi 6, 4x4, IP68, MU-MIMO dual-band access point reaches speeds up-to 2,400 Mbps in 5GHz and 1,200 Mbps in 2.4GHz band. This top-of-the-line cloud-managed AP features the latest in rugged weatherproofing and Wi-Fi 6 technology with guaranteed top-notch performance and reliability in the harshest environments.

Features:

Highest-rated, IP68-rated waterproof & dustproof housing withstands extreme WiFi outdoor environments
Detachable four (4) 7 dBi 5 GHz & four (4) 5 dBi 2.4 GHz, Omni 360° N-type antennas
Supports up to 2,400 Mbps in 5-GHz band & 1,200 Mbps in 2.4-GHz band
Dual-band 802.11ax & backward-compatible with 11ac/a/b/g/n client devices
2.5 GigE PoE++ compatible port for easy placement in outdoor spaces
1 GigE port with PSE (802.3af/at) to power-up IP-cameras or other compliant devices
High-powered radios to increase meshing distances on either 2.4 GHz or 5 GHz
Built-in surge and ESD (electro-static discharge) protection
Wide outdoor operation ranges from -4°F ~ +149°F (-20°C ~ +65°C)
Cloud-manage unlimited number of APs from anywhere with the EnGenius Cloud app
Real-time AP diagnostics, deep-dive analytics, and remote configurations
No access point licensing or subscription fees needed

Technical Specifications

Standards

IEEE 802.11b/g/n/ax on 2.4GHz

IEEE802.11a/n/ac/ax on 5GHz

Processor

Qualcomm® Quad-Core CPU ARM Cortex A53s @ 2.2GHz

Antenna

Four (4) External 7 dBi 5 GHz Detachable N-Type Antennas

Four (4) External 5 dBi 2.4 GHz Detachable N-Type Antennas

Physical Interface

1 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet Port

1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port (PoE+ PSE out)

LED Indicators

1 x Power

1 x LAN

1 x LAN 2

1 x 2.4 GHz

1 x 5 GHz

Power Source

Power-over-Ethernet: 802.3at/bt

Proprietary 48V – 54V

IEEE 802.11e Compliant Source

Active Ethernet (PoE)

Maximum Power Consumption

46W

Surge Protection

1KV

ESD Protection

Contact: 4KV

Air: 8 KV

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4GHz & 5 GHz

Operation Modes

AP, Mesh, AP Mesh

Frequency Radio

2.4GHz: 2400 MHz ~ 2482 MHz

5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz

Transmit Power

2.4GHz: 24 dBm

5GHz: 24 dBm

Maximum power is limited by regulatory domain

Tx Beamforming (TxBF)

Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream

4x4:4

SU-MIMO

Four (4) spatial streams SU-MIMO for 2.4GHz and four (4) spatial streams SU-MIMO for 5GHz up to 3,600 Mbps wireless data rate to a single 11ax wireless client device under both 2.4G Hz and 5GHz radio.

MU-MIMO

Four (4) spatial streams multi-user (MU)-MIMO for up to 2,400 Mbps wireless data rate to transmit to one (1) four streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously

Four (4) spatial streams multi-user (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to one (1) four streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):

802.11ax:

2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 2)

5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 2)

802.11b: 1, 2, 5.5, 11

802.11a/g: 6, 9, 12, 18, 36, 48, 54

802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)

802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)

802.11b: Direct-sequence spread-spectrum (DSSS)

802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization

802.11ax supports high efficiency (HE) —HE 20/40/80 MHz

802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz

802.11n supports high throughput (HT) —HT 20/40 MHz

802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM

802.11b: BPSK, QPSK, CCK

Management

Multiple BSSID

8 SSIDs for both 2.4GHz and 5GHz radios

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging

Cross-band VLAN Pass Through

Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Complaint With IEEE 802.11e Standard WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Wireless Security

WPA3-PSK (SAE)

WPA3 Enterprise

WPA2 Enterprise (AES)

WPA2 AES-PSK

OWE

Hide SSID in Beacons

MAC Address Filtering, up to 32 MACs per SSID

Wireless STA (Client) Connected List

SSH Tunnel

Client Isolation

Environmental & Physical

Temperature Range

Operating: -4º~149ºF/-20ºC~65ºC

Storage: -40Fº~176ºF/-30ºC~80ºC

Humidity (non-condensing)

Operating: 90% or less

Storage: 90% or less

Waterproof & Dustproof

IP68-Rated Enclosure

Device Dimensions & Weights

ECW270 Device

Weight: 4.12lbs. (1.87kg)

Width: 8.58” (218 mm)

Length: 11.22” (285 mm)

Height” 2.18” (55.5 mm)

Packaging

Weight: 3.33 lbs. (1.51kg)

Width: 9.21" (234 mm)

Length: 11.18" (284 mm)

Height: 5.67" (144 mm)

Package Contents

1 – ECW270 Cloud Managed Outdoor Access Point

1 - Pole-Mounting Brackets

1 - Wall-Mount Screw Set

4 - 2.4 GHz 5dBi N-Type Antennas

4 – 5 GHz 7dBi N-Type Antennas

1 - Quick Installation Guide

Certifications

FCC

Warranty

2 Year

ECW270-Datasheet_38df40da-0adf-443b-901a-3a1da080ab86.pdf:
