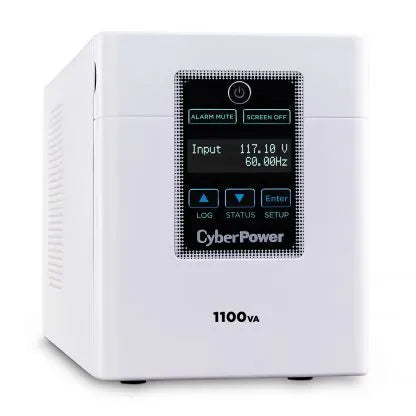

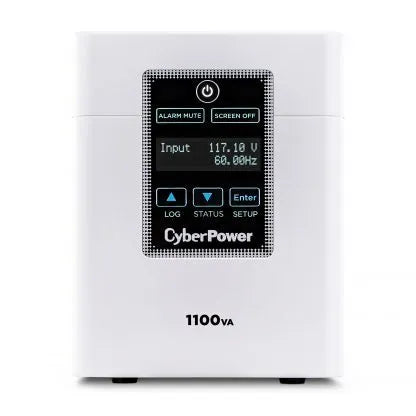

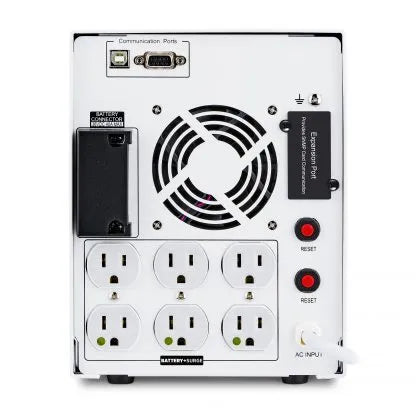

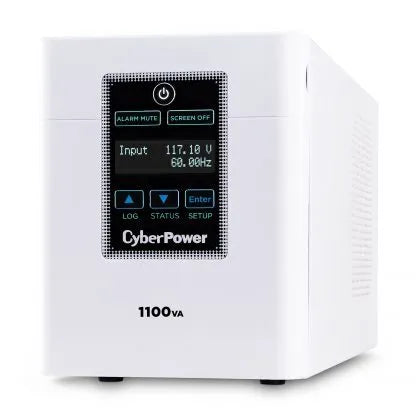

- CYBERPOWER - M1100XL - CyberPower Medical Grade 1100VA/880W UPS 120V (6) NEMA 5-15R-HG Outlets, NEMA 5-15P-HG Plug, SNMP Slot, Extended Battery Option, Tested to 60601-1, 3Yr Warranty CYBERPOWER - M1100XL - CyberPower Medical Grade 1100VA/880W UPS 120V (6) NEMA 5-15R-HG Outlets, NEMA 5-15P-HG Plug, SNMP Slot, Extended Battery Option, Tested to 60601-1, 3Yr Warranty
CYBERPOWER - M1100XL - CyberPower Medical Grade 1100VA/880W UPS 120V (6) NEMA 5-15R-HG Outlets, NEMA 5-15P-HG Plug, SNMP Slot, Extended Battery Option, Tested to 60601-1, 3Yr Warranty
- Description
- Specifications
- Downloads
- Reviews
Medical Grade 1100VA/880W UPS 120V (6) NEMA 5-15R-HG Outlets, NEMA 5-15P-HG Plug, SNMP Slot, Extended Battery Option, Tested to 60601-1, 3Yr Warranty.
The CyberPower M1100XL medical-grade UPS delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the M1100XL has been tested to meet all UL 60601-1 requirements, and includes hospital-grade plugs and outlets. The M1100XL also includes a built-in isolation transformer to minimize the current leakage and eliminate line noise, a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel. The M1100XL medical-grade UPS is covered by a three-year warranty (including coverage of batteries) and a $400,000 Connected Equipment Guarantee.
NOTE: This UPS is not intended for use in critical care or life support applications.
Features:
- Battery Backup: Provides power to cover shorter-outages and supplies power long enough for equipment to properly shut down when utility power fails for longer periods of time. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Line Interactive Topology: Exists when a UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Automatic Voltage Regulation (AVR): Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
- UL 60601-1 Tested: Meets all UL 60601-1 requirements necessary for use in patient-care environments.
- Hospital-Grade Plugs & Outlets: Offer an added degree of safety and reliability to the input/output connections of hospital-grade equipment.
- Isolation Transformer: Minimizes the current leakage and cumulative shock potential of connected equipment to below 100 (microamps) and helps to alleviate line noise.
- Sealed LCD Screen: Resists dirt, debris and spray, and can withstand repeated cleaning procedures common to patient-care environments.
- Multifunction LCD Panel: Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- Ultra Quiet Design: Minimizes noise during operation for a quieter patient environment.
- Replaceable Batteries: Can be quickly accessed and replaced by a qualified technician. Batteries are hot-swappable to eliminate unnecessary downtime.
- PowerPanel Business Edition Software: Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
- Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
- Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
| General | |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 3 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X3B |
| Runtime at Full Load | 10 min |
| Runtime at Half Load | 25 min |
| Typical Recharge Time | 8 Hours (0% to 90% charged) |
| User Replaceable Battery | Yes |
| Input | |
| Adjustable Voltage Range | 88 – 150 VAC |
| Circuit Breaker | 10:00 AM |
| Cord Length | 6 ft (1.8 m) |
| Input Frequency Range | 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P-HG |
| Input Voltage Range | 90 VAC – 150 VAC |
| Nominal Input Voltage | 120 VAC |
| Output | |
| Automatic Voltage Regulation | Single Boost |
| Single Buck | |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | 6 – 5-15R-HG |
| Outlets – Battery & Surge Protected | 6 |
| Outlets – Total | 6 |
| Output Power Factor | 0.8 |
| Overload Protection | Internal Circuitry Limiting |
| Circuit Breaker Protected | |
| Typical Transfer Time | < 10 ms |
| USB Charge Port | No |
| VA | 1100 VA |
| Watts | 880 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 1445 J |
| Management & Communications | |
| Audible Alarms | Battery Mode |
| Low Battery | |
| Overload | |
| Fault | |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On |
| Management Cable | USB Cable |
| SNMP / HTTP Remote Monitoring | Yes – with optional RMCARD205 |
| Serial Port | 1 Serial |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Color | White |
| Form Factor | Mini-Tower |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 17.02 x 22.1 x 43.18 (cm) |
| Physical Dimensions – (WxHxD) (in) | 6.7 x 8.7 x 17 (in) |
| Physical Dimensions – (WxHxD) (mm) | 170 x 221 x 432 (mm) |
| Physical Weight (kg) | 24.49 |
| Physical Weight (lb) | 54 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 10.34 |
| Shipping – Weight (lb) | 22.8 |
| Shipping Dimensions – (WxHxD) (cm) | 31.6 x 35.99 x 57.91 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 12.44 x 14.17 x 22.8 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 315.98 x 359.92 x 579.12 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 |
| Isolation | |
| Leakage Current (Max Shock Potential) | <100 µA |
| Output Isolation Transformer | Hospital Grade Load Isolation Transformer |
| Warranty | |
| CEG Amount | $400000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U4A |
| Product Warranty | 3 Year Limited Warranty |
