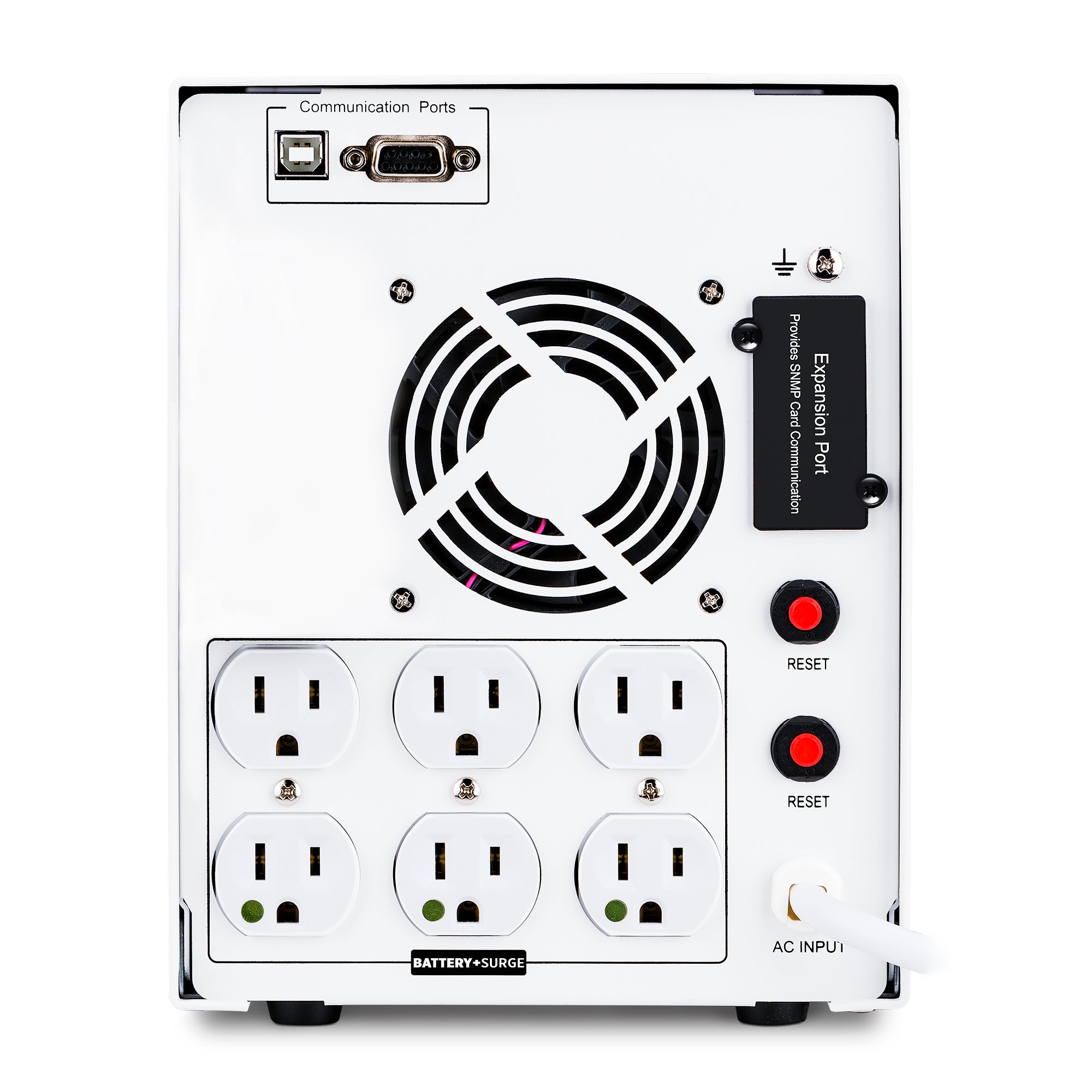

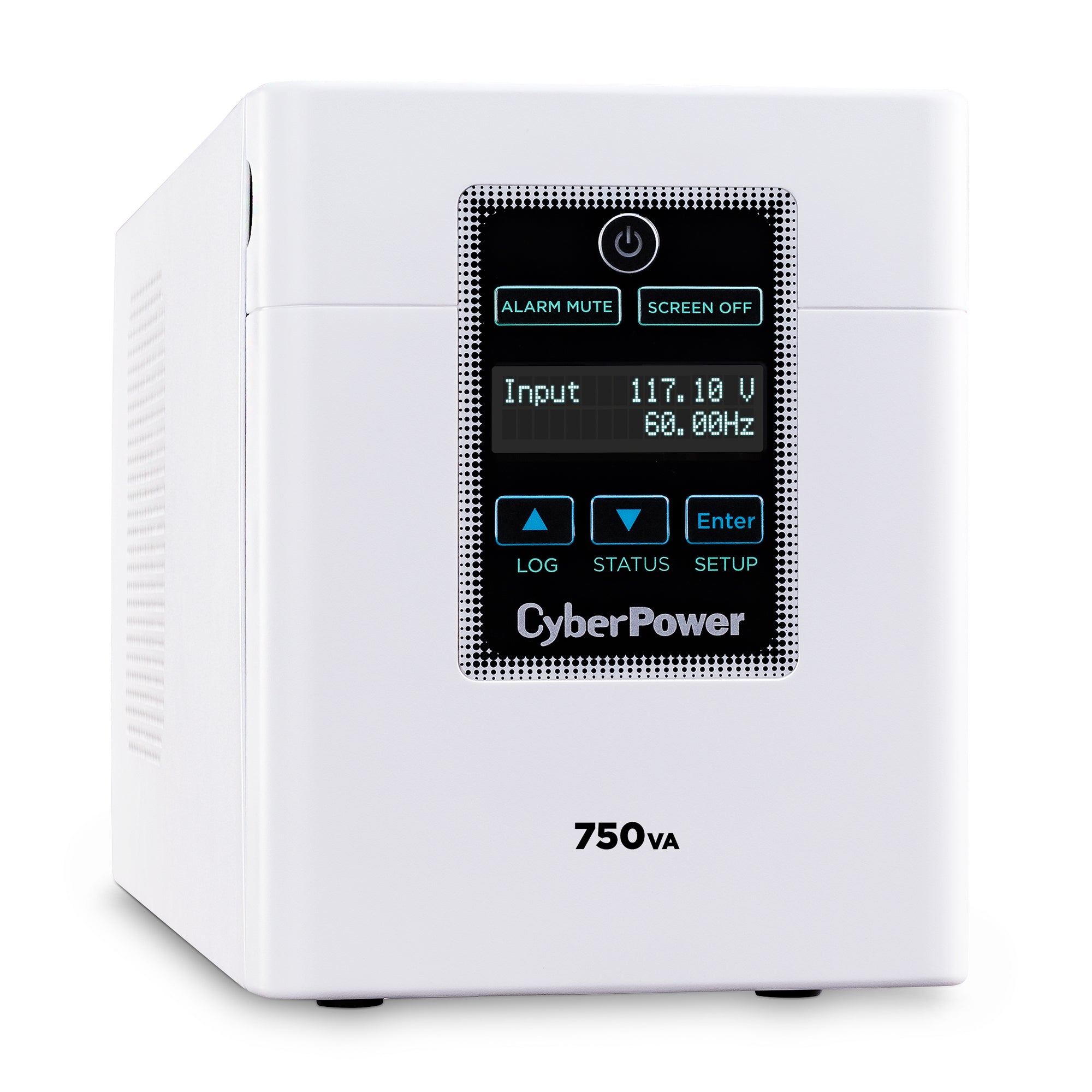

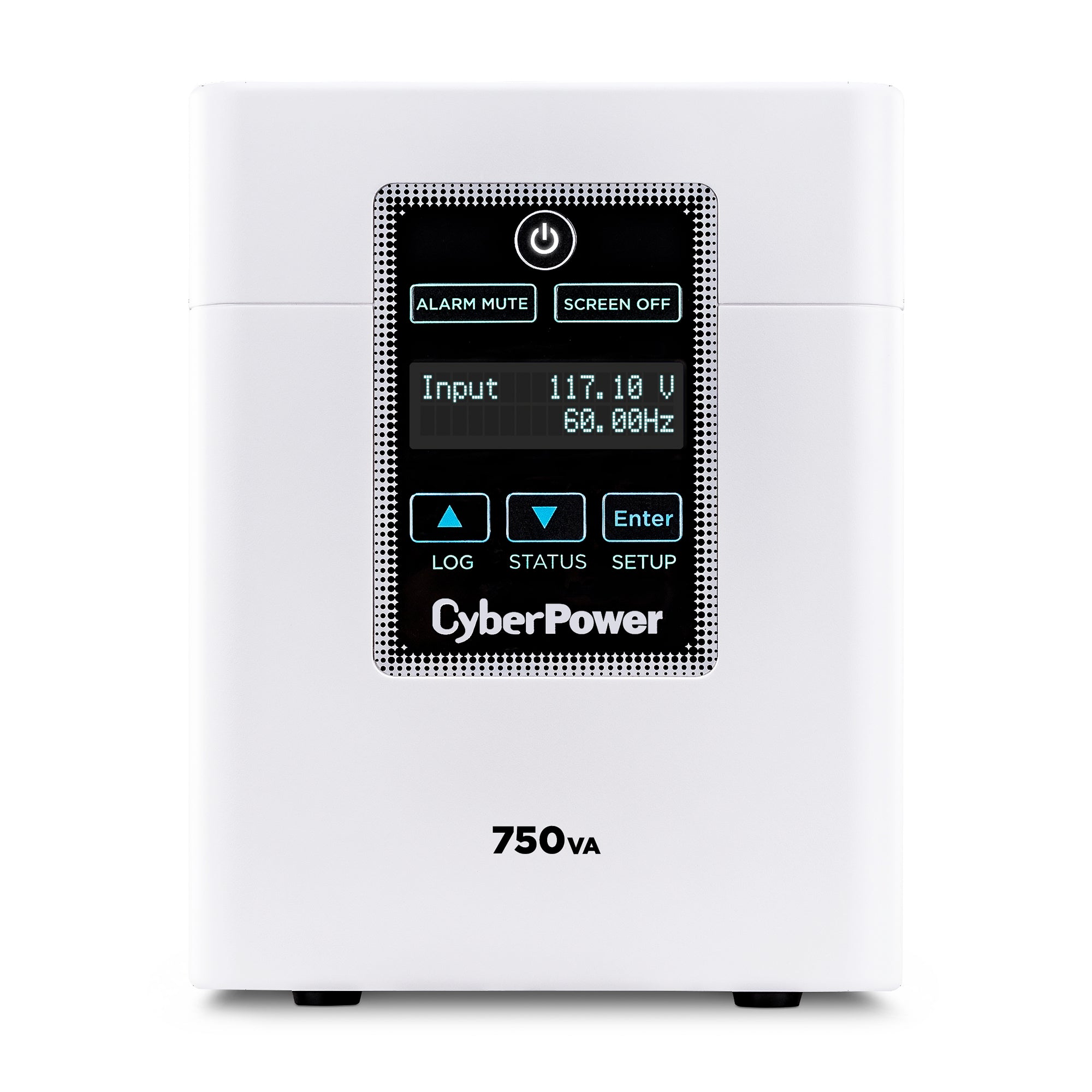

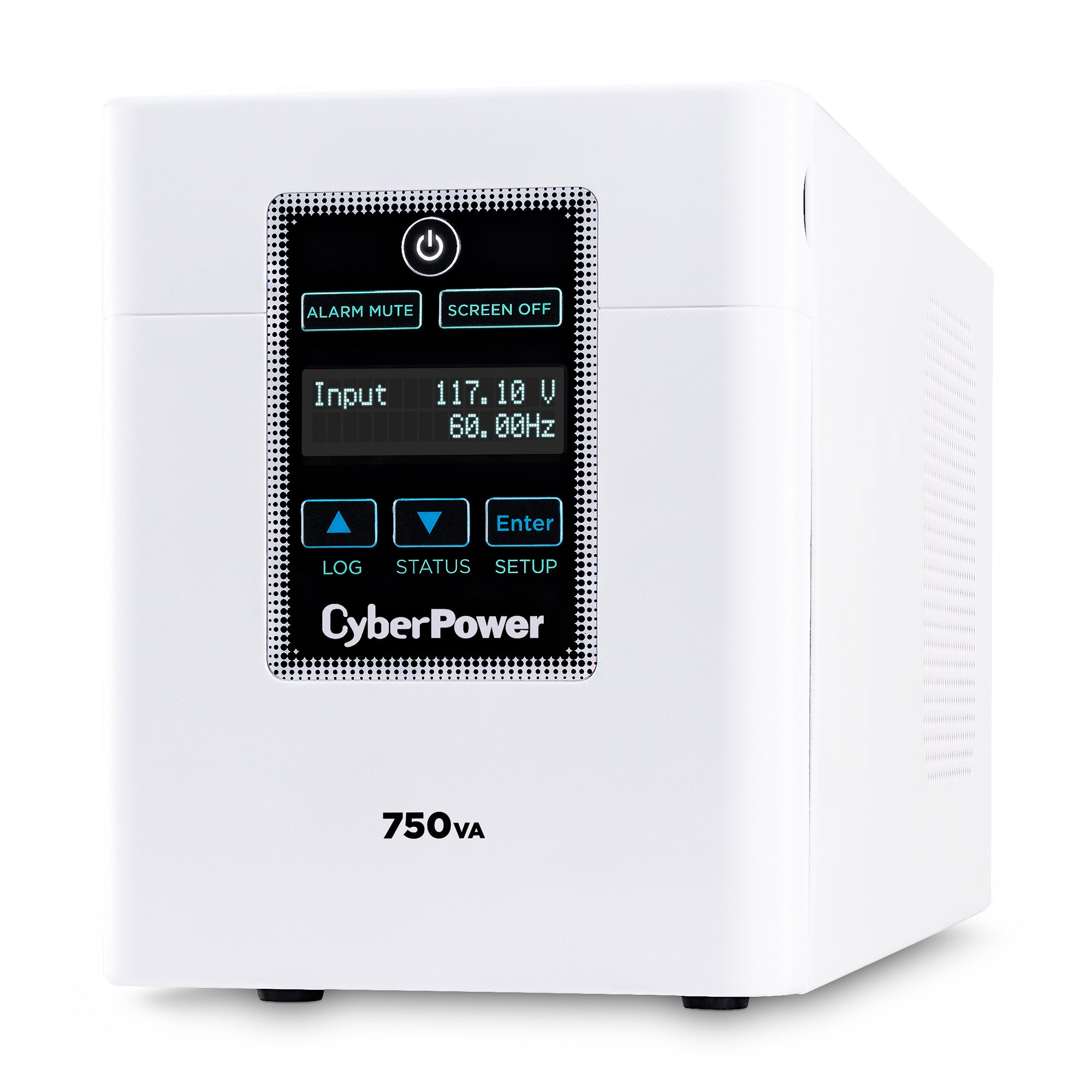

- CYBERPOWER - M750L - CyberPower Medical Grade 750VA/600W UPS, 120V, (6) NEMA 5-15R-HG Outlets, NEMA 5-15P-HG Plug, SNMP Slot, Tested to 60601-1, 3Yr Warranty CYBERPOWER - M750L - CyberPower Medical Grade 750VA/600W UPS, 120V, (6) NEMA 5-15R-HG Outlets, NEMA 5-15P-HG Plug, SNMP Slot, Tested to 60601-1, 3Yr Warranty
CYBERPOWER - M750L - CyberPower Medical Grade 750VA/600W UPS, 120V, (6) NEMA 5-15R-HG Outlets, NEMA 5-15P-HG Plug, SNMP Slot, Tested to 60601-1, 3Yr Warranty
- Description
- Specifications
- Downloads
- Reviews
Medical Grade 750VA/600W UPS, 120V, (6) NEMA 5-15R-HG Outlets, NEMA 5-15P-HG Plug, SNMP Slot, Tested to 60601-1, 3Yr Warranty.
The CyberPower M750L medical-grade UPS delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the M750L has been tested to meet all UL 60601-1 requirements, and includes hospital-grade plugs and outlets. The M750L also includes a built-in isolation transformer to minimize the current leakage and eliminate line noise, a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel. The M750L medical-grade UPS is covered by a three-year warranty (including coverage of batteries) and a $400,000 Connected Equipment Guarantee.
NOTE: This UPS is not intended for use in critical care or life support applications.
Features:
- Battery Backup: Provides power to cover shorter-outages and supplies power long enough for equipment to properly shut down when utility power fails for longer periods of time. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Line Interactive Topology: Exists when a UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Automatic Voltage Regulation (AVR): Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
- UL 60601-1 Tested: Meets all UL 60601-1 requirements necessary for use in patient-care environments.
- Hospital-Grade Plugs & Outlets: Offer an added degree of safety and reliability to the input/output connections of hospital-grade equipment.
- Isolation Transformer: Minimizes the current leakage and cumulative shock potential of connected equipment to below 100 (microamps) and helps to alleviate line noise.
- Sealed LCD Screen: Resists dirt, debris and spray, and can withstand repeated cleaning procedures common to patient-care environments.
- Multifunction LCD Panel: Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- Ultra Quiet Design: Minimizes noise during operation for a quieter patient environment.
- Replaceable Batteries: Can be quickly accessed and replaced by a qualified technician. Batteries are hot-swappable to eliminate unnecessary downtime.
- PowerPanel Business Edition Software: Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
- Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
- Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
| INPUT | |
| Voltage | 120Vac |
| Input Voltage Range | 90Vac – 150Vac |
| Input Frequency Range | 60Hz ± 3Hz |
| Input Circuit Breaker | 8A |
| Cord Length | 6 ft (White) |
| Plug Type | 5-15P-HG |
| OUTPUT | |
| VA | 750 |
| Watts | 600 |
| OUTPUT CONT. | |
| On Battery Voltage | 120 VAC ± 5% |
| Automatic Voltage Regulation (AVR) | 1 Boost/1 Buck |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | 5-15R-Hospital Grade |
| Outlets - Total | 6 |
| Outlets - Battery & Surge Protected | 6 |
| Overload Protection | Internal circuitry limiting / circuit breaker |
| Transfer Time | <10 ms |
| MANAGEMENT & COMMUNICATIONS - CONT | |
| Serial Port | Yes |
| SNMP card | No |
| Management Cable | USB Cable |
| Audible Alarms | On Batt, Low Batt, Overload, Fault |
| Software (Free Download) | PowerPanel® Business Edition |
| PHYSICAL | |
| Form Factor | Tower |
| Dimensions (HxWxD) (inches) | 6.7 × 8.7 × 17 inches |
| Weight (lbs.) | 52.8 |
| Grounding | Gound Screw |
| ENVIRONMENTAL | |
| Operating Temperature | 32 °F to 104 °F / 0 °C to 40 °C |
| Operating Humidity | 0 to 95%, non-condensing |
| Operating Elevation | 10,000 ft / 3,000 m |
| Storage Temperature Range | 5°F to 113°F / -15°C to 45 °C |
| CERTIFICATIONS | |
| Certifications | UL1778 (USA); Tested to CSA (Canada); FCC Part 15 Class A (EMI); UL60601-1 tested (medical grade) |
| ROHS | RoHS Compliant |
| WARRANTY | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
| CEG Amount | $400,000 |
| BATTERY | |
| Runtime at Half Load (min) | 30 min |
| Runtime at Full Load (min) | 12 min |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/7Ah |
| Battery Quantity | 3 |
| Extended Battery Module | No |
| User Replaceable | Yes |
| Hot-Swappable | Yes |
| Typical Recharge Time | < 8 hours (Recovery to 90% capacity) |
| Replacement Battery Pack Quantity | 1 |
| PROTECTION AND FILTERING | |
| Surge Suppression | 1445 J |
| Phone / Network Protection RJ11/RJ45 | No |
| Coax Protection RG6 | No |
| EMI/RFI Filtration | Yes |
| ISOLATION | |
| Output Isolation Transformer | Hospital grade load isolation transformer |
| Leakage Current (Max Shock Potential) | <100 microamps |
| MANAGEMENT & COMMUNICATIONS | |
| LCD Control Panel | Yes |
| LED Indicators | Power ON |
| HID Compliant USB Port | Yes |
