Geovision - GV-TFD4700 - 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed IP Dome
Geovision - GV-TFD4700 - 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed IP Dome
GeoVision

Geovision - GV-TFD4700 - 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed IP Dome

Product SKU: GV-TFD4700
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$226.80
$316.80
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

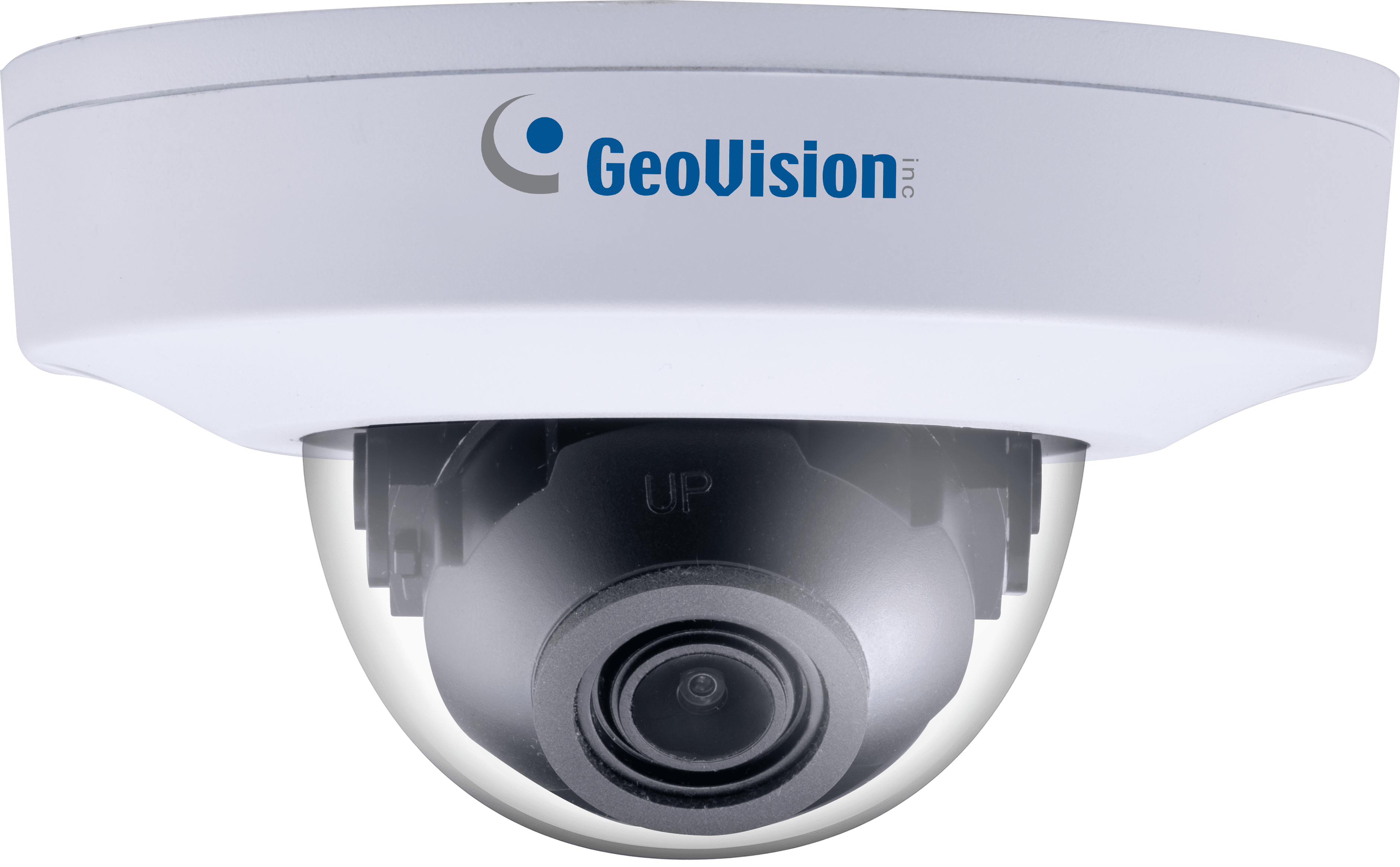

GV-TFD4700 is an indoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With the super low lux CMOS image sensor, the camera is capable of providing a color live view in near darkness.



Features:

  • 1/3" progressive scan super low lux CMOS
  • Min. illumination at 0.01 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 2688 x 1520
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • Two-way audio
  • One sensor input and one alarm output
  • DC 12V / PoE (IEEE 802.3af)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • Pigtail-free
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • Smartphone app support
  • ONVIF (Profile G, S, T) conformant
Camera
Image Sensor 1/3" progressive scan super low lux CMOS
Picture Elements 2688 (H) x 1520 (V)
Minimum Color Illumination
  • Color 0.01 Lux (F2.0, AGC ON)
  • IR ON 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel Yes
Day / Night Yes (with removable IR‐cut filter)
Lens Type Fixed
Focal Length 2.8 mm
Maximum Aperture F/2.0
Mount M12
Horizontal FOV 95°
Operation
  • Focus Fixed
  • Zoom Fixed
  • Iris Fixed
IR LED Quantity 1 IR LED
Max. IR Distance 30 m (100 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams from H.265, H.264 or MJPEG
Video Resolution
  • Main Stream 2688 x 1520, 2560 x 1440 (Default), 2304 x 1296, 1920 x 1080
  • Sub Stream 1280 x 720, 704 x 576, 704 x 288, 640 x 480,640 x 360 (Default), 352 x 288
  • Third Stream(Closed by Default) 640 x 360, 352 x 288
Frame Rate

30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 1920 x 1080 (60 / 50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
Video Analytics

Motion Detection, Tampering Alarm, Audio Detection, Intrusion, Human Body Detection. *Tampering alarm, audio detection, Intrusion and Human Body Detection are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP
Image Setting

Brightness, Contrast, Saturation, Sharpness, Flicker‐less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 180°), Exposure Mode, Shutter Speed, Gain Control,Slow Shutter, Backlight Compensation (BLC), Metering Control, D/N Sensitivity, WDR,Smart Illumination, White Balance, Defog
Audio Compression G.711
Audio Support Two‐way Audio (external speaker required)
Digital I/O
  • Input 1 Input, dry contact, NO / NC
  • Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)
Network
Interface 10/100 Ethernet
Protocol ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)
Mechanical
Temperature Detector No
Camera Angle Adjustment
  • Pan 3° ~ 360°
  • Tilt 0° ~ 68°
  • Rotate 3~360°
Connectors
  • Power 2‐pin terminal block (DC 12 V, 1.25 A), PoE
  • Ethernet RJ‐45 connector Audio 1 in (built‐in micro
  • 4‐pin terminal block pitch 2.5 mm (0.1”) (Audio In & Audio Out)
  • Digital I/O 4‐pin terminal block pitch 2.5 mm (0.1”)
  • Local Storage
  • Micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10) *UHS‐II card type is not supported.
General
Operating Temperature 35°C ~ 60°C (‐31°F ~ 140°F)
Humidity 0% ~ 95% (no condensation)
Power Source 12 V DC / PoE (IEEE802.3af)
Max. Power Consumption 5.5 W
Dimensions Ø 108.6 x 61.8mm (Ø4.28” x 2.43”)
Weight 0.22 kg (0.49 lb)
Regulatory FCC, CE, RoHS compliant
Web Interface
Installation Management Web‐based configuration
Maintenance Firmware upgrade through Web Browser or GV‐IP Device Utility
Access from Web Browser Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Text Overlay, Image Masking
Language Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,Russian, Spanish, Traditional Chinese
Applications
Software Supported GV‐VMS (V17.4.1 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV‐Mobile Server (V1.5.1)
Smart Device Access GV‐Eye for iOS and Android
Live Viewing Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App
Datasheet_IPCamTFD4700_20_1.pdf:
GV-IPCAM_Comparison_table_20_3.pdf:
version_20Hestory.pdf:
