28% $155.76

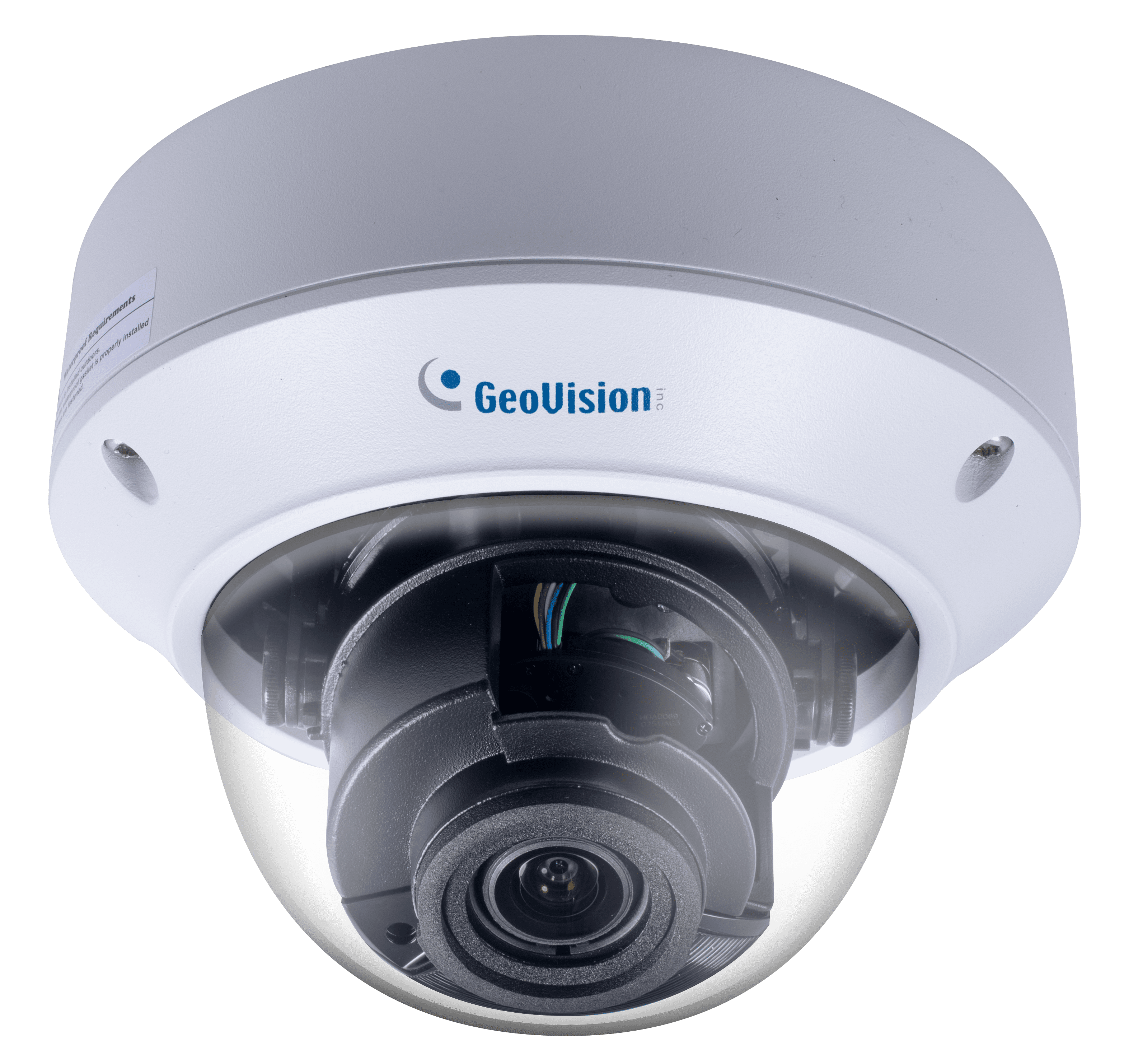

Geovision - GV-TVD4810 - AI 4MP H.265 5x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome
Geovision - GV-TVD4810 - AI 4MP H.265 5x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome
GeoVision

Geovision - GV-TVD4810 - AI 4MP H.265 5x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome

Product SKU: GV-TVD4810
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$408.24
$564.00
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

GV-TVD4810 is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IK10 and IP67 standards, and can be powered through PoE.



Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.



Features:

  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/3" progressive scan super low lux CMOS
  • Min. illumination at 0.002 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 2688 x 1520
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Intelligent IR
  • IR distance up to 40 m (130 ft)
  • Day and Night function (with removable IR-cut filter)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • 3-axis mechanism (pan / tilt / rotate)
  • DC 12V / PoE (IEEE 802.3af)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • Two-way audio
  • Wide Dynamic Range Pro (WDR Pro)
  • ONVIF (Profile G, S, T) conformant
Camera
Image Sensor1/3” progressive scan super low lux CMOS
Picture Elements2688(H) x 1520 (V)
Minimum Illumination
  • Color 0.002 Lux (F1.2, AGC ON)
  • IR ON 0 Lux
Shutter SpeedAutomatic, Manual 1 ~ 1/100000 sec)
White BalanceAutomatic, Manual
Gain ControlAutomatic, Manual
S/N Ratio56 dB
WDR ProYes
Dynamic Range120 dB
Lens
Megapixel4 MP
Day / NightYes (with removable IR-cut filter)
Lens TypeMotorized varifocal lens
Focal Length2.7 ~ 13.5mm
Maximum ApertureF/1.2
MountØ 14 mm
Horizontal FOV98~ 31°
Operation
  • Focus Automatic / Manual
  • Zoom 5x Optical Zoom
  • Iris Fixed
IR LED Quantity2 IR LEDs
Max. IR Distance40 m (130 ft)
Operation
Video CompressionH.265, H.264, MJPEG
Video StreamingTriple streams
Frame Rate30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 2304 x1296 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
Video AnalyticsMotion Detection, Tampering Alarm, Audio Detection *Tampering alarm and audio detection are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e-mail and FTP
Image SettingBrightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°,90°, 180°, 270°‐including Corridor format)
Audio CompressionG.711
Audio SupportTwo‐way Audio (External speaker required)
Digital I/O
  • Input , dry contact, NO / NC
  • Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)
Face Detection
Environment100 lux
Detectable face angle
  • Tilt (Up/Down) ≤ 10°
  • Swing (Left/Right ≤ 30°
Max. number of facesUp to 40
Min. face image pixel requirement80 pixels
Deep Learning Function
AI AnalyticsIntrusion, Cross Line, Enter Area, Face Detection, Leave Area (Human & Vehicle classification), People Flow Counting, Crowd Density Monitoring
Network
Interface10/100 Ethernet
Protocol802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE,QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)
Video Resolution
Main Stream2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
Sub Stream1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 640 x 480, 352 x 288
Third Stream (Closed by Default)720 x 576, 704 x 288, 640 x 360,352 x 288
Mechanical
Camera Angle Adjustment
  • Pan 0 ~ 355°
  • Tilt 0 ~ 80°
  • Rotate 0 ~ 355°
Connectors
  • Power DC Jack (DC 12V, 1.25A), PoE
  • Ethernet RJ-45
  • Audio 1 In (built‐in or external microphone with power supply) 1 Out (Audio Out Wire)
  • Digital I/O 4‐pin terminal block pitch 3.5 mm (0.14”)
  • Local Storage Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) *UHS-II card type is not supported.
General
Operating Temperature-30°C ~ 60°C (-22°F ~ 140°F)
Humidity0% ~ 95% (no condensation)
Power Source12V DC / PoE (IEEE802.3af)
Max. Power Consumption7.0 W
DimensionsØ 148 x 111 mm (Ø 5.8 x 4.4”)
Weight0.92 kg (2.03 lb)
Ingress ProtectionIP67
Vandal ResistantIK10 for metal casing
RegulatoryFCC, CE, RoHS compliant
Web Interface
Installation ManagementWeb-based configuration
MaintenanceFirmware upgrade through Web Browser or GV-IP Device Utility
Access from Web BrowserLive View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,Defog, Text Overlay, Image Masking
LanguageCzech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,Spanish, Traditional Chinese
Applications
Software SupportedGV‐VMS (V17.4.2 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0),GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1)
Live ViewingBrowser (Chrome, Edge, Firefox, Safari), Mobile App
Datasheet_IPCamTVD4810_dfebf752-49bc-49d0-97bf-afdfd4348c5a.pdf:
IPCam_TDR4704_b1c48469-fa0d-4e58-8e20-f570e16f2608.pdf:
GV-IPCAM_Comparison_table_20_4.pdf:
