25% $171.12
GV-TVD8810
GV-TVD8810
GeoVision

GV-TVD8810

Product SKU: GV-TVD8810
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$524.88
$696.00
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

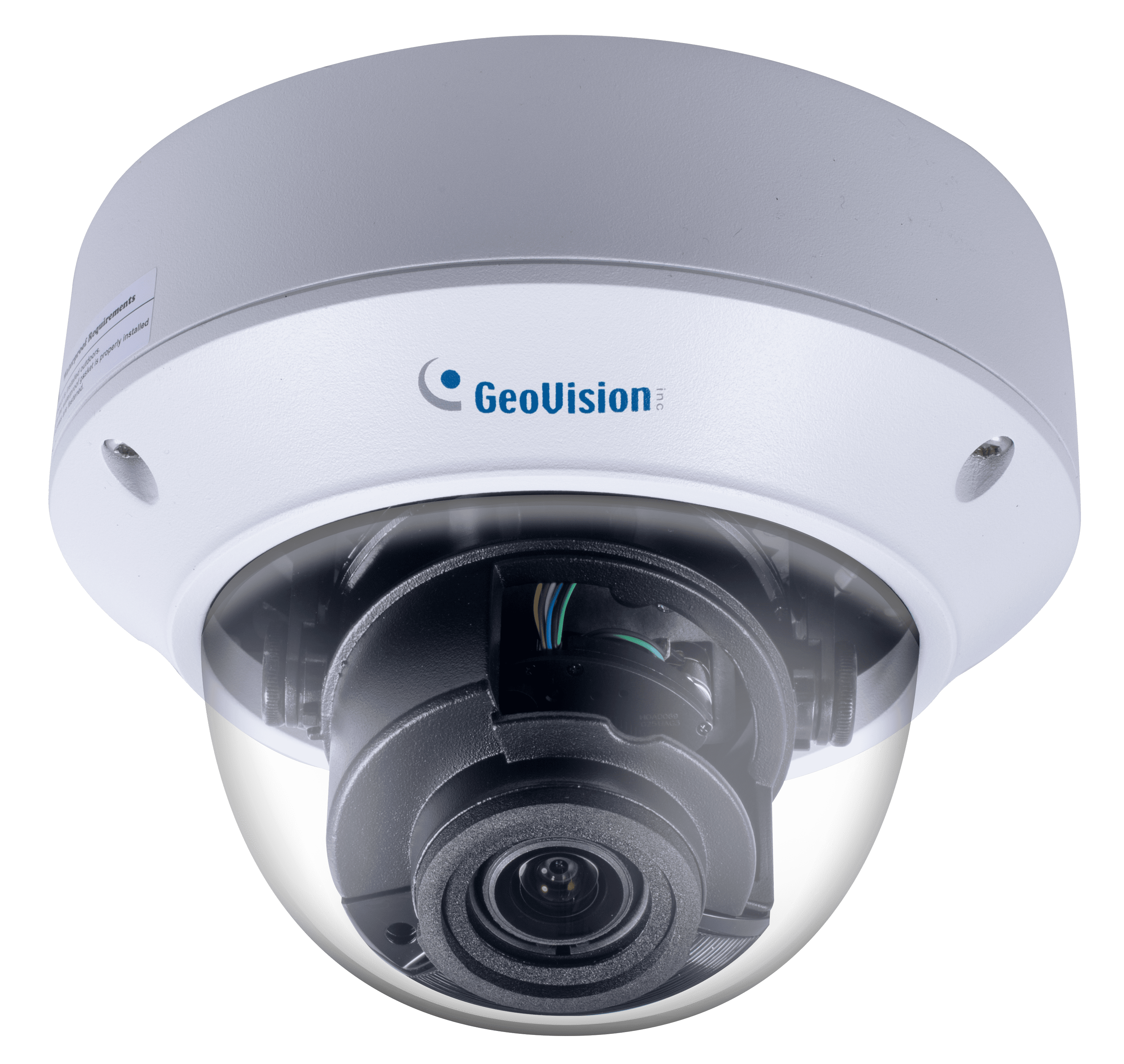

The Dome IP Camera is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-TVD8810 adheres to IK10 and IP67 standards, and can be powered through PoE.



Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.



Features:

  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/2.8" progressive scan super low lux CMOS sensor
  • Min. illumination at 0.003 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 3840 x 2160
  • Intelligent IR
  • IR distance up to 40 m (130 ft)
  • Day and Night function (with removable IR-cut filter)
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Wide Dynamic Range Pro (WDR Pro)
  • Ingress protection (IP67)
  • Vandal resistance (IK10 for metal casing)
  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
  • Two-way audio
  • DC 12V / PoE (IEEE 802.3af)
  • ONVIF (Profile G, S, T) conformant
Camera
Image Sensor1/2” progressive scan super low lux CMOS
Picture Elements3840 (H) x 2160 (V)
Minimum Illumination
  • Color 0.003 Lux (F1.5, AGC ON)
  • IR ON 0 Lux
Shutter SpeedAuto, Manual (1/6 ~ 1/100000 sec)
White BalanceAutomatic, Manual
Gain ControlAutomatic, Manual
S/N Ratio52 dB
WDR ProYes
Dynamic RangeUp to 120 dB
Lens
Megapixel8 MP
Day / NightYes (with removable IR-cut filter)
Lens TypeMotorized varifocal lens
Focal Length2.8 ~ 12 mm
Maximum ApertureF/1.5
MountØ 14 mm
Horizontal FOV34 ~ 106°
Operation
  • Focus Automatic / Manual
  • Zoom 4.3x Optical Zoom
  • Iris Fixed
IR LED Quantity2 IR LEDs
Max. IR Distance40 m (130 ft)
Operation
Video CompressionH.265, H.264, MJPEG
Video StreamingTriple streams
Video Resolution
  • Main Stream 3840 x 2160 (Default), 2944 x 1656, 2592 x 1944, 2560 x 1440, 1920 x 1080
  • Sub Stream 1920 x 1080,1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288
  • Third Stream (Closed by Default) 720 x 576, 704 x 288, 640 x 360, 352 x 288
Frame Rate20 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
Video AnalyticsMotion Detection, Tampering Alarm, Audio Detection *Tampering alarm and audio detection are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e-mail and FTP
Image SettingBrightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°,90°, 180°, 270°‐including Corridor format)
Audio CompressionG.711
Audio SupportTwo‐way Audio (External speaker required)
Digital I/O
  • Input 1 Input, dry contact, NO / NC
  • Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)
Deep Learning Function
AI AnalyticsIntrusion, Crossing Line, Entering Area, Leaving Area (Human & Vehicle classification), Face Detection, People Flow Counting, Crowd Density Monitoring
Network
Interface10/100 Ethernet
ProtocolARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)
Mechanical
Camera Angle Adjustment
  • Pan 0 ~ 360°
  • Tilt 0 ~ 68°
  • Rotate 0 ~ 360°
Connectors
  • Power DC Jack , PoE
  • Ethernet RJ-45
  • Audio 1 in (Audio In Wire); 1 out (Audio Out Wire)
  • Digital I/O 4‐pin terminal block pitch 3.5 mm (0.14”)
  • Local Storage Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) *UHS-II card type is not supported.
General
Environment Temperature40 ~ 60°C (‐22 ~ 140°F)
Humidity0% ~ 95% (no condensation)
Power Source12V DC / PoE (IEEE802.3af)
Max. Power Consumption5.5 W
DimensionsØ 148 x 111 mm (Ø 5.8 x 4.4”)
Weight0.45 kg (0.99 lb)
Ingress ProtectionIP67
Vandal ResistantIK10 for metal casing
RegulatoryFCC, CE, RoHS compliant
Web Interface
Installation ManagementWeb-based configuration
MaintenanceFirmware upgrade through Web Browser or Utility
Access from Web BrowserLive View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,Defog, Text Overlay, Image Masking
LanguageCzech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,Spanish, Traditional Chinese
Software Applications
Software SupportedGV‐VMS (V17.4.2 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0),GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1)
Smart Device AccessGV-Eye for iOS and Android
Live ViewingBrowser (Chrome, Edge, Firefox, Safari), Mobile App
Datasheet_IPCamTVD8810_91ab86f0-8bce-403b-b9c1-15e9a2c5aa26.pdf:
GV-IPCAM_Comparison_table_20_6.pdf:
