Hanwha - TNM-C3620TDR - Bi-spectrum AI Radiometric Camera QVGA thermal / 2MP visible

Hanwha Vision Bi-Spectrum Radiometric Thermal Cameras with AI for indoor environments allow you to monitor visible and thermal images simultaneously to keep your people, equipment and facilities safe. Proactively prevent fire, heat-related equipment failures
and process gaps.

Compact design for indoor use

Small and lightweight, the indoor radiometric thermal cameras are ideal for installation into areas with limited space.

Customizable event notifications and data analytics

Build up to 6 regions of interest using custom, quadrangle shapes and trigger events based on temperature readings.

MQTT protocol for SCADA system

Connect remote devices with minimal network bandwidth thanks to Message Queueing Telemetry Transport (MQTT). MQTT protocol enables the camera to send and receive data to and from multiple devices easily and also link with SCADA systems.

Features:

• Thermal: 320 x 240 (uncooled) @ 30fps <50mK (NETD), built-in 4.7mm thermal fixed lens (HFoV: 50°),
• Visible: 2MP @ 30fps, built-in 4mm fixed lens (HFoV: 87.6°)
• Triple triple codec H.265/H.264/MJPEG with Wisestream II and WiseStream III (based on AI engine) support
• WDR 150dB
• AI object detection (visible): Person/Face, Detection Shot
• Analytics events based on AI engine (visible): Virtual line (Crossing/ Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Motion detection, Audio detection, Virtual area(Appear/Disappear)
• Alarm events: Image upload (e-mail/FTP), Notification (e-mail), Recording (edge/NAS), Alarm output, Handover (PTZ preset), Send message by HTTP/ HTTPS/TCP message), Audio clip playback, MQTT (publication)
• Radiometric: whole FoV area or up 6 user programmable quadrangle ROIs, Temperature detection range from -20°C to 130°C (-4°F to 266°F)
• FIPS 140-2, Level 2
• 1x micro SD card (256GB x1)

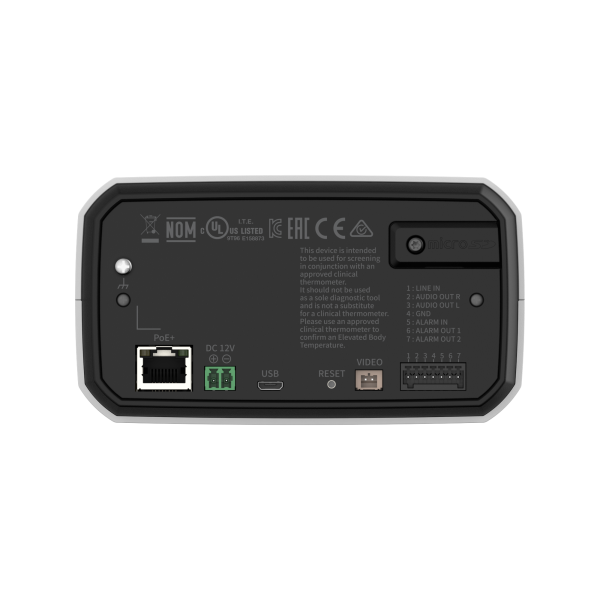

• PoE+/12VDC
• This product is subject to the Thermal agreement
