Hanwha - SPA-W100B - IP Audio Speaker, Two-way audio, Scheduler, Background Music, Text To Speech, 10W Amp, 101dB Output, Freq. Range 120Hz-20kHz, 1GB Internal Storage, Single Micro SD slot (Up to 32GB), Built in Relay, SUNAPI, Onvif, SIP, P2P-SIP, I

Name: Hanwha - SPA-W100B - IP Audio Speaker, Two-way audio, Scheduler, Background Music, Text To Speech, 10W Amp, 101dB Output, Freq. Range 120Hz-20kHz, 1GB Internal Storage, Single Micro SD slot (Up to 32GB), Built in Relay, SUNAPI, Onvif, SIP, P2P-SIP, I
Brand: Hanwha Vision
SKU: SPA-W100B
Price: 878.04 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: SPA-W100B

$878.04

~~$1,160.40~~

Description
Specifications
Downloads
Reviews

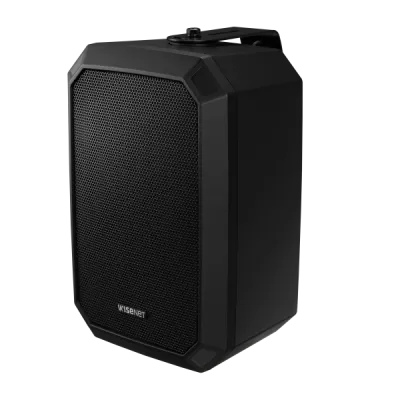

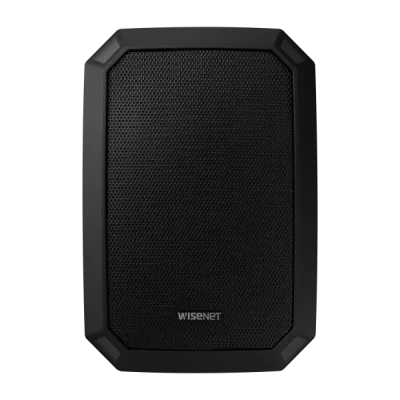

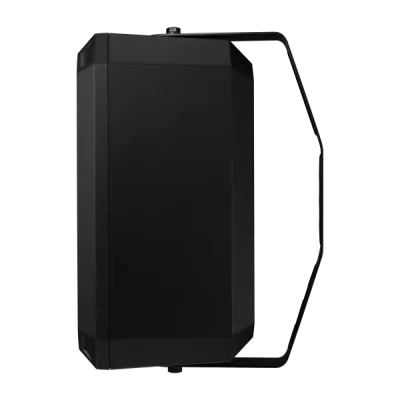

The Hanwha Vision SPA-W100B is a powerful and versatile IP Wall Speaker that is ideal for a wide range of applications, including public address, security, and paging. It features a high sound pressure level (SPL) of 101dB, ensuring that your message is heard clearly and distinctly in even the most challenging environments.

The SPA-W100B is also equipped with a wide range of features that make it easy to use and manage. It supports PoE/PoE+ (Power over Ethernet), so only one cable is needed to provide both power and audio. The speaker can also be configured and controlled using a web interface

Features:

Two-way audio
Scheduler function
Background Music (BGM)
Text To Speech (TTS)
10W amp, 101dB Output
Frequency Range 20Hz-20kHz
1GB Internal Storage, Micro SD slot (up to 32GB)
Built-in Relay
SUNAPI, ONVIF, SIP, & P2P-SIP protocols
PoE, PoE+ power support
IP54 weatherproof & outdoor rated
Black Color

Specifications
Product
Type	IP Wall speaker
Line Output
Output Level	+6dBV ± 3dB
Frequency Response	20Hz ~ 20kHz
THD + N Ratio (AES17 LPF)	Less than 0.1%
S/N Ratio (20kHz LPF, A-WTD)	Greater than 91dB
Amplifier
Description	Built in 10W Class D
Network
Ethernet	10/100 Base-T
Memory
Internal Memory	1 GBytes
External Memory (Micro SD)	SDHC upto 32GB (SANDISK)
Contact
Contact Input. Dry contact	One channel
Contact Output. Dry contact (NO)	One channel
General
Operating Temperature	-20 ~ +50℃ (-4°F ~ +122°F)
Operating Humidity	10~85% RH (Non-Condensing)
IP code	IP54
Weight	2.5Kg
Size	170(W)250(H)134(D)mm
Color	Black/White
Certificate	EMC : KS C 9832/9835, EN 55032/55035, FCC Part 15 Subpart B, ICES-003 Safety : KC 62368-1, UL 62368-1, CAN/CSA 62368-1
Power
PoE	PoE (IEEE 802.3 af type 1 Class 3)
PoE+	PoE+(IEEE 802.3 at type 2 Class 4)
Embedded MIC
Input Sensitivity	Sound Level Meter
Frequency Response	Sound Level Meter
Audio
Supported Audio Format	WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16 kHz up to 48 kHz
Speaker
Speaker Component	2Way 5" LF Drive & 0.5" HF Driver. Passive type
Max. Sound Pressure Level (PoE)	97dB
Max. Sound Pressure Level (PoE+)	101dB
Frequency Range (-10dB)	120Hz~20kHz
Sensitivity (1Watt)	91dB
Coverage Pattern	(HxV) : 180° X 120°(1kHz) / 120° X 70°(4kHz)
Network Protocol
Security	Password protection : admin,setup,user,guest (sha-2, Digest authentication, User access log) Digest authentication, User access log
Supported Protocols	IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP
System Integration
API (Application Programming Interface)	SUNAPI
Multi-source Dynamic PA control	Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) Up to 256 Zone Control (Multicast) Up to 20 Zone Control (Unicast) Up to 255 Groups
VoIP	Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk Tested with SIP client such as Grandstream and PBX supplier such as Grandstream Supported SIP features: DTMF (RFC2833) Supported codecs: PCMU, PCMA, speex/8000, speex/16000
TTS	English(US, UK), German, French, Spanish, Russian
Audio Monitoring	Speaker test by graphic level meter (Built in test tool)
Event & Preset	Virtual Contact, Dry contact
Functional Monitoring	Connection verification, Built-in system logging

A_E_20Document_SPA-W100B_230614_EN_0.docx:

CAD_SPA-W100_210902_Common_0_2c7bd804-f66d-45b3-b1db-5265a5194ef4.pdf:

DataSheet_SPA-W100B_230613_EN_0_72b6faac-7c27-48a0-afcc-a4740069ffbd.pdf:

Hanwha_20Techwin_20America_20-_20NDAA_20Compliant_20Product_20List_195_0.pdf:
