20% $62.98
HIKVISION - DS-2CD2125FHWD-IS 2.8mm - DM IP67 2MP28MM WDR POE/12
HIKVISION - DS-2CD2125FHWD-IS 2.8mm - DM IP67 2MP28MM WDR POE/12
Hikvision

HIKVISION - DS-2CD2125FHWD-IS 2.8mm - DM IP67 2MP28MM WDR POE/12

Product SKU: DS-2CD2125FHWD-IS 2.8mm
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$250.22
$313.20
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

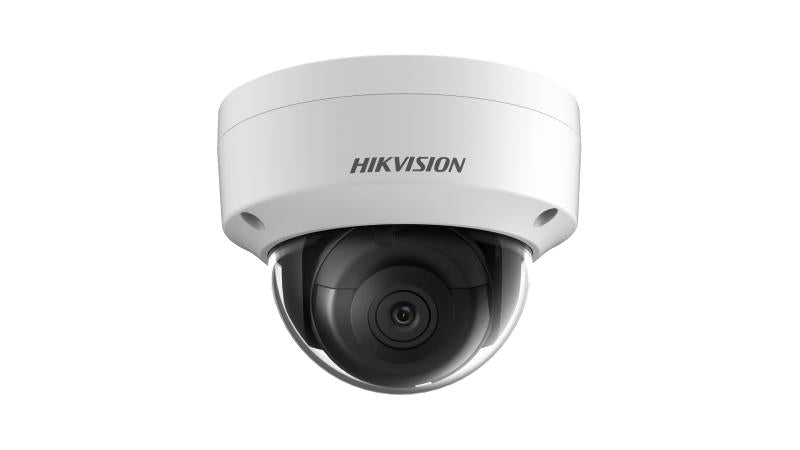

2 MP High Frame Rate Fixed Dome Network Camera



Features:

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • High frame rate video to illustrate smooth movement
  • -S: audio and alarm interface available
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Robust structure design with full metal materials.
Specification
Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Focal length2.8/4/6/8/12 mm
FocusFixed
FOV2.8 mm, horizontal field of view: 108° 4 mm, horizontal field of view: 86.4° 6 mm, horizontal field of view: 52°
8 mm, horizontal field of view: 41°
12 mm, horizontal field of view: 25°
Lens MountM12
IrisF1.6
Day &NightIR cut filter
DNR3D DNR
Wide Dynamic Range120dB
3-Axis AdjustmentPan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°
Compression Standard
Video CompressionMain stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main stream supports
H.265 TypeMain Profile
H.265+Main stream supports
Video Bit Rate32 Kbps to 16 Mbps
Audio Compression (-S)G.711/G.722.1/G.726/MP2L2/PCM/ MP3
Audio Bit Rate (-S)64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Max. Resolution1920 × 1080
Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
Image EnhancementBLC/3D DNR/HLC
Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
ROI (Region of Interest)Support 1 fixed region for main stream and sub-stream separately
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
Audio (-S)
Environment         Noise FilteringYes
Audio I/OYes, mono soundtrack
Sampling Rate8kHz/16kHz/32kHz/44.1kHZ/48kHz
Network
Network StorageSupport microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
SecurityPassword   protection,  complicated  password,   HTTPS  encryption,  802.1X   authentication  (EAP-TLS  1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous           Live
View		Up to 6 channels
User/HostUp to 32 users
3 levels: Administrator, Operator and User
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local Service: Chrome 41.0+, Firefox 30.0+
Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Audio (-S)1 audio input (line in), 1 audio output interface, terminal block
Alarm (-S)1 alarm input, 1 alarm output (max. 12 VDC, 30 mA), terminal block
On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
Reset ButtonYes
Smart Feature-set
Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection
Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output (-S), Email
General
Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Web Client Language32 languages
English,   Russian,  Estonian,  Bulgarian,   Hungarian,  Greek,  German,   Italian,  Czech,  Slovak,   French,  Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply12 VDC ± 25%, 5 W
PoE(802.3af, 36 V to 57 V, class 3), 6.5 W
IR RangeUp to 30 m
Protection LevelIP67, IK10
MaterialCamera body: metal, bubble: plastic
DimensionsCamera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″)
Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
WeightCamera: 500 g (1.1 lb.)
DS-2CD2125FHWD-IS_Datasheet_V5.6.0_20220609_664d9cc3-2238-430b-a0d7-f024ffbde994.pdf:
UD32247B_Baseline_1-3-Series-Multilingual-Quick-Start-Guide_20230227_36_039edcd6-b2dc-493b-979b-4890fab29e7e.pdf:
