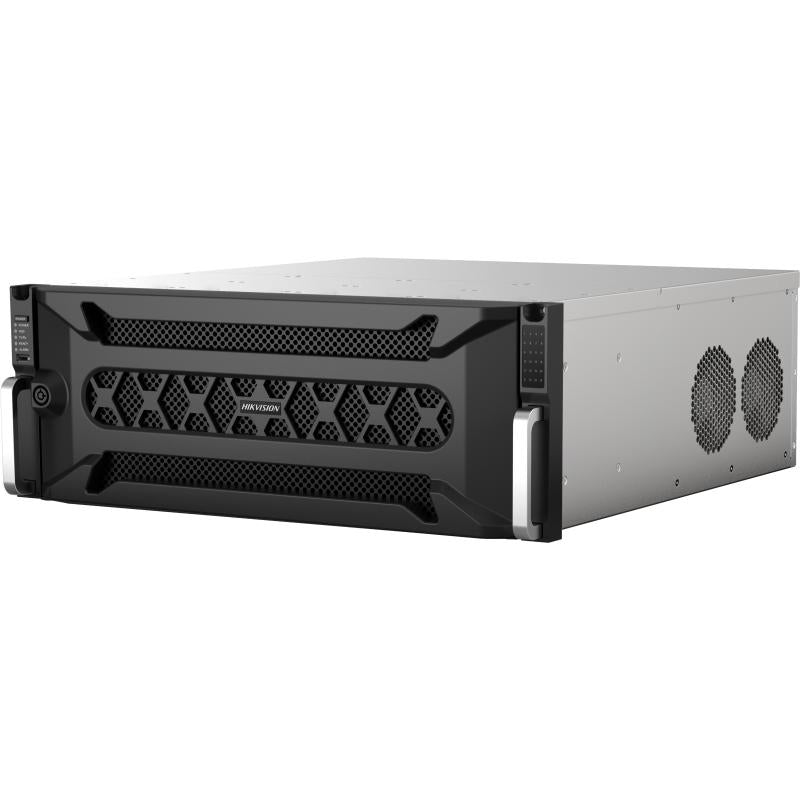

Hikvision - DS-96128NI-I24/H - NVR 128CH 8-HDMI 24SATA NOHDD

128-ch 4U 4K Super NVR

Features:

• Up to 128 channel IP cameras can be connected
• Up to 768 Mbps high incoming bandwidth ensures IP cameras can be connected
• 2 HDMI interfaces (different source), 1 VGA interfaces, and 1 decoding board
• 24 HDD can be used for continuous video recording
• Redundant power supply improves system stability
• Supports some special cameras, including people counting camera/ANPR(automatic number plate recognition) camera/fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

Professional and Reliable

• New logical and visualized GUI
• Adopts professional embedded hardware and software, and pioneering dual-OS design to ensure the reliability of system
• Supports redundant power supply to improve the system
• Supports HDD hot swap with RAID0, RAID1, RAID5, RAID 6, and RAID10 storage scheme
• Either normal or hot spare working mode is configurable to constitute an N+1 hot spare

Video Input and Transmission

• Up to 128/256 IP cameras can be
• Support live view, storage, and playback of the connected camera at up to 12 megapixels
• 265+ compression effectively reduces the storage space by up to 75%.
• 4 self-adaptive 10M/100M/1000M network
• Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol)
• Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO.

HD Output

• Simultaneous HDMI 1/VGA output as the main output and the HDMI 2 works as the auxiliary
• HDMI and VGA1 simultaneous outputs by Asynchronous outputs configurable.
• Video outputs at up to 4K (4096×2160)
• Supports decoding up to 20 channels at 1080p

HD Storage

• Up to 24 SATA interfaces and 1 eSATA interface provided for HDD
• 10 TB capacity for each HDD.
• HDD health
• Supports HDD quota and group modes; different capacity can be assigned to different
• Normal/Important/Custom video

Various Applications

• Centralized management of IP cameras is supported, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
• Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be
• VCA detection alarm is
• VCA search for facial detection, people counting, heat map,
• Supports starting record with one
• Realizes instant playback for assigned channel during multi-channel display
• Smart search for the selected area in the video; and smart playback to improve the playback
