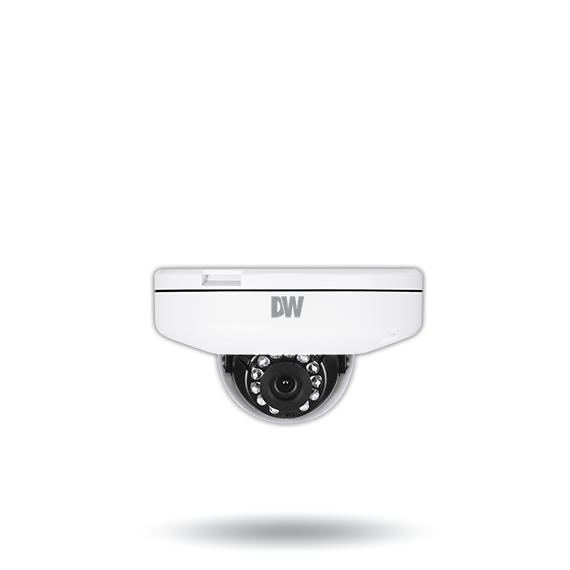

- Digital Watchdog - DWC-MPF5Wi8TW - MEGApix 5MP ultra low-profile vandal dome IP camera with fixed lens options and IR with IVA+ license Digital Watchdog - DWC-MPF5Wi8TW - MEGApix 5MP ultra low-profile vandal dome IP camera with fixed lens options and IR with IVA+ license
Digital Watchdog - DWC-MPF5Wi8TW - MEGApix 5MP ultra low-profile vandal dome IP camera with fixed lens options and IR with IVA+ license
REPLACEMENT
- Description
- Specifications
- Downloads
- Reviews
Megapixel resolution
DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
Ultra Low-Profile Vandal Dome Housing
The micro dome cameras are small and discrete, ideal for high-end applications where the cameras integrate into the overall design. HD video surveillance in a small and sleek design allows for discrete installations.
IVA Analytics
MEGApix IVA cameras include a base package of Intelligent Video Analytics detection capabilities already activated on the camera and ready for deployment.
IVA+ Analytics
The MEGApix IVA+ package offers advanced rules to the IVA Video Content Analysis detection capabilities.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
Features:
- 5MP sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- "4.0mm fixed lens (DWC-MPF5Wi4TW) 6.0mm fixed lens (DWC-MPF5Wi6TW) 8.0mm fixed lens (DWC-MPF5Wi8TW)"
- Ultra low-profile vandal dome camera for discrete installation
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- 50' Smart IR with intelligent camera sync for clear B/W images with no need for external light
- Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera's field of view.
- Two-way audio for direct communication between the monitoring station and the camera's location
- Local SD card slot for local recording in case of network loss
- Alarm sensor input and relay output for access control integration
- Web server built-in for easy camera management from any browser
| Image | |
|---|---|
| Image sensor | 5MP 1/2.8" CMOS sensor |
| Maximum resolution | 5MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.16 lux (color) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 16:9 aspect ratio |
| Total Pixels | 2592 (H) × 1944 (V) |
| Lens | |
| Focal Length | 4.0mm (DWC-MPF5Wi4TW, DWC-MF5Wi4TW), 6.0mm (DWC-MF5Wi6TW, DWC-MPF5Wi6TW), 8.0mm (DWC-MF5Wi8TW, DWC-MPF5Wi8TW) |
| Horizontal Field of View (HFOV) | 37.8° (DWC-MF5Wi8TW, DWC-MPF5Wi8TW), 51.9° (DWC-MF5Wi6TW, DWC-MPF5Wi6TW), 82.3° (DWC-MPF5Wi4TW, DWC-MF5Wi4TW) |
| IR Distance | 50' range Smart IR |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 22° (DWC-MF5Wi8TW, DWC-MPF5Wi8TW), 29° (DWC-MF5Wi6TW, DWC-MPF5Wi6TW), 43° (DWC-MPF5Wi4TW, DWC-MF5Wi4TW) |
| I/O | |
| Audio compression | G.711 |
| I/O Alarm in/out | 1 input, 1 output |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended., 1 input, 1 output |
| Intelligent Video Analytics | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, tamper (DWC-MF5Wi6TW, DWC-MF5Wi8TW, DWC-MF5Wi4TW) |
| IVA+ license | Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left (DWC-MPF5Wi4TW, DWC-MPF5Wi6TW, DWC-MPF5Wi8TW) |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation, Email, SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Shutter Mode | Auto, Manual, Slow Shutter |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off, x15, x2, x3, x4, x5, x6, x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| Network resolution | H.264: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF, H.265: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF, MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF |
| Network Web Viewer | Google Chrome browser, Linux OS, Mac OS, Microsoft Edge browser, Mozilla Firefox browser, Safari browser, Windows OS |
| Protocol | Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, UPnP, Zeroconf (AutoIP) |
| Security | 802.1x, HTTPS (TLS), MAC filtering, Multi-user authority |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 32Kbps~20Mbps |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | Any ONVIF conformant CMS, DW Spectrum IPVMS, ExacqVision Technologies, Genetec Inc., Milestone Systems |
| Environmental | |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 4.92" x 1.88” (125 x 48 mm) |
| Camera Weight | 0.88 lbs (0.4kg) |
| Housing | Vandal Dome |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP66) |
| Materials | Polycarbonate lens cover, Aluminum die-casting |
| Electrical | |
| Power Consumption | DC12V: max 5.9W, 491.6mA, PoE: max 7.2W |
| Power Requirements | Adapter not included, PoE |
| General | |
| Warranty | 5 Year Warranty |
