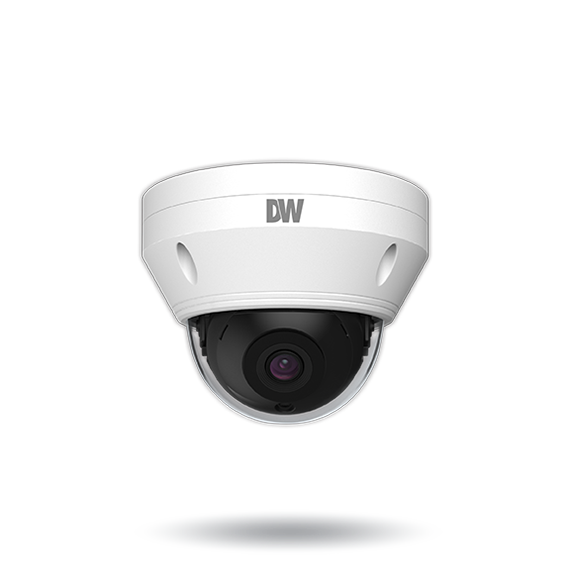

Digital Watchdog - DWC-MV95Wi28TW - MEGApix 5MP Vandal Dome IP Camera with Fixed Lens Options and IR
These MEGApix IP cameras are NDAA compliant and deliver crystalclear images at 5MP resolution and real-time 30fps. The vandal dome camera features 2.8mm and 3.6mm fixed lens options in an IP67- rated, IK10 impact-resistant housing. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Megapixel resolution
DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
Smart IR
Smart IR adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.
H.265 codec support
High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.
Features:
- 5MP 1/2.7” image sensor at real-time 30fps
- 2.8mm fixed lens (DWC-MV95Wi28TW)
- 3.6mm fixed lens (DWC-MV95Wi36TW)
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 100ft range Smart IR
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Audio input through built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
| Image | |
| Image sensor | 5MP 1/2.7 CMOS sensor |
| Maximum resolution | 5MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W) 0.02 lux (color) |
| Total Pixels | 2592 (H) × 1944 (V) |
| Lens | |
| Focal Length | 2.8mm 3.6mm |
| Horizontal Field of View (HFOV) | 81.4° 98.5° |
| Illumination Distance | 100' range Smart IR™ |
| Lens Type | Fixed Lens |
| I/O | |
| Audio compression | G.711A / U |
| I/O Alarm in/out | 1 input 1 output |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended. 1 input 1 microphone built-in |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Camera Analytics | Object Classification (Differentiate Humans from Objects) Line Crossing Perimeter Intrusion video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection) |
| Day and night | Auto day/night Day (color) Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Email FTP server |
| Privacy Zones | 4 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Auto Manual |
| Shutter Speed | 1/30 ~ 1/100000 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 IPv6 |
| LAN | 802.3 compliance 10/100 LAN |
| Network resolution | 5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps; 50Hz: 1~50fps) |
| Network Web Viewer | Microsoft Edge® browser Windows OS |
| Protocol | 802.1x DDNS DHCP FTP HTTP HTTPs ICMP IGMP NTP ONVIF PPPoE QoS RTCP RTP RTSP SMTP SNMP UDP uPNP |
| Security | Digest authentication (ID/PW) IP filtering MAC filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 64Kbps~8Mbps |
| Video Compression Type | H.264 H.265 MJPEG |
| Video Management Software | Any ONVIF conformant CMS DW Spectrum® ExacqVision Technologies Milestone Systems |
| Environmental | |
| Compliance |     |
| Environmental Operating Humidity | 0-95% RH (non–condensing) |
| Environmental Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 4.59" x 3.54" (116.6x 90 mm) |
| Camera Weight | 1.43 lbs (0.65 kg) |
| Housing | Vandal Dome |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Electrical | |
| Power Consumption | DC12V: max 6.0W, 500mA PoE: max 6.0W |
| Power Requirements | Adapter not included PoE |
| General | |
| Warranty | 5 Year Warranty |
