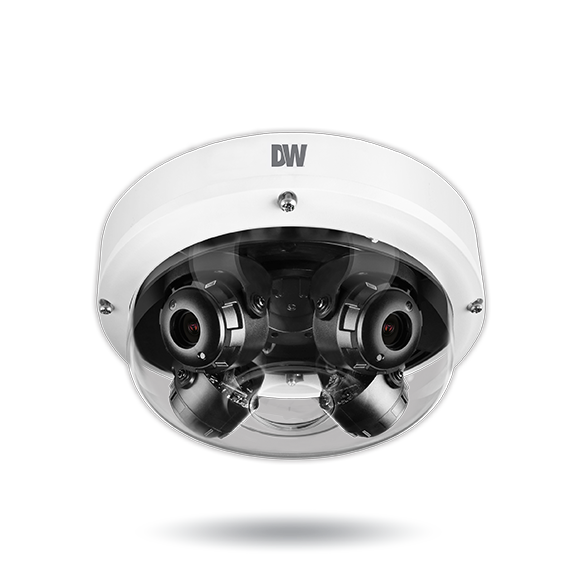

Digital Watchdog - DWC-PVX20WATW - MEGApix 20MP Multi-sensor Vandal Dome IP Camera with Vari-focal Lenses with IVA License

This NDAA/TAA-compliant MEGApix 20MP multi-sensor configurable panoramic camera that reduces total system cost by providing four video streams at real-time 30fps with varifocal lenses in one housing and installation. The camera features Star-Light Plus color in near-total darkness technology and true WDR for quality video in any lighting conditions. The four (4) lens modules can be placed in five (5) positions on a magnetic track. A mounting access is sold separately and is needed to complete the camera’s installation.

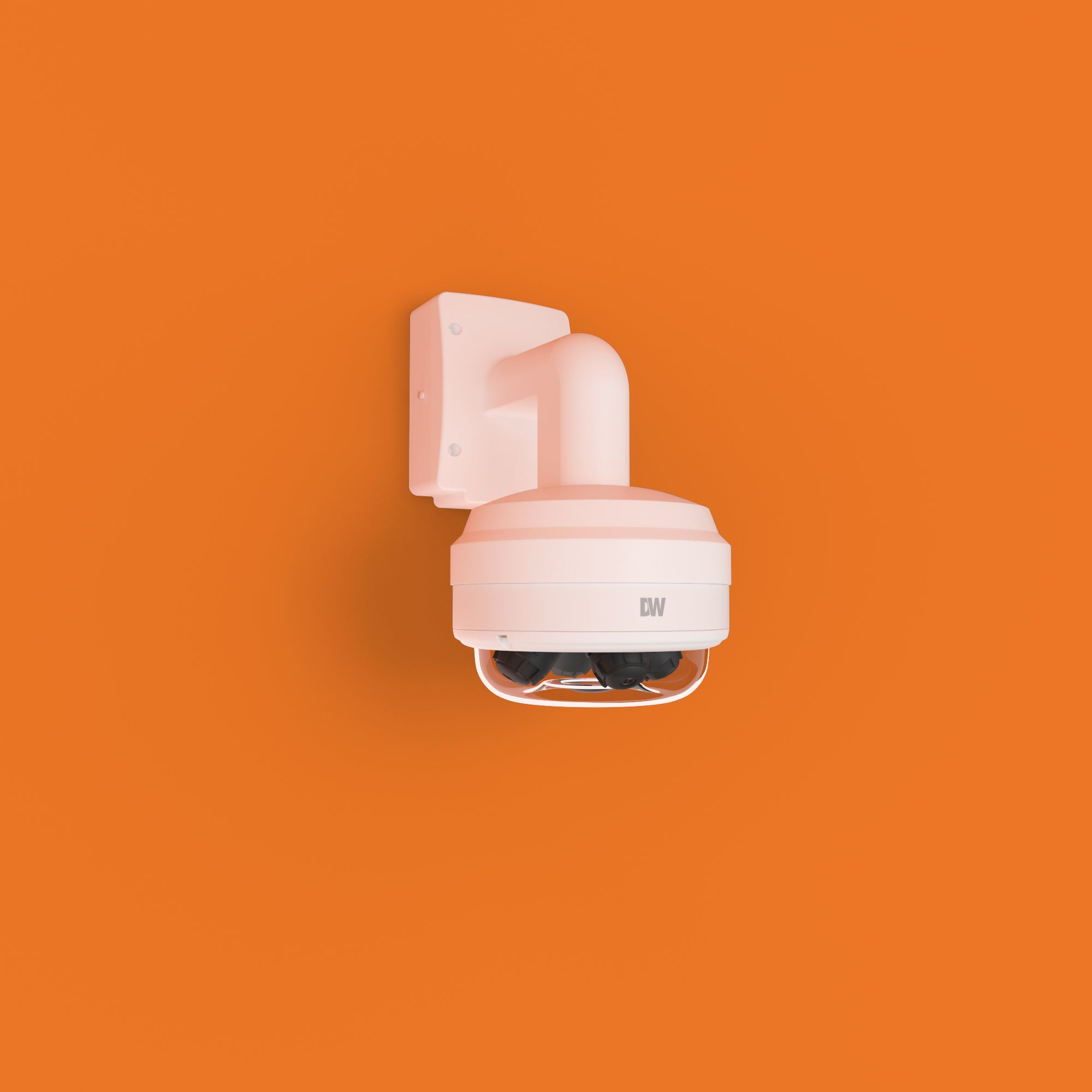

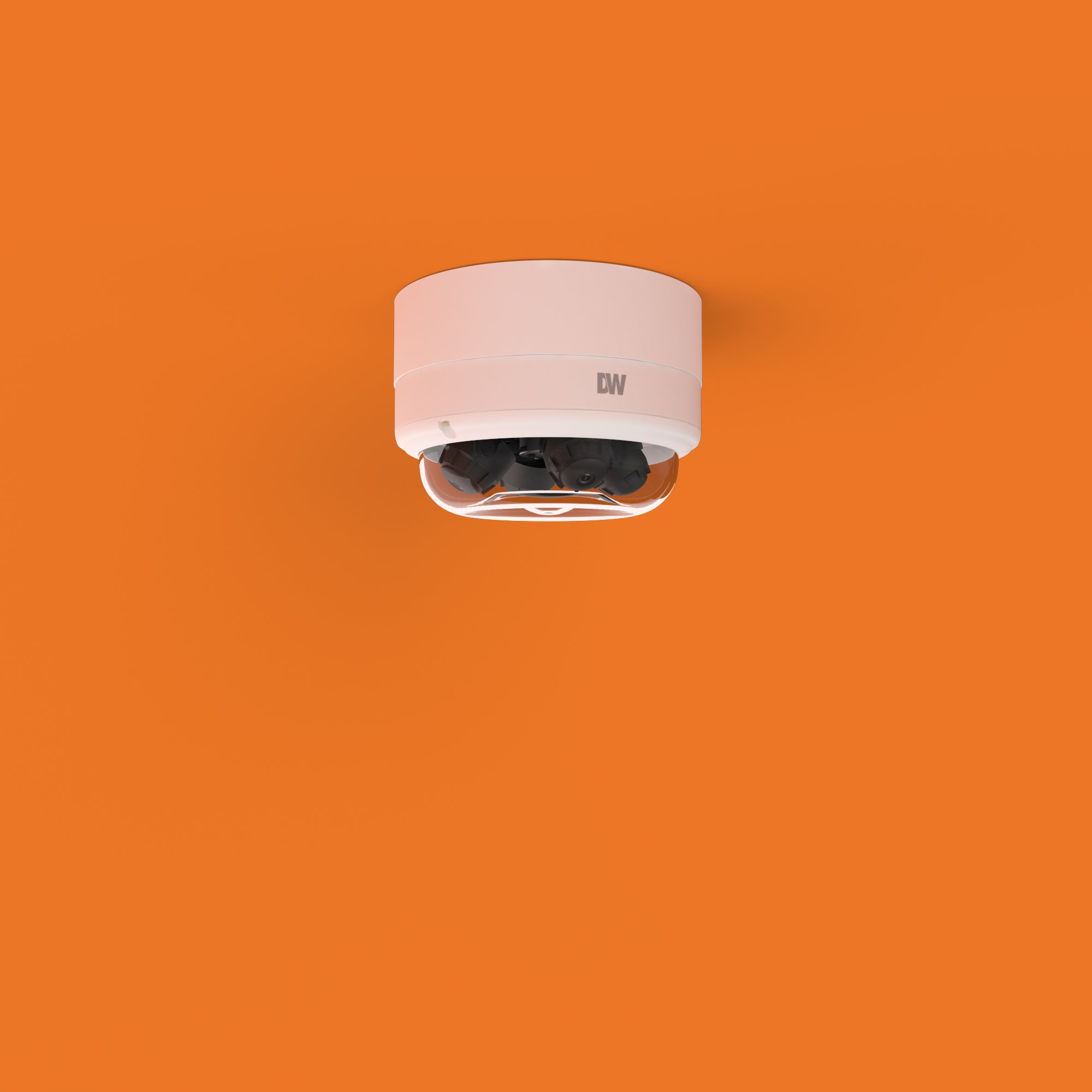

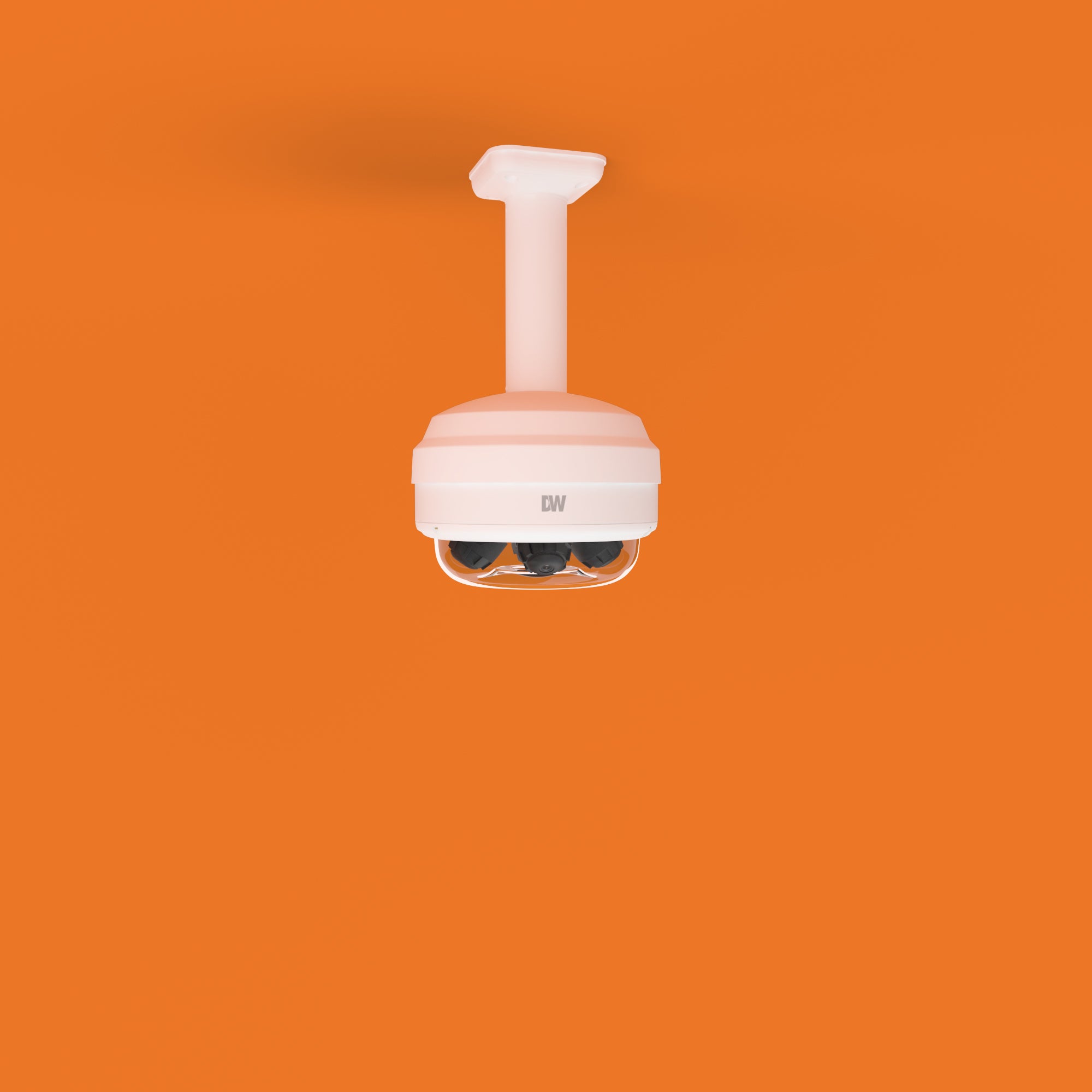

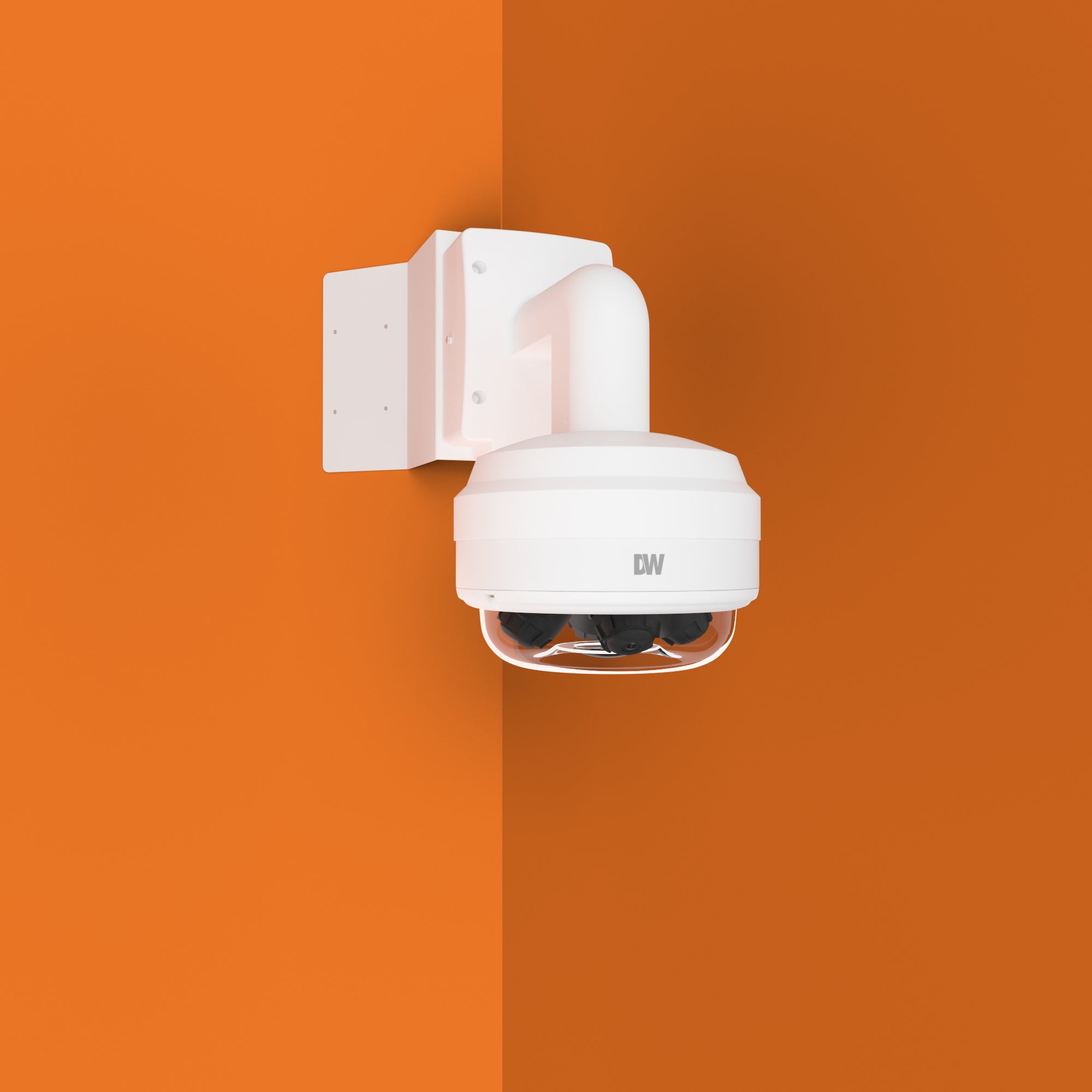

Versatile installation

A single Flex camera can replace multiple single-sensor cameras with great ROI. With a variety of lens arrangements and positioning, the camera can enhance any application and cover any area needed with no blind spots.

Magnetic track flexibility

The camera's unique magnetic track allows four individual lens modules to be placed in almost any possible configuration. A fifth, vertical, top view position in the center of the camera offers complete coverage and field of view control.

4x vari-focal lenses with motorized zoom and auto-focus

Adjust the camera’s four (4) individual vari-focal lens modules to achieve the ideal field of view based on your unique needs.

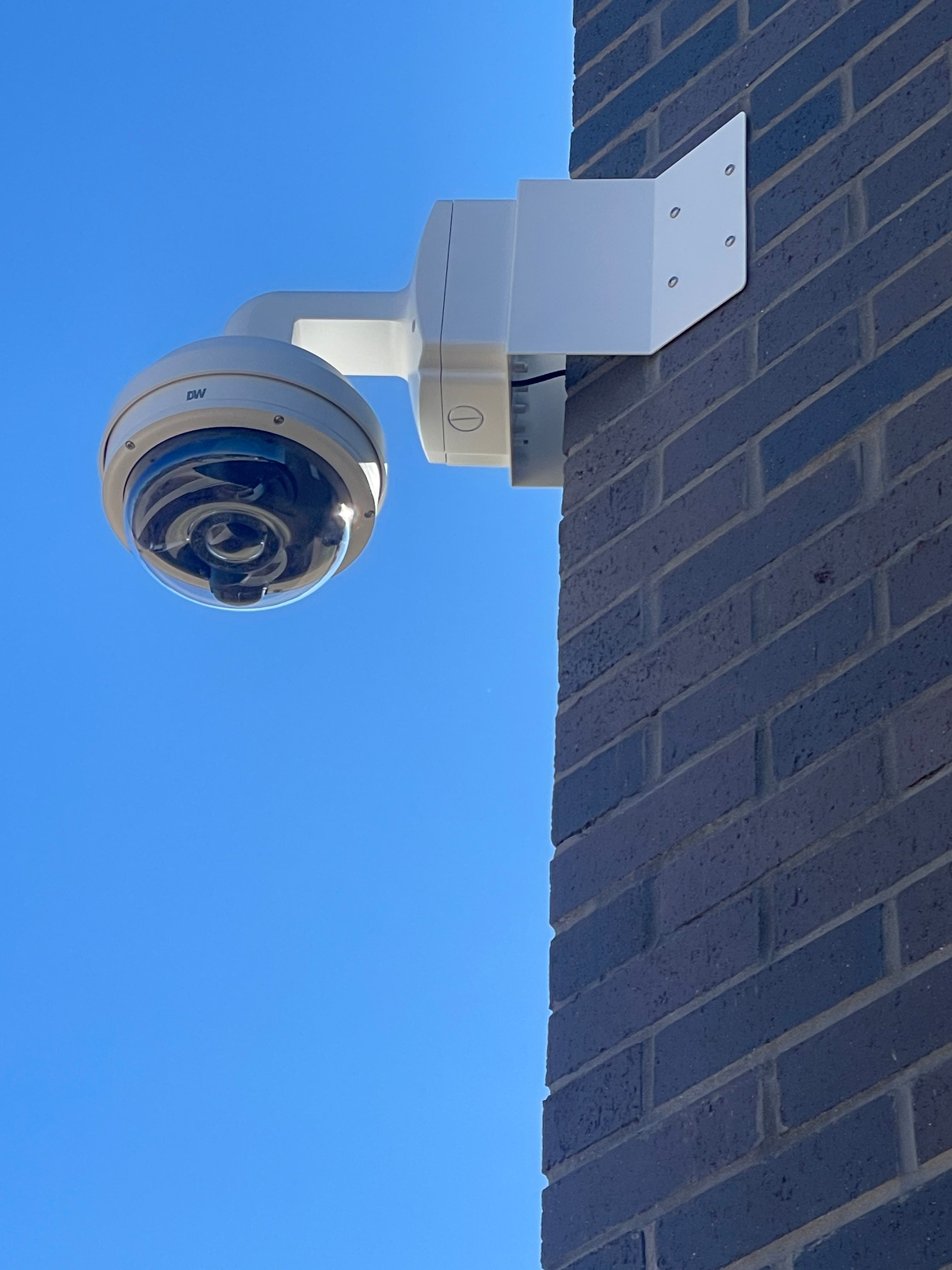

Easy camera installation

The camera includes a simple double-lock mechanizsm between the camera and mounting accessory, making installation quicker, simpler and faster.

Wide tilting angle

Each lens module has a total tilt angle of up to 80°, thanks to the modules' aspherical hemispheric surface. This reduces blind spots in the camera's foreground.

Star-Light Plus color in darkness technology

Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

IVA Analytics

MEGApix IVA cameras include a base package of Intelligent Video Analytics detection capabilities already activated on the camera and ready for deployment.

Features

• 4x 5MP sensors (20MP) at real-time 30fps
• Star-Light Plus color in near-total darkness technology
• Intelligent Video Analytics (IVA) with extended features (IVA+)
• Seamless integration and control of IVA rules with DW Spectrum IPVMS
• Reduce false alarms
• Increase your recording storage with logic rules and smart recording
• 4x vari-focal p-iris lens with motorized zoom and autofocus for complete remote lens control and focused image any time
• 3-axis gimbal for wide range lens positioning
• 360° and 180° flexible panoramic view IP camera
• Four cameras in one installation
• Flexible sensor positioning on a magnetic base
• True Wide Dynamic Range (WDR) for clear images in challenging light
• Simultaneous streaming and multiple codec options for smart bandwidth management
• Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
• Two-way audio for direct communication between the monitoring station and the camera's location
• Local SD card slot for local recording in case of network loss
• Alarm sensor input and relay output for access control integration
• Web server built-in for easy camera management from any browser
• High-power PoE and DC12V for single cable simplified installation (PoE injector included)
• NDAA compliant for federal and government projects
• IP67- and IK10-rated camera housing built to last
• 5 year warranty
