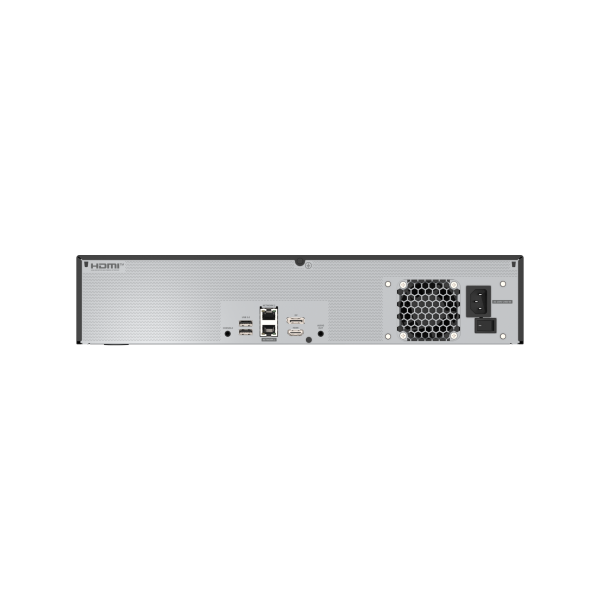

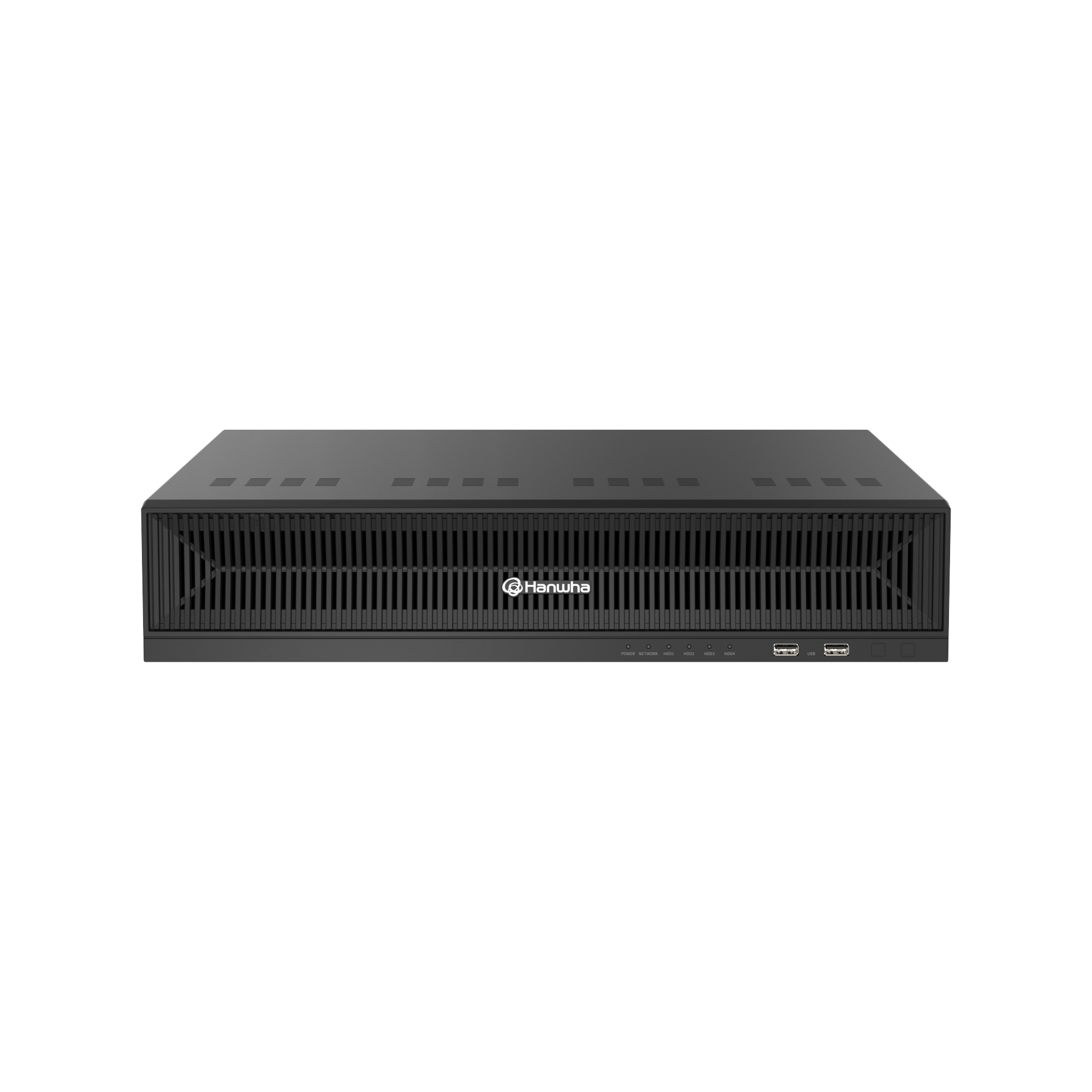

Hanwha - WRN-1632-30TB - 2U WAVE NVR (Intel based) with 4 Professional licenses, 30TB RAW, supports: 32 channels, Wisenet WAVE pre-installed, H.264/H.265/MJPEG, 4 fixed internal SATA HDDs (10TB max per HDD), Wisestream technology, HDMI/DP output, Dua

Hanwha - WRN-1632-30TB - 2U WAVE NVR (Intel based) with 4 Professional licenses, 30TB RAW, supports: 32 channels, Wisenet WAVE pre-installed, H.264/H.265/MJPEG, 4 fixed internal SATA HDDs (10TB max per HDD), Wisestream technology, HDMI/DP output, Dua

Name: Hanwha - WRN-1632-30TB - 2U WAVE NVR (Intel based) with 4 Professional licenses, 30TB RAW, supports: 32 channels, Wisenet WAVE pre-installed, H.264/H.265/MJPEG, 4 fixed internal SATA HDDs (10TB max per HDD), Wisestream technology, HDMI/DP output, Dua
Brand: Hanwha Vision
SKU: WRN-1632-30TB
Price: 4318.92 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: WRN-1632-30TB

$4,318.92

~~$5,712.00~~

Description
Specifications
Downloads
Reviews

2U WAVE NVR (Intel based) with 4 Professional licenses, 30TB RAW, supports: 32 channels, Wisenet WAVE pre-installed, H.264/H.265/MJPEG, 4 fixed internal SATA HDDs (10TB max per HDD), Wisestream technology, HDMI/DP output, Dual GbE NICs

Features:

Supported by Wave client, mobile and Cloud Sync
Supports AI metadata
250 Mbps of recording throughput
Supports up to 40TB internal storage
HDMI/DP monitor outputs for configuration and basic monitoring
Includes USB mouse and rack mount brackets

Display
Decoding	Local Display HDMI (1), DP (1)
Performance
Operating System	Embedded Ubuntu 22.04 LTS
Record	Recording Bandwidth Max. 250Mbps
Storage	Supported HDD: Up to 10TB HDD Slot: SATA 4ea (Max. 40TB)

Interface
Front	Indicator Power, Network, HDD1, HDD2, HDD3, HDD4
HDMI	1EA
DP	1EA
Audio	Audio output
Ethernet	RJ-45 2ea (WAN, 1Gbps)
USB	Front USB 2.0(2), Rear USB 3.0(2)
Environmental
CPU	Quad core
RAM	DDR4 8GB
OS HDD	eMMC 32GB
Operating Temperature	0°C to +40°C (32℉to 104℉)
Operating Humidity	20% ~ 85% RH
Electrical
Power Input	100 ~ 240 VAC ±10%; 50/60 Hz
Power Consumption	80W
Mechanical
Color / Material	Black / Metal
Dimension (WxHxD)	440 x 89.8 x 428.4 mm
Weight	5.47Kg

DataSheet_WRN-1632_250303_EN_5_cfacc014-0848-4284-95c2-0ab3a1a75ab9.pdf:

WRN-Network-Configuration-Manual-10172024_14_329cd5df-bd06-4329-8c6c-7ed0ad19f856.pdf:
