Planet - LRP-101C-KIT - 1-Port Long Reach POE over Coax Extender Kit (LRP-101CH+LRP-101CE), -20 to 70 Degree C, up to 1KM

1-Port Long Reach PoE

Coaxial Extender Ideal for Harsh Environment

The LRP-101C-KIT is a Single-port PoE over Coaxial Extender Kit featuring long range data and power transmission for distances of up to 1,000m (3,280ft.) over coaxial cables. The LRP-101C-KIT operates in extreme temperature conditions between -20 to 70°C. The unit eliminates the need for additional power outlet sources, simplifying the deployment of PoE devices such as IP surveillance cameras and Wireless Access Points (WAPs).

Long-Distance PoE Solution

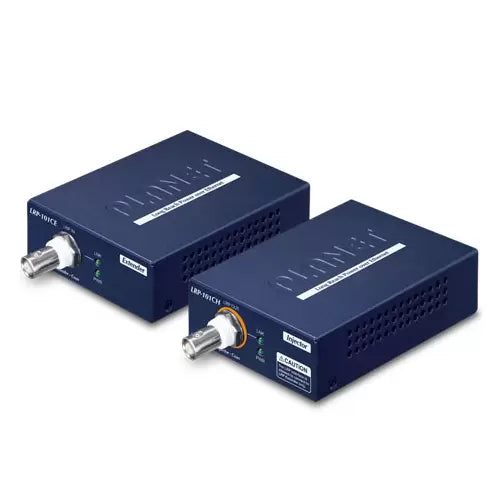

The LRP-101C-KIT consists of a Long Reach PoE injector and a Long Reach PoE extender set which can be paired to operate anywhere in your network infrastructure. It contains:

• LRP-101CH: 1-Port 10/100TX PoE PD + 1-Port Coax Long Reach PoE Injector

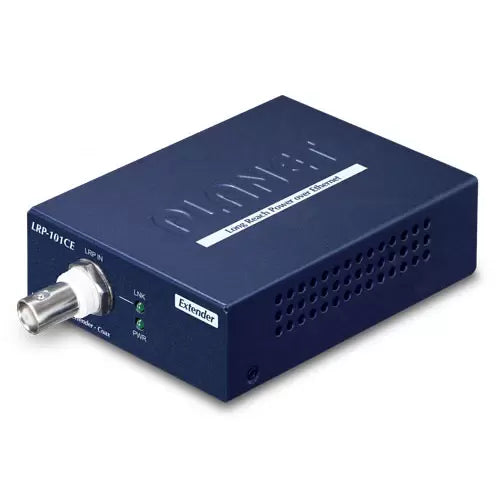

• LRP-101CE: 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender

The LRP-101CH transmits data and power via a coaxial cable to the LRP-101CE, which can be located as far as 1,000m away. It will then deliver the data and a maximum of up to 25 watts of power to a PoE PD over an Ethernet cable. Both these units are housed in a compact, metal encasement that can be wall-mounted. The LRP-101C-KIT can extend the reach of a network up to 1,000 meters (3,280ft) via a 75 ohm coaxial cable to deliver stable, high-quality video transmission.

Plug-n-play Installation

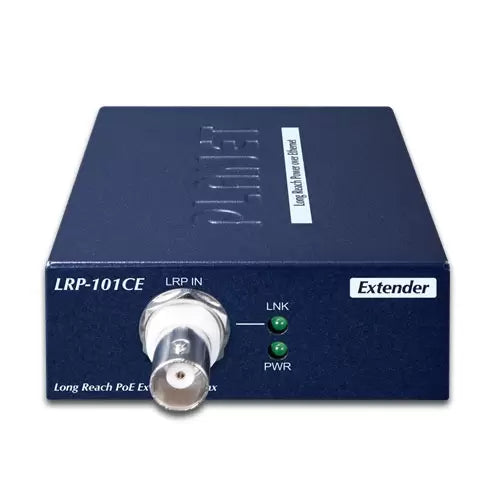

The LRP-101C-Kit offers a plug-and-play installation and does not require additional configuration. Its diagnostic LEDs on the front panel show the operating status of the individual port and the connected systems.

The Long Reach PoE solution is designed to extend IP Ethernet transmission and inject power simultaneously into a remote 802.3af/at PoE compliant powered device (PD) beyond the 100 meters distance limit of Ethernet.

Features:

• Copper: 10/100BASE-TX RJ45, Auto-negotiation / auto-MDI/MDI-X
• PoE Standard: IEEE 802.3at/af PoE
• PoE Input: Mid-span and End-span PSE Input range: 48 ~ 56V DC
• PoE Output: 48~56V DC, 600mA max.
• PoE Budget: Up to 25 watts
• PoE Mode: End-span, RJ45 Pin 1/2 (+), 3/6(-) [PSE]
• Connectivity: 1 x BNC female connector Long Reach PoE over coaxial
• Maximum Distance:
  • Max. 200m with PoE+ output (656ft.)
  • Max. 600m with PoE output (1,968ft.)
  • Max. 1200m without PoE output (3,937ft.)
• Cabling:
  • Coaxial cable: 75 ohm
  • RG-6/U cable, less than 12Ω/1,000ft.
  • RG-59/U cable, less than 30Ω/1,000ft.
• TAA Compliant
