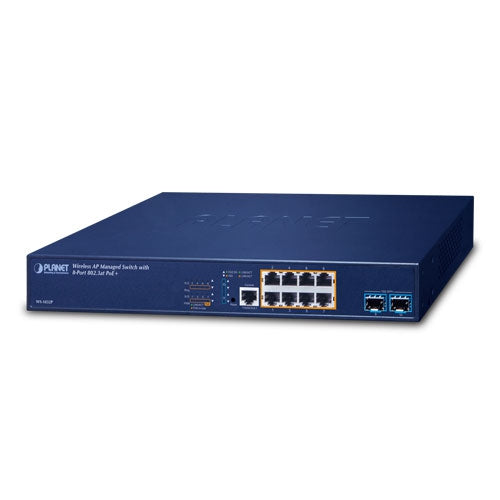

Planet - WS-1032P - Wireless AP Managed Switch with 8-Port 10/100/1000T 802.3at PoE + 2-Port 10G SFP+

Wireless Management Solution with PoE

PLANET WS-1032P, an enhanced Wireless AP Managed Switch, features Smart AP control, Layer 3 OSPF/static routing and Intelligent PoE capability to enable service providers and IT managers to control all wireless APs at the same time in small- and medium-scale wireless network environments, such as hotels, villas, resorts and any public area. The WS-1032P provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit Switching engine along with 8 10/100/1000BASE-T ports featuring up to 36-watt 802.3at PoE+, and 2 extra 1/2.5/10 Gigabit BASE-X SFP+ fiber slots which definitely offer enterprises a quick, safe and cost-effective AP Control with Power over Ethernet network solution.

Four Steps to Manage AP Cluster within Minutes

The WS-1032P offers a user-friendly Web GUI for easy configuration. It features centralized management of PLANET Smart AP series without needing to manually configure each AP for the wireless SSID, radio band and security settings. With a four-step configuration process, different purposes of wireless profile scan be simultaneously delivered to multiple APs or AP groups to minimize deployment time, effort and cost.

Features:

Physical Port

• 8-port 10/100/1000BASE-T with 36W PoE injector
• 2-port 1/2.5/10GBASE-X SFP+
• RS232 RJ45 console interface for switch basic management and setup

Wireless LAN AP Management

• Dashboard: provides at-a-glance view of system and wireless network status
• AP Discovery: one key to discover the managed APs on the managed LAN
• Customized Profile: allows multiple wireless profiles creation and maintenance
• Auto Provision: multi-AP provisioning with one click
• Cluster Management: simplifies high-density AP management
• Zone Plan: optimizes AP deployment with actual signal coverage
• Analysis: real-time AP status monitoring
• Scalability: free system upgrade and AP firmware bulk upgrade capability

Power over Ethernet

• Up to 8 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE Power up to 36 watts for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters
• PoE management features
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE admin-mode control
  • PoE port power feeding priority
  • Per PoE port power limit
  • PD classification detection
• Intelligent PoE features
  • Temperature threshold control
  • PoE usage threshold control
  • PD alive check
  • PoE schedule

Layer 3 IP Routing Features

• IP dynamic routing protocol supports RIPv2, OSPFv2 and OSPFv3
• IPv4/IPv6 hardware static routing
• Routing interface provides per VLAN routing mode

Layer2 Features

• High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm Control support
  • Broadcast/Multicast/Unknown unicast
• Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
  • Private VLAN Edge (PVE)
  • Protocol-based VLAN
  • MAC-based VLAN
  • Voice VLAN
  • GVRP(GARP VLAN Registration Protocol)
• Supports Spanning Tree Protocol
  • STP, IEEE 802.1D Spanning Tree Protocol
  • RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
  • MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
  • BPDU Guard
• Supports Link Aggregation
  • 802.3ad Link Aggregation Control Protocol(LACP)
  • Cisco ether-channel (static trunk)
  • Maximum 5 trunk groups, up to 10 ports per trunk group
  • Up to 56Gbps bandwidth (full duplex mode)
• Provide sport mirror (many-to-1)
• Port mirroring to monitor the incoming or outgoing traffic on a particular port
• Loop protection to avoid broadcast loops
• Link Layer Discovery Protocol (LLDP)
• Compatible with Cisco uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)

Quality of Service

• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification
  • IEEE 802.1p CoS
  • TOS/DSCP/IP Precedence of IPv4/IPv6 packets
  • IP TCP/UDP port number
  • Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing policies on the switch port
• DSCP remarking

Multicast

• Supports IPv4 IGMP Snooping v1, v2 and v3
• Supports IPv6 MLD Snooping v1 and v2
• Querier mode support
• IGMP Snooping port filtering
• MLD Snooping port filtering
• Multicast VLAN Registration (MVR) support

Security

• Authentication
  • IEEE 802.1x Port-based/MAC-based network access authentication
  • Built-in RADIUS client to co-operate with the RADIUS servers
  • TACACS+ login users access authentication
  • RADIUS/TACACS+ users access authentication
• Access Control List
  • IP-based Access Control List (ACL)
  • MAC-based Access Control List
• Source MAC/IP address binding
• DHCP Snooping to filter un-trusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• Auto DoS rule to defend DoS attack
• IP address access management to prevent unauthorized intruder

Management

• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
  • Console/Telnet Command Line Interface
  • Web switch management
  • SNMP v1, v2c, and v3 switch management
  • SSHv2, TLSv1.2 secure access
• IPv6 IP Address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
  • Firmware upload/download via HTTP/TFTP
  • Reset button for system reboot or reset to factory default
  • Dual Images
• DHCP Relay
• DHCP Option82
• User Privilege levels control
• NTP (Network Time Protocol)
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Network Diagnostic
  • SFP-DDM (Digital Diagnostic Monitor)
  • ICMPv6/ICMPv4 Remote Ping
  • Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
• SMTP/Syslog remote alarm
• Four RMON groups (history, statistics, alarms and events)
• SNMP trap for interface Linkup and Linkdown notification
• System Log
• PLANET Smart Discovery Utility for deployment management
• PLANET UNI-NMS (Universal Network Management) and Smart Discovery Utility for deployment management
