Planet - WDAP-W1200E - 1200Mbps 802.11ac Wave 2 Dual Band In-wall Wireless Access Point, 802.3at PoE PD, 3 10/100/1000T LAN

Product SKU: WDAP-W1200E
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$87.48
$103.20
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

1200Mbps 802.11ac Wave 2 Dual Band In-wall Wireless Access Point,  802.3at PoE PD, 3 10/100/1000T LAN, 1 RJ11, 802.1Q VLAN, supports NMS-500/NMS-1000V controller (EU Type)



Features:

  • Ultra-high-speed, Wave 2 MU-MIMO All-in-One Manageable Dual-band Wi-Fi Solution for Hotel Industry
  • Benefits of MU-MIMO under 802.11ac Wave 2
  • Powerful Dual-band WLAN Solution
  • Easy Deployment with PLANET AP Controller
  • Suitable for Any Room Installation without Spoiling Interior Design
  • Comprehensive Wireless Operation Modes
  • Basic Features Worth Mentioning
  • Simultaneous Dual Band Wireless Connectivity
  • In-wall Design Ideal for High-density Wireless Network
  • Fast Roaming and Better Coverage



Standard Compliant Hardware Interface

  • Compliant with IEEE 802.11ac Wave 2 wireless technology with data rate of up to 1200Mbps
  • 3 x 10/100/1000BASE-TX port and one PoE powered device (PD/WAN) port
  • Support 1 x RJ11 port for traditional phone using
  • European 86-type wall outlet compatibility



Secure Network Connection

  • Advanced security: 64-/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK (TKIP/AES encryption), 802.1x
  • Supports wireless MAC address filtering control to limit the connected wireless clients
  • Supports 802.1Q VLAN and SSID-to-VLAN mapping
  • Supports IP/Port/MAC address/URL filtering, DoS, SPI firewall
  • Supports DMZ and port forwarding
  • Bandwidth control per IP address to increase network stability



Multiple Operation Modes and Wireless Features

  • Multiple operation modes: AP, Gateway, Repeater, WDS, WISP
  • WMM (Wi-Fi multimedia) provides higher priority to multimedia transmitting over wireless
  • Coverage threshold to limit the weak signal of clients occupying session
  • Real-time Wi-Fi channel analysis chart and client limit control for better performance



Easy Deployment and Management

  • Supports PLANET WS/NMS AP Controllers in AP mode
  • Easy discovery by PLANET Smart Discovery
  • Self-healing mechanism through system auto reboot setting
  • System status monitoring through remote Syslog Server
  • Supports PLANET DDNS/Easy DDNS
Hardware Specifications
InterfacesLAN

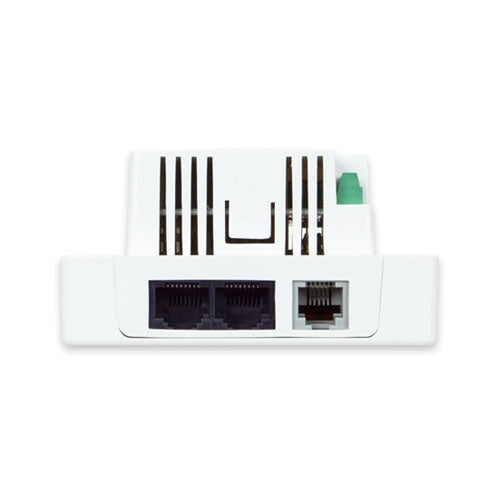

2 x 10/100/1000BASE-TX RJ45 port
Auto-negotiation and auto MDI/MDI-X

PoE Port

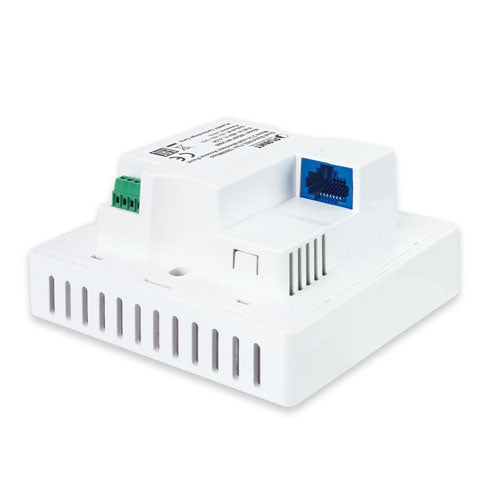

1 x 10/100/1000Mbps auto MDI/MDI-X RJ45 port (rear panel)
※ IEEE 802.3af/at PD port

RJ11 Port
Six-position four-conductor (6P4C) modular jack
AntennasGain: 4 x 2dBi antenna
ButtonReset button (Press over 10seconds to reset the device to the factory default)
LED IndicatorsLAN1/LAN2/WAN/SYS
Dimensions (W x D x H)86 x 45 x 86 mm
Weight168 ± 5g
Power Requirements48V DC IN, 0.5A, IEEE 802.3af/at PoE+
Power Consumption< 8W
MountingIn-wall mount
Wireless Interface Specifications
StandardIEEE 802.11ac
IEEE 802.11n
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x flow control
Media Access ControlCSMA/CA
Data Modulation802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK)
Band Mode2.4G / 5G concurrent mode
Frequency Range2.4GHz:
FCC: 2.412~2.462GHz
ETSI: 2.412~2.472GHz

5GHz:
FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHz
Operating ChannelsFCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 channels)
ETSI: 36, 40, 44, 48, 100, 104, 108, 112, 116, 132, 136, 140 (12 channels)
5GHz channel list will vary in different countries according to their regulations.
RF Power<20dBm (EIRP)
Receive Sensitivity
Network ModeData RateReceive Sensitivity (dBm)
2.4GHz
802.11b1Mbps-88
11Mbps-85
802.11g6Mbps-88
54Mbps-68
802.11n HT20MCS0/MCS8-95
MCS7/MCS15-77
802.11n HT40MCS0/MCS8-93
MCS7/MCS15-75
5GHz
802.11a6Mbps-92
54Mbps-75
802.11n HT20MCS0/MCS8-91
MCS7/MCS15-72
802.11n HT40MCS0/MCS8-88
MCS7/MCS15-70
802.11ac VHT20MCS0-92
MCS8-70
802.11ac VHT40MCS0-89
MCS9-65
802.11ac VHT80MCS0-87
MCS9-61
Software Features
LANStatic IP/DHCP Client
Supports IP-MAC binding
WAN
  • Static IP
  • Dynamic IP
  • PPPoE
Wireless Mode
  • Access Point
  • Gateway
  • WISP
  • Repeater
  • Super WDS
Channel Width20MHz, 40MHz, 80MHz
Encryption Security64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless SecurityEnable/Disable SSID Broadcast
Wireless – filtering of max. 32 MAC addresses
User Isolation
Max. SSIDs8 ( 4 per radio)
Max. Clients128 (100 is suggested, depending on usage)
Max. WDS Peers4
Wireless QoSSupports Wi-Fi Multimedia (WMM)
Wireless AdvancedAuto channel selection
5-level transmit power control (100%, 75%, 50%, 25%, 12.5%)
Client limit control, coverage threshold
Wi-Fi channel analysis chart
Fast Roaming
Status MonitoringDevice status, wireless client list
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server
VLANIEEE 802.1Q VLAN (VID: 3~4094)
SSID-to-VLAN mapping to up to 4 SSIDs
Self-healingSupports auto reboot settings per day/hour
ManagementRemote management through PLANET DDNS/Easy DDNS
Configuration backup and restoration
Supports UPnP
Supports IGMP Proxy
Supports PPTP/L2TP/IPSec VPN Pass-through
SNMP v1/v2c/v3 support, MIB I/II, Private MIB
Central Management*Applicable controllers: NMS-500/NMS-1000V, WS-1232P, WS-2864PVR
*The feature will be supported through firmware/system upgrade.
Environment & Certification
TemperatureOperating: -20 ~ 55 degrees C
Storage: -40 ~ 70 degrees C
HumidityOperating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 95% (non-condensing)
RegulatoryCE, RoHS
