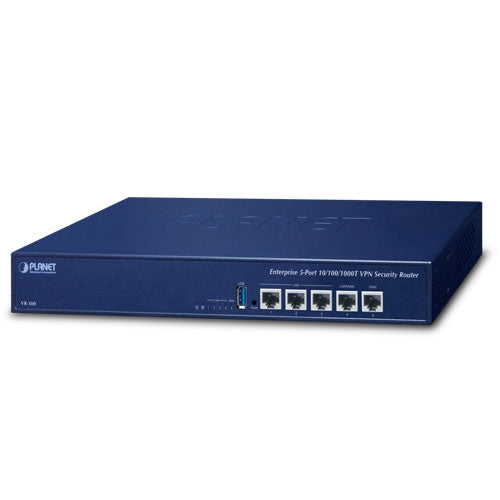

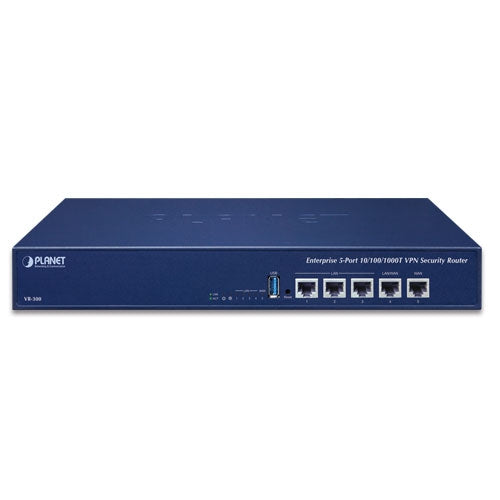

Planet - VR-300 - Enterprise 5-Port 10/100/1000T VPN Security Router (Dual-WAN Failover and Load Balancing)

Enterprise 5-Port 10/100/1000T VPN Security Router (Dual-WAN Failover and Load Balancing, Cyber Security, SPI Firewall, IPv4/IPv6 Filtering, Content Filtering, DoS Attack Prevention, Port Range Forwarding, SSL VPN and robust hybrid VPN (IPSec/GRE/PPTP/L2TP), IPv6, SNMP, PLANET Easy-DDNS, High Availability, AP Controller, Captive Portal, RADIUS, SD-WAN, supports CloudViewer app and MQTT)

Features:

• Powerful VPN Security Solution
• Wi-Fi Deployments and Authentication with Simplified Management
• Centralized Remote Control of Managed APs
• Ideal High-Availability VPN Security Router Solution for SMBs
• Excellent Ability in Threat Defense
• Cybersecurity Network Solution to Minimize Security Risks
• Improving Network Efficiency

Highlights

• Dual-WAN failover and Dual-WAN load balancing
• SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
• Stateful Packet Inspection (SPI) firewall and content filtering
• Blocks DoS/DDOS attack, port range forwarding
• High Availability, AP Controller, Captive Portal and RADIUS
• IPv6, SNMP, PLANET DDNS and Universal Network Management System

Hardware

• 5 10/100/1000BASE-T RJ45 ports
• 1 undefined Ethernet port (LAN/WAN) for Dual-WAN function
• 1 USB 3.0 port for system configuration backup and restore
• Reset button and Fanless design
• Desktop installation or rack mounting

IP Routing Feature

• Static Route
• Dynamic Route
• OSPF

Firewall Security

• Cybersecurity
• Stateful Packet Inspection (SPI) firewall
• Blocks DoS/DDoS attack
• Content Filtering
• MAC Filtering and IP Filtering
• NAT ALGs (Application Layer Gateway)
• Blocks SYN/ICMP Flooding

VPN Features

• IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
• Max. Connection Tunnel Entries: 60 VPN tunnels,
• Encryption methods: DES, 3DES, AES, AES-128/192/256
• Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512

Networking

• Outbound load balancing
• Failover for dual-WAN
• High Availability
• Captive Portal
• RADIUS Server/Client
• Static IP/PPPoE/DHCP client for WAN
• DHCP server/NTP client for LAN
• Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
• Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
• MAC address clone
• DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP

Others

• Setup wizard
• Dashboard for real-time system overview
• Supported access by HTTP or HTTPS
• Auto reboot
• PLANET Smart Discovery utility/UNI-NMS supported
