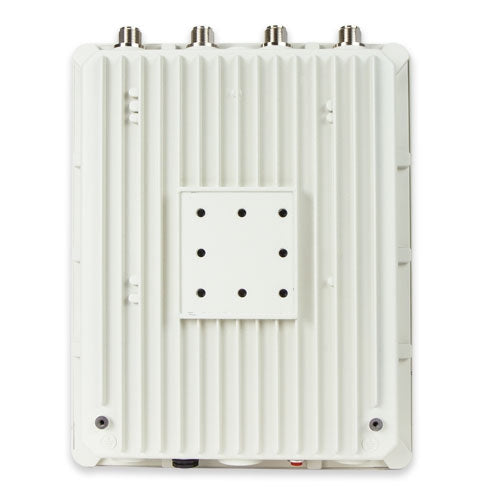

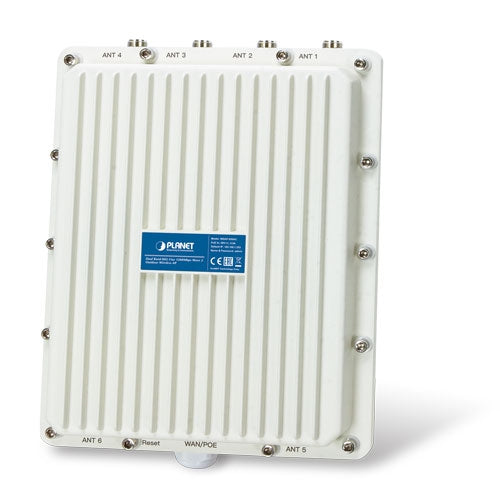

PLANET - WDAP-850AC - IP67 802.11ac Wave 2, Dual Band 1200Mbps Outdoor Wireless AP

IP67 802.11ac Wave 2, Dual Band 1200Mbps Outdoor Wireless AP (802.3at PoE+, 4 x N-Type connector, 20KV surge protection, -40 to 75C, 802.1Q VLAN, supports NMS-500/NMS-1000V controller)

Features:

• Super High Speed and Wide Coverage
• Benefits of MU-MIMO under 802.11ac Wave 2
• Flexible, Durable and Reliable Outdoor Characteristics
• Central Management Simplifies High-density Deployment
• Multiple SSIDs with VLAN Tagging
• More User-friendly, Higher Efficiency and Better Experience
• Robust Hardware and Flexible Dual RF for Various Outdoor Requirements

Industrial Wireless LAN and LAN

• Compliant with the IEEE 802.11a/b/g/n/ac Wave 2 MU-MIMO wireless technology
• 802.11ac 2T2R architecture with data rate of up to 1200Mbps (300Mbps at 2.4GHz and 867Mbps at 5GHz)
• Equipped with 10/100/1000Mbps RJ45 port with auto MDI/MDI-X supported
• One reset button and power LED indicator

RF Interface Characteristics

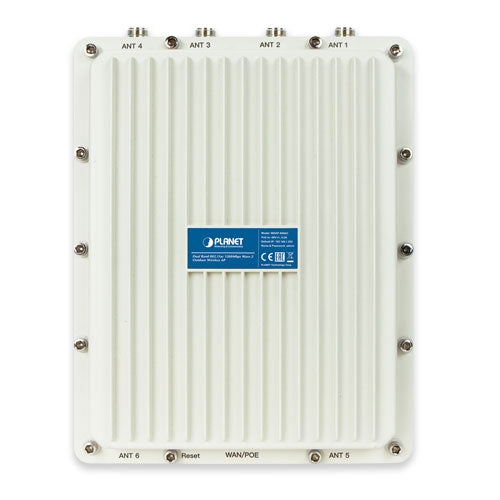

• Built-in four N-type antenna connectors
• High output power with multiply-adjustable transmit power control

Outdoor Environmental Characteristics

• IP67 rating, IEEE 802.3at PoE design
• Rugged protection with aluminum extrusion case and ground terminal
• 20KV surge protection for wire cable interface
• Operating temperature: -40~70 degrees C

Multiple Operation Modes and Wireless Features

• Multiple operation modes: AP, Gateway, Repeater, WDS, WISP
• WMM (Wi-Fi multimedia) provides higher priority to multimedia transmitting over wireless
• Coverage threshold to limit the weak signal of clients occupying session
• Real-time Wi-Fi channel analysis chart and client limit control for better performance

Secure Network Connection

• Full encryption supported: 64-/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK and 802.1X RADIUS authentication
• Supports 802.1Q VLAN and SSID-to-VLAN mapping
• Supports IP/port/MAC address/URL filtering, DoS, SPI firewall
• Supports DMZ and port forwarding
• Bandwidth control per IP address to increase network stability

Easy Deployment and Management

• Supports PLANET AP controllers in AP mode
• Nodes are easily discovered with PLANET Smart Discovery Utility
• Self-healing mechanism through system auto reboot setting
• System status monitoring through remote syslog server
• Supports PLANET DDNS/Easy DDNS
