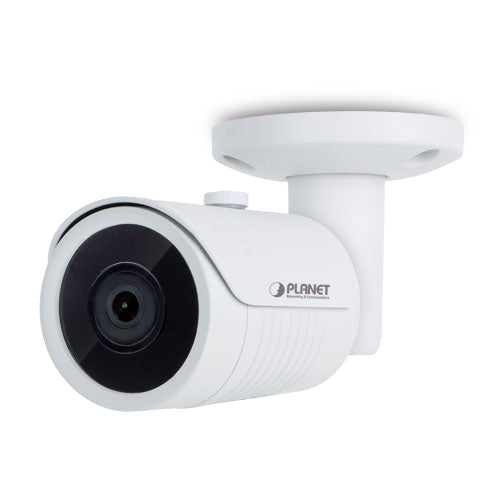

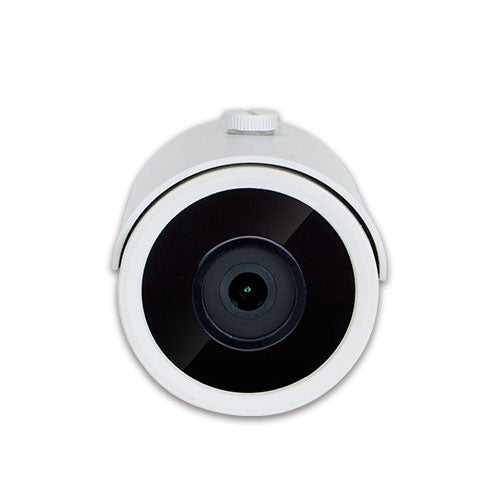

Planet - ICA-3280 - H.265 1080p Smart IR Bullet IP Camera
Planet - ICA-3280 - H.265 1080p Smart IR Bullet IP Camera
Planet - ICA-3280 - H.265 1080p Smart IR Bullet IP Camera
Planet - ICA-3280 - H.265 1080p Smart IR Bullet IP Camera
Planet - ICA-3280 - H.265 1080p Smart IR Bullet IP Camera
Planet - ICA-3280 - H.265 1080p Smart IR Bullet IP Camera
Planet - ICA-3280 - H.265 1080p Smart IR Bullet IP Camera
Planet - ICA-3280 - H.265 1080p Smart IR Bullet IP Camera
Planet

Planet - ICA-3280 - H.265 1080p Smart IR Bullet IP Camera

Product SKU: ICA-3280
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$72.90
$74.40
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

Camera

  • 1/2.9" Full HD CMOS Sensor
  • 3.6mm fixed with 3MP lens
  • 0.01 lux minimum illumination at F1.2
  • Built-in smart IR illuminators, effective up to 25 meters
  • Removable IR-cut filter for Day & Night function



Video and Audio

  • Simultaneous H.264(+)/H.265/MJPEG dual-stream video encoding
  • Simultaneous multi-stream support
  • H.264/H.265/MJPEG baseline profile, main profile or high profile options
  • Max. resolution of 2304 x 1296 at 20fps
  • WDR (50dB) enhancement function strengthens visibility under extremely bright or dark environments
  • 3DNR to improve picture quality at low lux
  • One-way audio support
  • Image adjustment options
    • Day and night mode
    • Image Adjustment
    • Exposure Settings
    • BackLight Settings
    • Day and night switch
    • White Balance
    • Video Adjustment
    • Image Enhancement
    • Defog Model
  • OSD Settings
  • Motion detection, video tampering
  • 3 configurable regions of privacy mask to protect personal privacy
  • ROI (Region of Interest)



Power over Ethernet

  • Compatible with IEEE 802.3af Power over Ethernet PD for flexible deployment



Network Configuration and Management

  • IPv4 DHCP Client and IPv4 Static IP Address management
  • PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP Encryption and IPEYE available options
  • ONVIF compliant for interoperability
  • SNTP Network Time Protocol/synchronize with computing time
  • Schedule power rebooting
  • System log
  • User management options for various authorities:
    • Admin
    • Operator
    • Guest
  • System maintenance
    • Firmware upload/download via HTTP
    • Configuration upload/download through web interface
    • Hardware-based reset button for resetting to factory default
  • Easy configuration and management via Windows-based software or web interface
  • PLANET Search Tools utility and Professional Video/Central Management Software



Case and Installation

  • IP67-rated metal housing with cable management bracket for rigorous environment
  • Waterproof and dustproof designs
  • -20 to 60 degrees C operating temperature
  • Plug and Play installation
Camera
Image Sensor 1/2.9" Full HD CMOS Sensor
Lens Focus Length: 3.6mm
Focus Control: Fixed
Lens Type: Fixed
Pixels: 3MP
Angle of view:
- Horizontal: 75 degrees
- Vertical: 58 degrees
Min. Illumination 0.01 lux (color) @ F1.2
2lux (B/W) @ IR on
IR Illuminations Built-in smart IR illuminators, effective up to 25 meters
*The IR distance is based on the environment
Effective Pixels (H x V) 1920 x 1080
Power over Ethernet
PoE Standard IEEE 802.3af PoE PD
Video Compression H.264(+)/H.265/JPEG/MJPEG
Video Resolution
Protocol Main Stream: Sub Stream:
H.264/H.264+ 2304 x 1296
1920 x 1280
1280 x 720

720 x 480
H.265
MJPEG 1920 x 1080
Frame Rate Up to 15~30 fps for all resolutions
Bitrate 32~16384kbps
Shutter Time Auto: PAL 1/25-1/10000 sec; NTSC 1/25-1/10000 sec
Image Setting Day and night mode
Image Adjustment
Exposure Settings
BackLight Settings
Day and night switch
White Balance
Video Adjustment
Image Enhancement
Defog Model
Distortion
OSD Settings (Text, time and date overlay and overlay image on video)
Motion detection, video tampering
3 configurable regions of privacy mask to protect personal privacy
Streaming Streaming over UDP, TCP, HTTP, or HTTPS
Controllable frame rate
M-JPEG streaming over HTTP (server push)
Constant and variable bit rate
ROI (Region of Interest)
Audio
Audio Streaming One-way audio
Audio Compression G.711A/G.711U
Audio Input External microphone input
Networking & Configuration
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af Power over Ethernet
Protocol IPv4 DHCP Client and IPv4 Static IP Address management
PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP Encryption and IPEYE
Security User Management options for various authority
- Admin
- Operator
- Guest
Users On-line monitoring of 16 clients at the same time
Web Brower IE8~11, Google Chrome, Firefox, Mac Safari
APP YES (Android, IOS with P2P QR code)
Language Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese
System Integration
Application Programming Interface ONVIF compliant
Alarm Triggering Motion detection
Alarm Events SMTP, FTP, Cloud (Google, Dropbox)
Hardware Specification
Power Requirements 12V DC, 0.9A
IEEE 802.3af
Power Consumption 8W (IR on)
Dimensions (W x D x H) 157 x 66 x 70 mm
Weight 650g
Reset Button YES
LED 14μ x 20pcs
Connector 10/100Mbps Ethernet, waterproof/dustproof RJ45 connector
DC power jack
RCA audio in (white)
Enclosure IP67 metal case
Standards Conformance
Regulatory Compliance FCC Part 15 Class B, CE
Environment
Operating Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
ICA-3280_Datasheet_27883b5c-4bf0-48f8-9138-7e40db5cd840.pdf:
ICA-3280_User_Manual_2cbd3b9c-4de9-4ce3-9b2c-8d1fb8485690.pdf:
ICA-3280_Quick_Installation_Guide_5de16c03-76a4-4cc1-878e-e356d30380f4.pdf:
