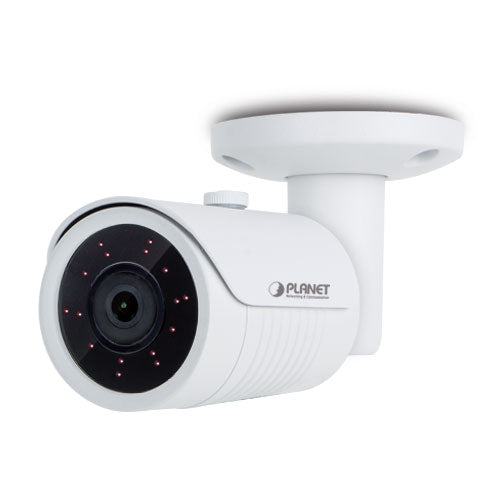

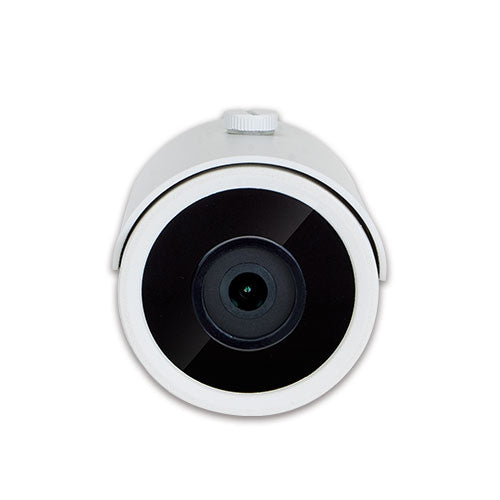

Planet - ICA-A3280 - H.265 1080p Smart IR Bullet IP Camera with Artificial Intelligence
Planet - ICA-A3280 - H.265 1080p Smart IR Bullet IP Camera with Artificial Intelligence
Planet - ICA-A3280 - H.265 1080p Smart IR Bullet IP Camera with Artificial Intelligence
Planet - ICA-A3280 - H.265 1080p Smart IR Bullet IP Camera with Artificial Intelligence
Planet - ICA-A3280 - H.265 1080p Smart IR Bullet IP Camera with Artificial Intelligence
Planet - ICA-A3280 - H.265 1080p Smart IR Bullet IP Camera with Artificial Intelligence
Planet - ICA-A3280 - H.265 1080p Smart IR Bullet IP Camera with Artificial Intelligence
Planet - ICA-A3280 - H.265 1080p Smart IR Bullet IP Camera with Artificial Intelligence
Planet

Planet - ICA-A3280 - H.265 1080p Smart IR Bullet IP Camera with Artificial Intelligence

Product SKU: ICA-A3280
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$152.28
$165.60
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

Camera

  • 1/2.8" 2 megapixel Sony STARVIS back-illuminated CMOS sensor
  • 3.6mm fixed with 3MP lens
  • 0.005 lux minimum illumination at F1.2
  • Built-in smart IR illuminators, effective up to 25 meters
  • Removable IR-cut filter for Day & Night function



Video and Audio

  • Simultaneous H.264(+)/H.265(+)/JPEG/AVI/MJPEG triple-stream video encoding
  • Simultaneous multi-stream support
  • H.264/H.265/MJPEG baseline profile, main profile or basic or high profile options
  • Max. resolution of 2304 x 1296 at 20fps
  • WDR (50dB) enhancement function strengthens visibility under extremely bright or dark environments
  • 3DNR to improve picture quality at low lux
  • Two-way audio support
  • Image adjustment options
    • Image Adjustment
    • Exposure Settings
    • Backlight Settings
    • Day and night switch
    • White Balance
    • Video Adjustment
    • Image Enhancement
    • Defog Model
  • OSD Settings
  • Motion detection
  • 3 configurable regions of privacy mask to protect personal privacy
  • Video tampering
  • Alarm Input
  • Exception
    • Network Disconnected
    • IP address Conflicted
  • ROI (Region of Interest)
  • Artificial Intelligence options
    • Face Recognition
    • Intrusion Detection
    • Line Cross Detection
    • Loitering Detection
    • People Gathering Detection



Power over Ethernet

  • Compatible with IEEE 802.3af Power over Ethernet PD for flexible deployment



Network Configuration and Management

  • IPv4 DHCP Client and IPv4 Static IP Address management
  • PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP Encryption, PTZ and IPEYE available options
  • ONVIF compliant for interoperability
  • SNTP Network Time Protocol/synchronize with computing time
  • Schedule power rebooting
  • System log
  • User management options for various authorities:
    • Admin
    • Operator
    • Guest
  • System maintenance
    • Firmware upload/download via HTTP
  • Easy configuration and management via Windows-based software or web interface
  • PLANET Search Tools utility and Professional Video/Central Management Software



Case and Installation

  • IP67-rated metal housing with cable management bracket for rigorous environment
  • Waterproof and dustproof designs
  • -20 to 60 degrees C operating temperature
  • Micro SD/SDHC card local video recording supported
  • Digital Input / Output for integration with sensors and alarms
  • RS485 for PTZ (Pelco-D and Pelco-P)
  • Plug and Play installation
Camera
Image Sensor 1/2.8" Sony STARVIS back-illuminated CMOS sensor
Lens Focus Length: 3.6mm
Focus Control: Fixed
Lens Type: Fixed
Pixels: 3MP
Angle of view:
- Horizontal: 80 degrees
- Vertical: 62 degrees
Min. Illumination 0.005 lux (color) @ F1.2
2lux (B/W) @ IR on
IR Illuminations Built-in smart IR illuminators, effective up to 25 meters
*The IR distance is based on the environment
Effective Pixels (H x V) 1945 x 1097
Power over Ethernet
PoE Standard IEEE 802.3af PoE PD
Video Compression
Video Resolution
Protocol Main Stream: Sub Stream: Tri-Stream:
H.264/H.264+
H.265/H.265+		 2304 x1296
1920 x 1080
1280 x 720
720 x 480
1280 x 720

352 x 288
MJPEG 1920 x 1080
Frame Rate Up to 15~25 fps for all resolutions
Bitrate 32~16384kbps
Shutter Time Auto, PAL/NTSC (1/25 sec. ~ 1/10000 sec.)
Image Setting Image Adjustment
Exposure Settings
Backlight Settings
Day and night switch
White Balance
Video Adjustment
Image Enhancement
Defog Model
OSD Settings (Text, time and date overlay and overlay image on video)
Motion detection, video tampering, alarm Input
3 configurable regions of privacy mask to protect personal privacy
Streaming Streaming over UDP, TCP, HTTP, or HTTPS
Controllable frame rate
MJPEG streaming over HTTP (server push)
Constant and variable bit rate
ROI (Region of Interest)
Artificial Intelligence
Recognition Face Detection and Recognition
Number of faces per frame: 32
Capture rate: >99.5%
Repeat capture rate: <15%
False capture rate: <0.5%
Number of supported faces: 10,000
Minimum detection of face pixels: 25 x 25
Maximum detection of face pixels: 300 x 300
Intelligent Analysis Face Recognition
Intrusion Detection
Line Cross Detection
Loitering Detection
People Gathering Detection
Audio
Audio Streaming Two-way audio
Audio Compression G.711A/G.711U
Audio Input External microphone input
Audio Output External speaker output
Networking & Configuration
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af Power over Ethernet
Protocol IPv4 DHCP Client and IPv4 Static IP Address management
PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP Encryption, PTZ and IPEYE
Security User Management options for various authority
Admin / Operator / Guest
Users On-line monitoring of 16 clients at the same time
Web Brower IE8~11, Google Chrome, Firefox , Mac Safari
App YES (Android, IOS with P2P QR code)
Language Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Dutch, Czech, Vietnamese
System Integration
Application Programming Interface ONVIF compliant
Alarm Triggering Motion Detection / Video Tampering / Alarm Input
Face Recognition / Intrusion Detection / Line Cross Detection / Loitering Detection / People Gathering Detection
Alarm Events SMTP, FTP, Cloud(Google, Dropbox), SD card
Hardware Specifications
Power Requirements 12V DC, 0.7A
IEEE 802.3af
Power Consumption 8W (IR on)
Dimensions (W x D x H) 157 x 66 x 70 mm
Weight 650g
SD Card Slot Micro SD (512GB maximum)
LED 42μ x 2pcs
Connector 10/100Mbps Ethernet, waterproof and dustproof RJ45 connector
DC power jack
RCA audio in /out (white)
Alarm in/out (1~4)
Enclosure IP67 metal case
Standards Conformance
Regulatory Compliance FCC Part 15 Class B, CE
Environment
Operating Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
ICA-A3280_Datasheet_62ec6cfe-5319-41d6-a9d3-50568ed9fd5b.pdf:
ICA-A3280_User_Manual_13a06c22-1b9a-4d41-b805-9e7462b2c6e0.pdf:
ICA-A3280_Quick_Installation_Guide_e387a5ec-aff3-4740-b20d-44541d7c99a2.pdf:
