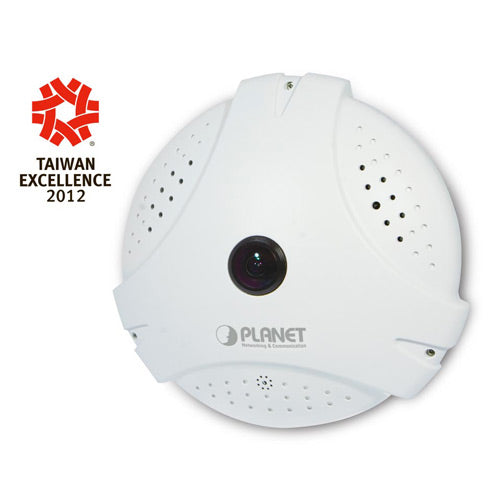

Planet - ICA-HM830W - 2 Mega-pixel Wireless Fisheye IP Camera

Planet

Planet - ICA-HM830W - 2 Mega-pixel Wireless Fisheye IP Camera

Name: Planet - ICA-HM830W - 2 Mega-pixel Wireless Fisheye IP Camera
Brand: Planet
SKU: ICA-HM830W
Price: 328.86 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: ICA-HM830W

$328.86

~~$360.00~~

Description
Specifications
Downloads
Reviews

Camera

Fish-Eye Lens to bring 360° / 180° panoramic wide angle view
1/3" 2 mega-pixel progressive scan CMOS sensor
Unique Fish-Eye hardware correction technology
3.0 lux minimum illumination at F2.0
9 different video modes including digital PTZ function
Maximum resolution at 1600 x 1200
Removable IR-cut Filter for Day & Night function

Video / Audio

H.264 and M-JPEG video compression simultaneously
Simultaneous multi-stream support
Up to 15fps for 1600 x 1200 resolutions
2-way audio support with enhanced audio quality

Network and Configuration

IEEE 802.11b/g/n wireless LAN with WEP and WPA encryptions
Auto MDI/MDI-X supported
UPnP® support for network setup and configuration
RTSP / UPnP / 3GPP / HTTPS protocols selectable

Easy Installation & Management

Advanced e-PTZ, including preset point
10 motion detection areas / E-mail and FTP alert
Micro SD card local video recording supported
Digital Input/Output for integration with sensors and alarms
Cam Viewer 3 Central Management Software supported

Camera
Image Device	1/3" 2 mega-pixel progressive scan CMOS image sensor
Lens	FOV=185°(D/H/V), F=2.0, f=1.25mm Mechanical IR-cut Filter Angle of view : 360 degrees view angle
Min Illumination	3.0 lux @ F2.0
Effective Pixels	1600 x 1200 pixels (4:3)
Video
Video Encoder	H.264 / M-JPEG
Video Resolution	UXGA mode H.264: 1600 x 1200 / 800 x 600 / 640 x 480 M-JPEG: 800 x 600 / 640 x 480 720P mode H.264: 1280 x 720 / 800 x 450 / 720 x 405 / 640 x 360 M-JPEG: 1280 x 720 / 800 x 450 / 720 x 405 / 640 x 36
Frame Rate	Up to 15fps for UXGA resolutions
Image Setting	Brightness, Hue, Saturation, Contrast, Sharpness, Exposure, White Balance Control, Text, Time and Date Overlay
Streaming	Streaming over UDP, TCP, or HTTP M-JPEG streaming over HTTP (server push) Controllable frame rate and bandwidth Constant and variable bit rate (M-JPEG / H.264)
Rate Control	CBR (Constant Bit Rate) VBR (Variable Bit Rate)
UI Layout	Quad view (4R) 360° source image (1O) 360° table view (1O table) 180° double broad view (2P) 180° double table broad view (2P table) 360° source view with 3 PTZ (1O3R) 360° broad view with 2 PTZ (1O2R) 180° source view with 3 PTZ (1P3R) 180° broad view with 2 PTZ (1P2R)
Audio
Audio Streaming	2-way audio
Audio Compression	RTSP: G.711 64kbps
Microphone	Built-in microphone
Speaker	Built-in Speaker
Network and Configuration
Network Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.11b/g/n
Network Protocol	HTTP, HTTPS, TCP/IP, IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP, RTSP, RTP, Bonjour, UPnP, Samba
Antenna Connector	1x2db dipole antenna
Frequency	2.4GHz
RF Transmission Power	OFDM: 13dBm CCK: 17dBm
Output Power	11n: 12dBm (default) +/- 1dBm 11g: 14dBm (default) +/- 1dBm 11b: 17dBm (default) +/- 1dBm
Data Rate	802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: up to 150Mbps
Security	Password Protection, Https Encryption, User Accesslog
Users	Depending on streaming data rate used
System Integration
Application Programming Interface	Open API for software integration
Alarm Triggers	Intelligent video motion detection
Alarm Events	File upload via FTP, e-mail or Micro SD card Notification via e-mail
Environment
Power Requirements	12V DC, 2A
Power Consumption	5W (12VDC)
Operating Temperature	0 ~ 50 degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Weight	365g
Dimensions (Φ x H)	180 x 55 mm
Emission	CE, FCC

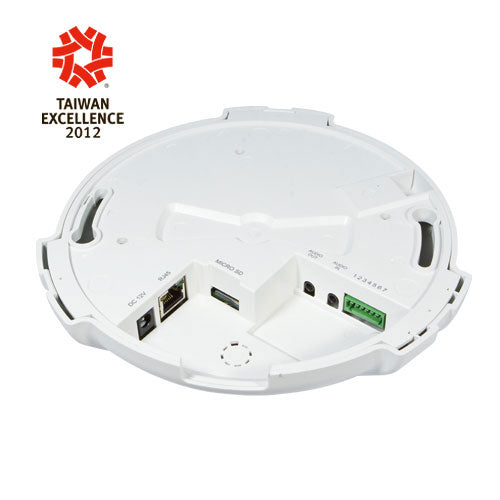

Connectors	10/100 Mbps Ethernet, RJ-45 DC power jack Terminal block for 1 alarm input and 1 output Audio in Audio out Micro SD/SDHC card (max 32GB, Class 6) Factory default reset button

ICA-HM830W_Datasheet_460b319f-be9d-4caf-9454-d76f11e99a36.pdf:

ICA-HM830W_User_Manual_593a87d9-ac86-4024-8508-c3e1d5fe68c3.pdf:
