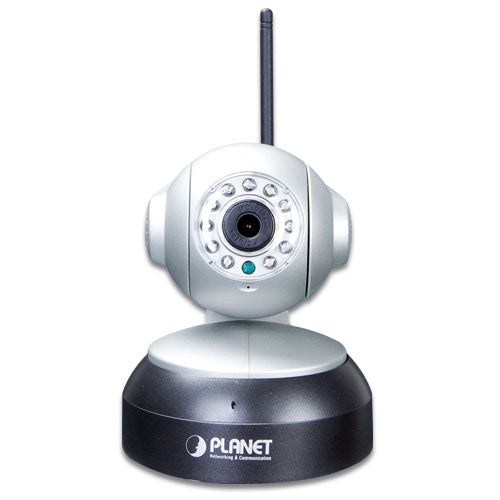

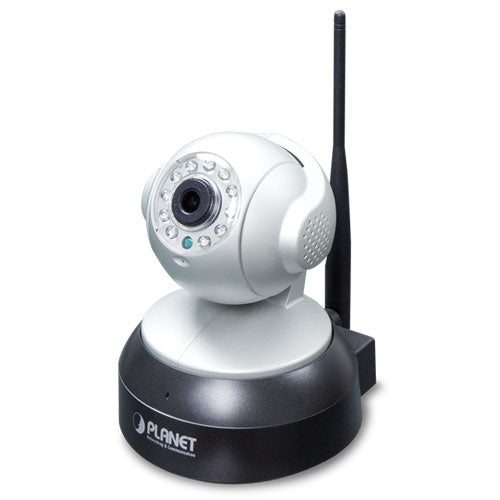

Planet - ICA-W7100 - 720P Wireless IR PT IP Camera

Planet

Planet - ICA-W7100 - 720P Wireless IR PT IP Camera

Name: Planet - ICA-W7100 - 720P Wireless IR PT IP Camera
Brand: Planet
SKU: ICA-W7100
Price: 105.3 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: ICA-W7100

$105.30

~~$115.20~~

Description
Specifications
Downloads
Reviews

Camera

1/4" progressive CMOS sensor
3.6mm fixed lens
0.1 lux minimum illumination at F1.2
Maximum resolution 1280 x 720
Built-in 11 IR illuminators, effective up to 10 meters

Video / Audio

H.264 video compression
Simultaneous multi-stream support
Max. resolution 720p at 30fps
2DNR to improve picture quality at low lux
2-way audio support with enhanced audio quality

Network and Configuration

IEEE 802.11n wireless LAN capability
WEP / WPA / WPA2-PSK wireless security
Auto MDI/MDI-X supported
RTSP / DDNS / FTP protocols selectable

Easy Installation & Management

ONVIF compliant for interoperability
Intelligent motion detection alarm triggering
Micro SD/SDHC card for event recording supported
Digital input/output for integration with sensors and alarms
Easy configuration and management via Windows-based utility or web interface

Camera
Image Device	1/4" 1mega-pixel CMOS image sensor
Lens	Fixed lens 3.6mm, F1.4 Angle of view: Horizontal: 75 degrees Vertical: 55 degrees
Effective Pixels	1280 x 720
Min Illumination	Color: 0.1 lux @ F1.2 B/W: 0 lux (IR on)
LED	Built-in IR LED x 11, effective up to 10 meters *The IR distance is based on the environment

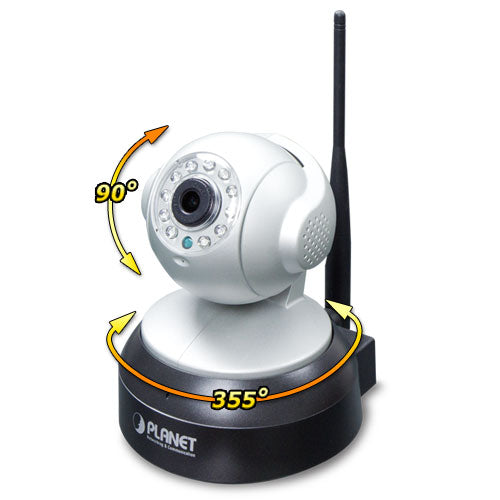

Angle of Pan	0~355 degrees
Angle of Tilt	0~90 degrees
Video
Video Encoder	H.264
Video Resolution	Main Stream (H.264): 1280 x 720 / 720 x 576 / 640 x 480 Sub Stream (H.264): 720 x 576 / 640 x 480 / 352 x 288 / 320 x 240 / 174 x 144
Frame Rate	Up to 30fps for all resolutions
Image Setting	2D noise reduction Color, brightness, contrast Mirror / Rotate 4 privacy masks Text, time and date overlay
Streaming	Simultaneous multi-streaming Streaming over UDP, TCP, or HTTP Controllable frame rate and bandwidth Constant and variable bit rate
Audio
Audio Streaming	2-way audio
Audio Compression	PCM, G.711ALAW, G.711ULAW
Microphone	Internal microphone
Audio Output	Adjustable audio output gain
Network and Configuration
Network Standard	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.11 b/g/n
Network Protocol	IPv4, TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, 802.1X
Antenna Connector	RP-SMA Female
Frequency	2.4GHz
RF Transmit Power	802.11b mode: 20 dbm 802.11g mode: 17 dbm 802.11n mode: 17 dbm
RF Receiver Sensitivity	802.11b (11Mbps): -85dbm 802.11g (54Mbps): -68dbm 802.11n (20MHz): -68dbm 802.11n (40MHz): -68dbm
RF Data Rate	802.11b: 11Mbps 802.11g: 54Mbps 802.11n (20MHz): up to 72Mbps 802.11n (40MHz): up to 150Mbps
Security	Password protection; WEP, WPA-PSK and WPA2-PSK encryptions
Users	2 clients on-line monitoring at the same time
System Integration
Application Programming Interface	ONVIF compliant
Alarm Triggering	Motion Detection External Input
Alarm Events	Event snapshot uploads via FTP Event recording uploads via SD card Notification via email, HTTP External output activation
Environment
Power Requirements	5V DC, 10W max.
Power Consumption	Up to 7.8W (IR & PT on)
Operating Temperature	-10 ~ 50 degrees C
Operating Humidity	20 ~ 85% (non-condensing)
Dimensions (W x D x H)	103 x 106 x 131mm
Weight	305g
Emission	CE, FCC

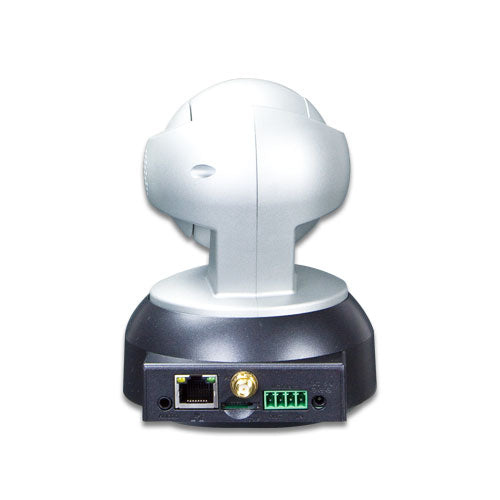

Connectors	10/100 Mbps Ethernet, RJ-45 DC power jack Terminal block for 1 alarm input and 1 output Audio out MicroSD/SDHC card (max 32GB) Factory default reset

ICA-W7100_Datasheet_bdb0fedd-9eac-4dcb-9d65-c083e0cadfe1.pdf:

ICA-W7100_USer_Manual-1_c5fc50a7-319c-4868-a3b6-311b06259442.pdf:

ICA-W7100_Quick_Installation_Guide_b1c9798f-0086-45b5-9f27-7266a701f241.pdf:

ICA-W7100_EC_Declaration_022ebd3c-b9af-48f5-9ed8-ec3c5946dd23.pdf:
