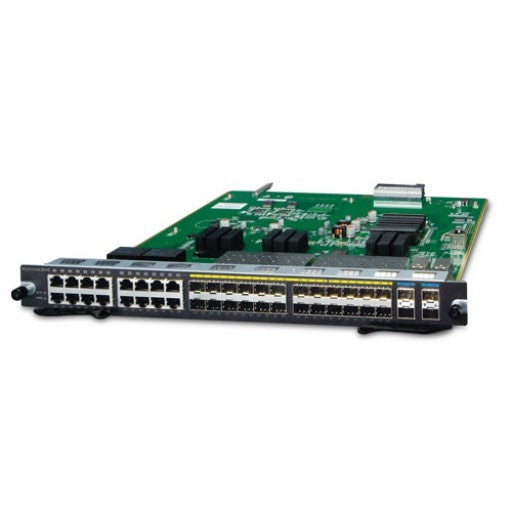

Planet - XGS3-M16C8S - Chassis Management Modules

Management Module for XGS3-42000R with 24 Gigabit ports (16 TP / SFP Combo ports + 8 100 / 1000X SFP ports)

Hardware and Performance

• 4 open module slots design:
• 160-port Gigabit copper, 156-port Gigabit SFP, 60-port 10G SFP+ and 6-port 40G QSFP+
• Hot-swappable switching modules
• Non-blocking wire-speed Layer 2 and Layer 3 switching
• 1 RJ45 serial console interface on Management Module for switch basic management and setup

Redundant Power System

• 100~240V AC dual power redundant
• Active-active redundant power failure protection
• Backup of catastrophic power failure on one supply

IP Stacking

• IP stacking technology -- connect with stack member via any Gigabit /10G/40G interface
• Single IP address management, supporting up to stackable 24 units

IP Routing Features

• IP Routing protocol supports RIP v1/v2, OSPF v2, BGP4
• Routing interface provides VLAN routing mode
• Policy-based Routing(PBR) for IPv4 and IPv6
• VRRP protocol for redundant routing deployment
• Supports route redistribution

Multicast Routing Features

• Supports Multicast Routing Protocols:
• Supports IGMP v1/v2/v3

Layer 2 Features

• Supports auto-negotiation, auto-MDI/MDI-x and half-duplex/full-duplex modes for all 1000BASE-T ports.
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Supports VLAN
• Supports Spanning Tree Protocol
• Supports Link Aggregation
• Provides Port Mirror (many-to-1)
• Port Mirroring to monitor the incoming or outgoing traffic on a particular port
