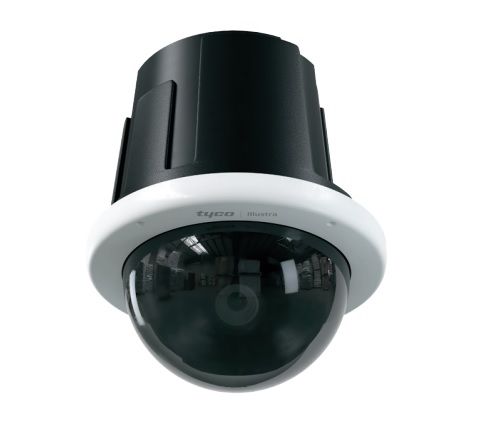

ExacqVision - IPS08-P25-RT04 - Illustra Pro Gen4 8MP (4K) PTZ, 22x, Indoor, Non-Vandal, Smoked, White, TDN, TWDR

2MP

8 MP (4K )

CMOS 1/2.18”

CMOS 1/1.8”

H.264 / H.265 /  MJPEG / IntelliZip

Quad St reaming

2MP@60fps

8 MP@30fps

Varifocal Lens, D C-Iris, IR Corrected

Electronic Image Stabilisation

Electronic Image Stabilisation (Future Release)

Motorized,Continuous A uto Focus, Manual Focus

F/1.6(W) ~ F/4.4(T)

F/1.5(W) ~ F/3.4(T)

0.013 lux

0.004  lux

0.0035 lux

0.015  lux

True multi shutter WDR 126dB, Off / S mart WDR / True WDR2x / True WDR 3x

Yes

8

Linger, Exit, Direction, Abandoned/R emoved objects, Queue, Dwell, Enter,

Object detection,  Crowd, Perimeter

Person, Bicycle, B us, Car, Motorbike

Pro file S

Yes

Yes

Face,  Person

2 / 2

Bi-directional;  1   input, 1 output

30x Optical Zoom, 12x Digital

22 x Optical Zoom, 12x Digital

4.5-135 mm

6.4-139  mm

Wide Angle: 60°/37° Telephoto: 5°/3°

Wide Angle: 61.9°/36.2° Telephoto: 3.4°/1.7°

360 ° Continuous

0 ° to -90°

<  0.25° to 100°/s scaled in proportion to zoom position

<  0.1 degree

700 °/sec (Typical: 465°/sec) 0.5sec Move Time

96

16

16

Yes

Yes

IEEE 802.3, 10/100/1000Base-T Ethernet, RJ45, auto sensing

TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS,

Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH,

HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNPTM, RTSP, LLDP

Yes via HTTPS

IE 10, 11, Firefox, Chrome

Secure Boot, Enhanced Security Mode (forces complex passwords, HTTPS and disables discovery); TLS

1.2 (256 bit cipher minimum); Security Overview Page (status and configuration); RTSP Authentication;

IEEE 802.1X Client; Remote Accessible Audit logs; Role-Based Access Control and SD card encryption

Micro SD/SDHC/SDXC card slot, up to 512GB

Yes

mp4

Yes

Dry Contact Alarms, Motion Detection, Face Detection, Video Intelligence ,

AI Object Classification, Periodic Events

Yes, encrypted storage

802.3 at PoE+ Type 2 (30w )

22  to 30 VAC & VDC, Class 2 LP 72W

6 KV contact 8KV air

Ø8.03 x 13.74 in (Ø204 x 349 mm)

4 KG (8.8 lbs),  5.4 kg (11.9lbs) with pendant cap

RAL 9003 - Signal White

-14 F to +140°F (-10 C to +60 C)

-40 °F to 149°F (-40°C to +65°C )

Up to 95% RH Non-Condensing

IK10

2  pin analog video out service port

FCC Part 15 Class A; CE EN55032 Class A; AS/NZS CISPR 32 Class A; ICES-003/NMB-003 Class A

EN50130-4; EN61000-6-1

UL60950-1 /UL62368/UL60950-22; IEC 60950-1/62368/60950-22; CSA 22.2 No. 60950/62368; CE: EN60950-1 / EN62368 / EN60950-22; UL 50 (Type 4X); EN60529 (IP66/67)

RoHS; REACH; WEEE

Yes
